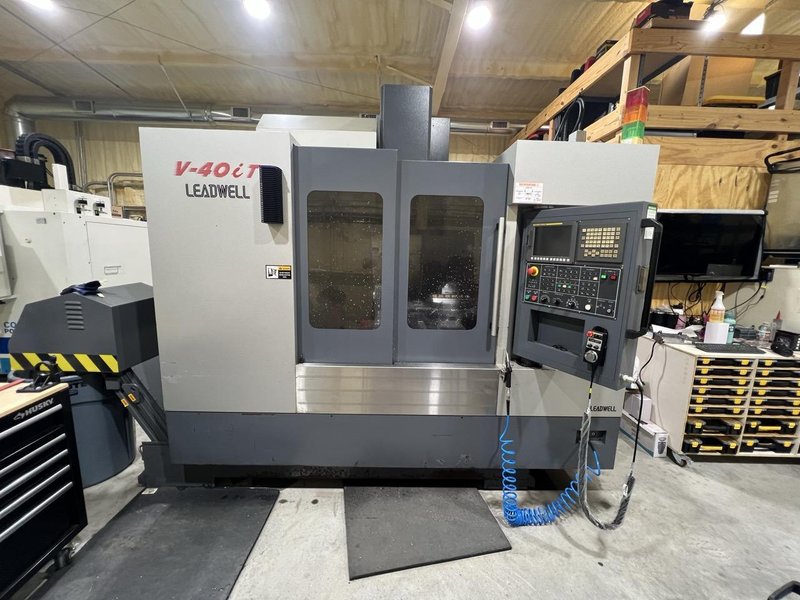

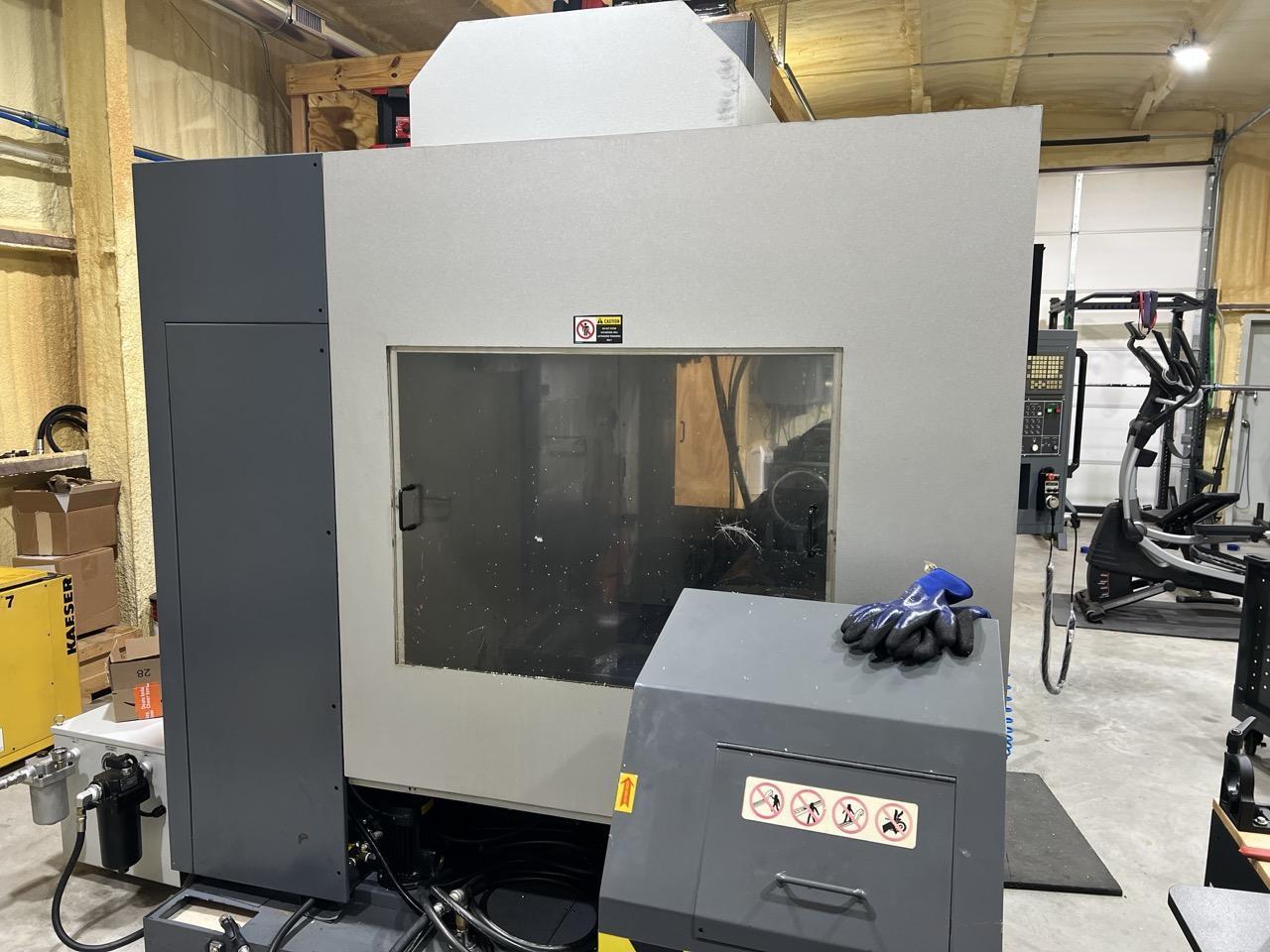

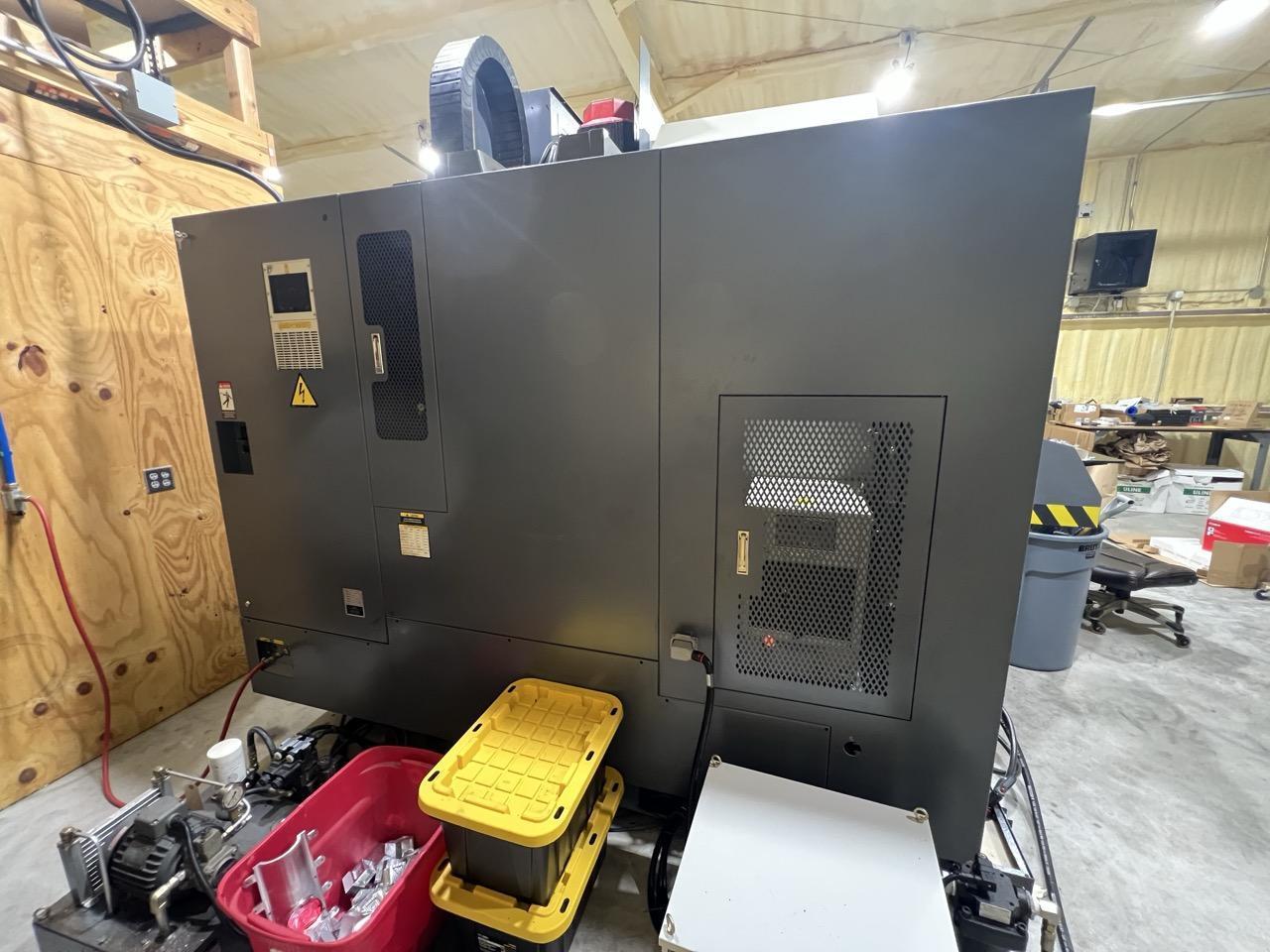

Leadwell V-40it 40″x20″ VMC 4th/5th Axis, 2011 – Trunnion Table, TSC and Low Hours
Brand
Category
Model
40it
Stock #
978936
Year
2011
Condition
Not specified
Location
Not specified
|
Spindle Speed: 12000 RPM
Number of tables / pallets: 1
Table size: 22″ X 13.3″
Weight on table: 440 / 220 LBS.
Integrated nc table size: 13.8″ ROUND
Spindle nose to table: 1.9″ – 21″
Main spindle speeds: 12,000 RPM
Main spindle taper: 40 CT
Main spindle horse power: 24.8 HP
X – axis travel: 40″
Y – axis travel: 25″
Z – axis travel: 21″
A – axis travel: + – 90 DEGREES
B – axis travel: .001 DEGREE
Rapid traverse x, y, z: 1417, 1417, 1417 IPM
Cutting feed rate: 394 IPM
Automatic tool changer: 24 ATC
Tool diameter: 3.7″ / 5.2″
Tool length: 9.8″
Machine weight: 15,432 Lbs.

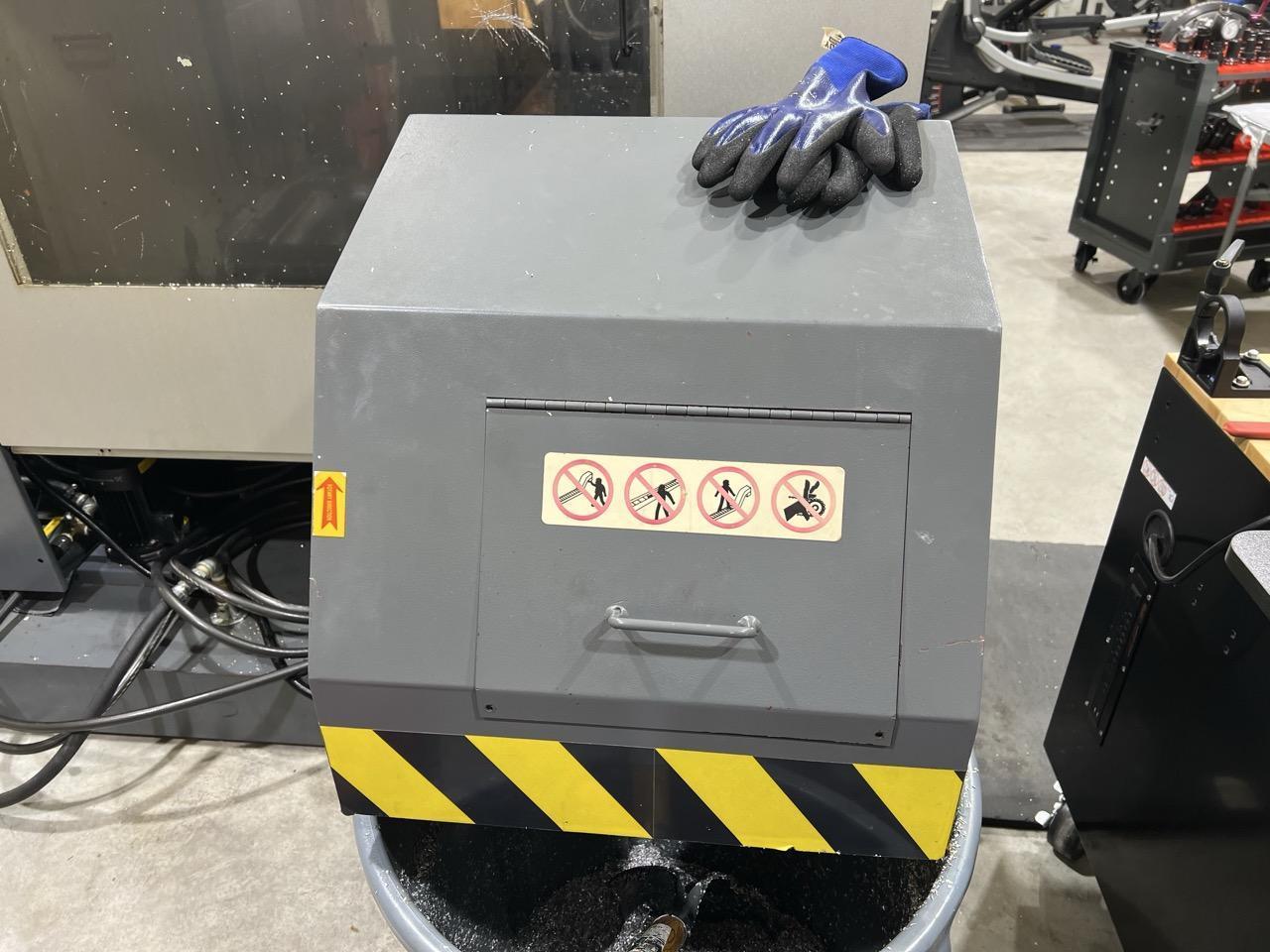

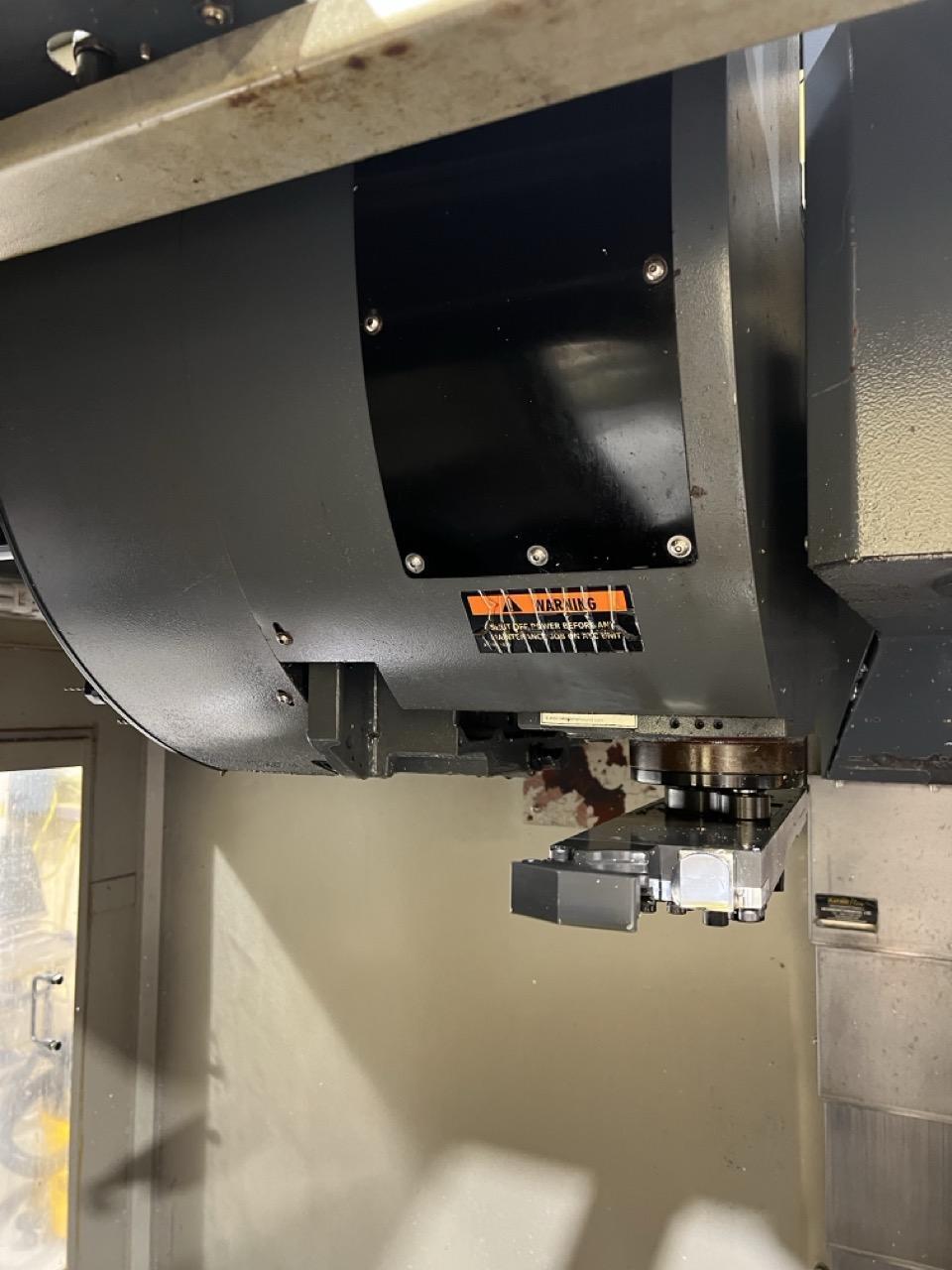

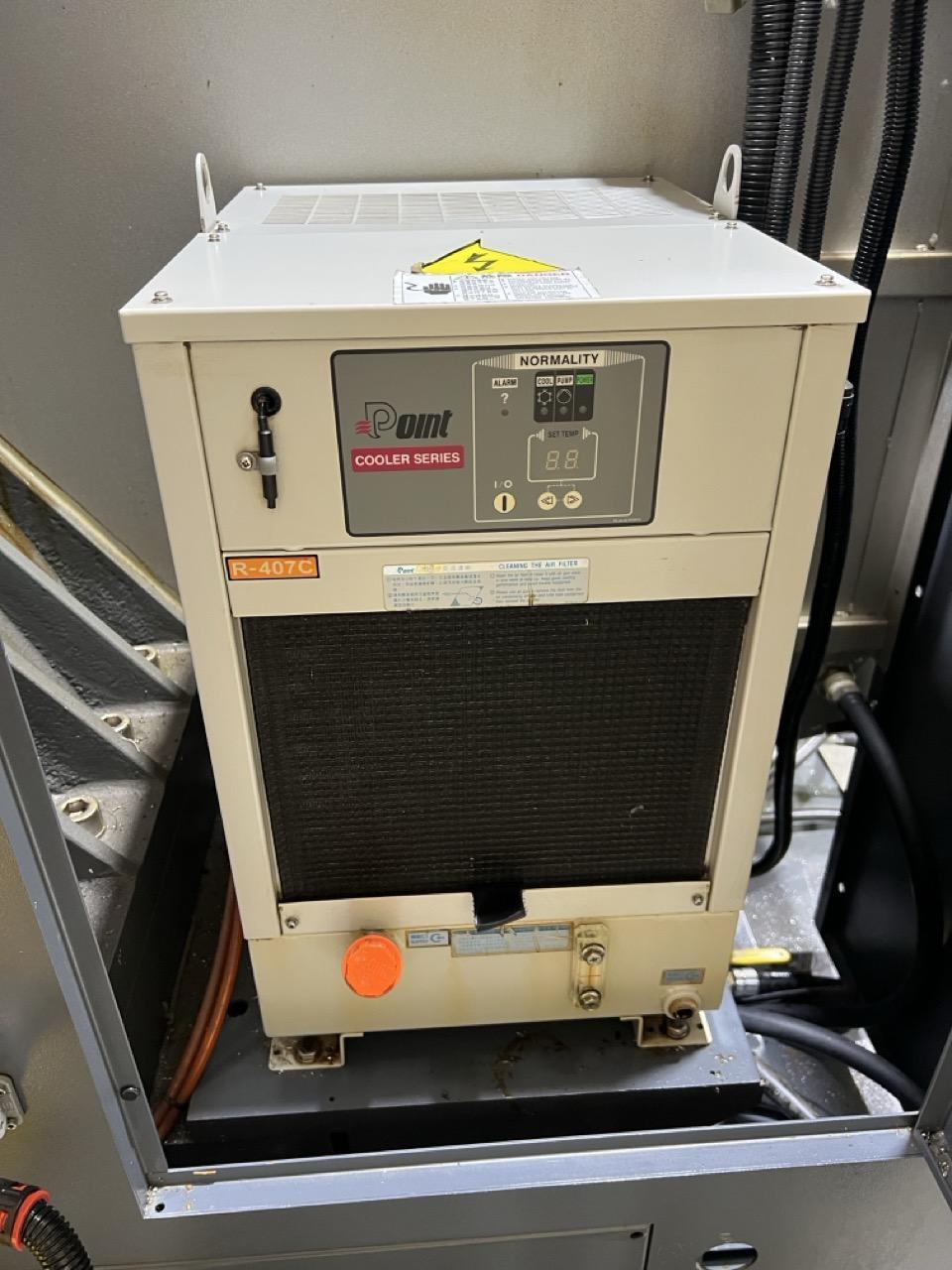

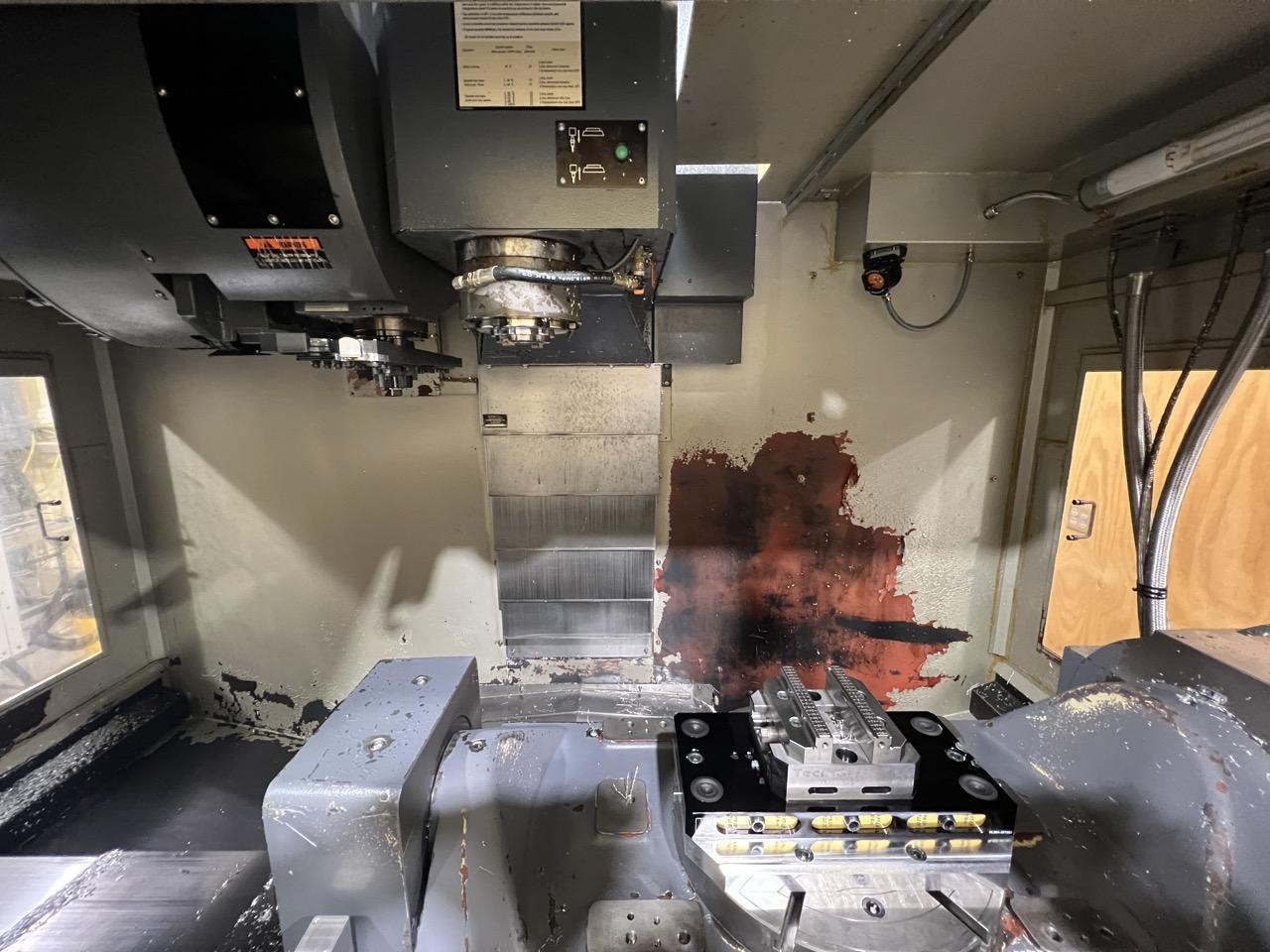

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc G68.2 Renishaw Probe/Tool Setter Package Trunnion Table Thru Spindle High Pressure Coolant High Pressure Coolant Chip Conveyor Cooler All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
