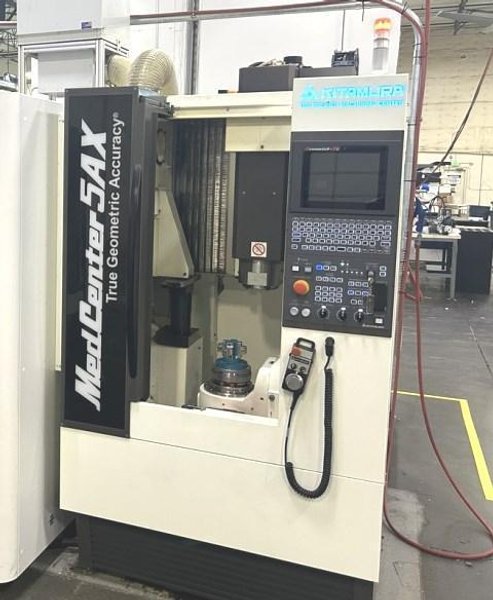

Kitamura MedCenter 5AX VMC CNC, 2024 – Renishaw Probe, 120 ATC, Chip Conveyor

Travels: X-Axis: 10″ Y-Axis: 13″ Z-Axis: 13″ A-Axis: -120 to + 120 Degrees C-Axis: 0 to 360 Degrees

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 6.7″ Diameter Max Table Load: 44 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse X/Y-Axis: 2,362 IPM Z-Axis: 1,969 IPM A-Axis: 36,000°/min C-Axis: 72,000°/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Positioning Accuracy: ±0.000079″ Repeatability: ±0.000039″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle: Speed: 300-30,000 RPM Taper: HSK-E40 Power: 469 HP

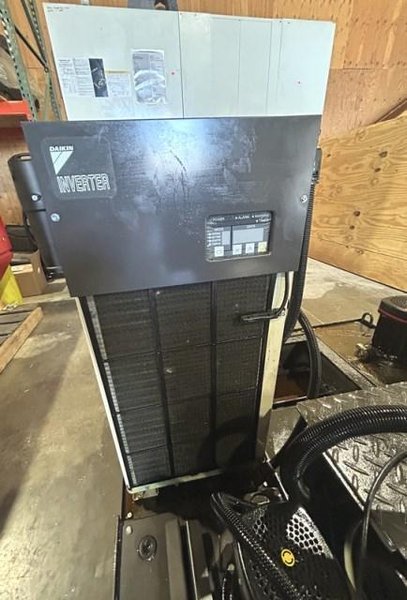

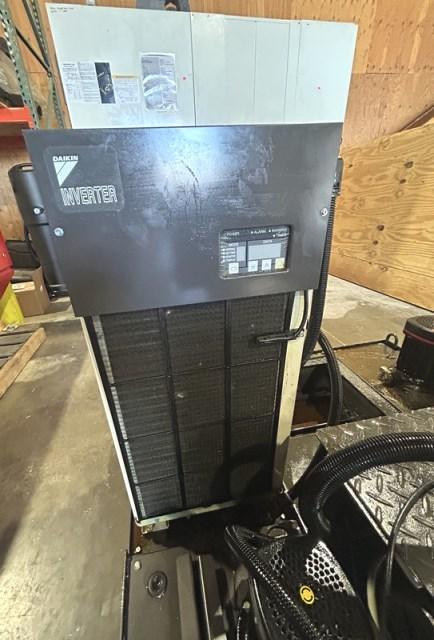

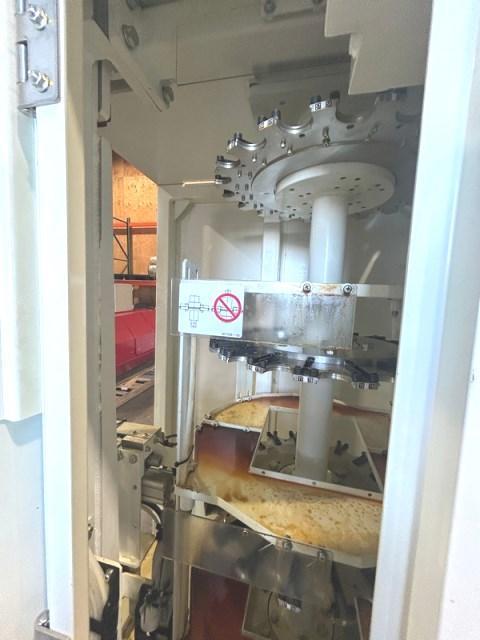

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Integrated Trunnion Rotary Table Arumanik Mi Control Renishaw NC4+ Blue F115C Probe 120 ATC Spindle Oil Cooler Chip Conveyor (Scraper Type)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: ~91.7″ W x 116.1″ L x 97.2″ H Weight: ~9,900 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
