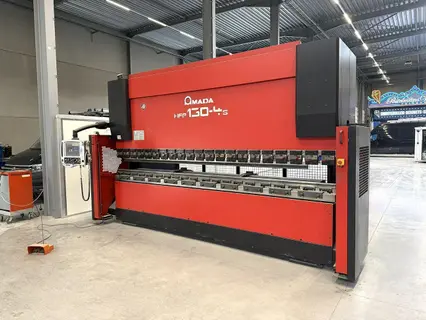

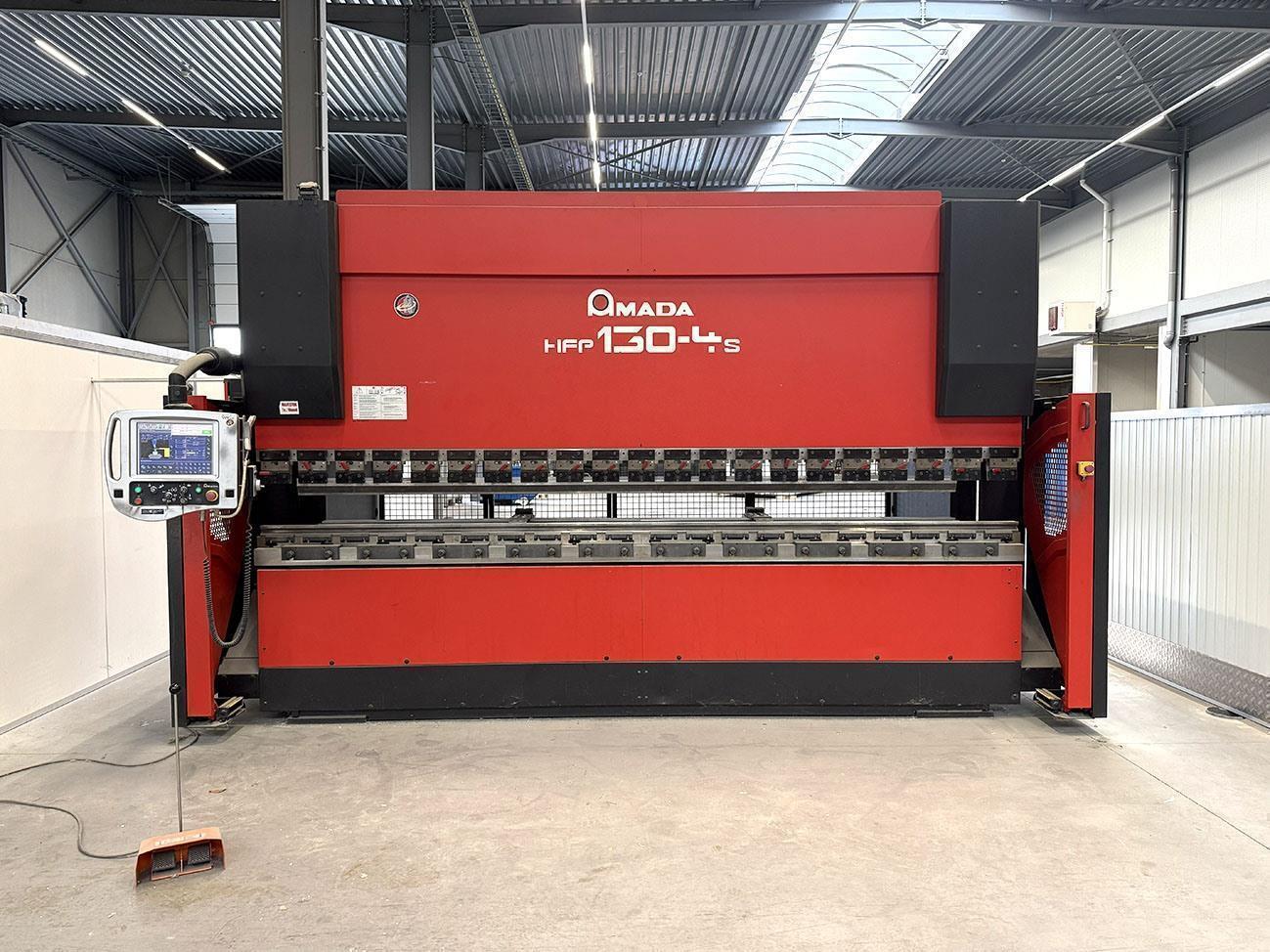

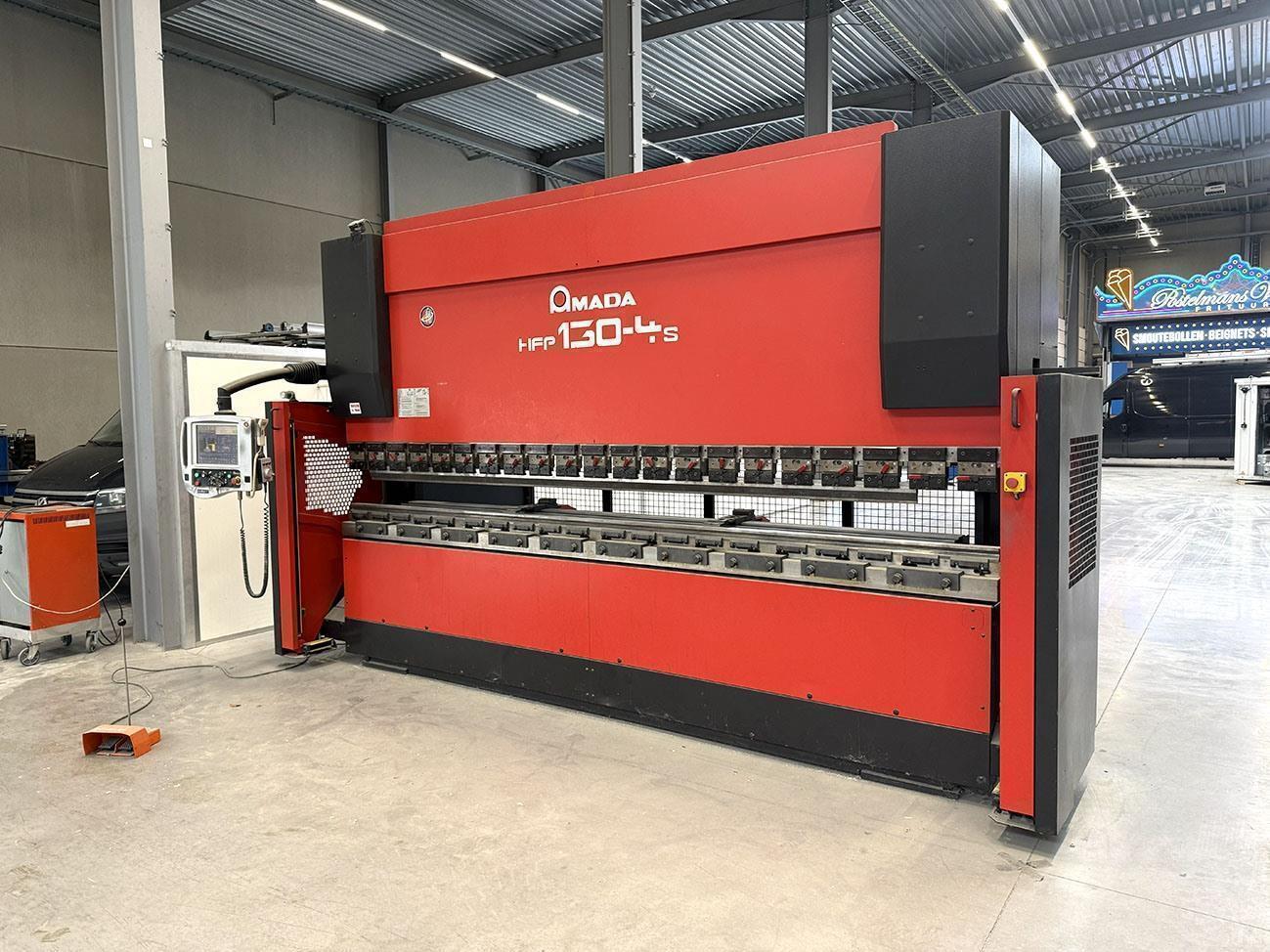

Amada - HFP 130 ton x 4100 mm CNC

Brand
AMADA
Category
Bending & Forming Equipment
Type
Brakes, Hydraulic
Model
HFP 130 ton x 4100 mm CNC
Stock #
O.01 16217
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 130 ton x 4100 mm

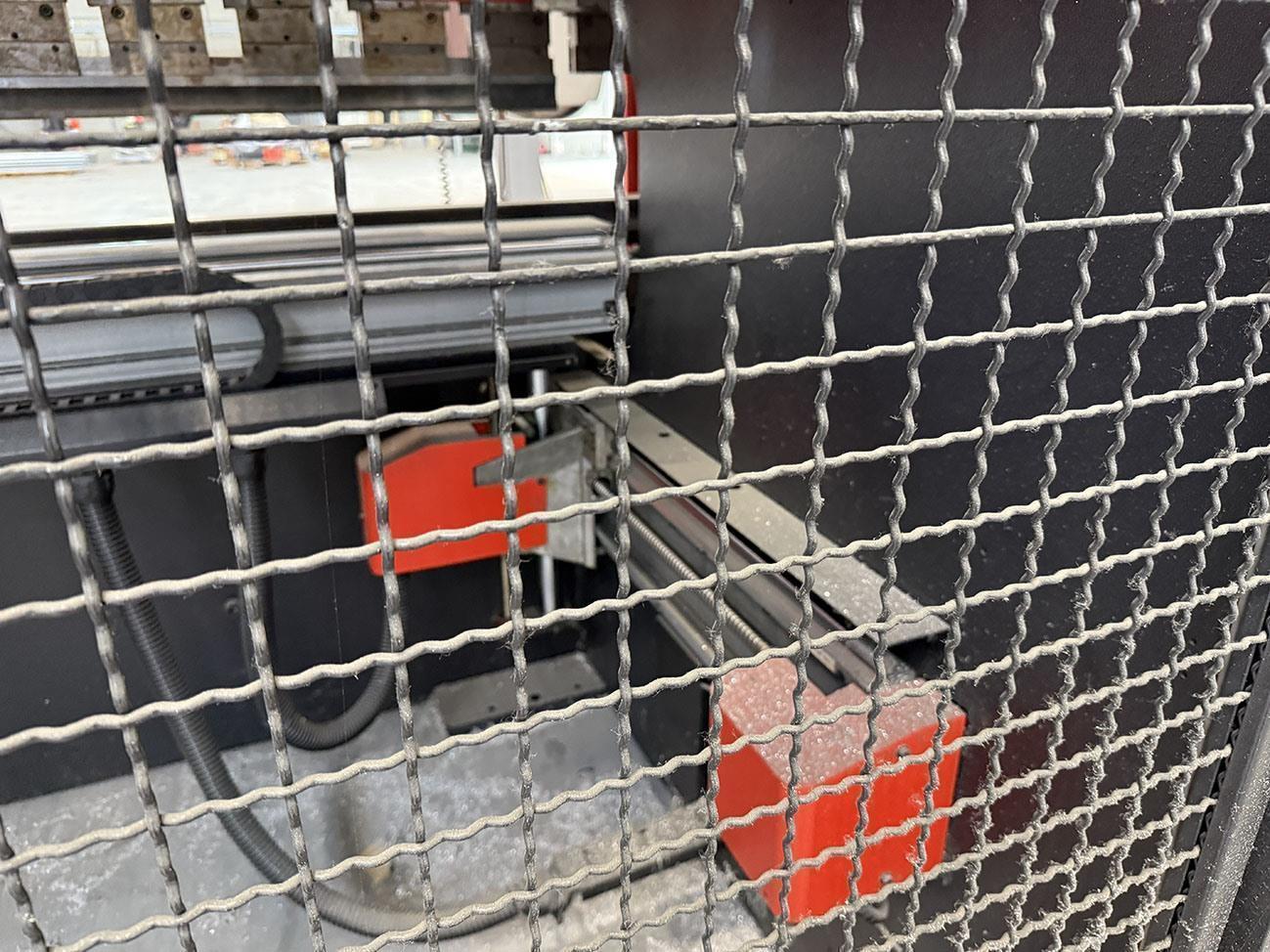

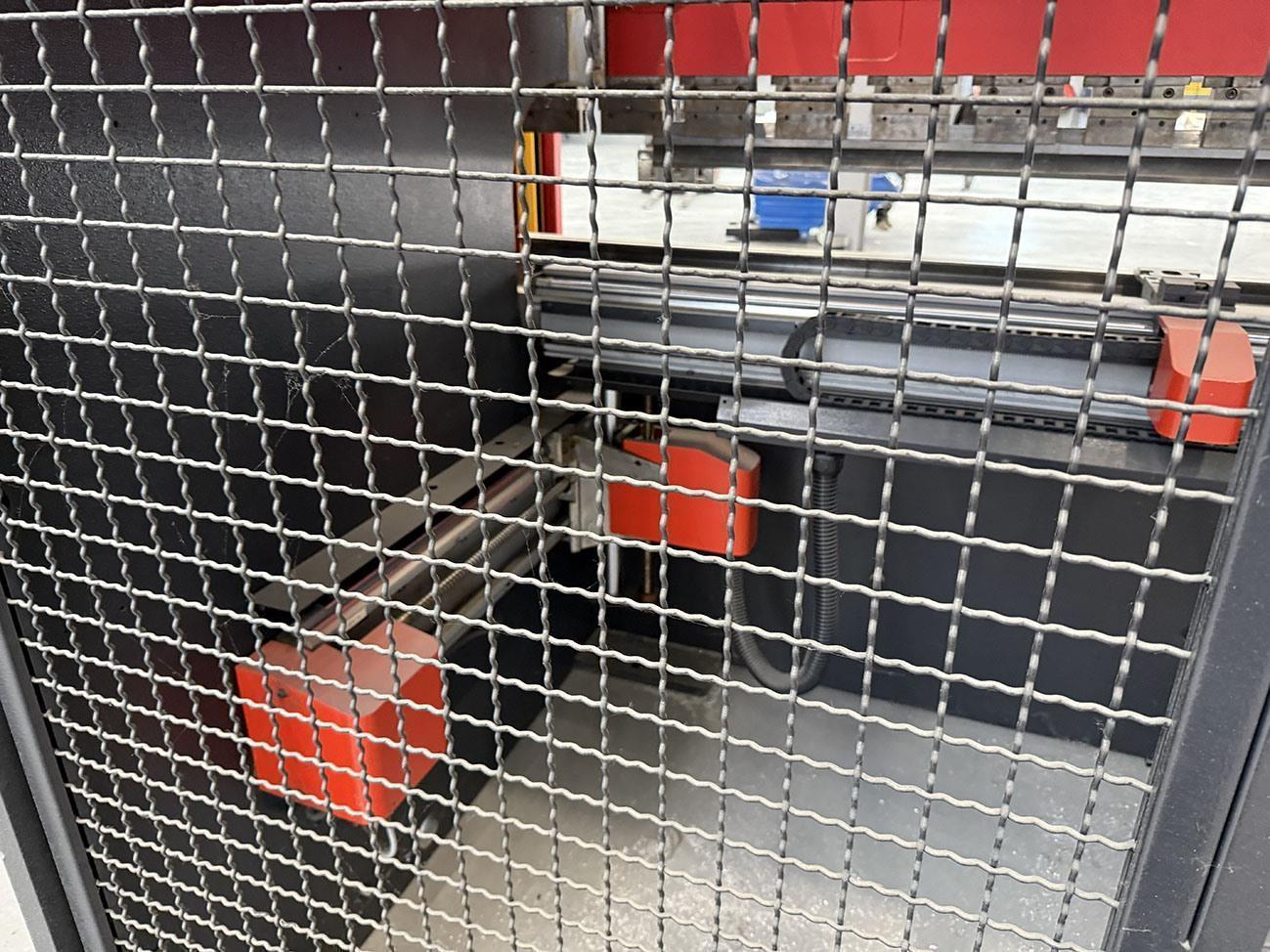

  • Backgauge CNC

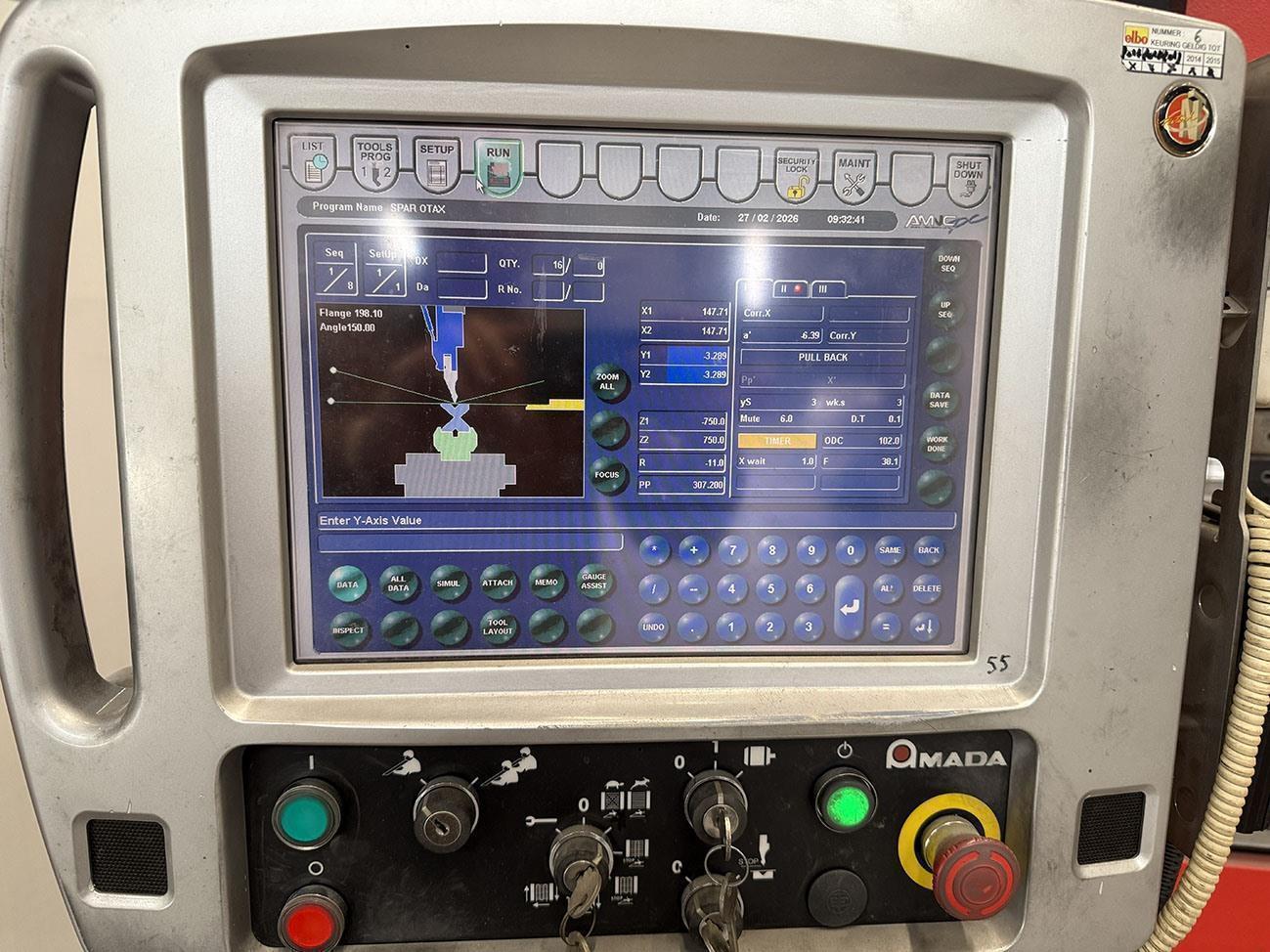

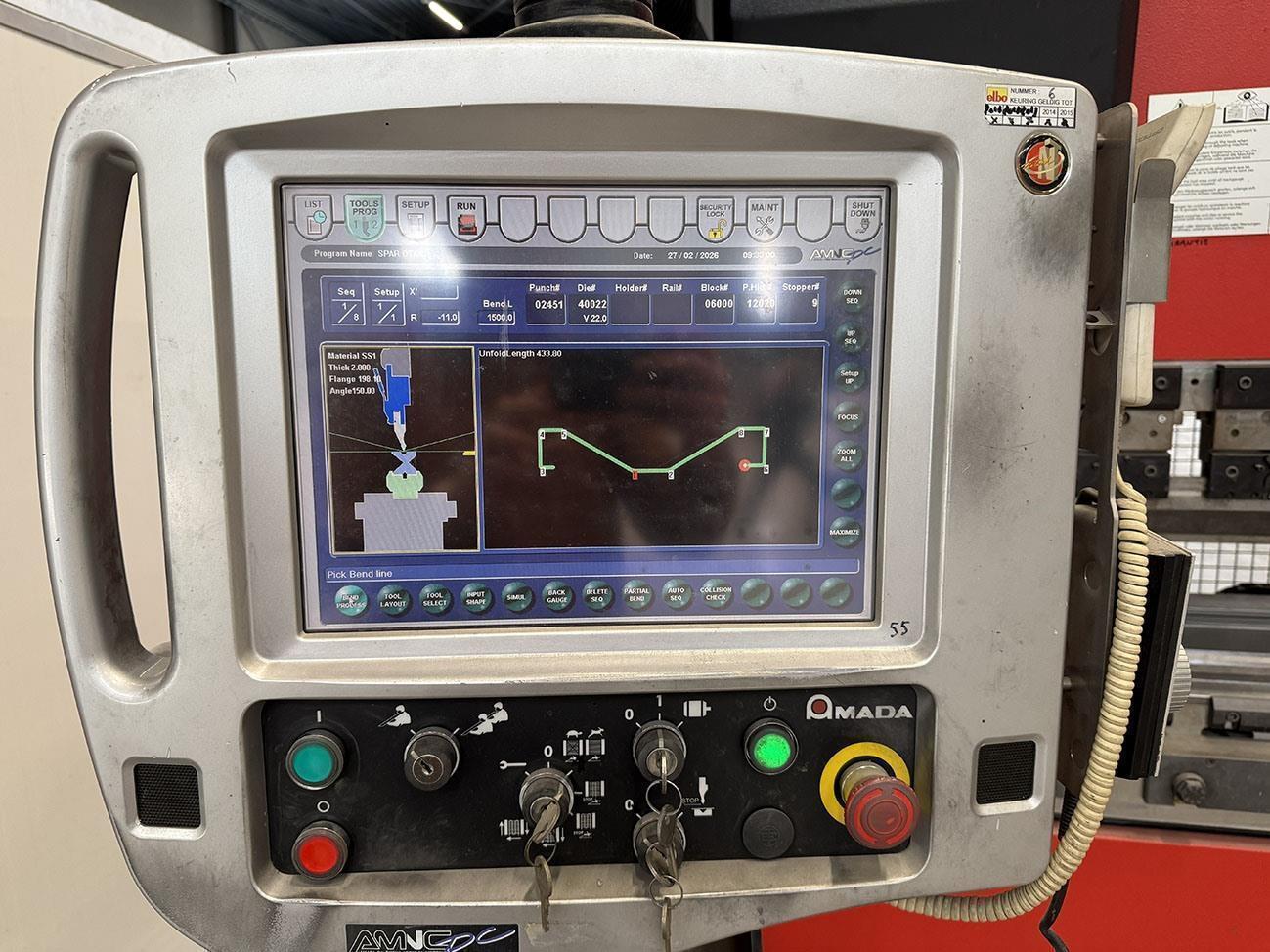

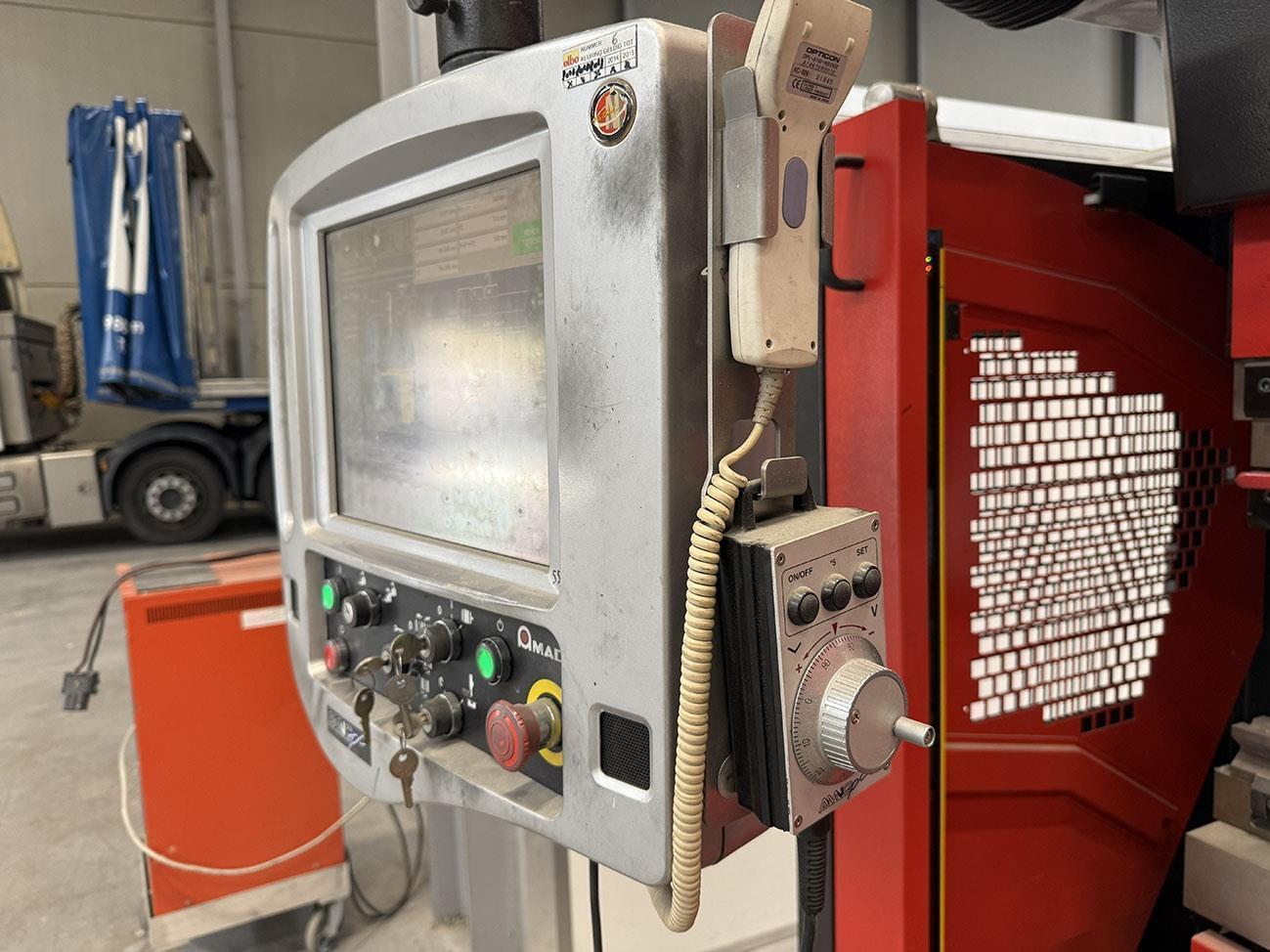

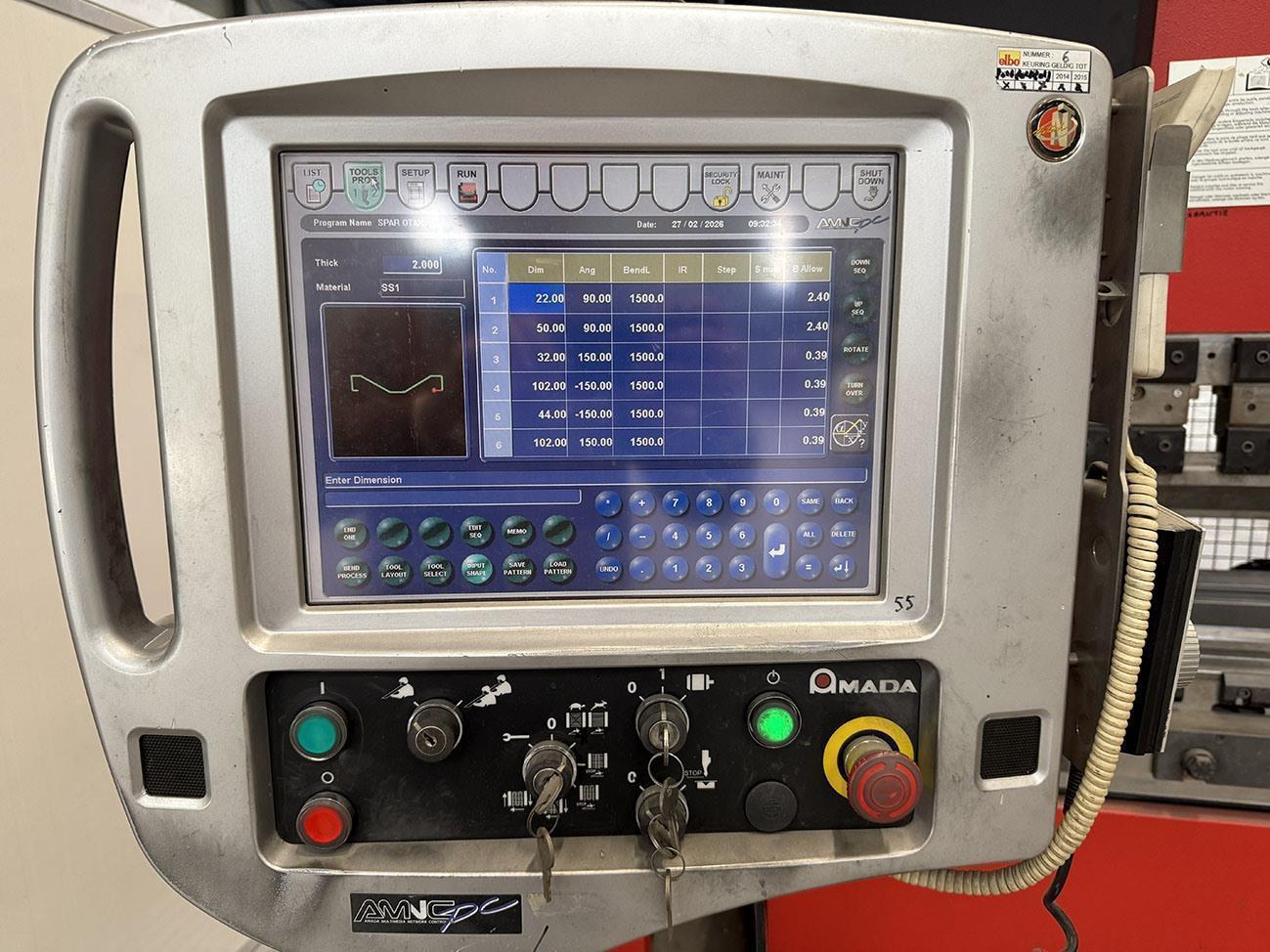

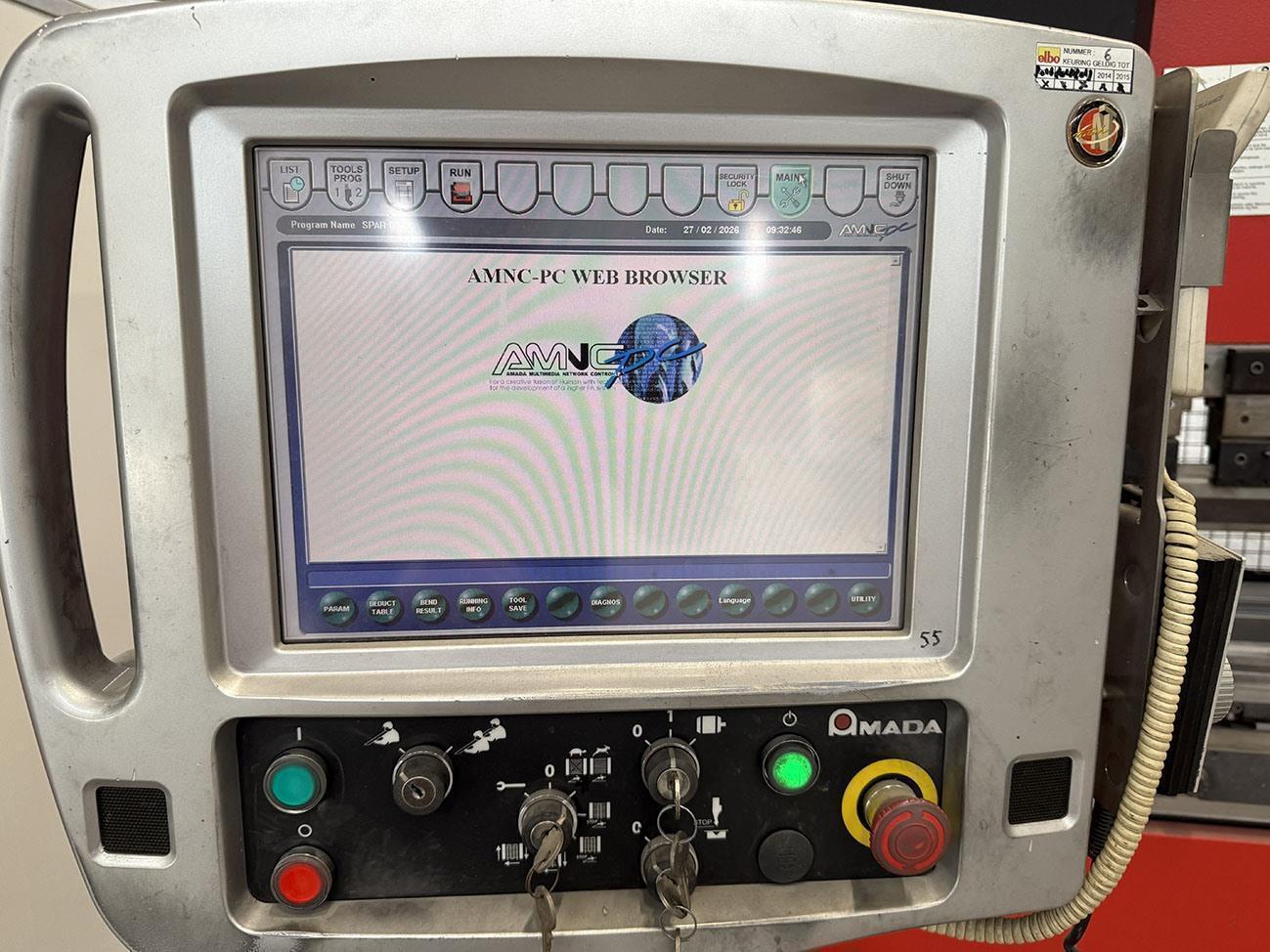

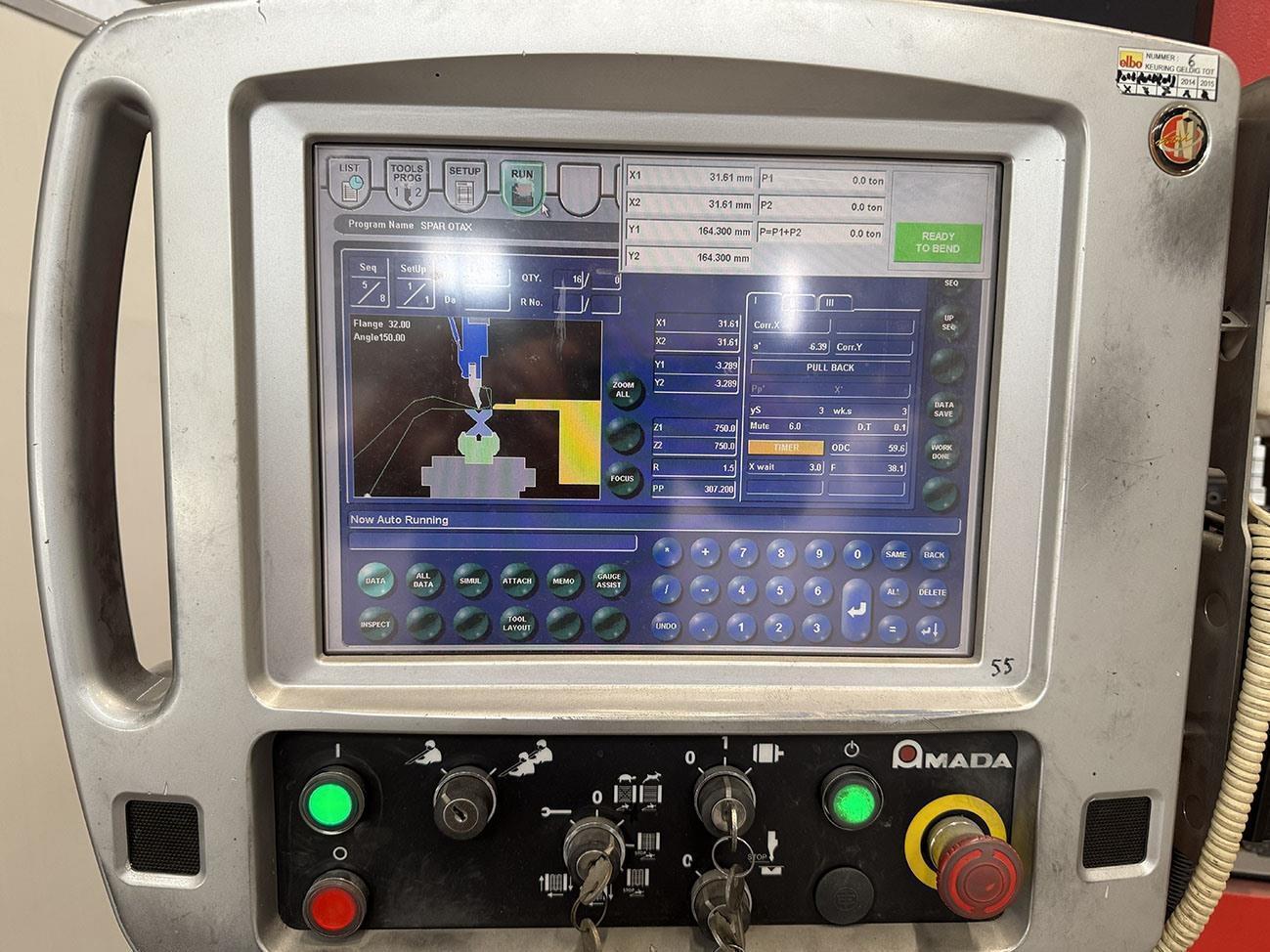

  • Control AMNC-PC Touch
  • Passage between uprights 3760 mm
  • Max stroke 200 mm
  • Max distance between table -- ram 470 mm
  • Depth of throat 420 mm
  • Table width 180 mm
  • Locking speed 200 mm/sec
  • Working speed 10 mm/sec
  • Electric motor (power) 9 kW
  • Length 5840 mm
  • Depth 3000 mm
  • Height 2900 mm
  • Weight 11,3 ton

Additional info

  • 7 axes: Y1 / Y2 / X / X2 / Z1 / Z2 / R
    Amada crowning

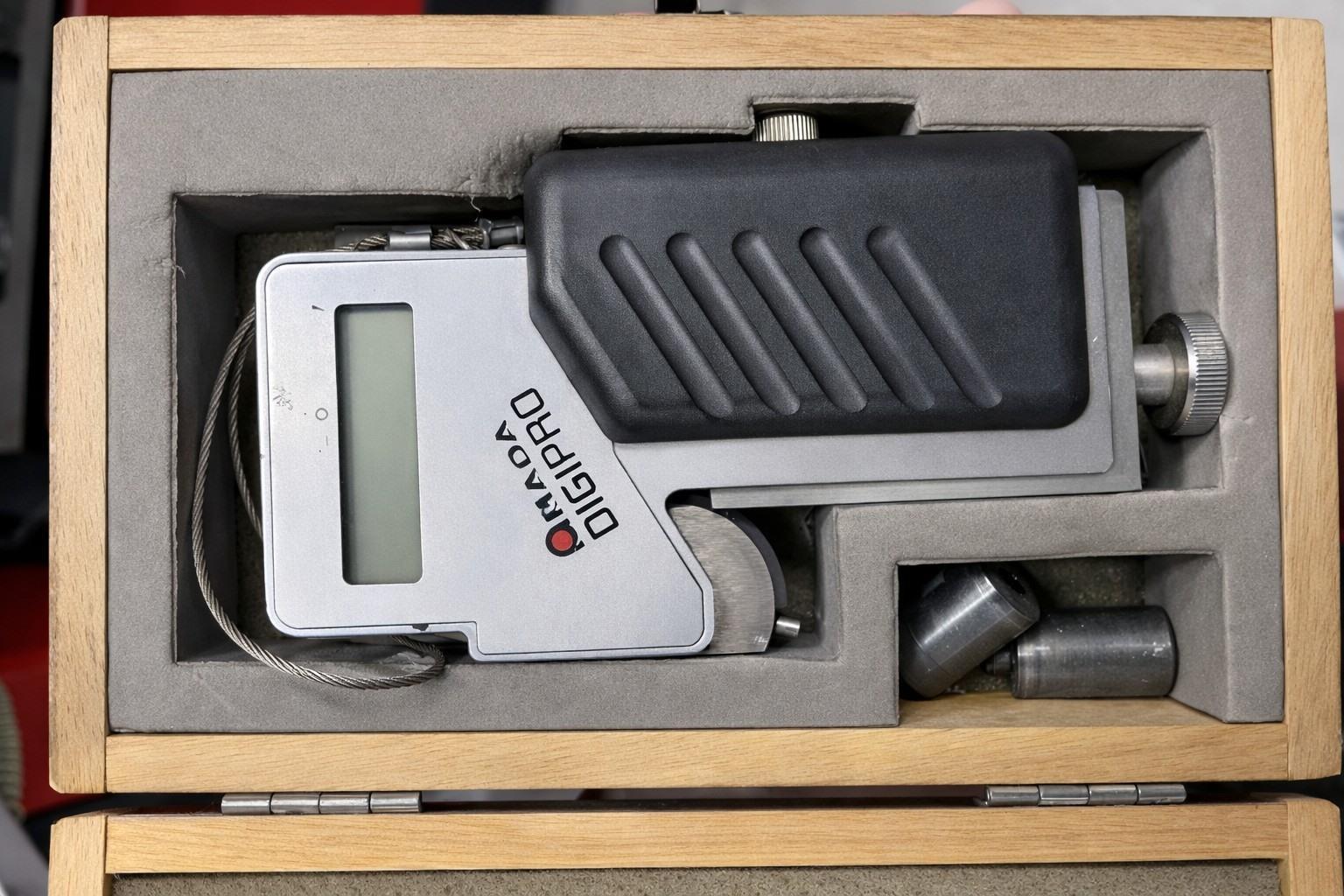

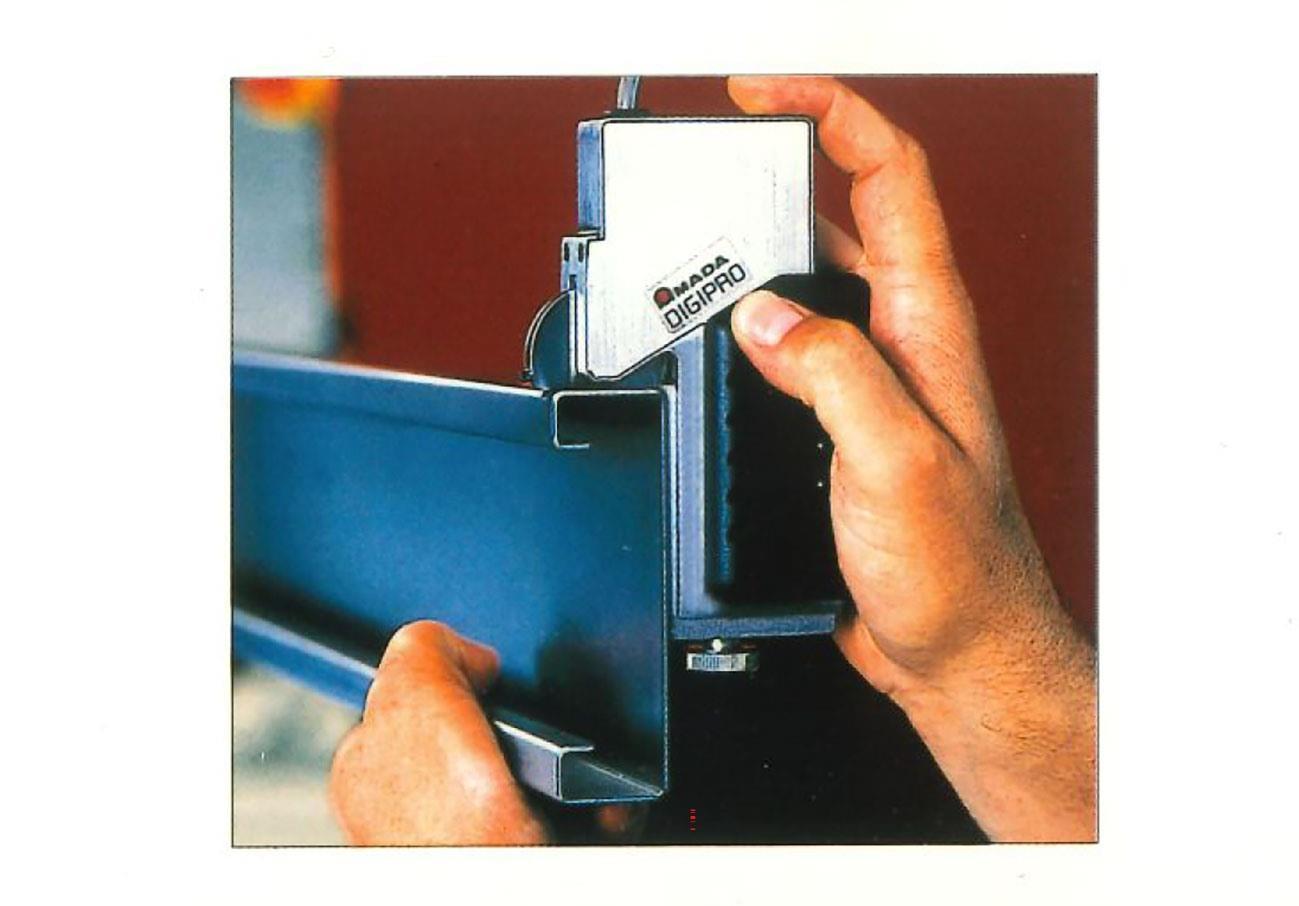

    with Digipro option: CNC bending angle measuring system

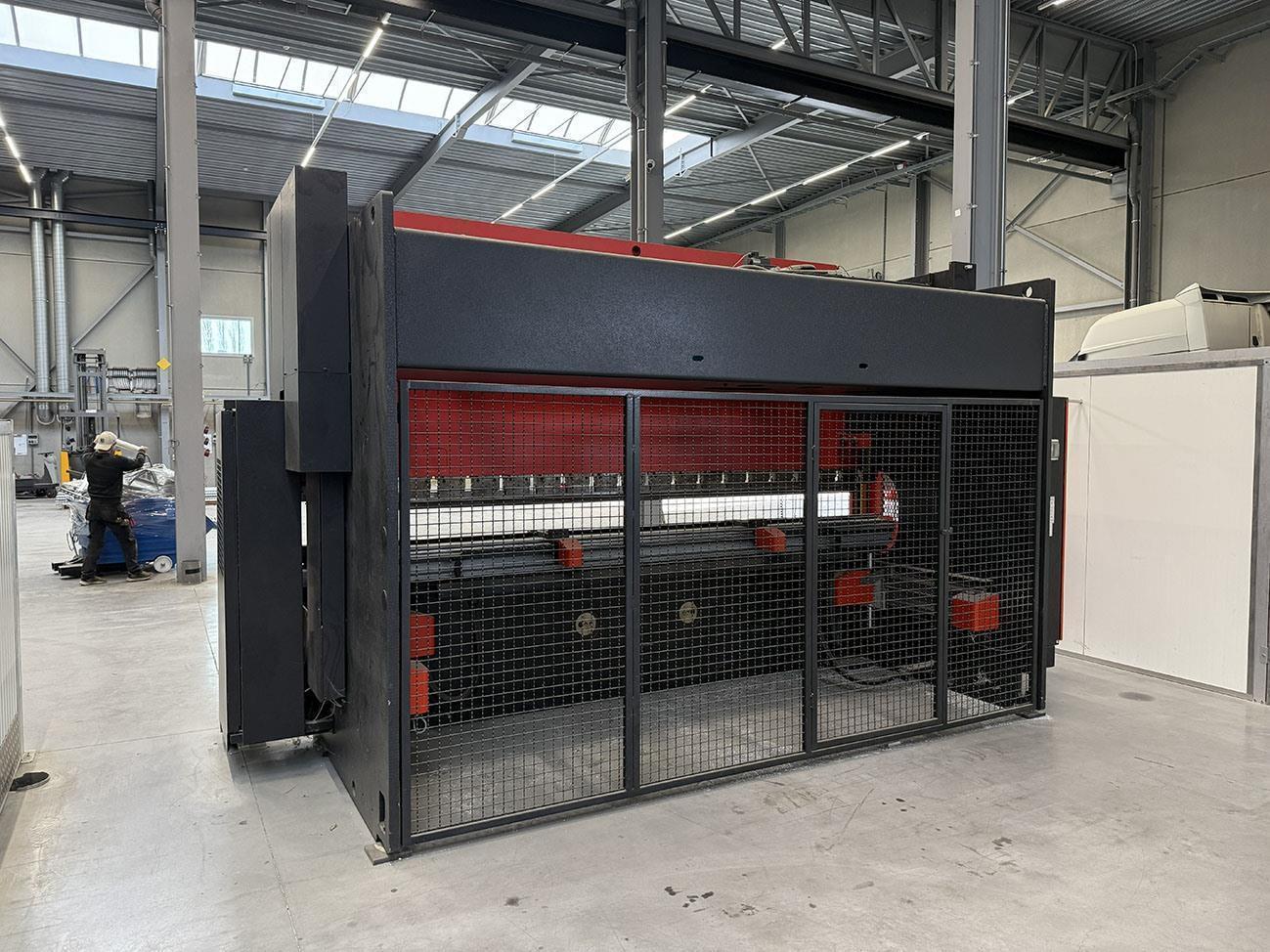

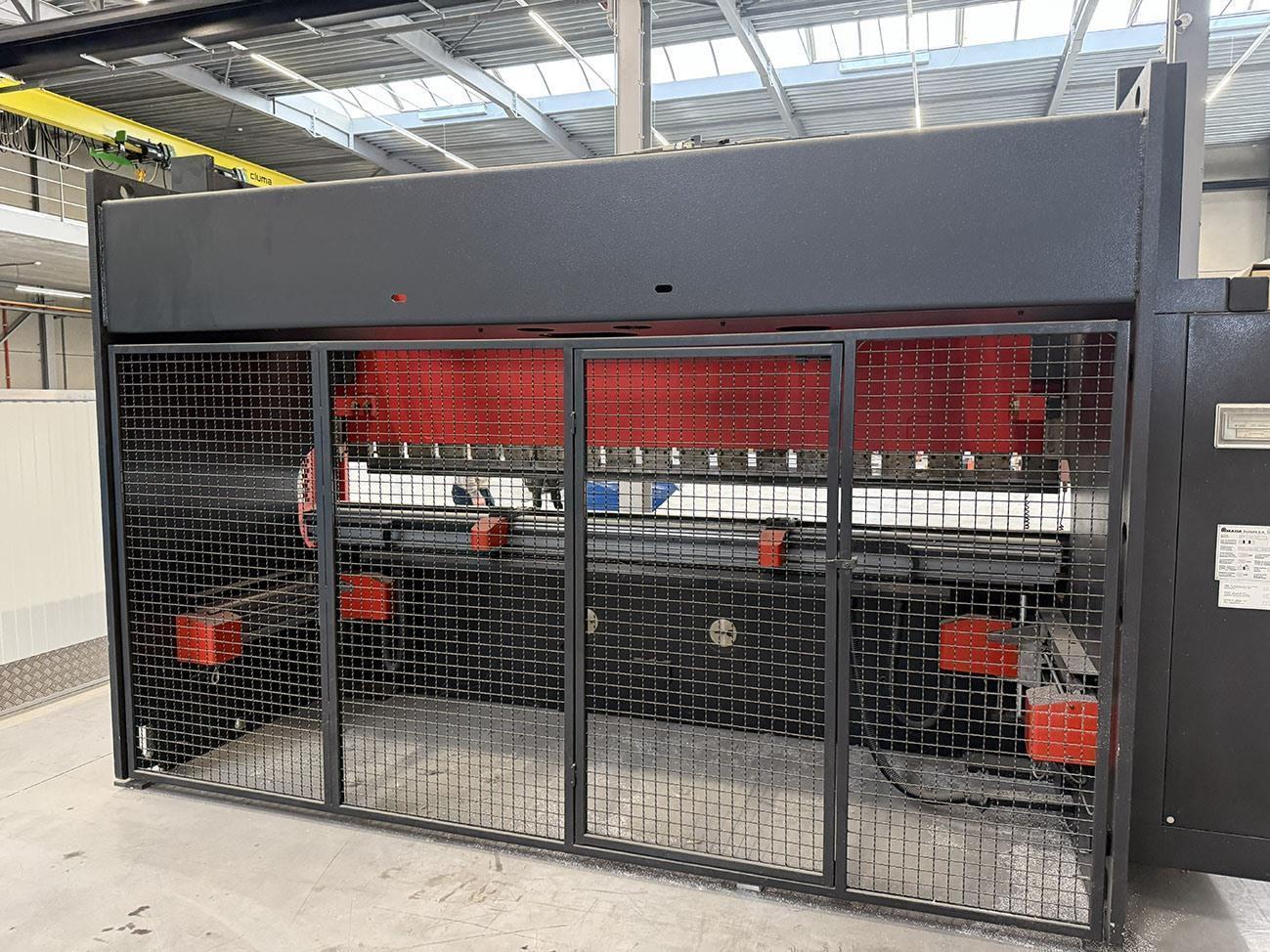

    Sick laser safe security at the front

    Bending knives in tooling cabinet:
    • 00300 – 60° - R6.0 2x 835
    • 04706 – 88° - R0.6 4x 835
    • 05206 – 88° - R0.6 10, 15, 20, 40, 50 , 100R, 100L, 200, 300
    • Z24511 – 45° - 0.37° 4x 835
    • Z24512 – 45° - 0.37° 415
    • Z24513 – 45° - 0.37° 10, 15, 20, 40, 50, 100L, 200, 300
    • 45308 – 88° - R0.8 10, 15, 20, 40, 50, 100R, 100L, 125, 138, 200, 270, 300, 310, 370, 835

    Bending dies in tooling cabinet:
    • 07900 – 88° - V20 4x 835
    • 07980 – 88° - V20 10, 15, 20, 40, 50, 100, 200, 400
    • 07700 – 88° - V16 4x 835
    • 07780 – 88° - V16 10, 15, 20, 40, 50, 200, 400
    • T12451 5x 835
    • 129001 5x 835
