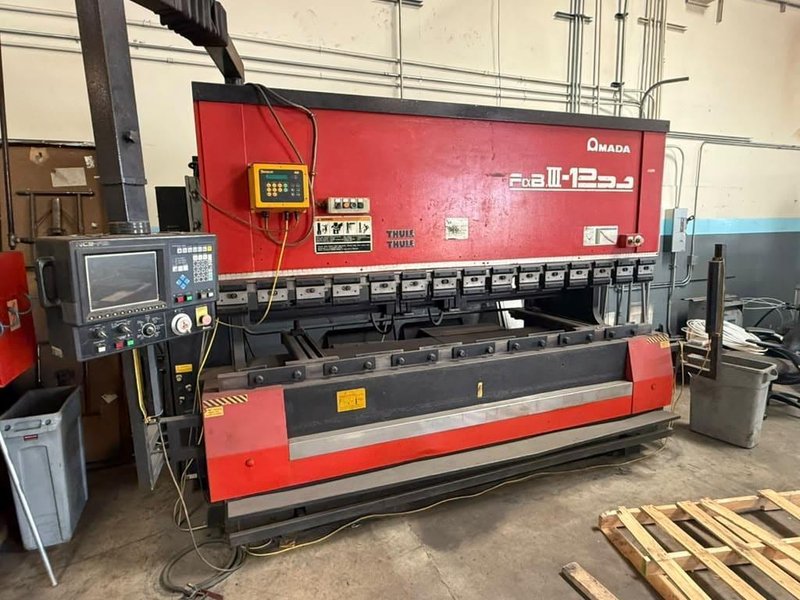

125 Ton x 10′ Amada FBD-1253FS Hydraulic Press Brake, 1995

Amada FBD-1253FS 125-Ton CNC Hydraulic Press Brake

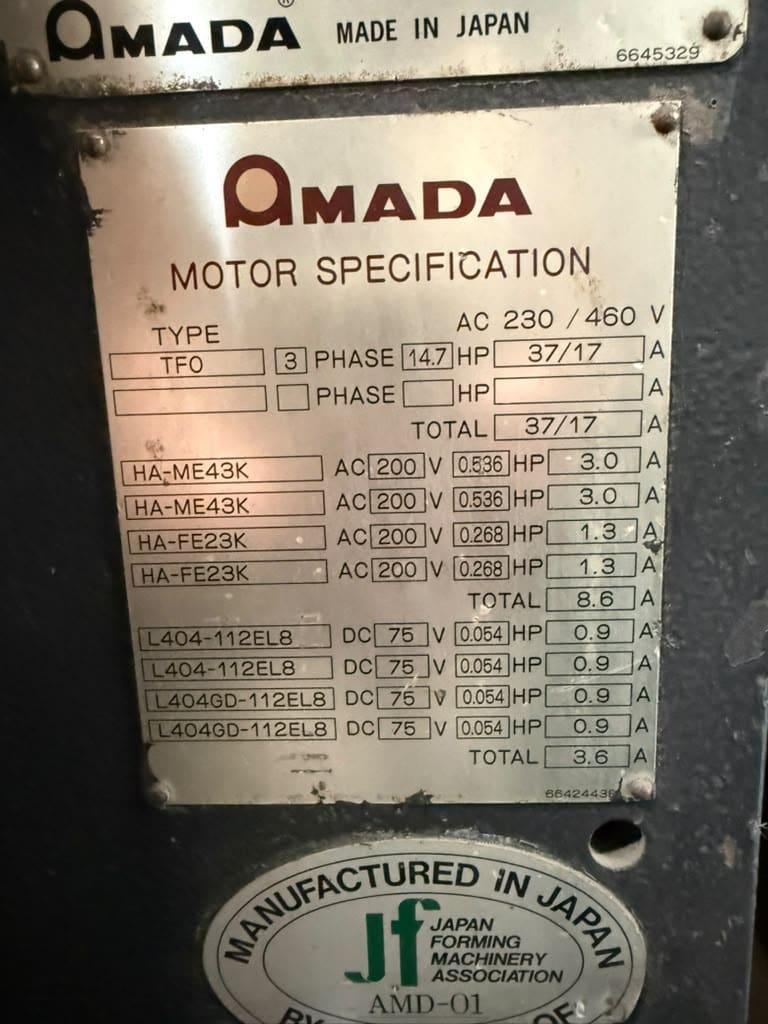

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: FBD-1253FS Capacity: 125 tons Table Length: 3000mm / 118.1″ Max Bending Length: 3000mm / 118.1″ Distance Between Uprights: 2700mm / 106.3″ Throat Depth: 400mm / 15.75″ Length of Stroke: 150mm / 5.91″ Open Height: 420mm / 16.54″ Motor: 3-Phase, 400/460V / 230V, 11.8 kVA (14.7 HP) Hydraulic Oil Reservoir: 90L / 23.76 gal Overall Dimensions: 171.7″L x 58.9″W x 103.0″H Net Weight: 8,800 kg / 19,400 lbs Control: Amada NC9-FS CNC Control Made in Japan

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

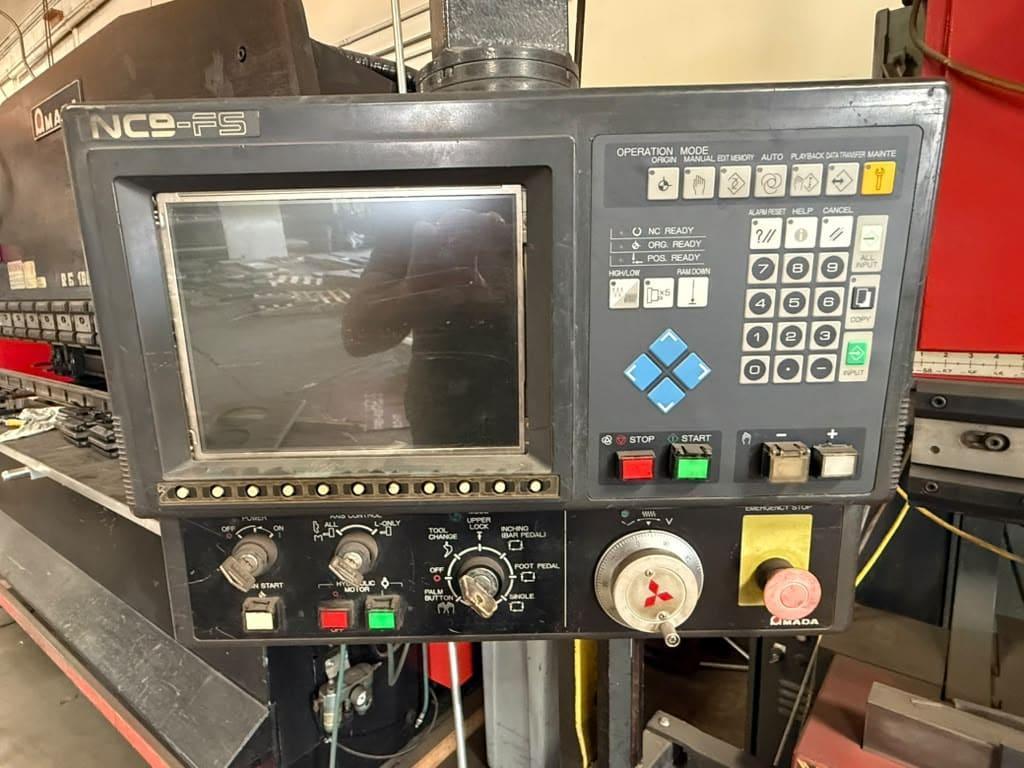

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Amada NC9-FS CNC control with programmable backgauge

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
