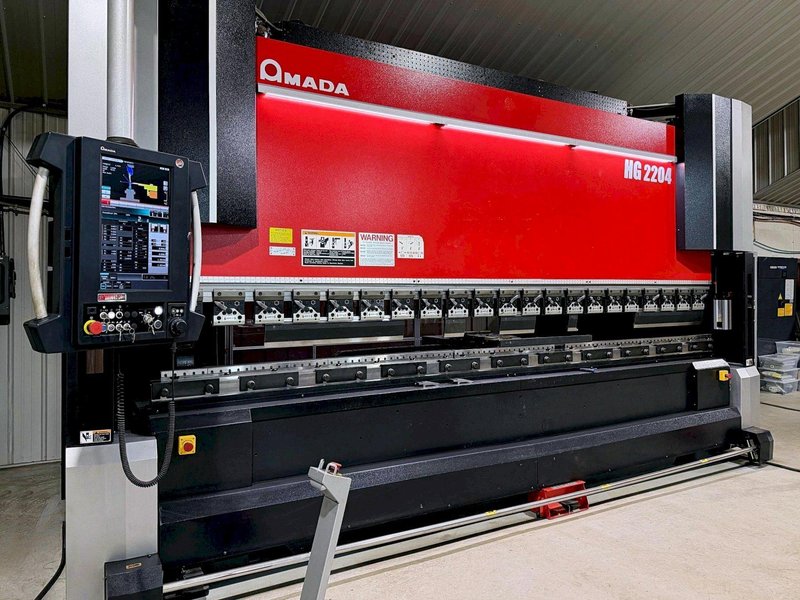

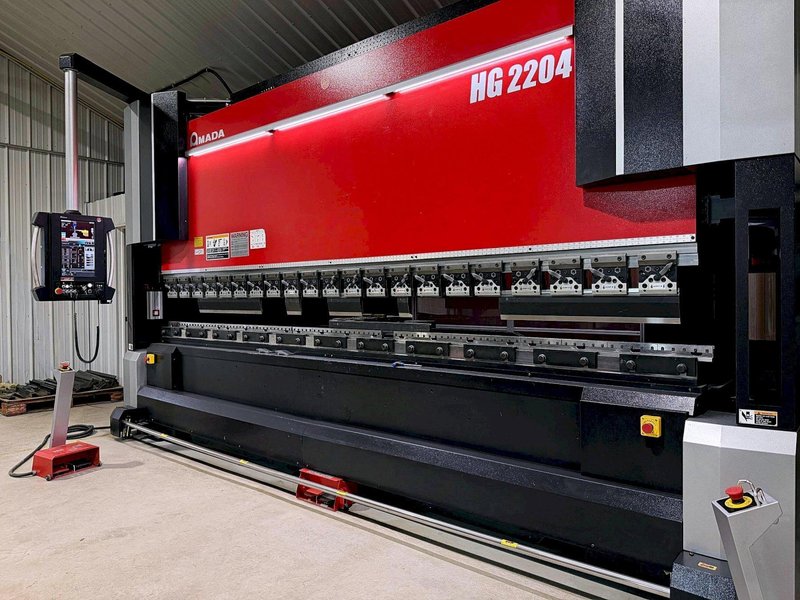

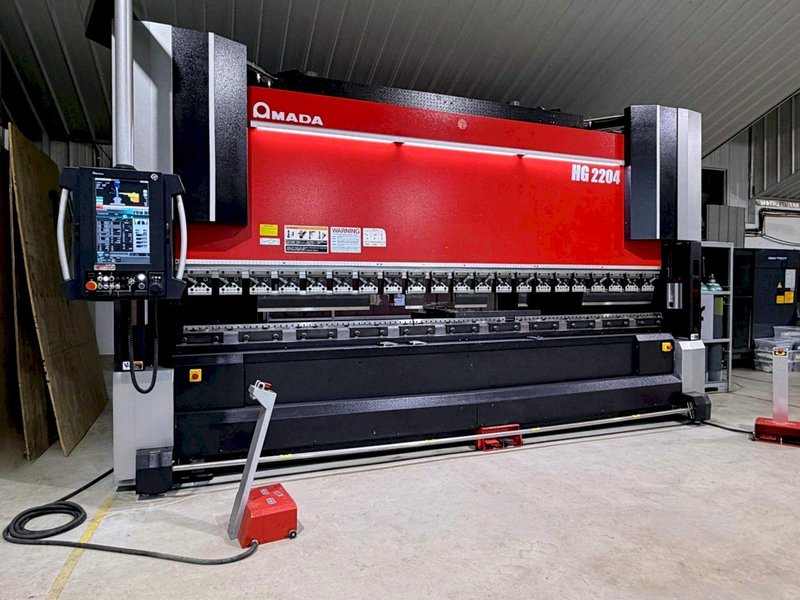

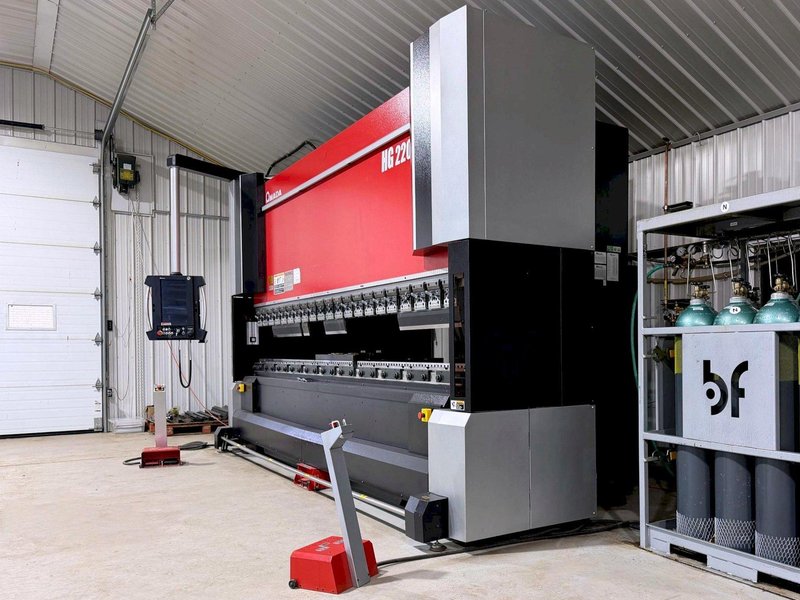

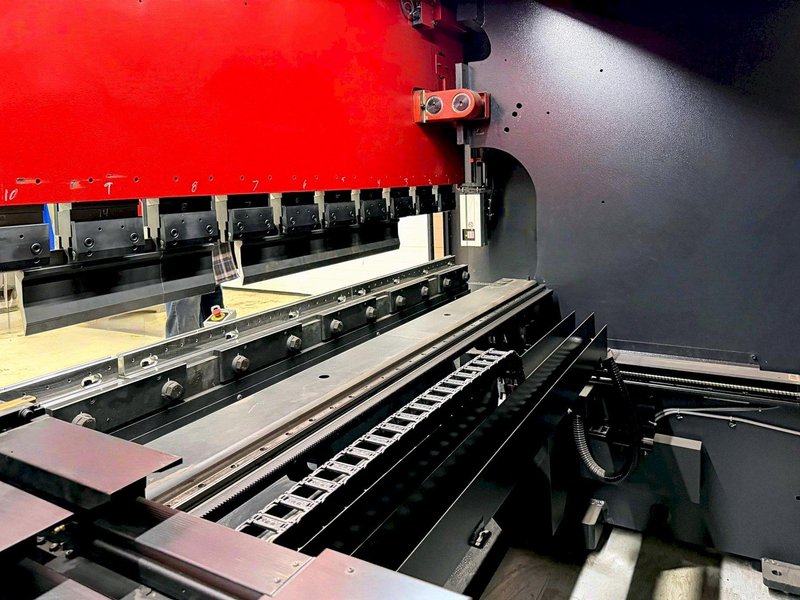

Amada HG 2204 243 Ton x 14' Bed Hydraulic Press Brake
Brand
Category
Model
HG 2204
Stock #
100648
Year
2023
Condition
Excellent
Location
Illinois
| Control | AMNC3i |
| Program Cap. | Unlimited (Online) |
| Capacity | 243 Tons |
| Max. Bend Length | 169.3” |
| Dist. Between Frames | 148” |
| Stroke Length | 9.8” |
| Open Height | 20.5” |
| Throat Depth | 17.7” |
| Machine Stroke | 9.8” |
| Table Height | 37.4” |
| Approach Speed | 8.7 IPS |
| Bending Speed | 0.79 IPS |
| Return Speed | 9.8 IPS |
| Number Of Cylinders | 3 |
| Backguage Range | 27.5” |
| Ram Repeatability | +\- .00004” |
| Hydraulic Fluid Cap. | 33 Gal. |
| Nominal Supply Current | 100 A |
| Provided Power | 36 kVA |
| Dimensions | W 95” x L 209” x H 127” |
| Machine Weight | 44,100 Lbs. |
|

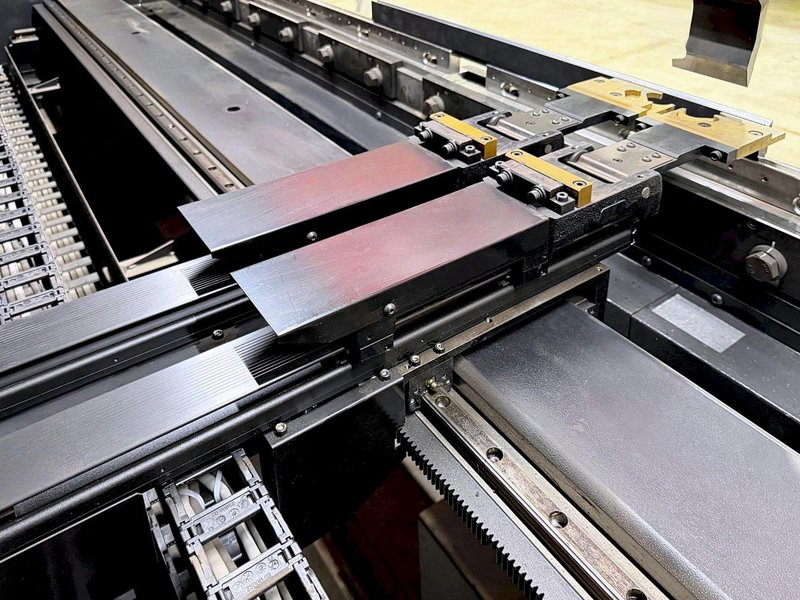

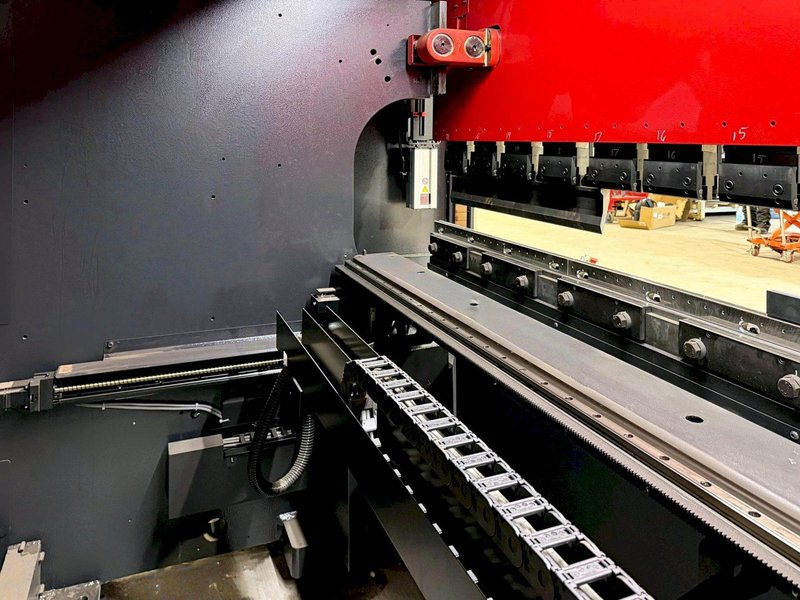

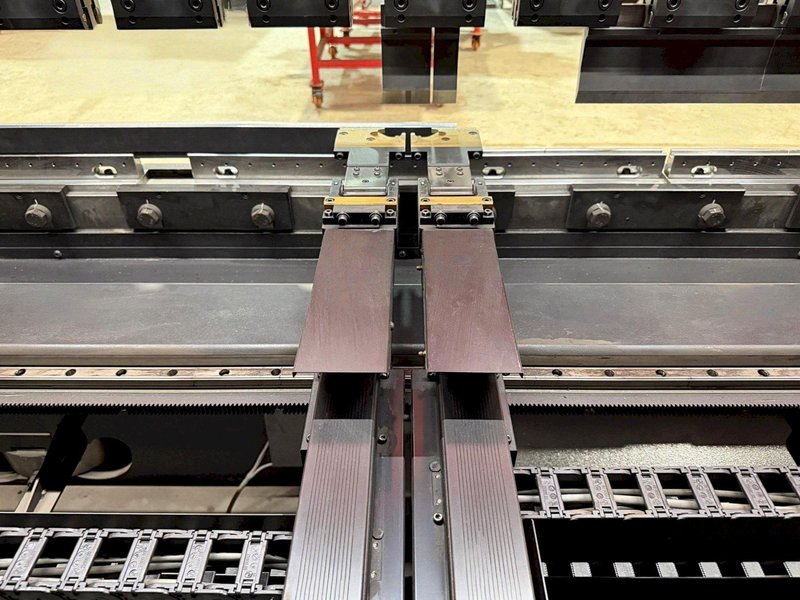

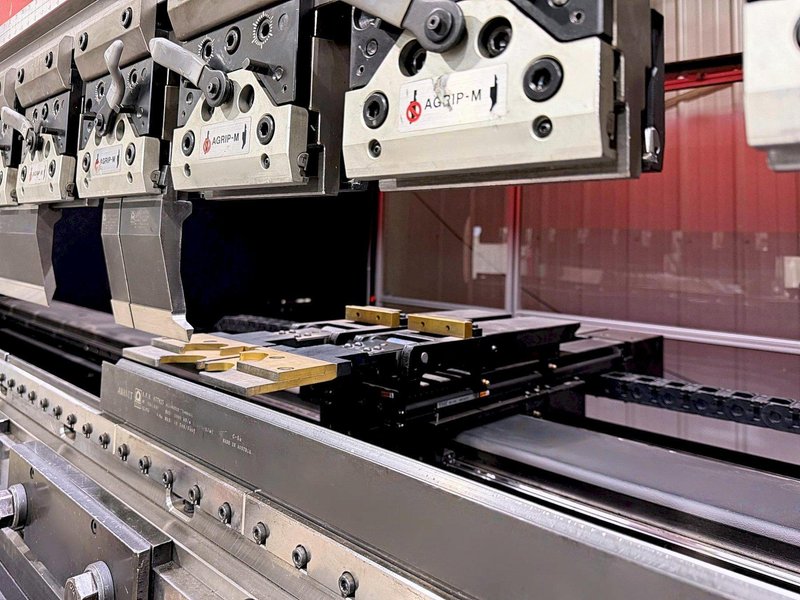

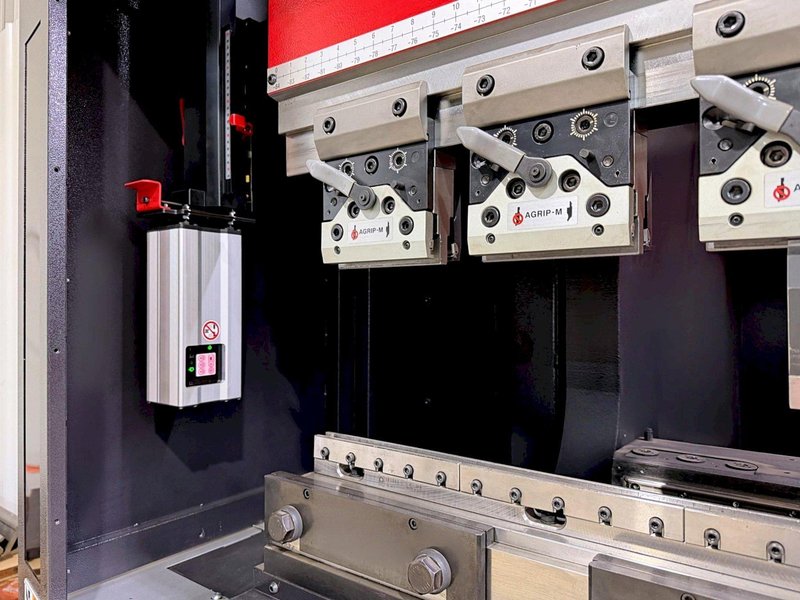

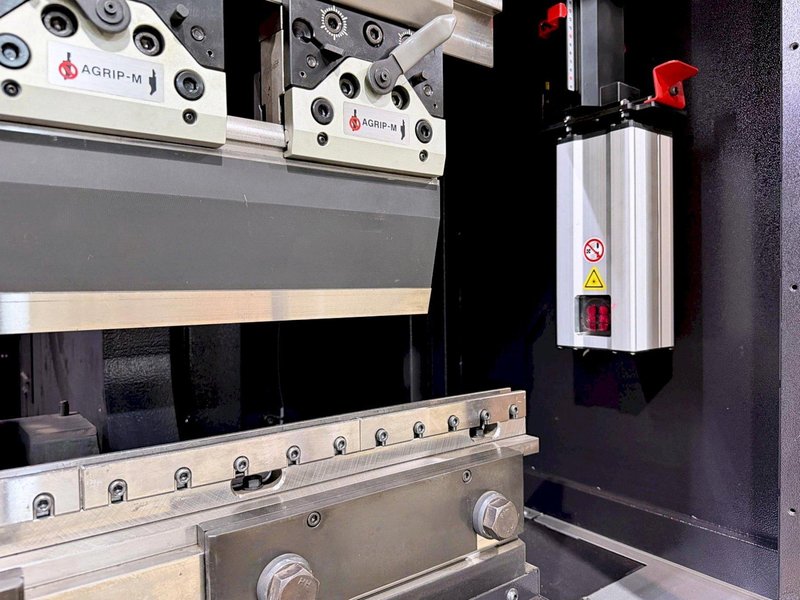

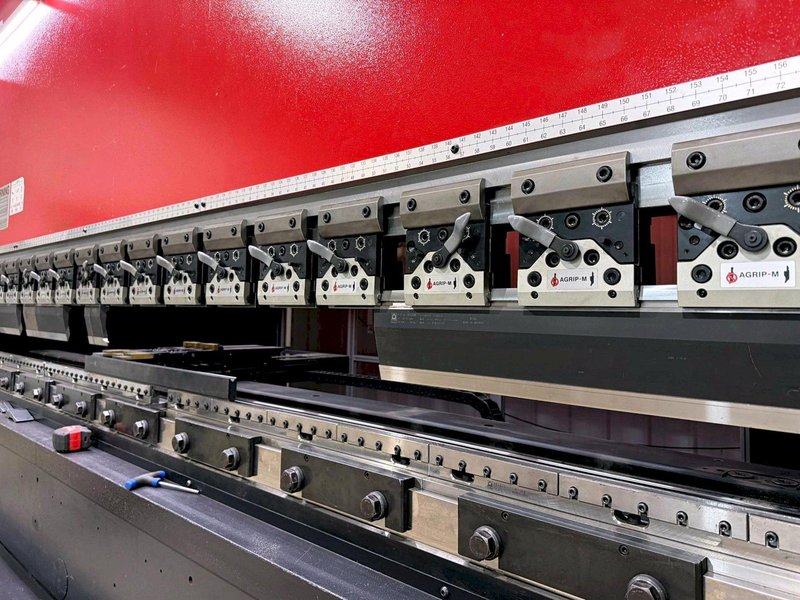

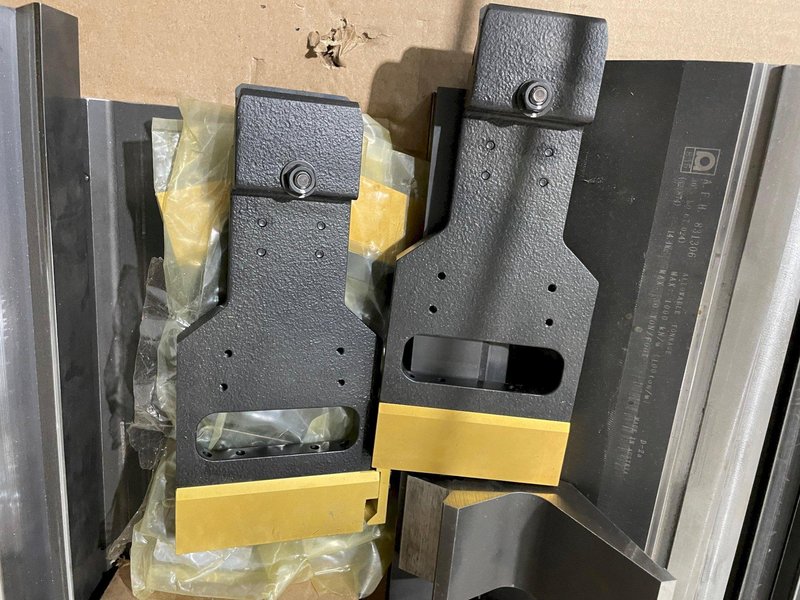

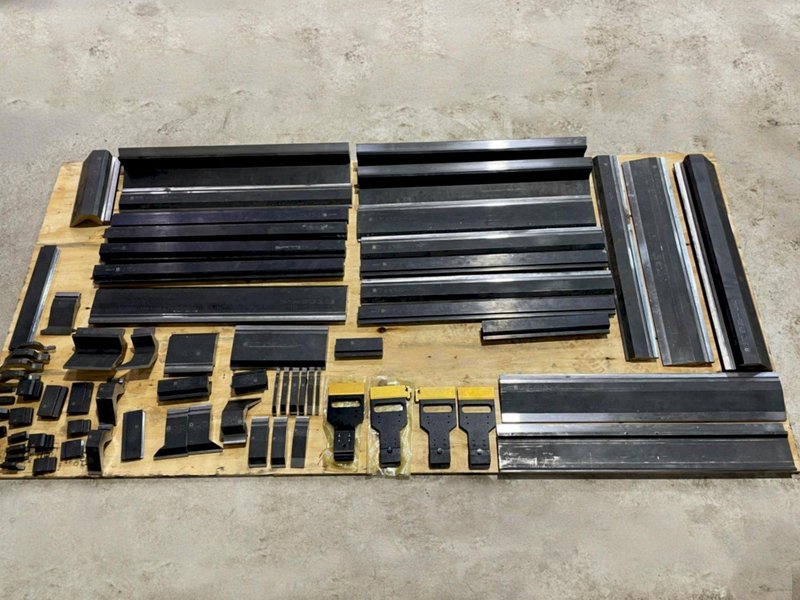

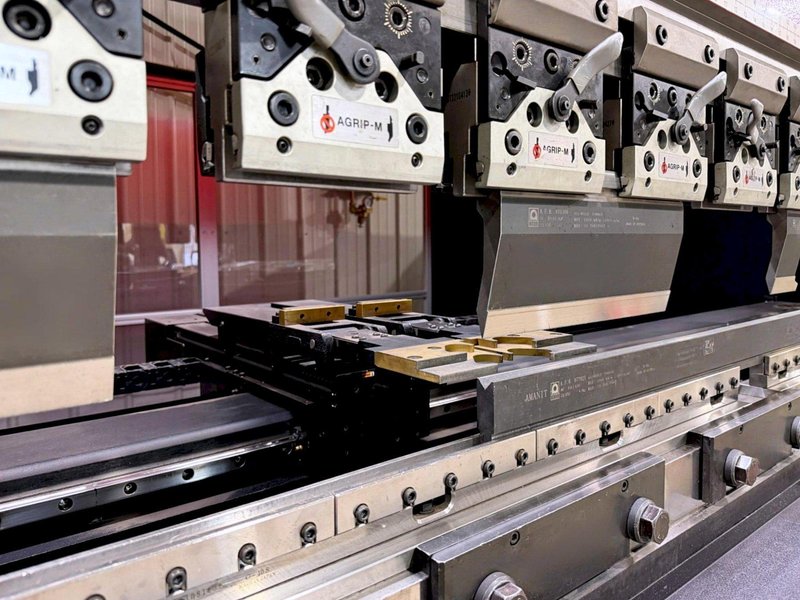

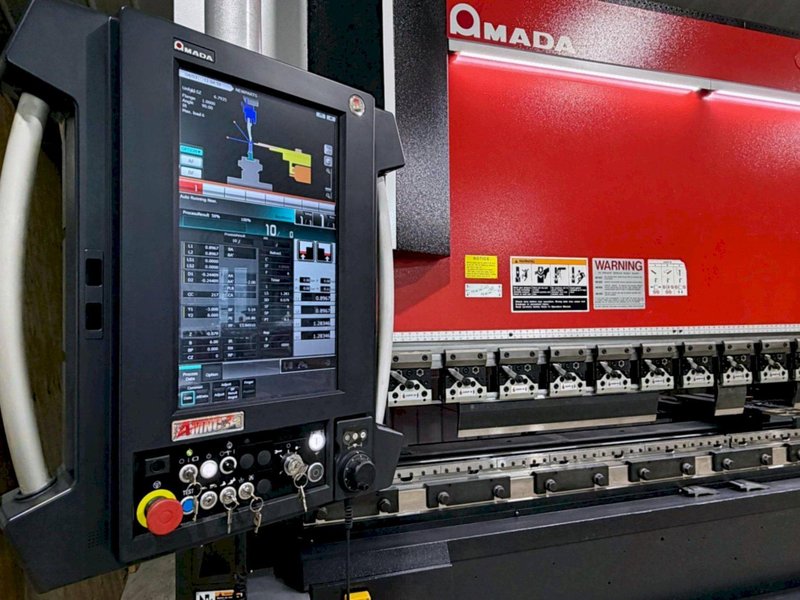

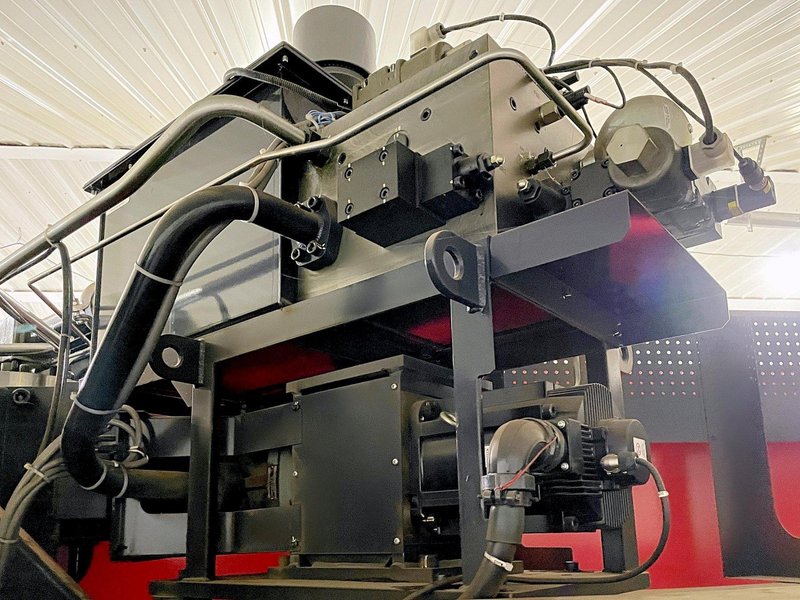

Equipped With: Amada AMNC3i Control 18.5” Touch Screen Display Servo Hydraulic Drive System 8-Axis Backguage Dynamic Hydraulic Crowning One Touch Punch Holders Quick Change Dies Laser Guard Point of Contact Safety Device Rear Safety Enclosure All Tooling Pictured |
|
