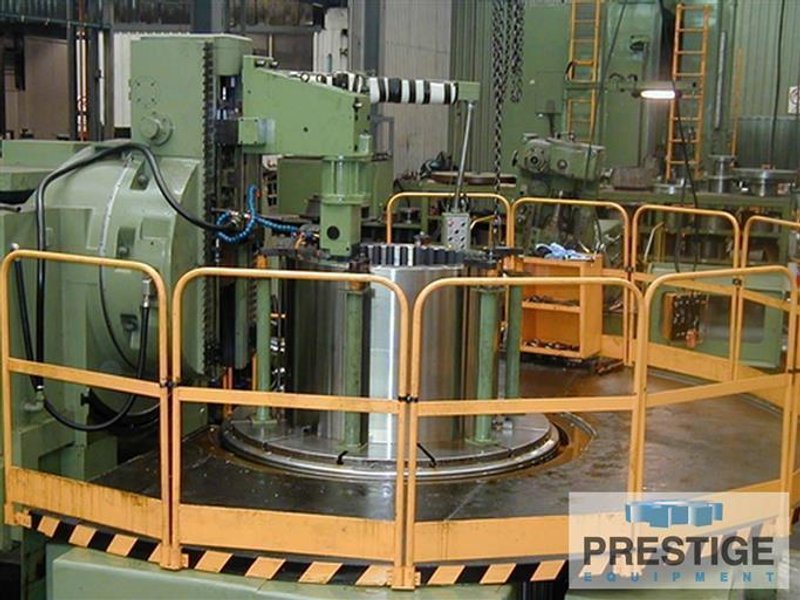

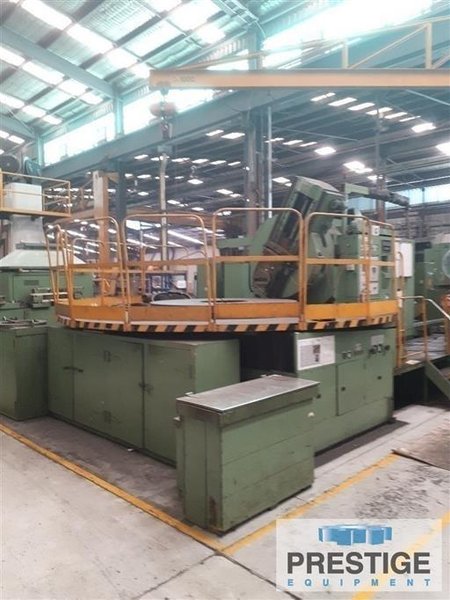

Gear Shapers
Brand
Category
Type
Model
SH450
Stock #
32023
Year
Not specified
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

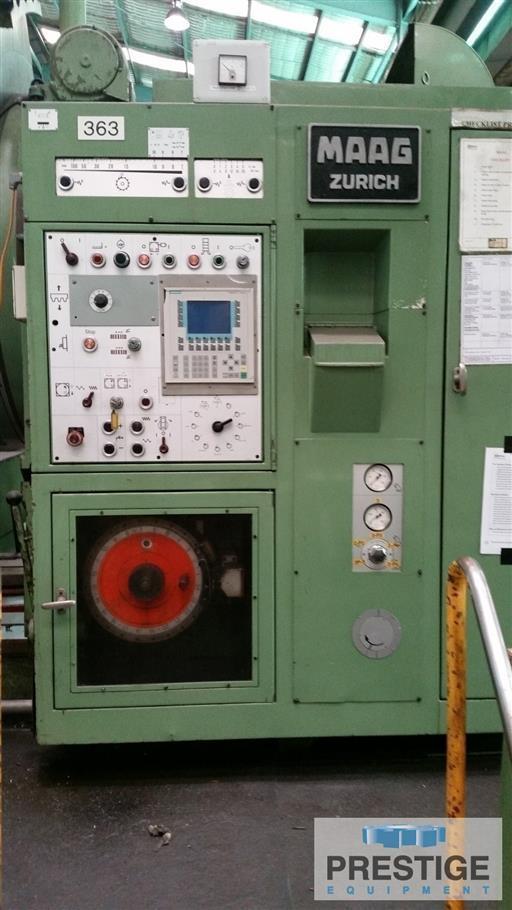

C-Axis 360 Degrees Y-Axis 360 Degrees A-Axis Unlimited Helix X-Axis 89.37" Z-Axis 27.55" Diameter of Work Table Bore 23.62" Table Dimensions 68.89" Table Hole Diameter 23.62" x 51.18" Maximum Workpiece Diameter 199.29" Maximum Workpiece Height 66.41" Power Max 71 kW Maximum Tip Circle Diameter 178.74" Minimum Tip Circle Diameter 20.78" Net Weight 50 Ton Equipped With: Siemens CNC Control, Drives, & PLC Full 2-Axis CNC Control and Programming With Simple Tooling Crowning Done With Longitudinal Correction Device Tip And Root Relief Possible Internal gears and spline done with JVA attatchment. TYPES OF GEARS: Highly Accurate Spur, Helical, Double Helical Gears, Spline Shafts and Coupling Done By Generation |
