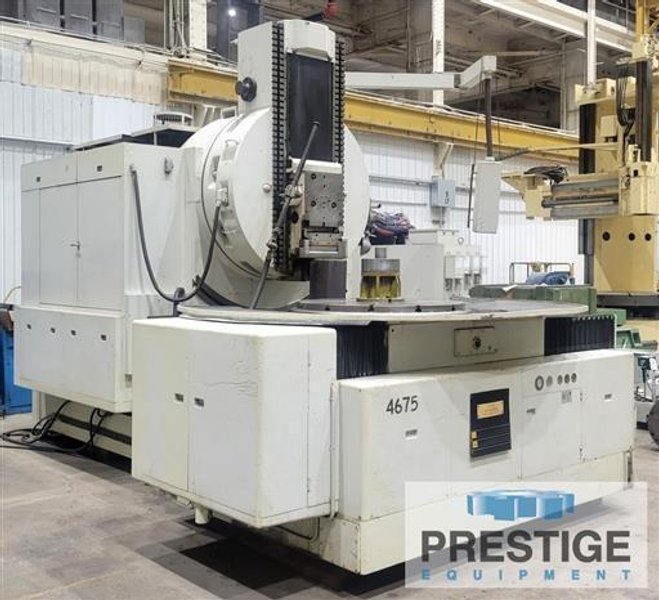

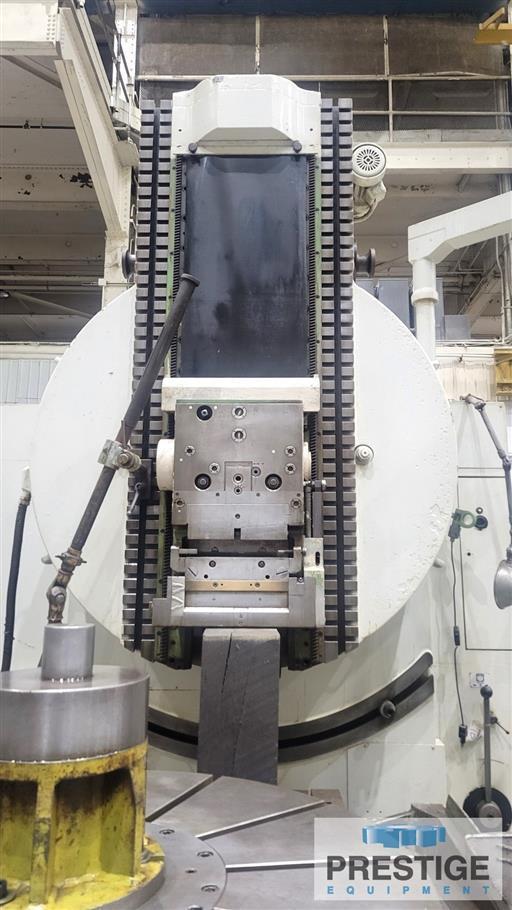

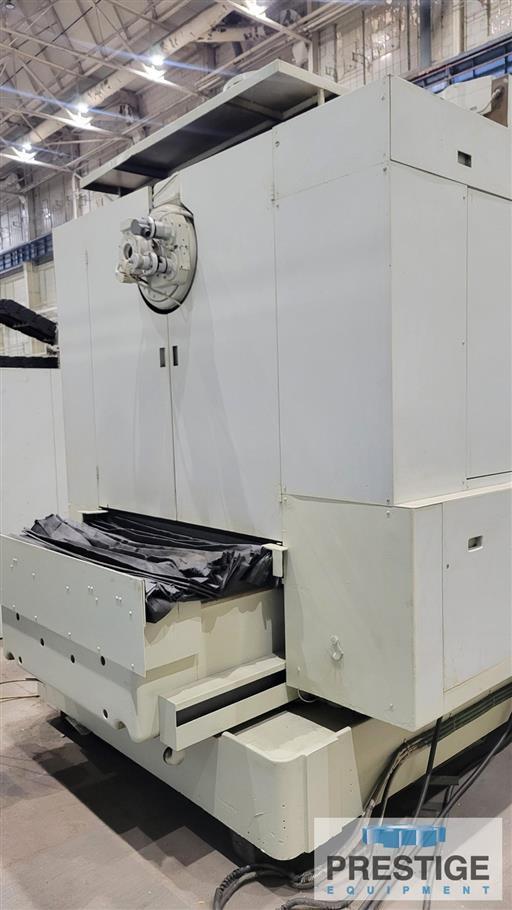

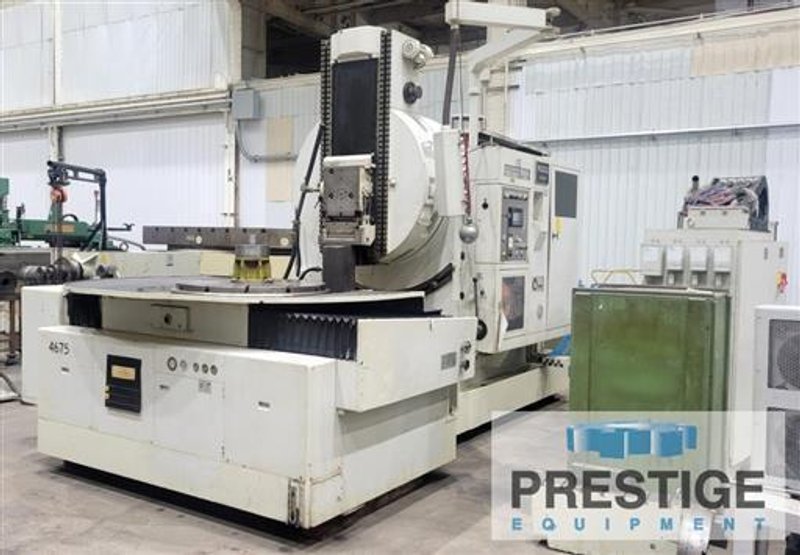

Gear Shapers

SPECIFICATIONS:
Max. Tip Circle Dia. (Spur Gear) 98.4"
Min. Tip Circle Dia. (Spur Gear) 7.9"
Module Min Pitch w/ Rack-Type Cutter .0875 DP (30)
Module Max Pitch w/ Rack-Type Cutter 12.7 DP (2)
Module Max w/ Single-Tooth Cutter .5 DP (50)
Min./ Max. Number of Teeth 12/1000
Helix Angle Infinite
Max. Face Width (Spur Gear) 26"
Max. Table Load 33000 lbs.
Max. Ram Stroke 27"
Min. Ram Stroke 2.75"
Diameter of Work Table Bore 16.5"
Work Table Bore Length 47.2"
Machine Footprint (L X W) 235" x 169"
Machine Height 131"
Machine Weight 84,000 lbs.



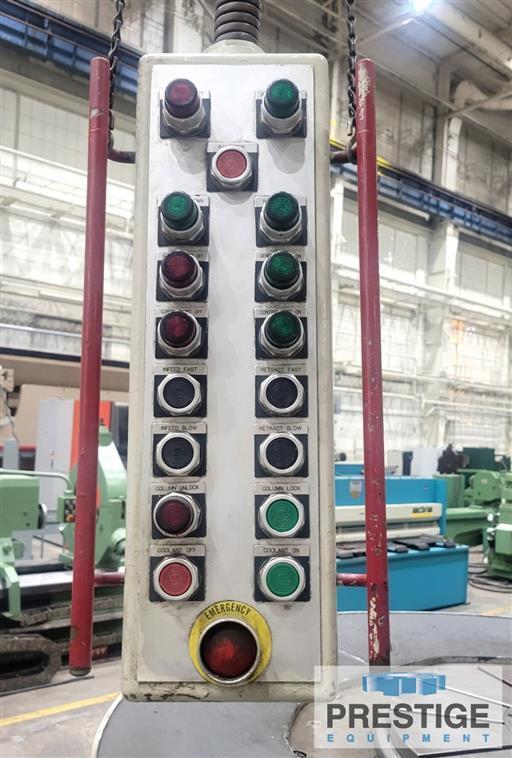

Equipped With:

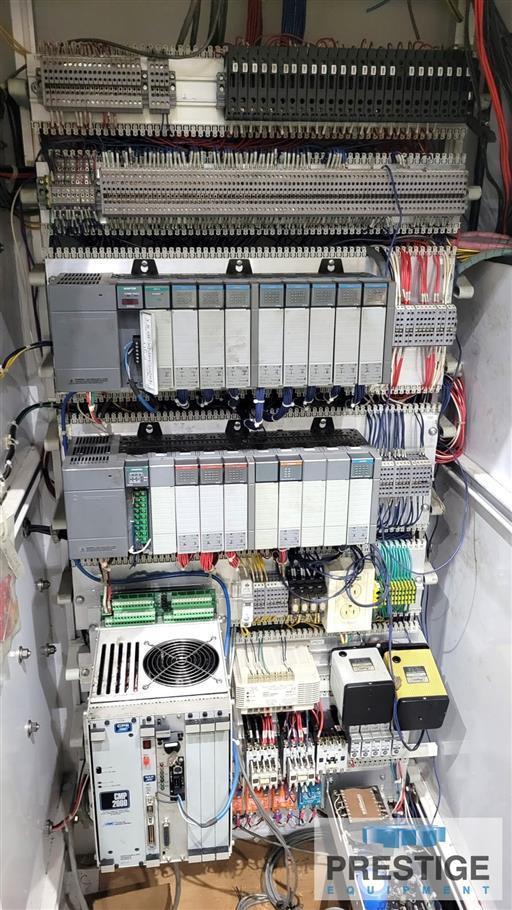

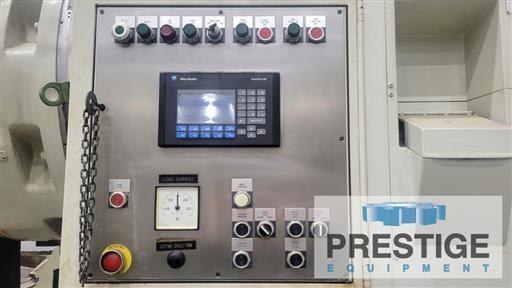

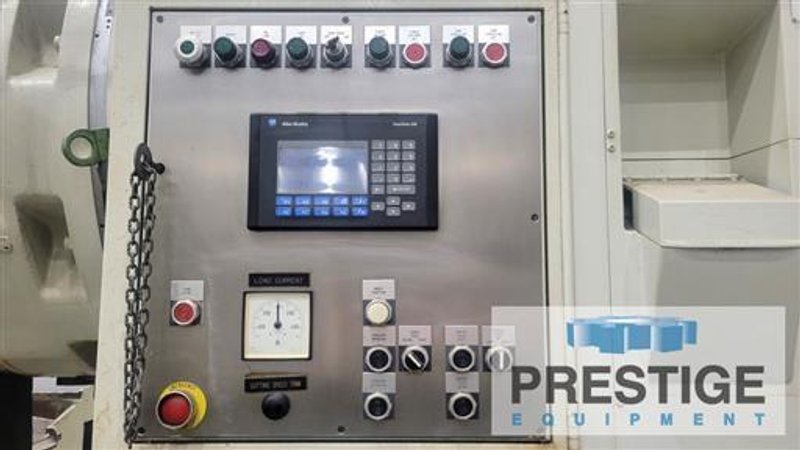

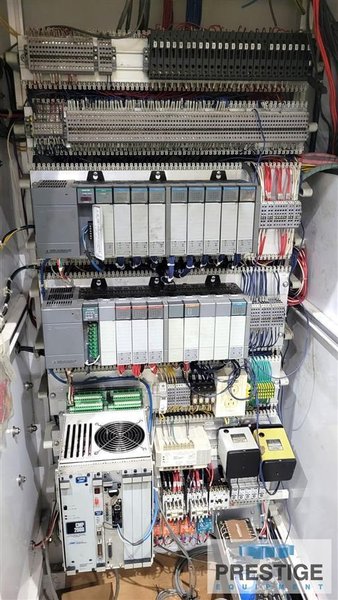

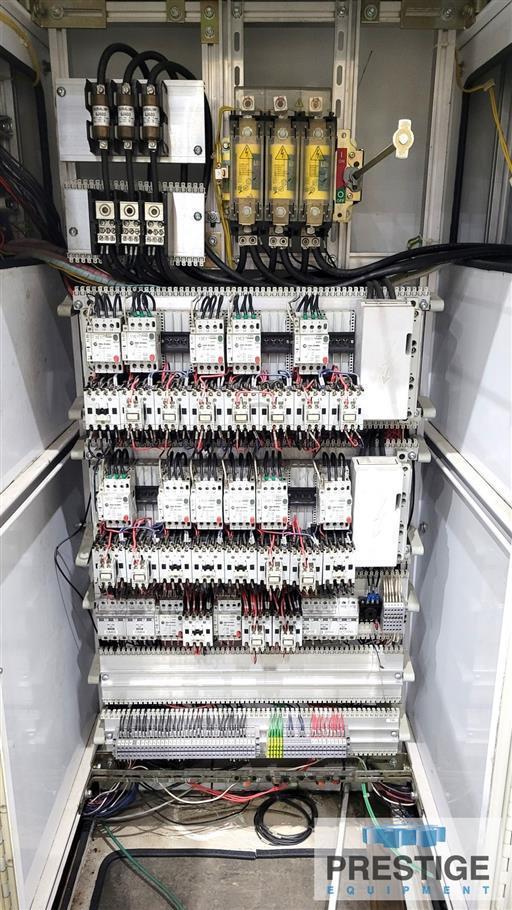

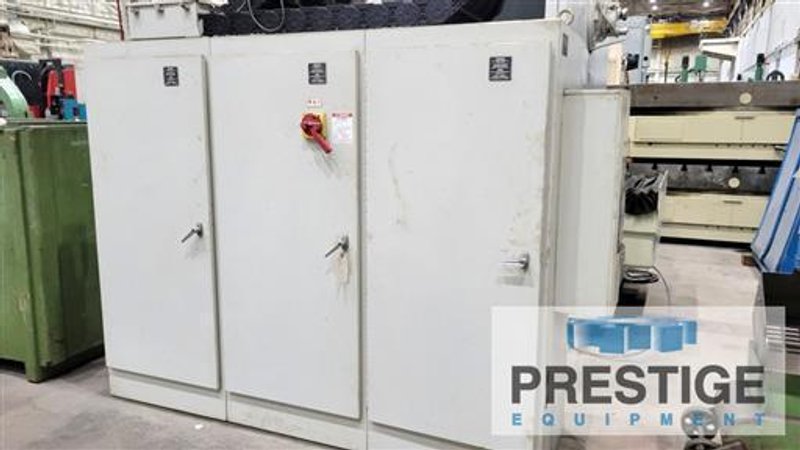

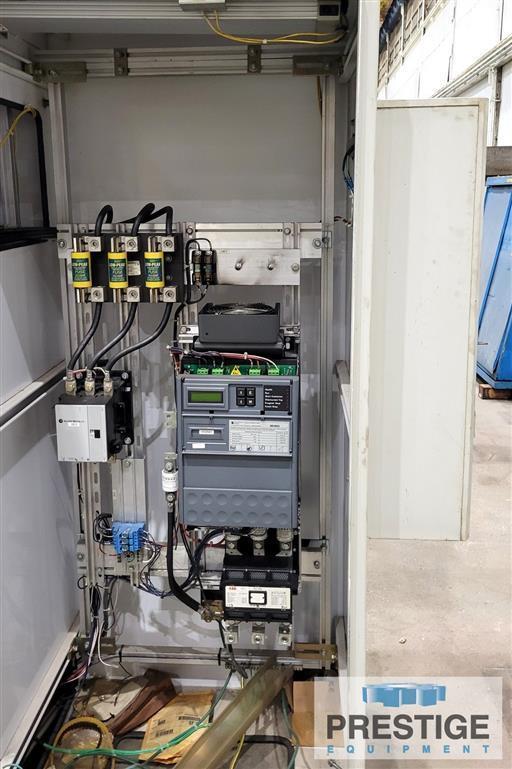

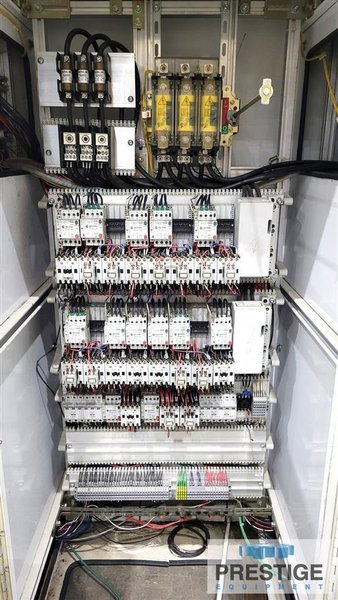

Allen Bradley PLC Retrofit in 1999

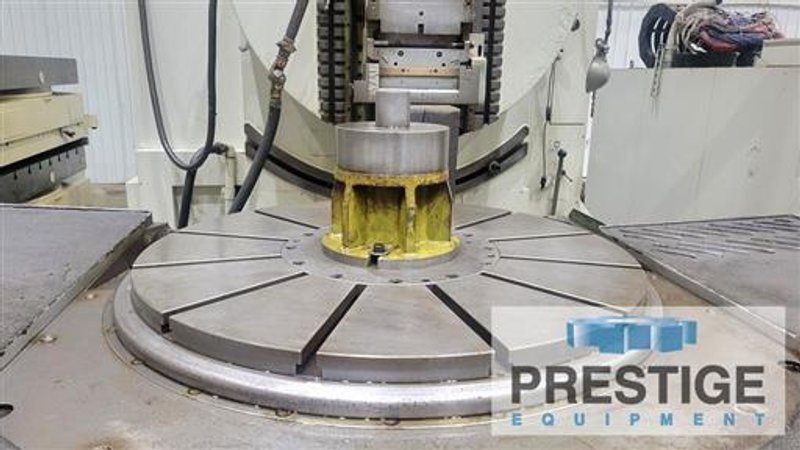

44" Dia. Built In Rotary Table

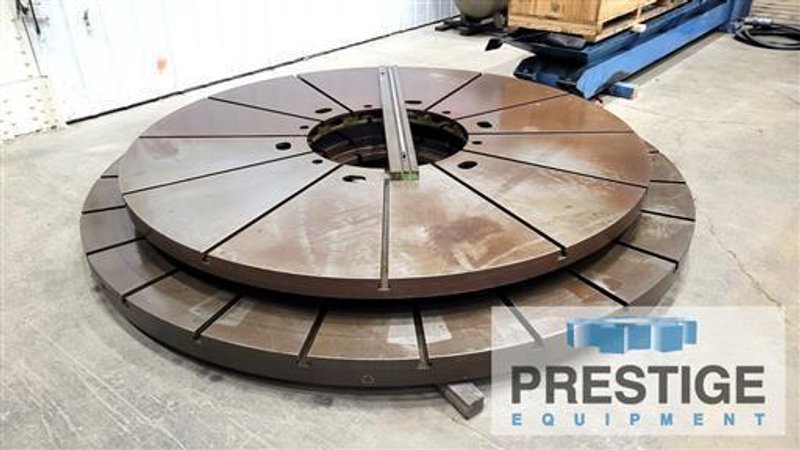

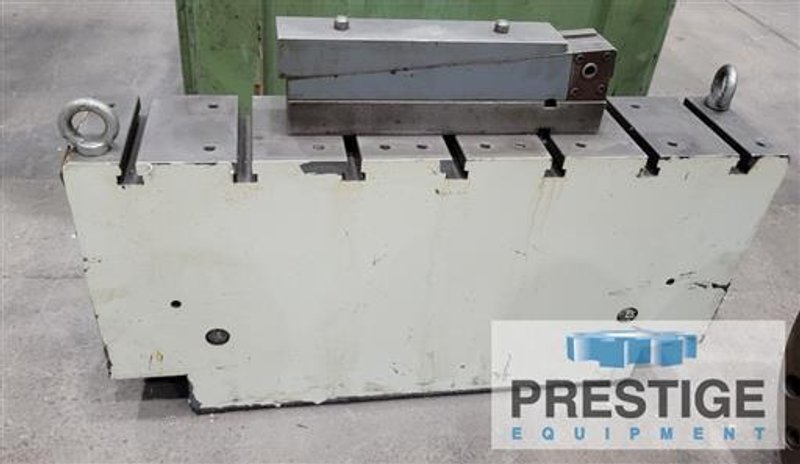

95" Dia. Additional Table/ Sub Plate
112"Dia. Additional Table / Sub Plate

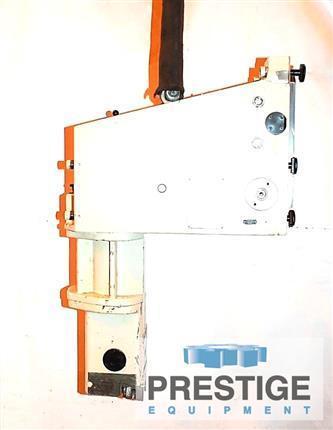

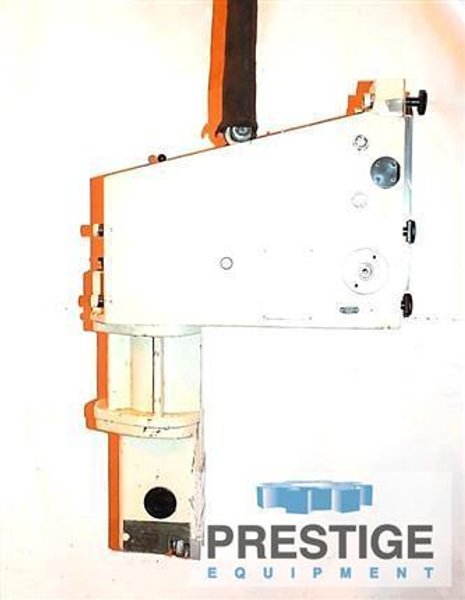

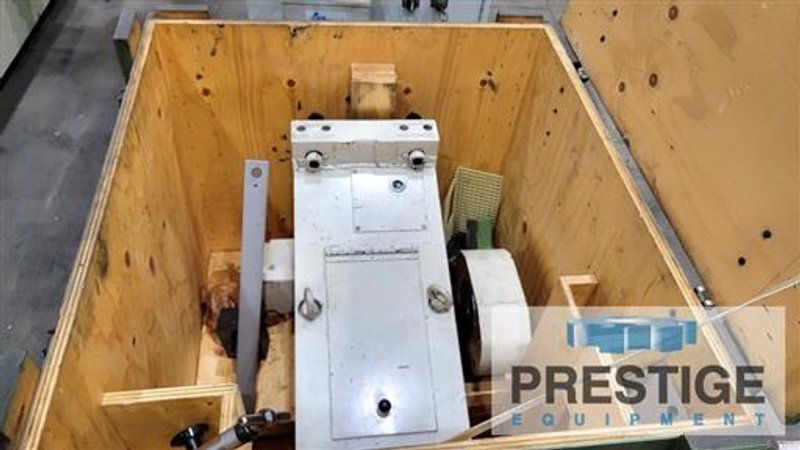

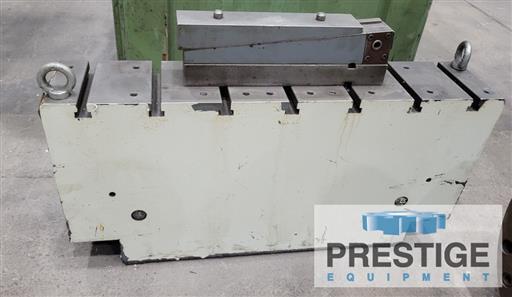

JVE Internal Attachment
Cutting Coolant System
Chip Conveyor
Set of Change Gears


NOTE: Inspect In Our Philadelphia PA Warehouse
