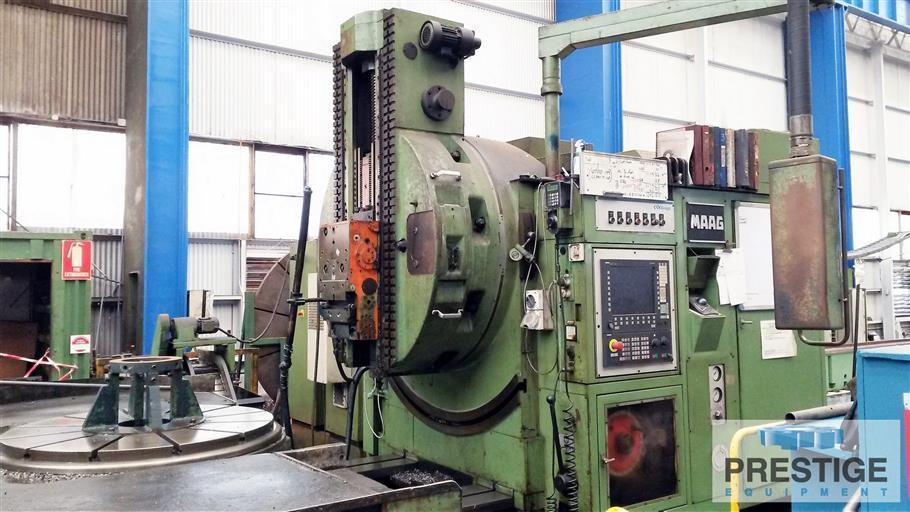

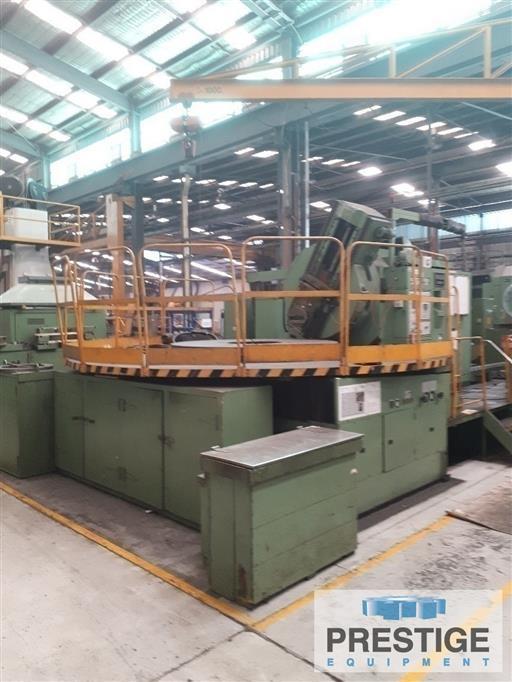

Gear Shapers

SPECIFICATIONS:
Max. Tip Circle Dia. (Spur Gear) 121.25"
Min. Tip Circle Dia. (Spur Gear) 7.9"
Module Min Pitch w/ Rack-Type Cutter .0875 DP (30)
Module Max Pitch w/ Rack-Type Cutter 12.7 DP (2)
Module Max w/ Single-Tooth Cutter .5 DP (50)
Min./ Max. Number of Teeth 12/1000
Helix Angle Infinite
Max. Face Width (Spur Gear) 26"

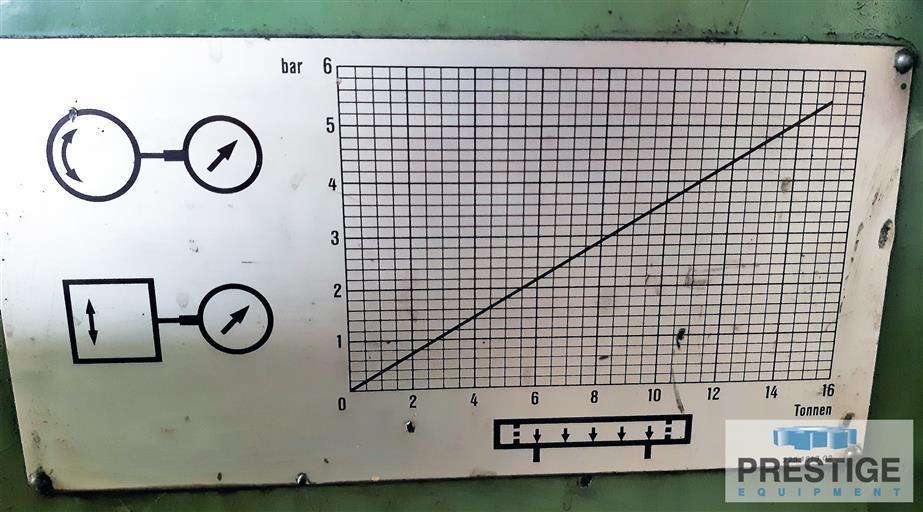

Max. Table Load 33000 lbs.
Max. Ram Stroke 27"
Min. Ram Stroke 2.75"
Diameter of Work Table Bore 16.5"
Work Table Bore Length 47.2"
Machine Footprint (L X W) 235" x 169"
Machine Height 131"
Machine Weight 84,000 lbs.



Equipped With:

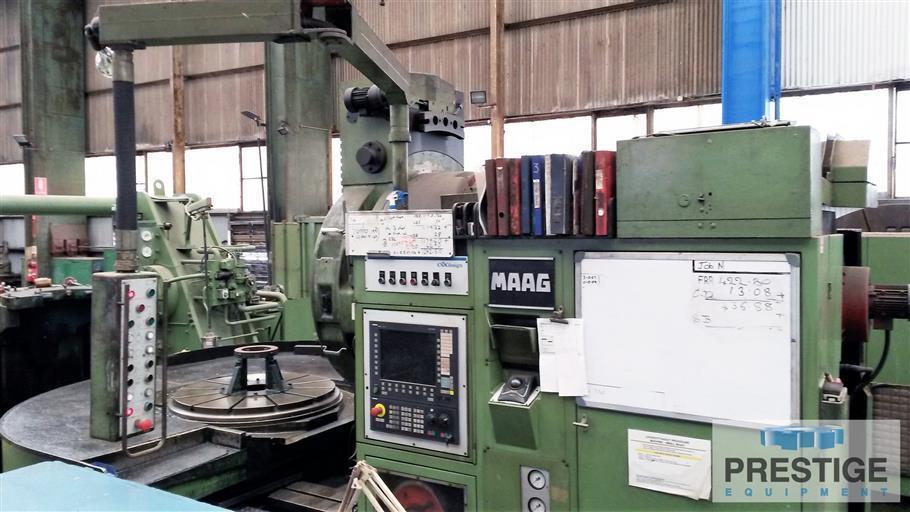

Siemens 840D CNC Control (Retrofit 2013)
94" Additional Table
JVE Internal Attachment
Crowning
Assorted Tooling
Cutters
Cutting Coolant System
Chip Conveyor


NOTE: Inspect In Plant Under Power
