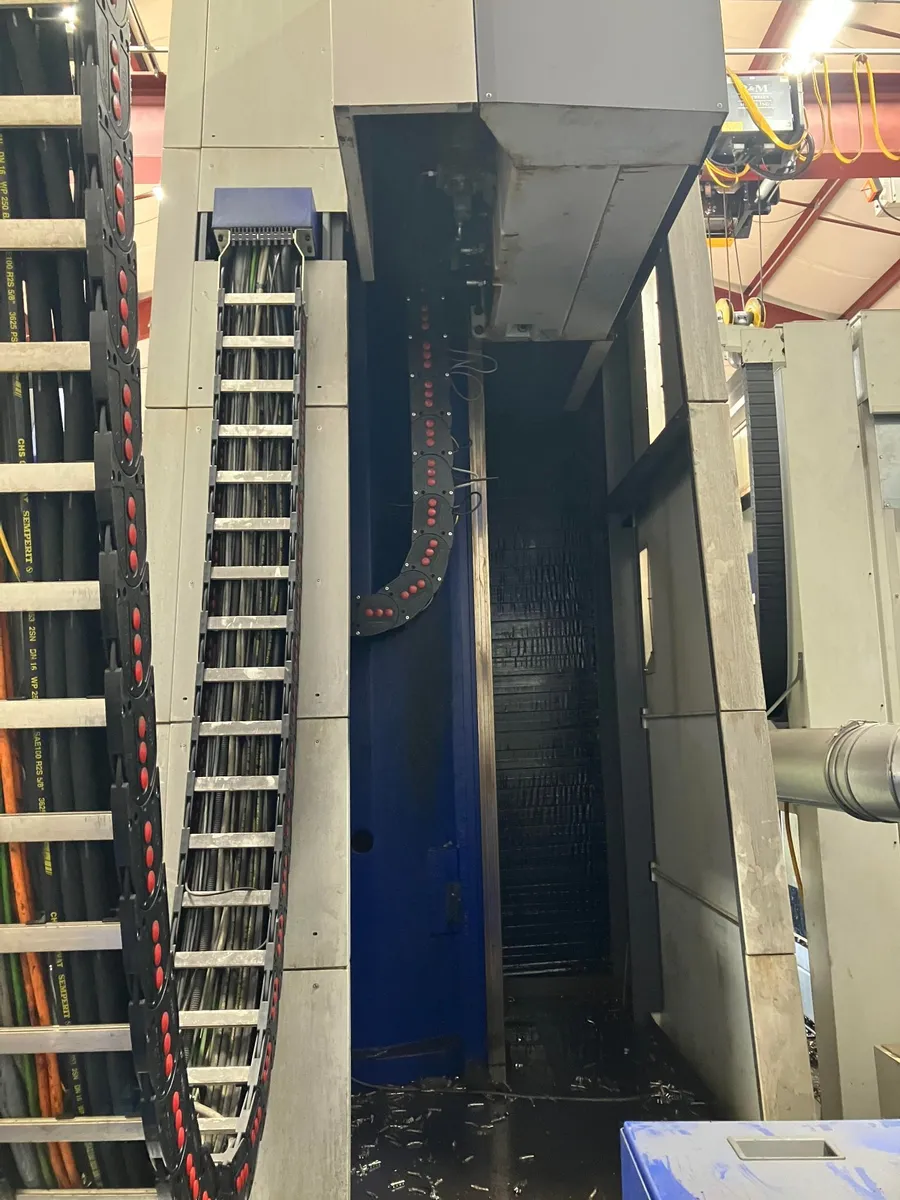

2012 TOS WHQ-13 CNC HORIZONTAL BORING MILL WITH HEIDENHAIN i530 CONTROL

2012 TOS WHQ-13 CNC HORIZONTAL BORING MILL WITH HEIDENHAIN i530 CONTROL

Name: 2012 TOS WHQ-13 CNC HORIZONTAL BORING MILL WITH HEIDENHAIN i530 CONTROL
Brand: TOS
SKU: 34115
Availability: InStock

Brand

TOS

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Boring Mills, Horizontal, Table Type

Manufacturer:

TOS

Model:

WHQ13

Year:

2012

Stock #:

34115

Description

2012 TOS WHQ-13 CNC horizontal boring mill with Heidenhain TNC i530 control and full-contouring rotary table. Features 197" x 118" x 39" travels, 80" W-axis column travel, 5.1" spindle with #50 taper, 50 HP, and 3,000 RPM. Equipped with through-spindle coolant, Renishaw probe, 40-position tool changer, hardened ways, and spindle oil temperature compensation.

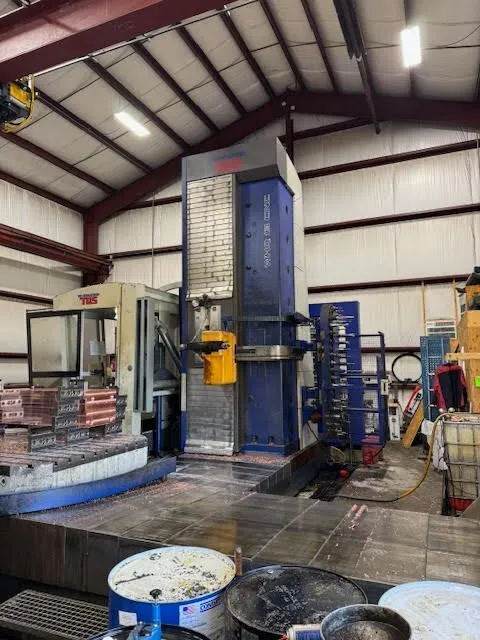

2012 TOS WHQ-13 CNC Horizontal Boring Mill
With Heidenhain TNC i530 Control

================================================

Travels:

X-Axis ...................: 197" (5 Meter)

Y-Axis (Vertical).........: 118" (3 Meter)

Z-Axis (Spindle) .........: 39" (1 Meter)

W-Axis Column in/out .....: 80" (2 Meters)

- Table Size: 71 in x 98 in (Rotary, Full Contouring)
- Maximum Table Load: 56,000 lb

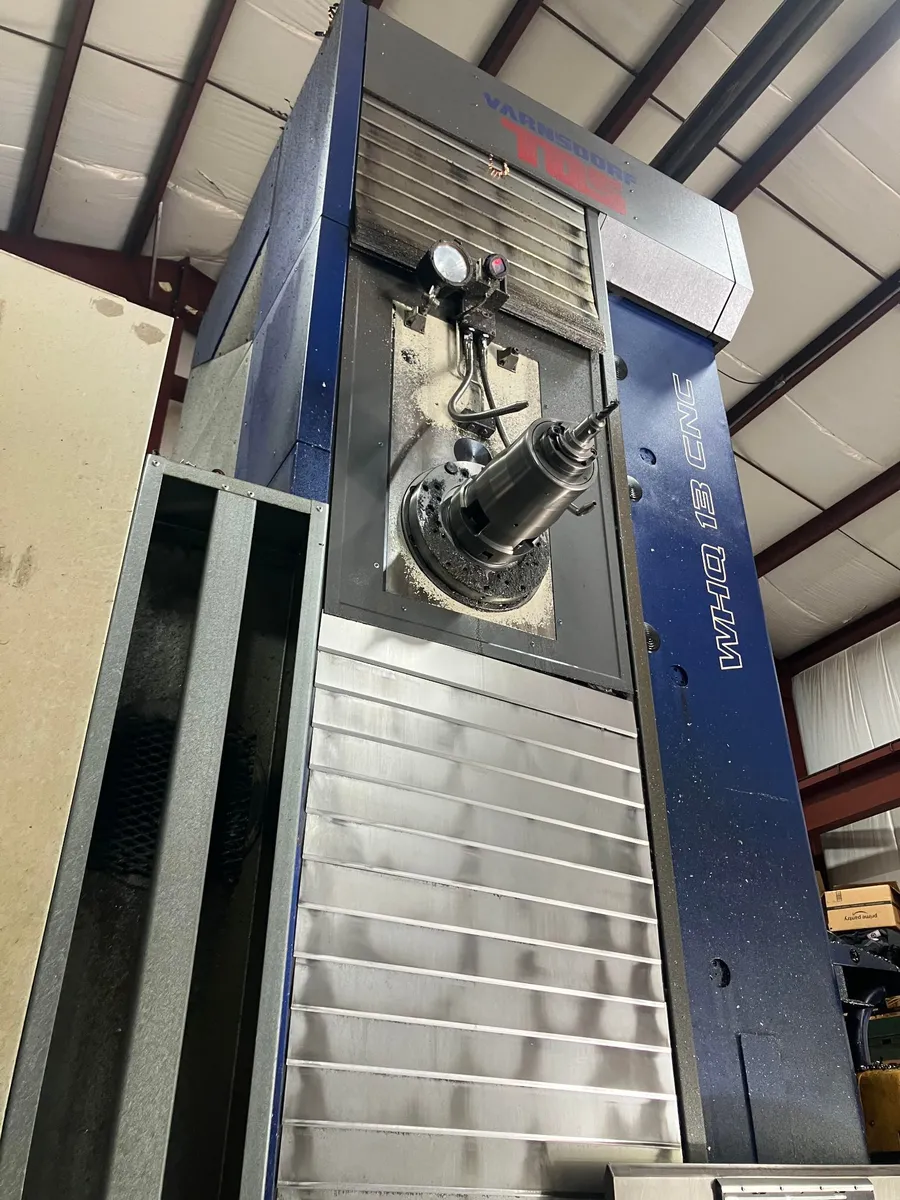

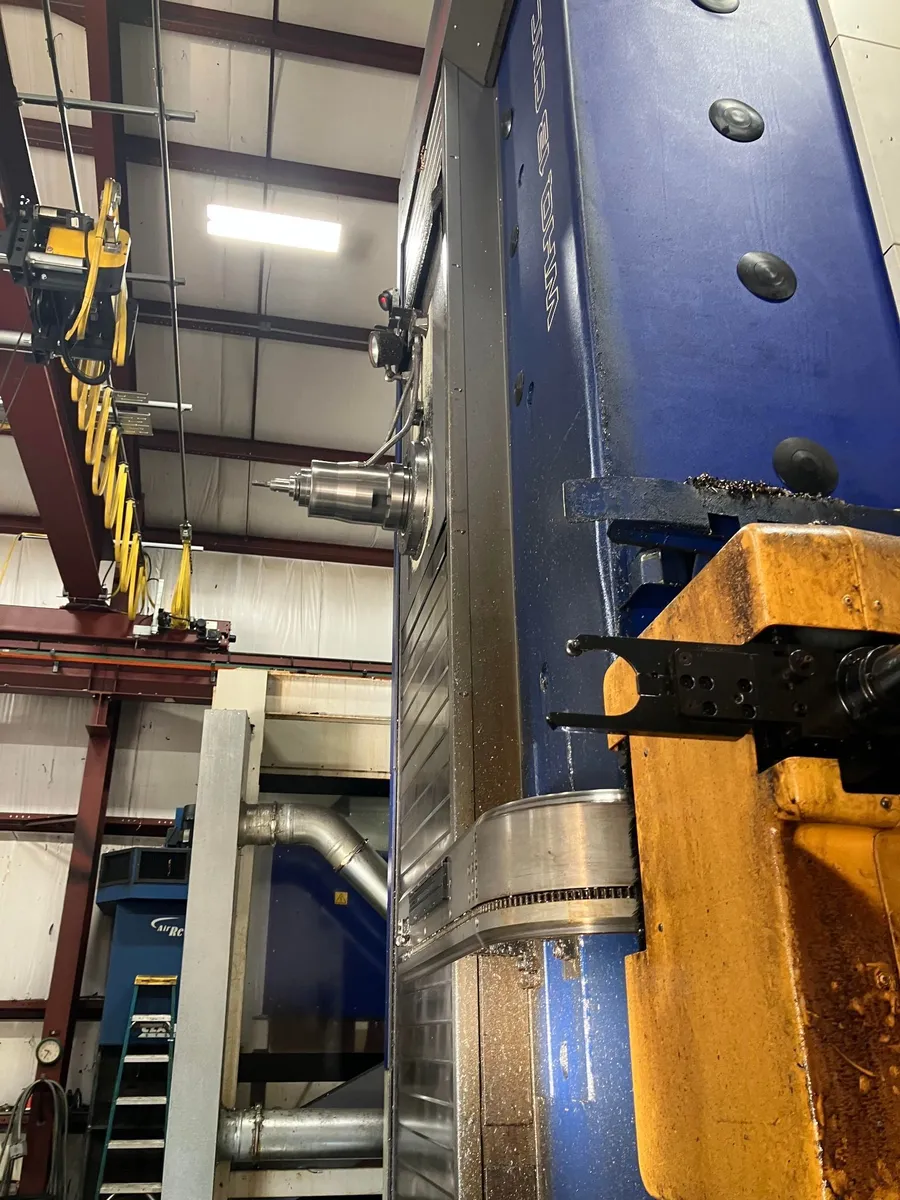

- Spindle Diameter: 5.1 in
- Spindle Taper: #50
- Max Spindle Speed: 3,000 RPM
- Spindle Drive Motor: 50 HP

================================================

EQUIPPED WITH

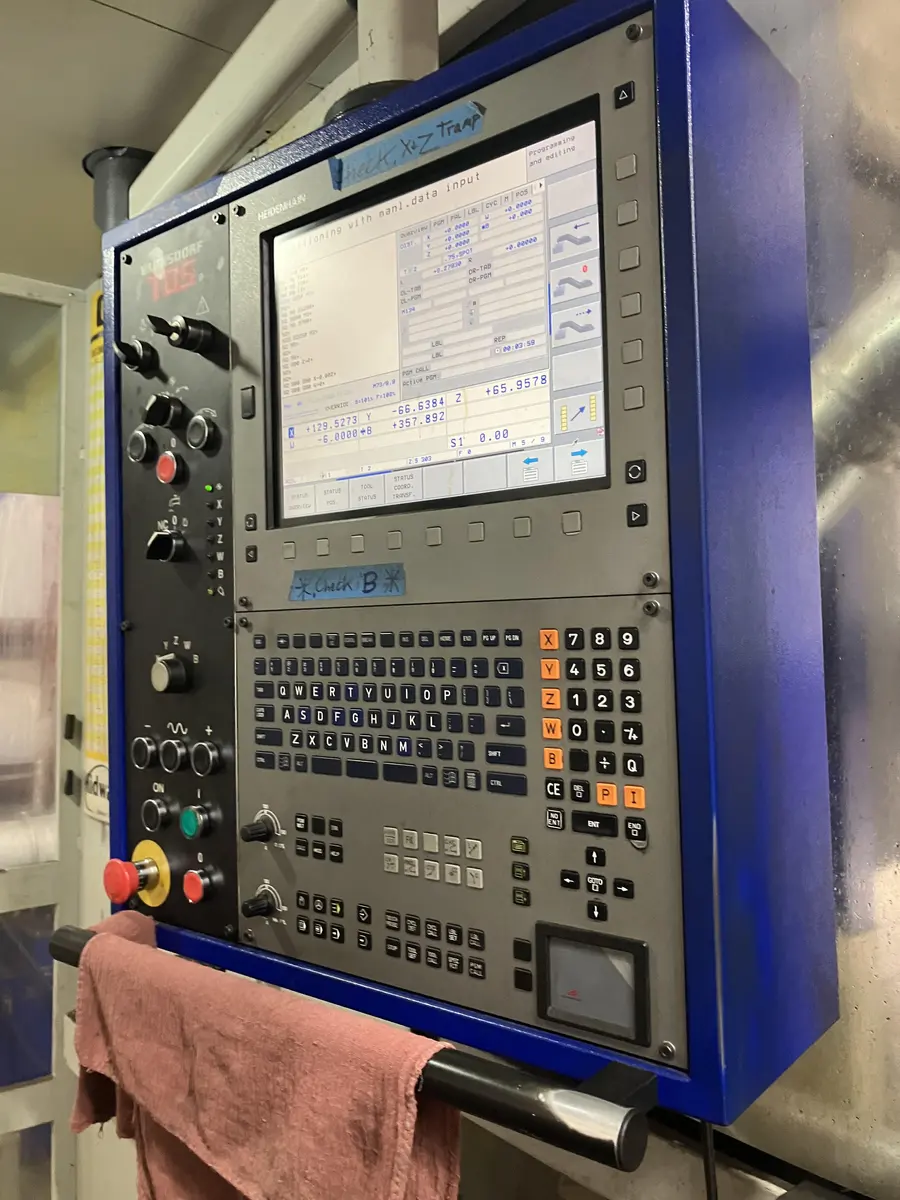

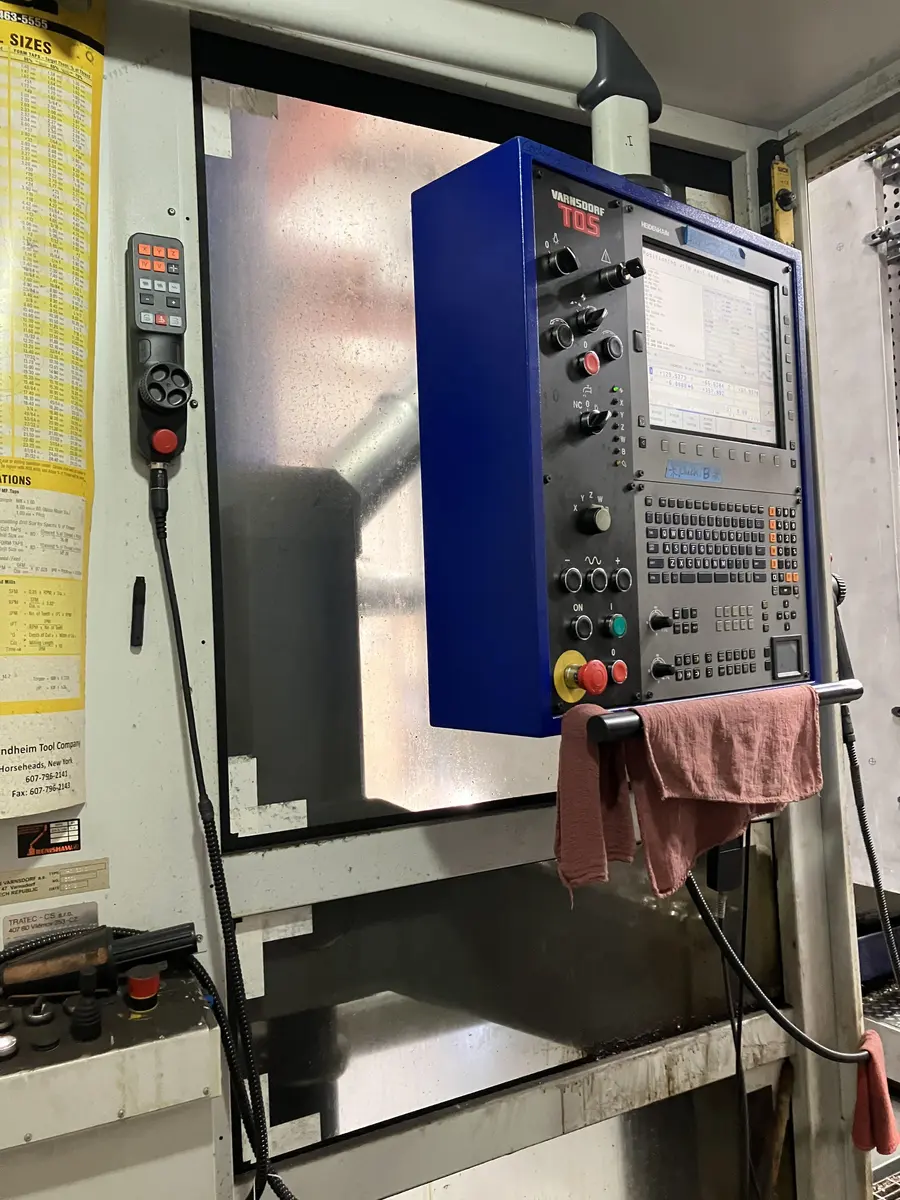

- Heidenhain TNC i530 CNC Control

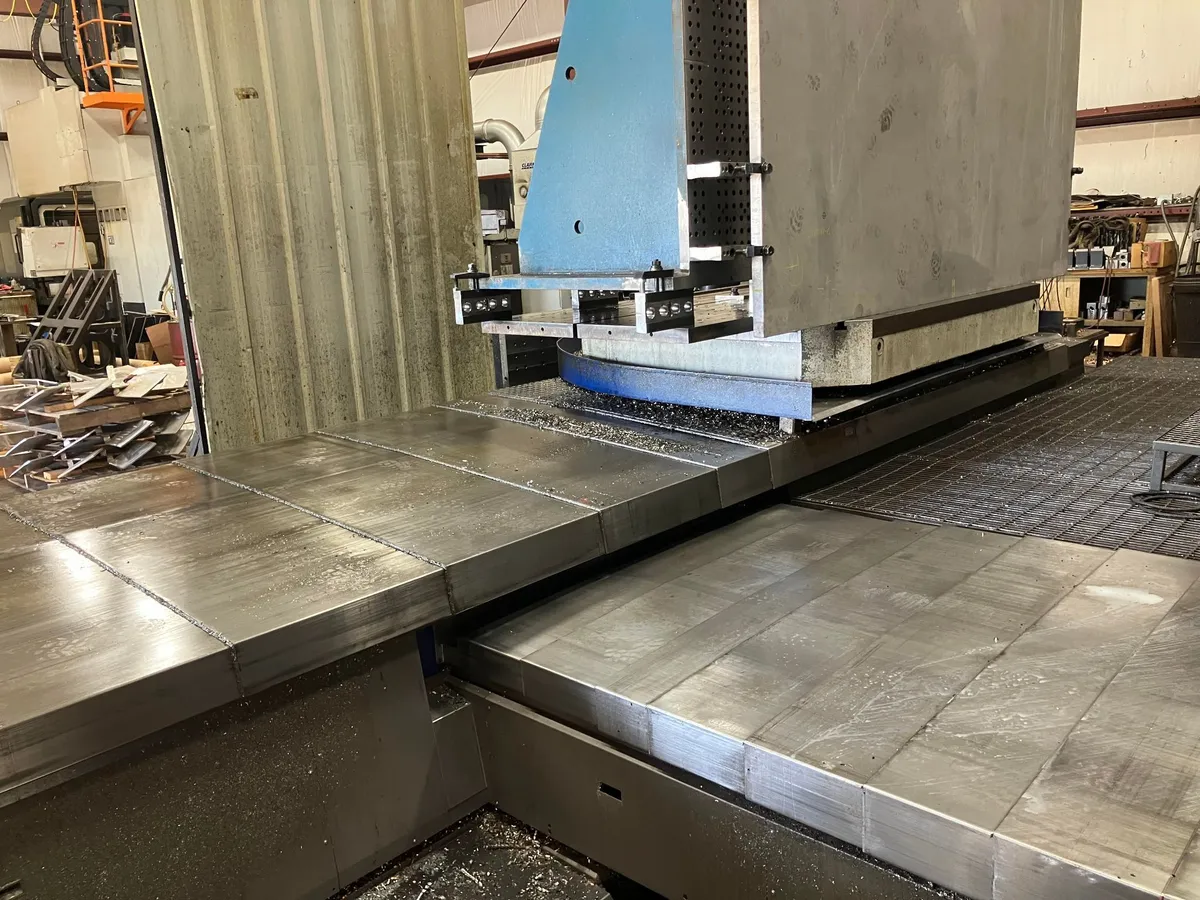

- Rotary Table — 360,000-Degree Index, Full Contouring B-Axis
- T-Type Configuration (Column In/Out)
- All Hardened Ways
- Spindle Oil Temperature Compensation
- Through-Spindle Coolant

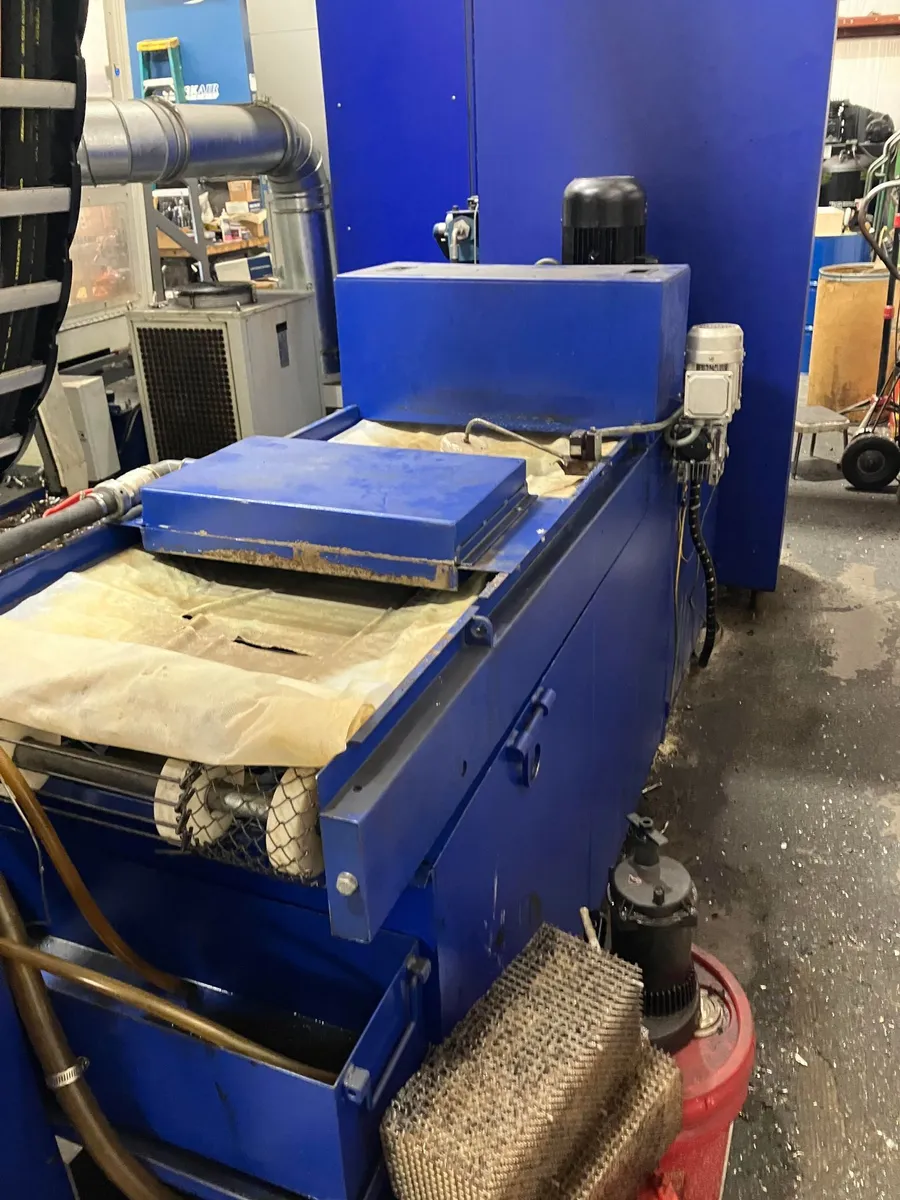

- Coolant Filter, Paper Roll Type
- Renishaw Probe

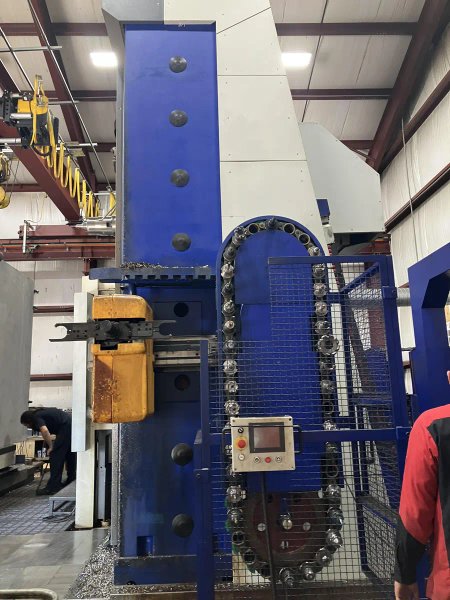

- 40-Position Tool Changer
- Chip Conveyor
- Auto Lube System
- Mist Collector
- Spindle Nose Support
