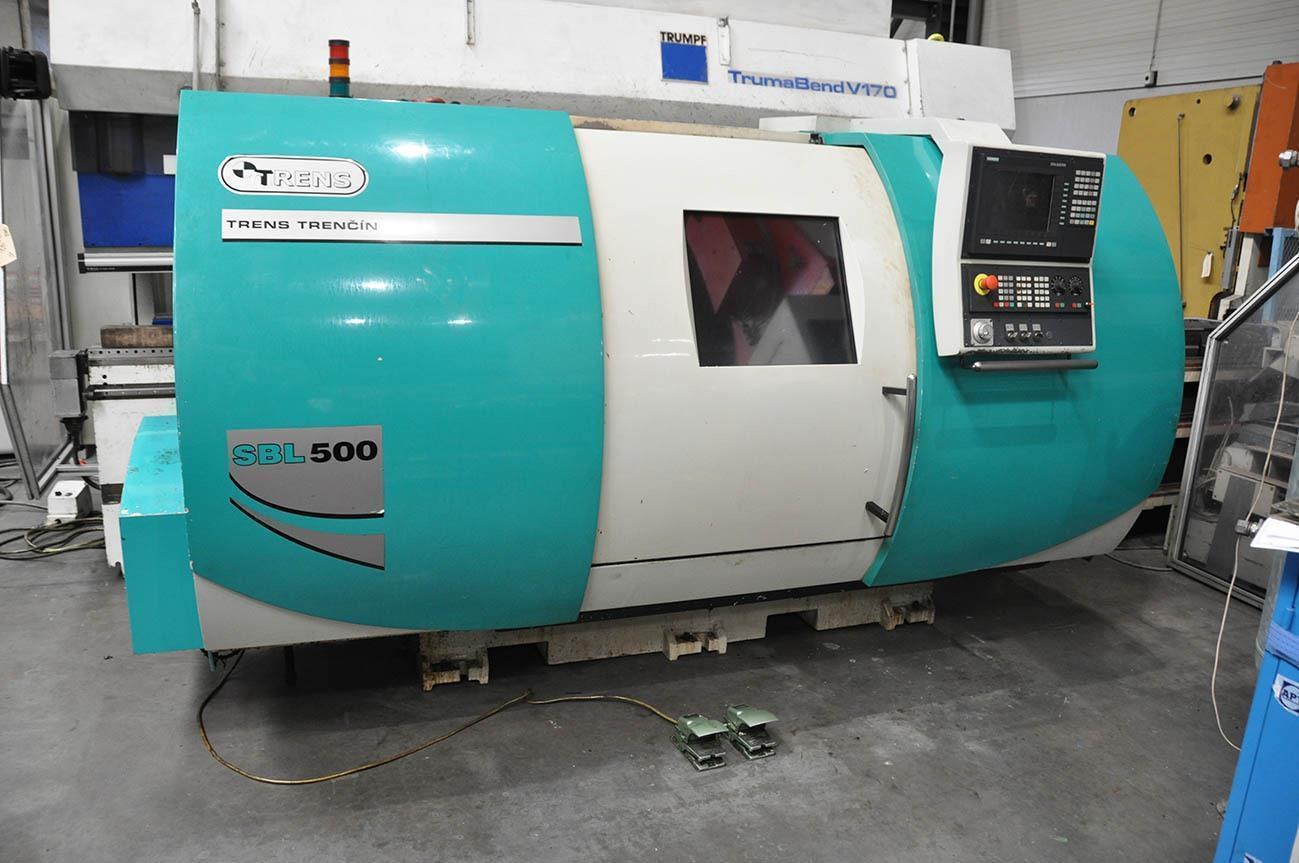

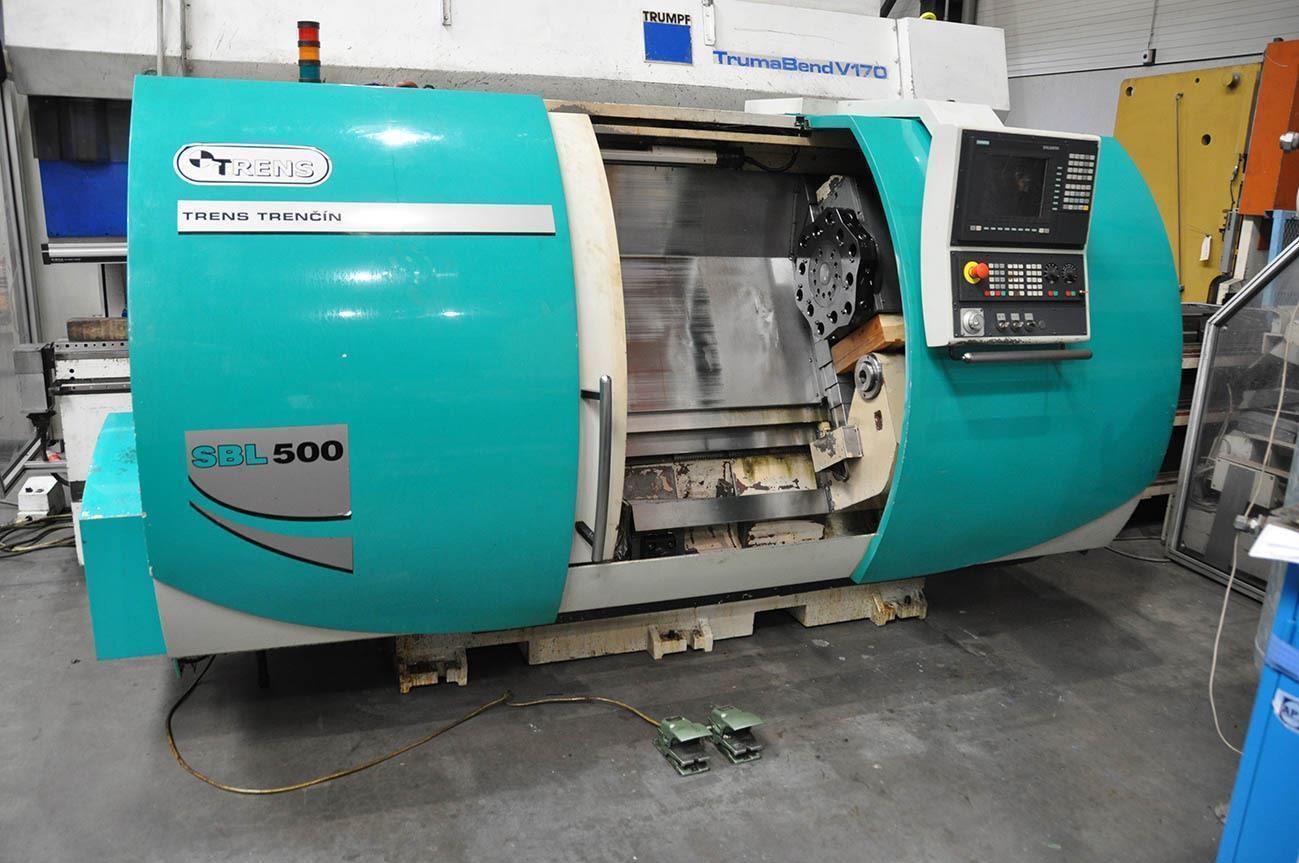

Tos SBL 500 Ø 630 x 750 mm CNC

Brand

TOS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Swing over bed 630 mm
Distance centre tot centre 750 mm
Max longitudinal travel Z-axis 500 mm
Max cross travel X-axis 320 mm
Spindle cone A2-8
Dia of spindle bore 92 mm
Power on the spindle 18,5/22 kW
Number of speeds 2 > 3000 rpm

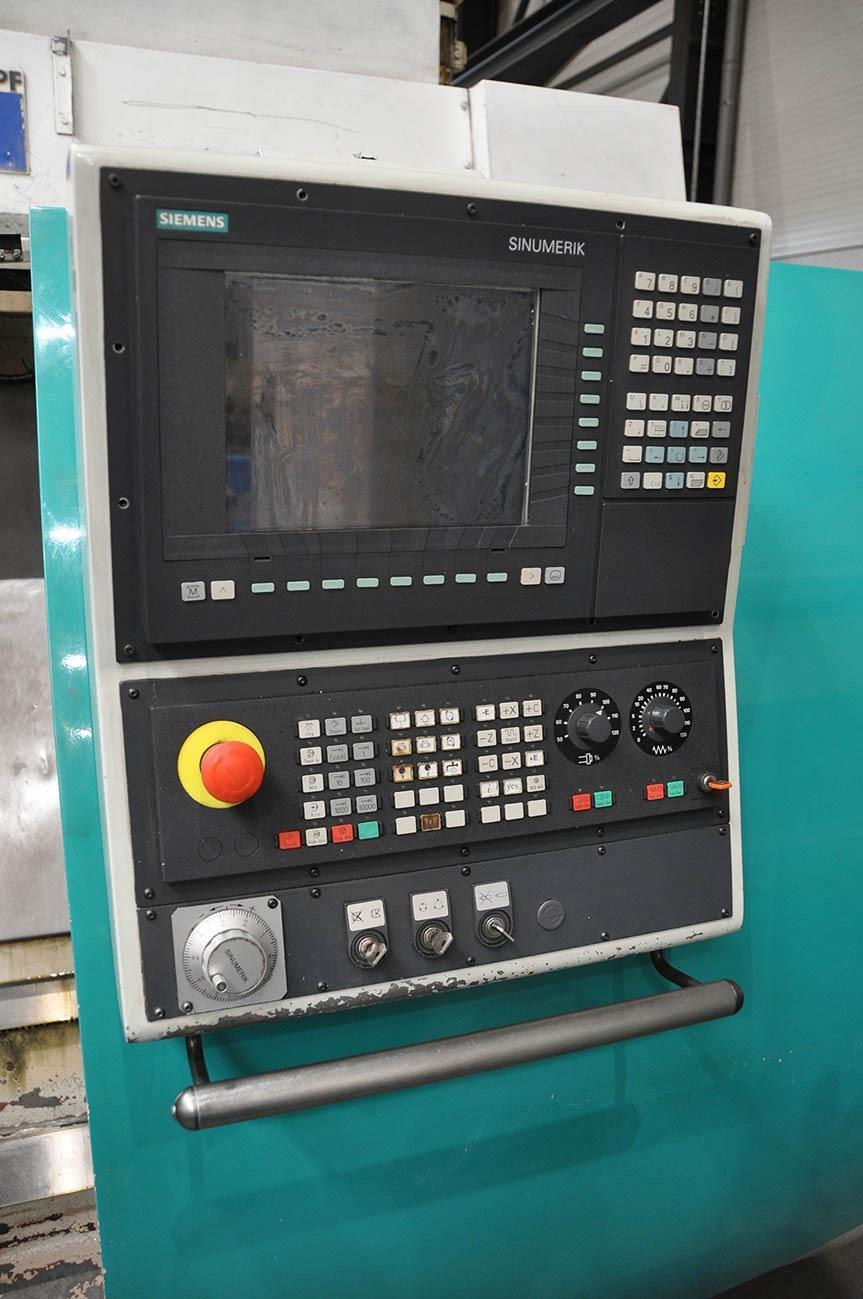

Command Siemens Sinumerik 810D
Total power needed 52 kVa
Length 3650 mm
Width 1738 mm
Height 1900 mm
Weight 5,25 ton

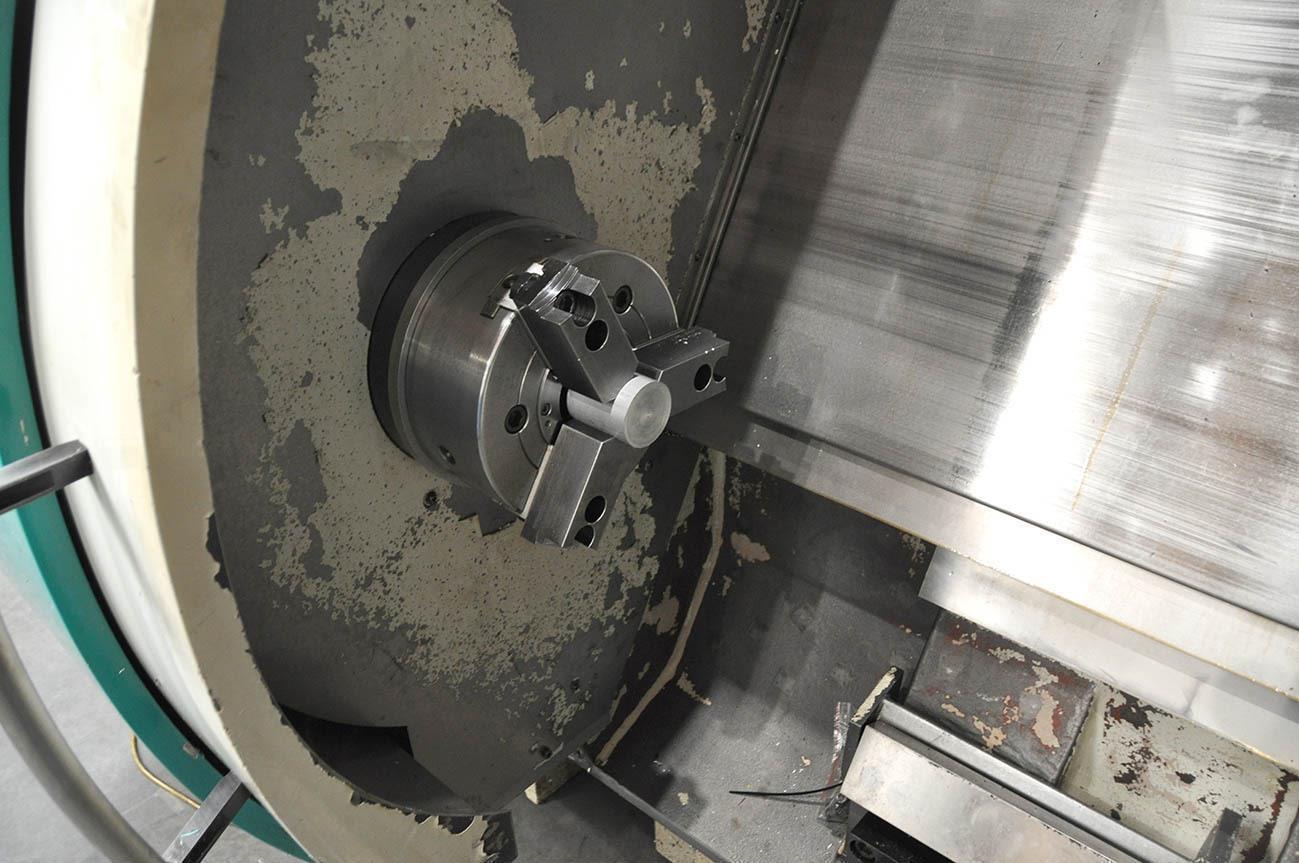

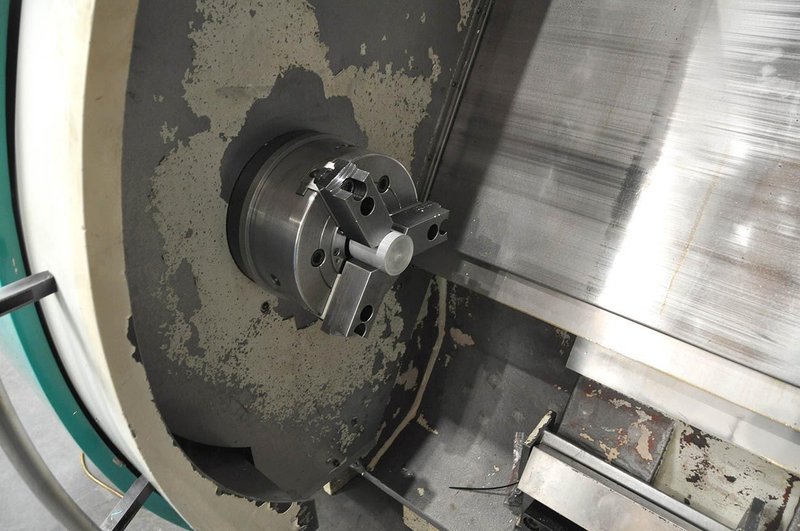

Chuck Rohm dia 254 mm

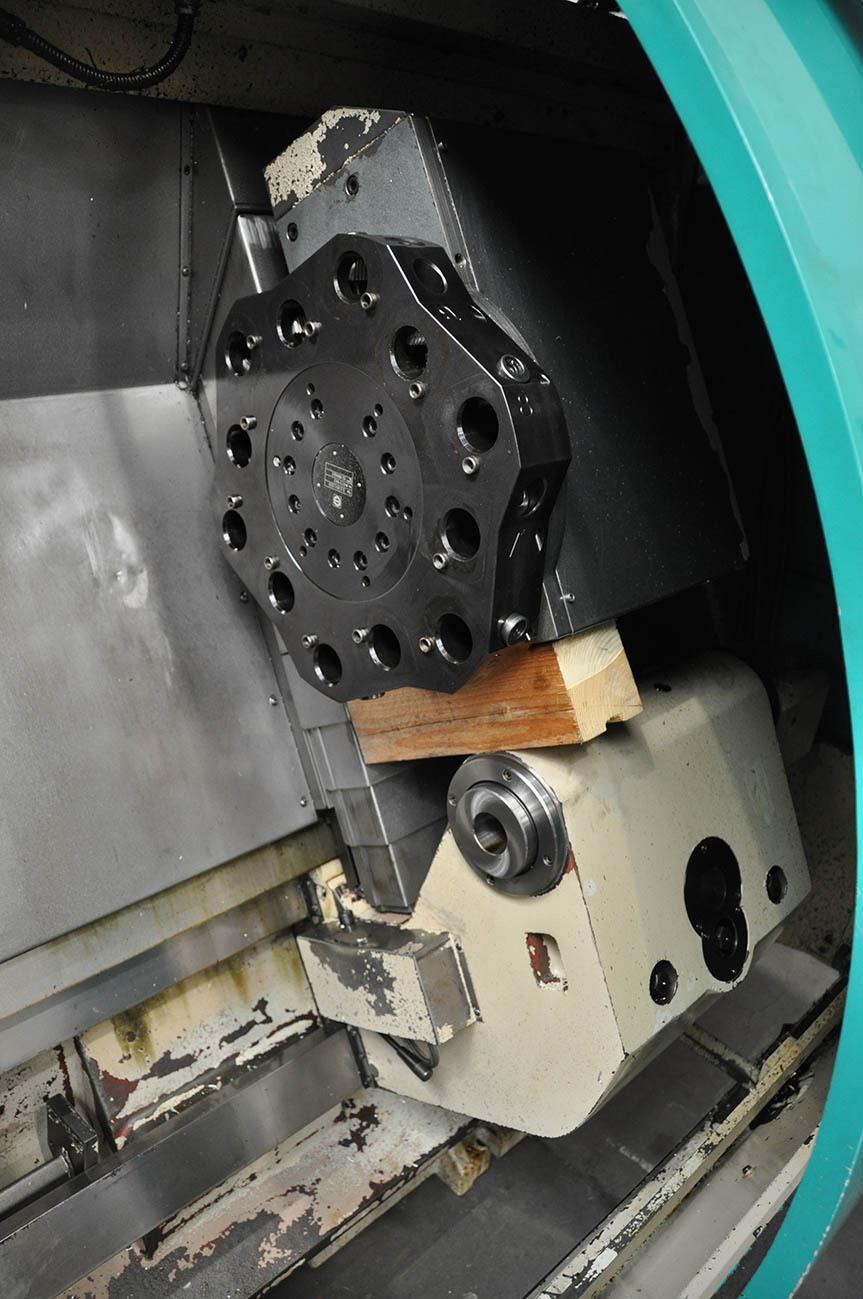

Toolchanger yes, Sauter
Number of tools 12 driven positions

Additional info

C-axis
linear measurement in X-axis
12 powered tools - VDI - max 4000 rpm
Including chip conveyor belt
RS232

No files or videos to display
