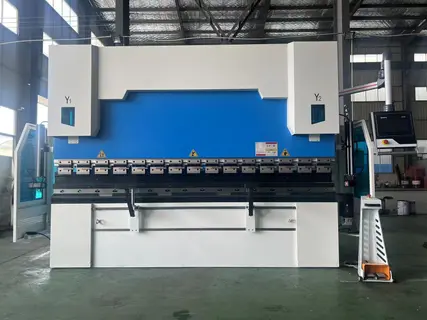

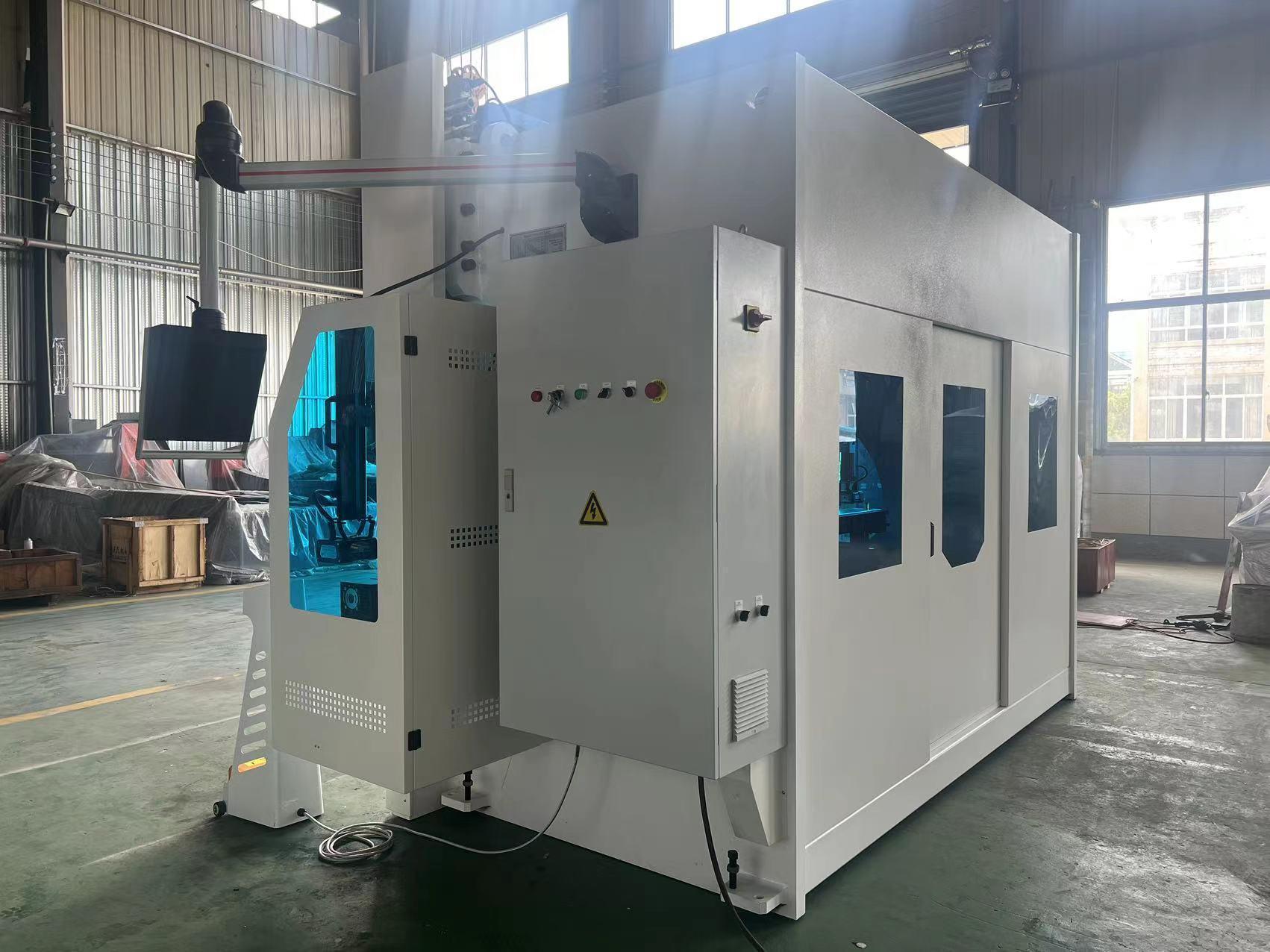

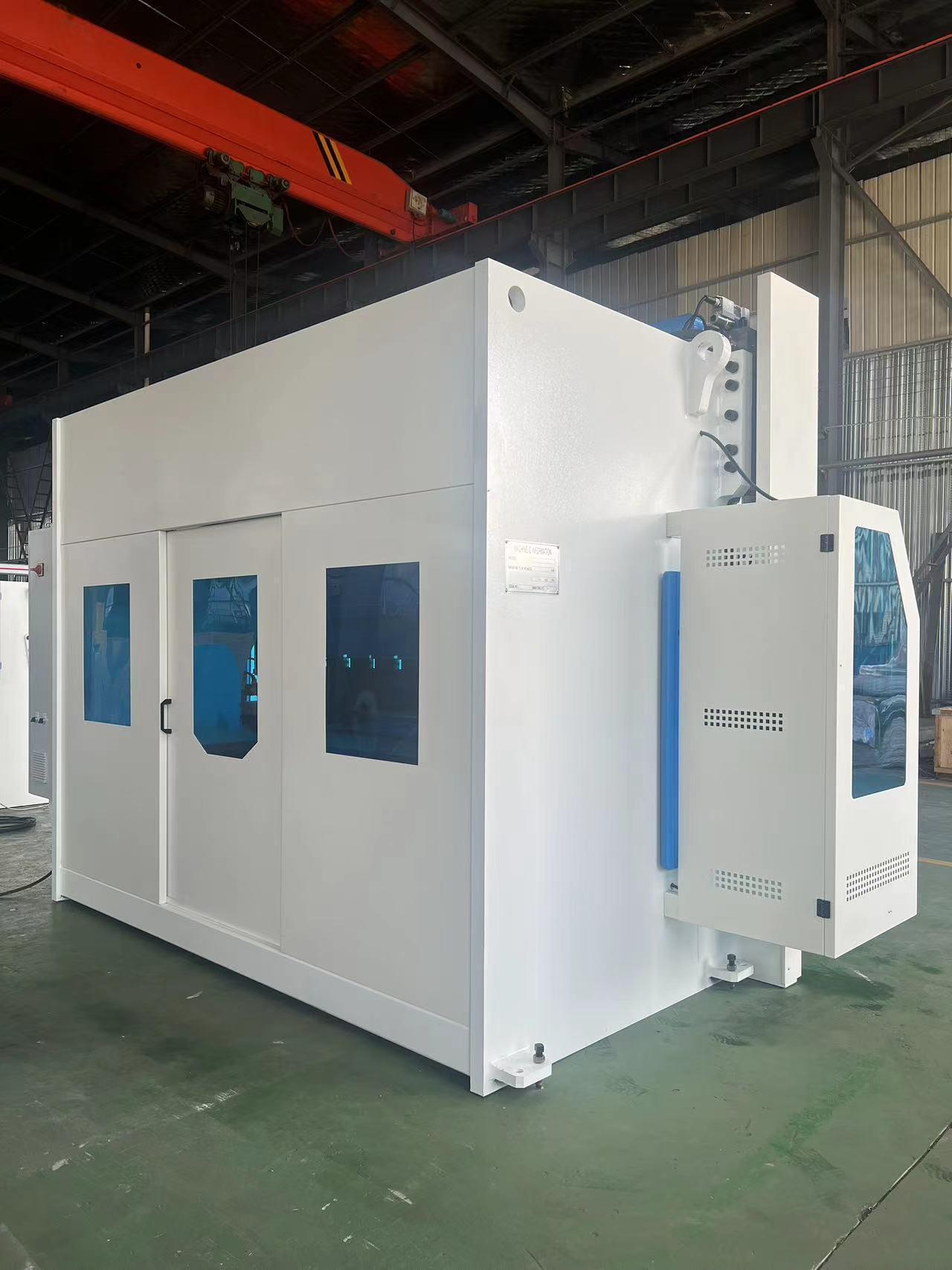

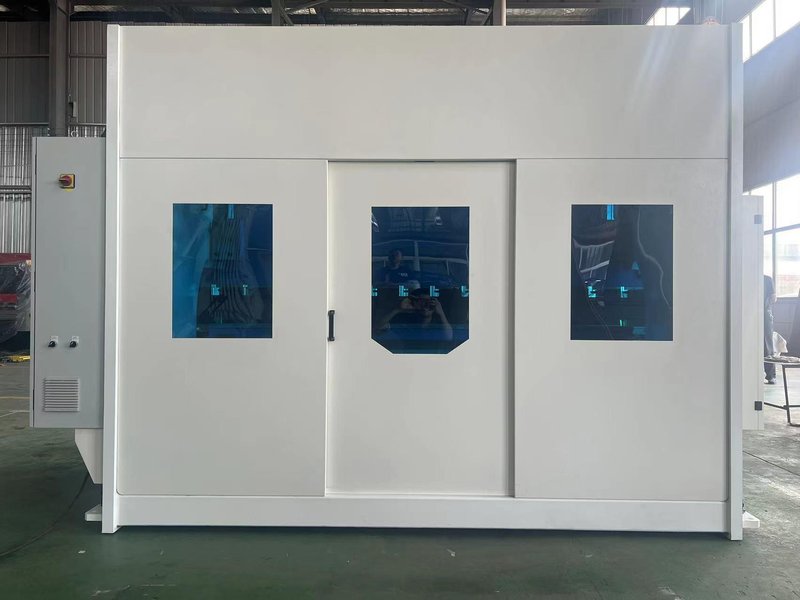

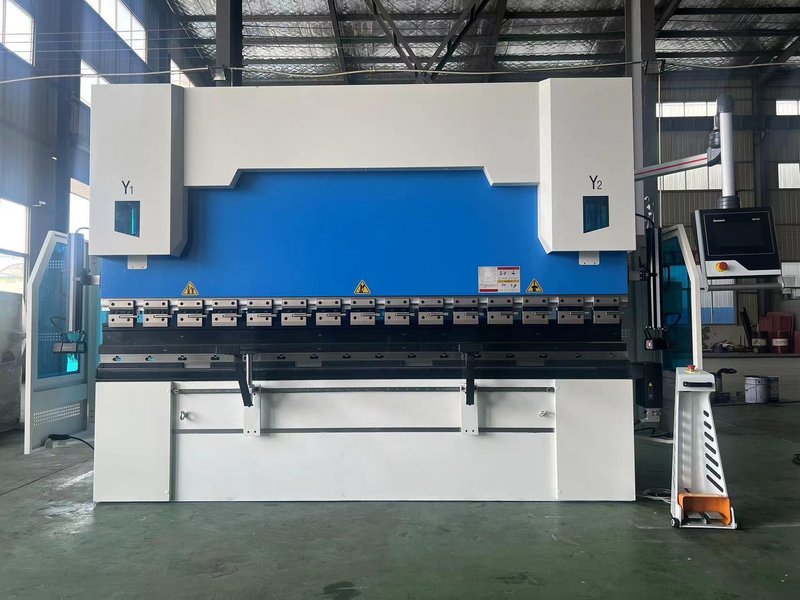

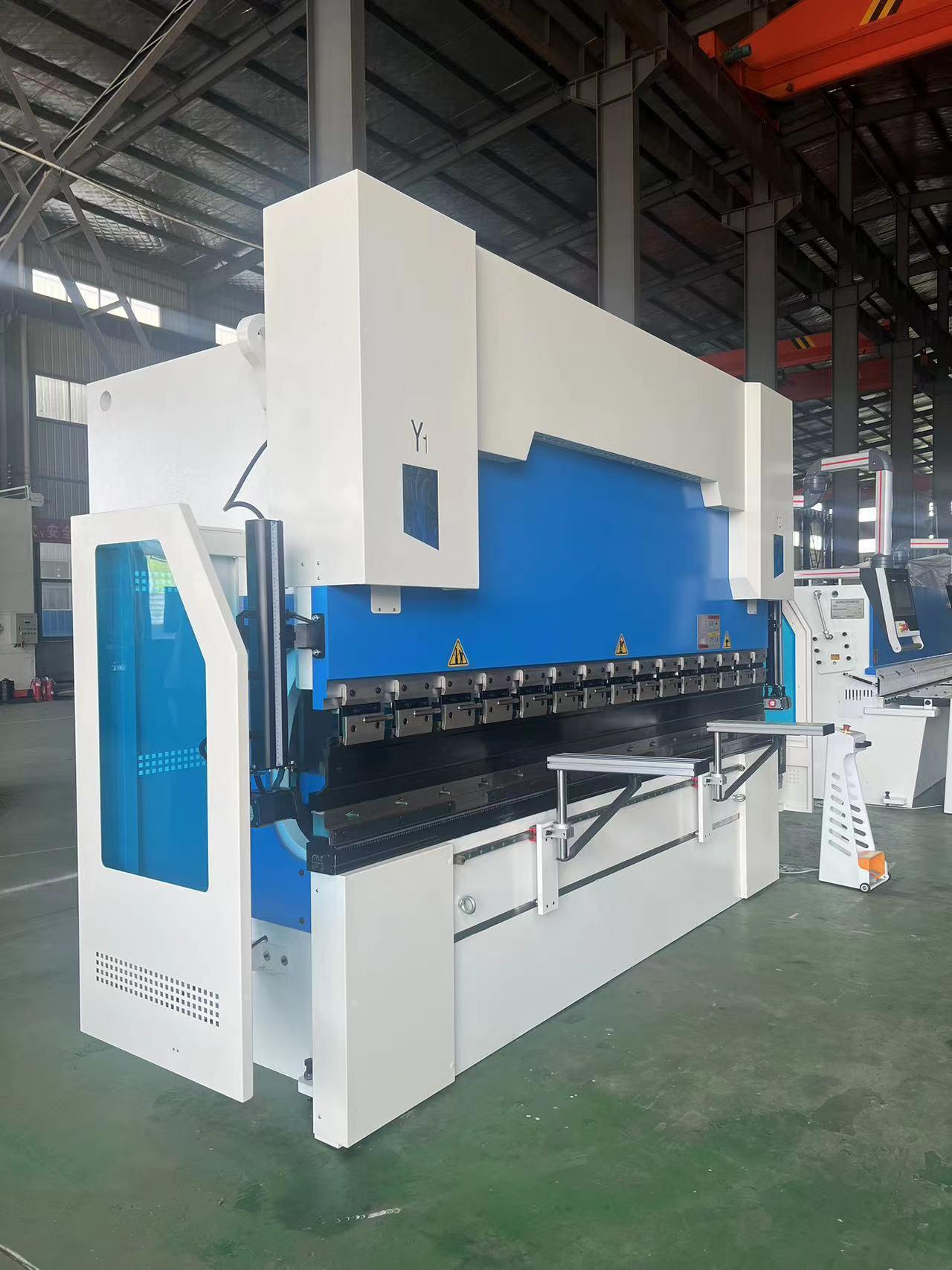

500 Ton X 20’ Hydraulic Press Brake with Delem DA-53T Controller, Servo Motor for 2 - Axis, Linear Guideway + Ballscrew for Backgauge, DSP Front Laser Safety, LED Work Lamp, Lyntech at Rear Side, Fingers on Backgauge, Foot Pedal, Delivery, Installation, Training and 2-Year Warranty.

GENERAL SPECIFICATIONS
Nominal Pressure:                    500 Tons
Workable Length:                    240”
Distance Between Uprights:            187.9”
Table Width:                        12.59”
Throat Depth:                    19.68”
Slide Travel:                        12.59”
Max Open Height:                    27.55”
Slide Travel No Overload:                10.23” / Sec
Slide Working:                    0.27” / Sec
Slide Return:                        3.54” / Sec
Main Motor:                        49.6 HP
Dimensions:                        261.71” X 98.42” X 137.9”
Weight:                        92,595 Lbs


INCLUDES: Delem DA-53T Controller, Servo Motor for 2 - Axis, Linear Guideway + Ballscrew for Backgauge, DSP Front Laser Safety, LED Work Lamp, Lyntech at Rear Side, Fingers on Backgauge, Foot Pedal, Delivery, Installation, Training and 2-Year Warranty.

***All Price, Location and Specifications Subject to Change without Notice***
