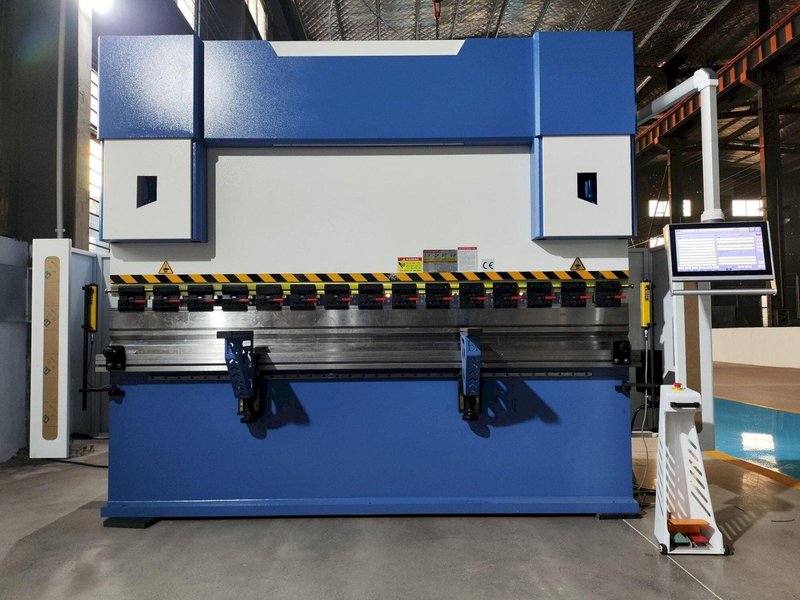

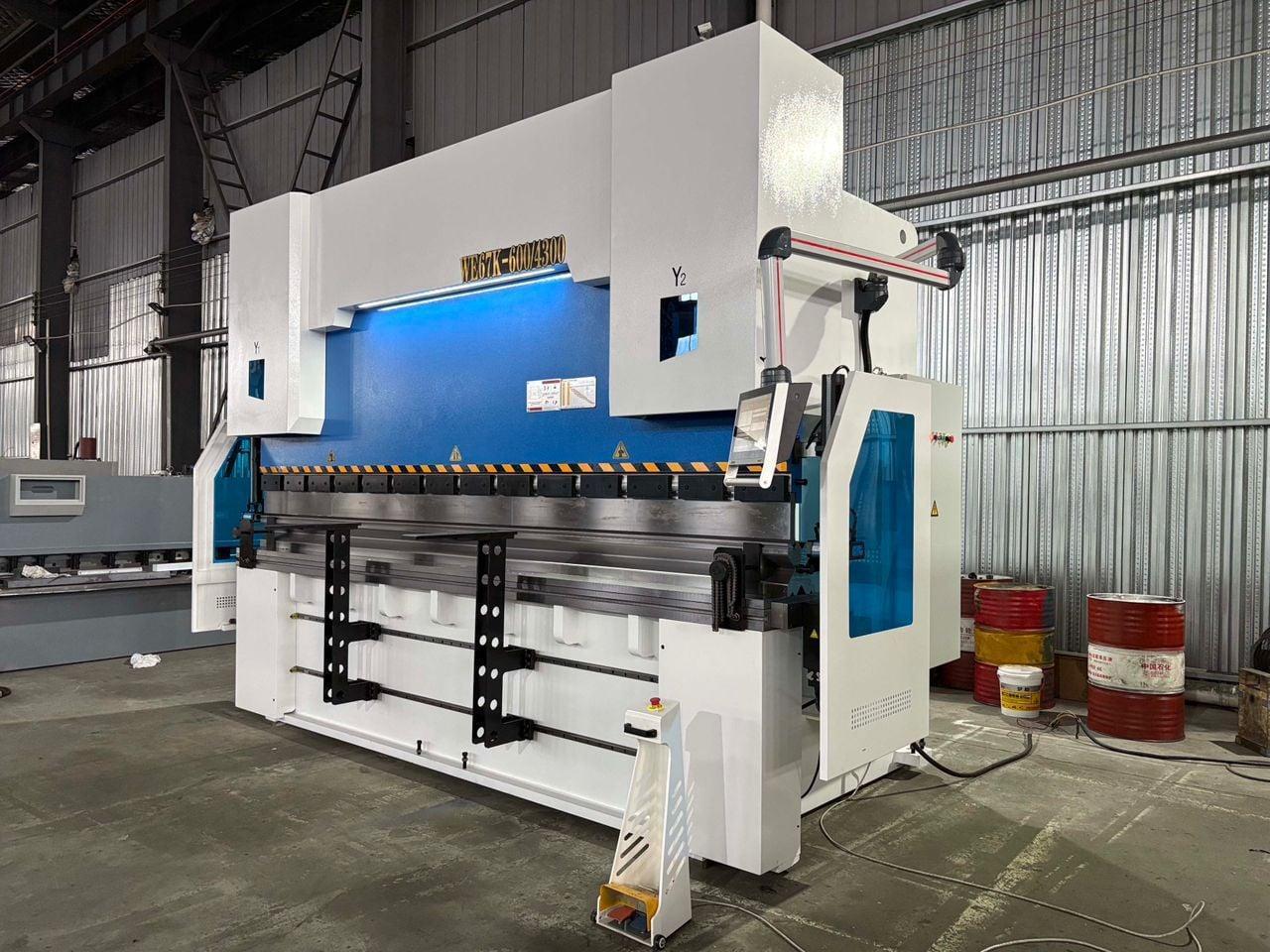

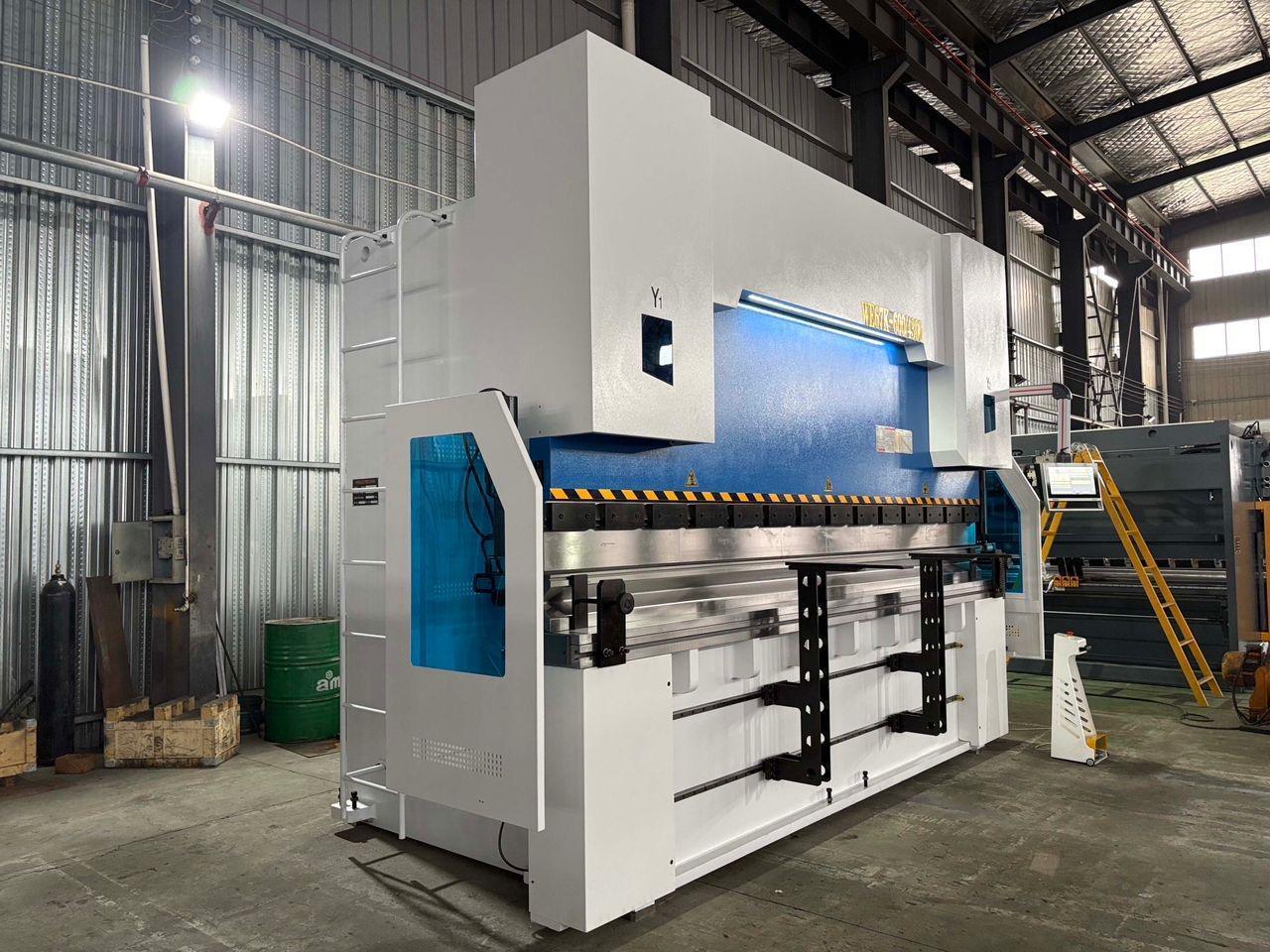

110 Ton X 12’ Hydraulic Press Brake with Delem Touchscreen Control, Linear Guideway + Ballscrew for Backgauge, DSP Laser Safety Front, LED Work Lamp, Fixed Supports, Fence with Limit Switch, Foot Pedal and Standard Punch & Die Set.

GENERAL SPECIFICATIONS
Nominal Pressure:                    110 Tons
Worktable Length:                    145”
Distance Between Uprights:            125”
Throat Depth:                    12.5”
Slide Max. Travel:                    7.87”
Max. Open Height:                    17.7”
Stroke of Slider:                    5.9” / Sec
Slide Working:                    0.37” / Sec
Slide Return:                        3.14” / Sec
Main Motor:                        7 kW
Dimensions:                        14.75’ X 5.6’ X 8.2’
Weight:                        18,740 Lbs

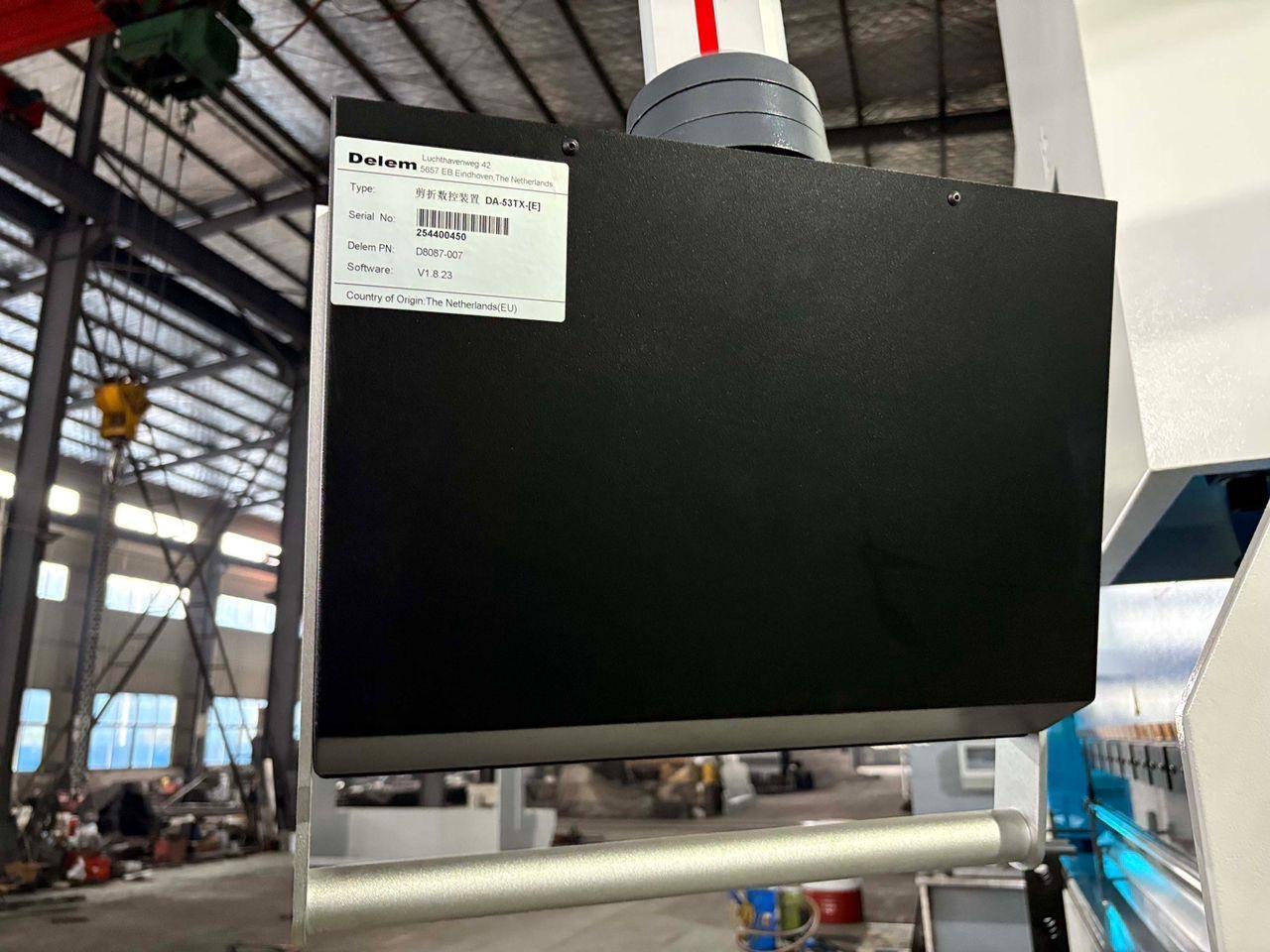

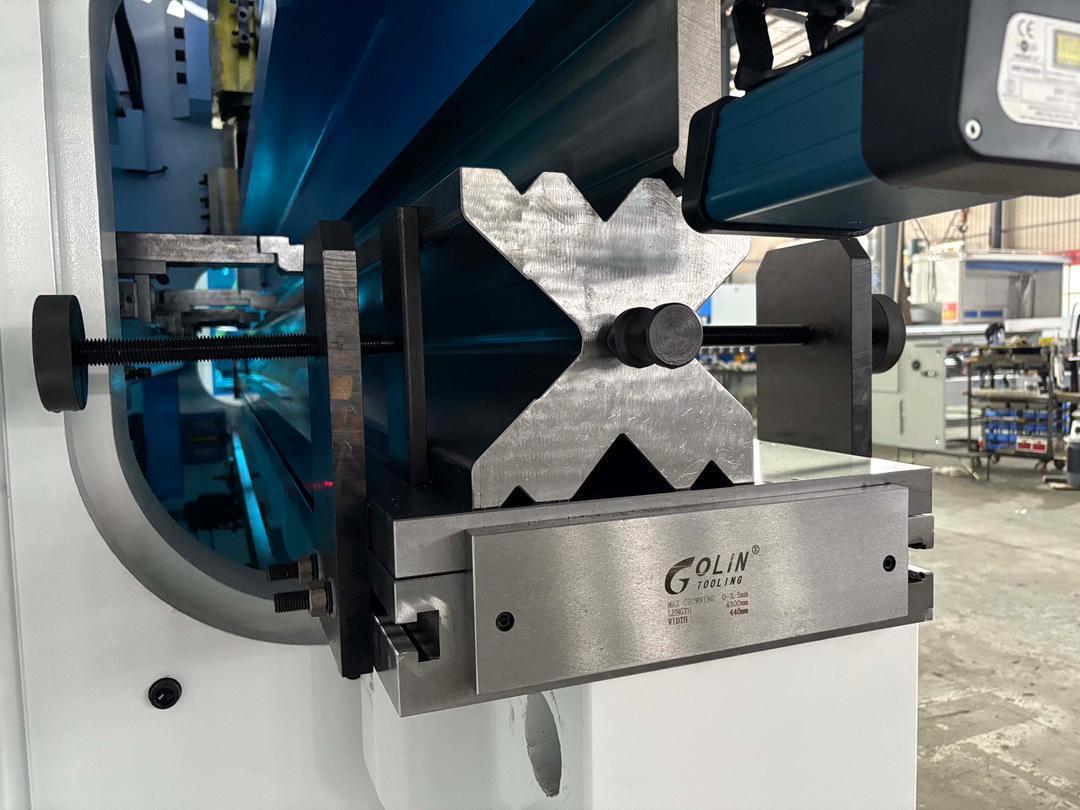

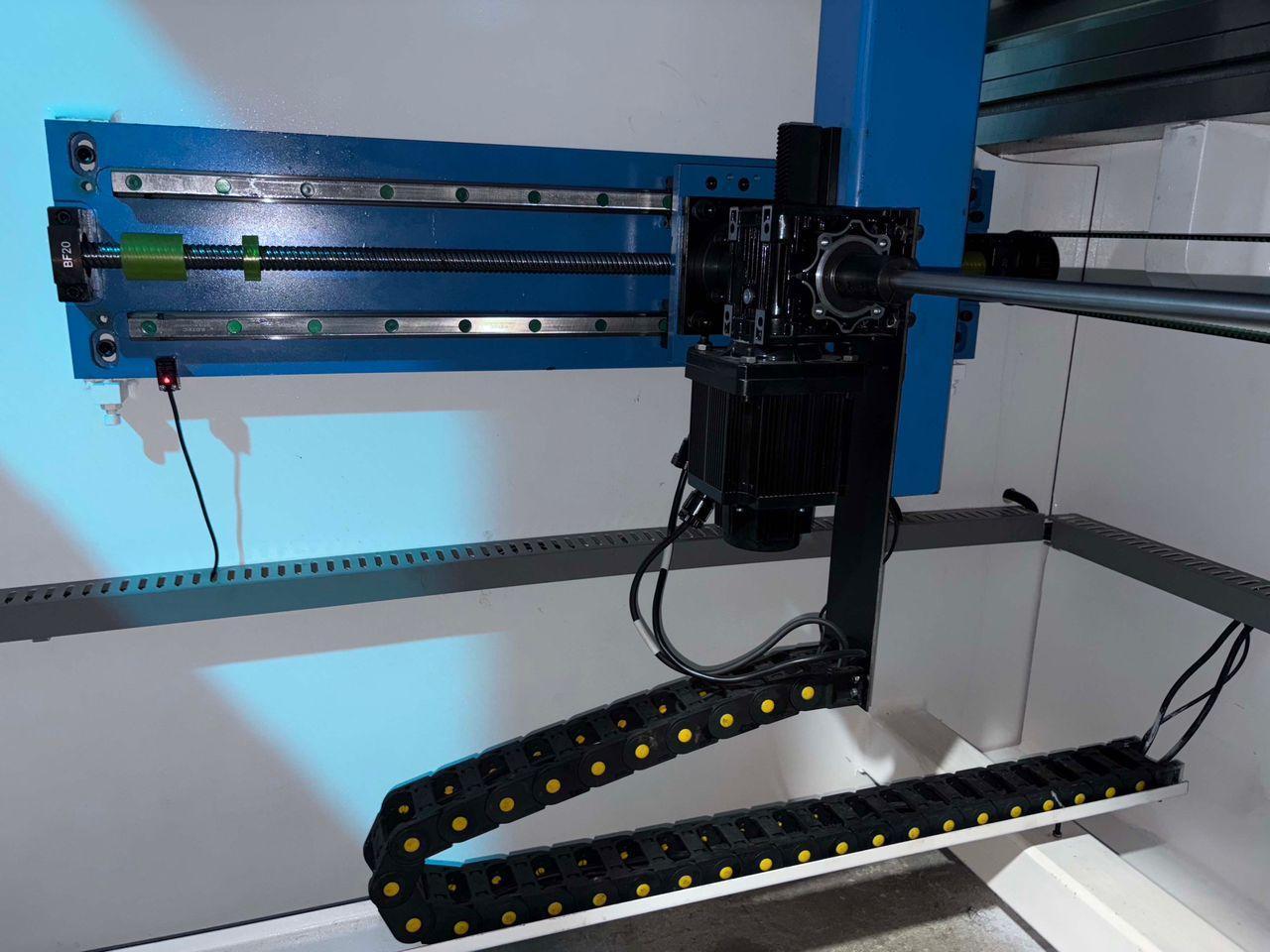

INCLUDES: Delem Touchscreen Control, Linear Guideway + Ballscrew for Backgauge, DSP Laser Safety Front, LED Work Lamp, Fixed Supports, Fence with Limit Switch, Foot Pedal and Standard Punch & Die Set.

***All Price, Location and Specifications Subject to Change without Notice***
