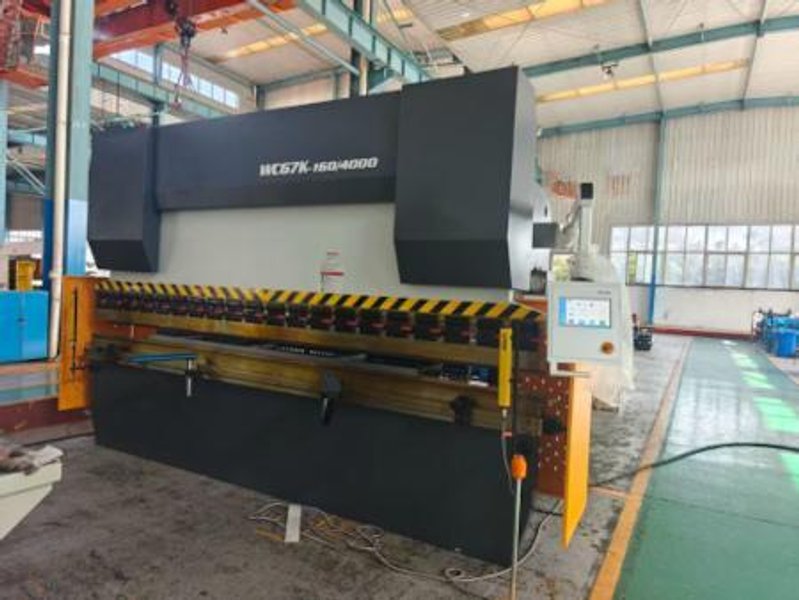

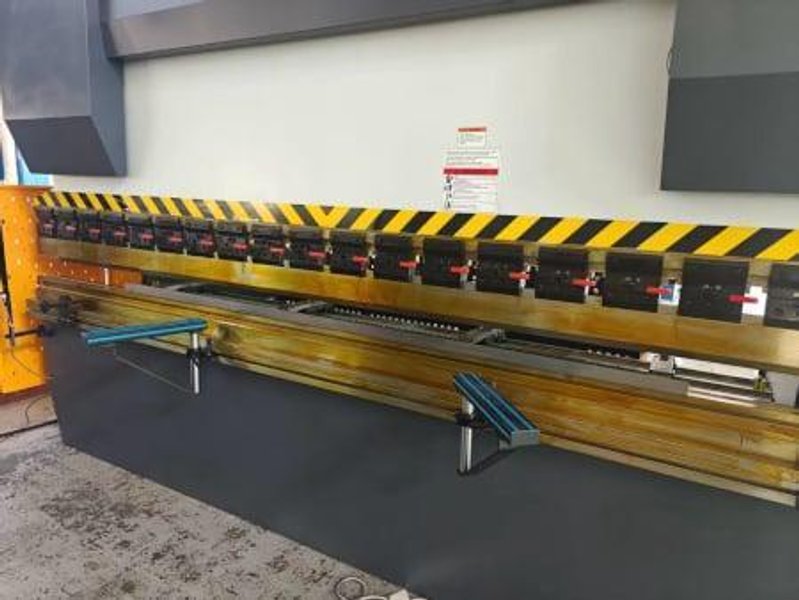

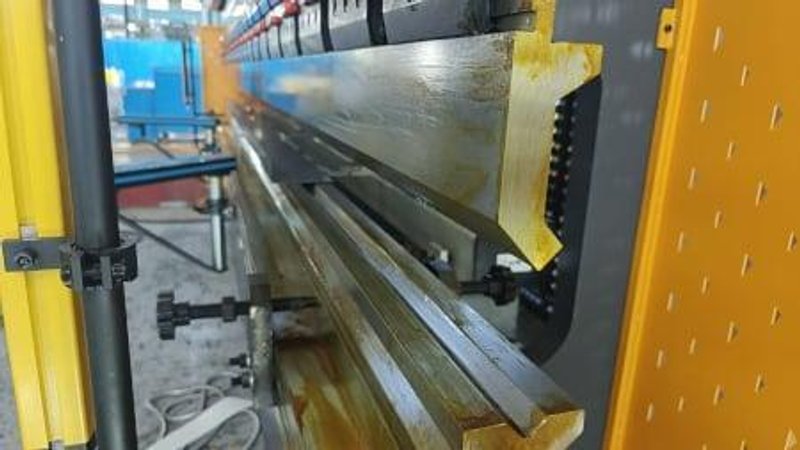

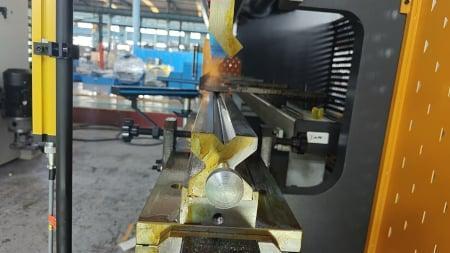

176 Tons X 13’ Hydraulic Press Brake with YCTech TP10 S Control X - Axis / Y1 & Y2 Gauging System, Three Modes of Operation: Inch, Single or Continuous, Full Length Gooseneck Punch & 4-Way Diem Full Length Filler Block, LNTech Front Light Curtain and Rear Metal Sliding Safety Door.

GENERAL SPECIFICATIONS
Tonnage:                                176 Tons
Table Length:                                157”
Distance Between Housings:                    123”
Throat Depth:                            13”
Ram Stroke:                                7.8”
Max. Open Height:                            18.3”
Stroke Adjustment:                            5.9”
Rapid Approach Speed:                        3.94 IPS
Bending Speed:                            0.35 IPS
Return Speed:                            3.54 IPS
Max. Stroke Rate:                            6 SPM

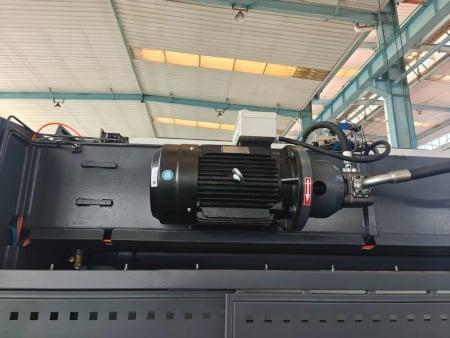

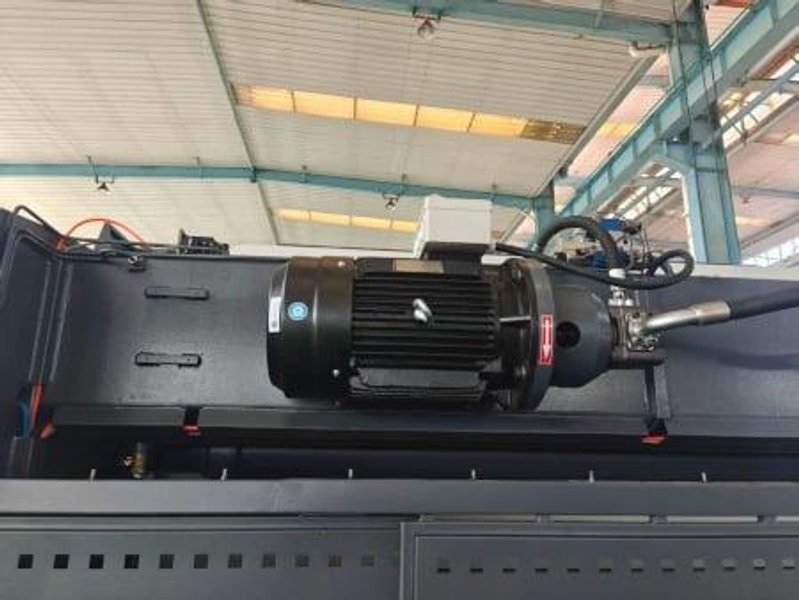

Motor:                                    20 HP
Electrics:                                230/3/60 or 460/3/60
Dimensions:                                185” X 86” X 100”
Approx. Weight:                            27,720 Lbs

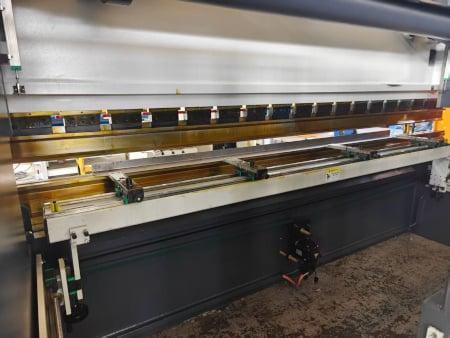

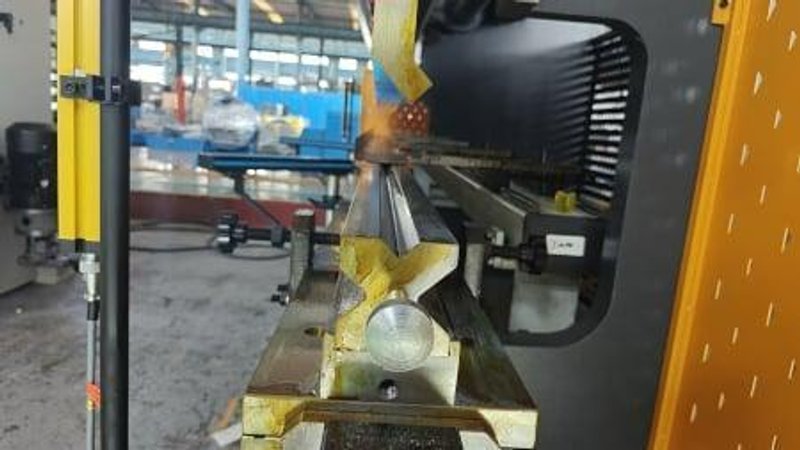

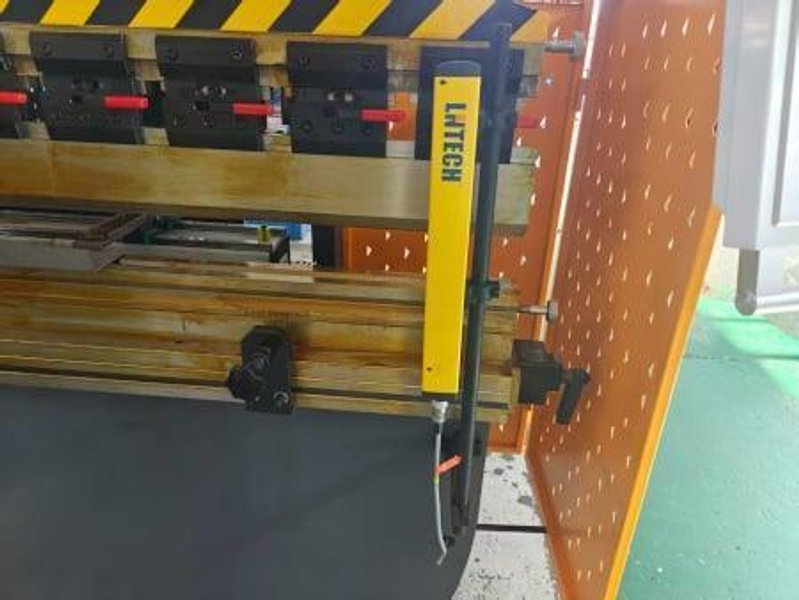

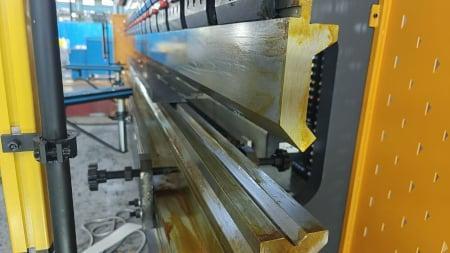

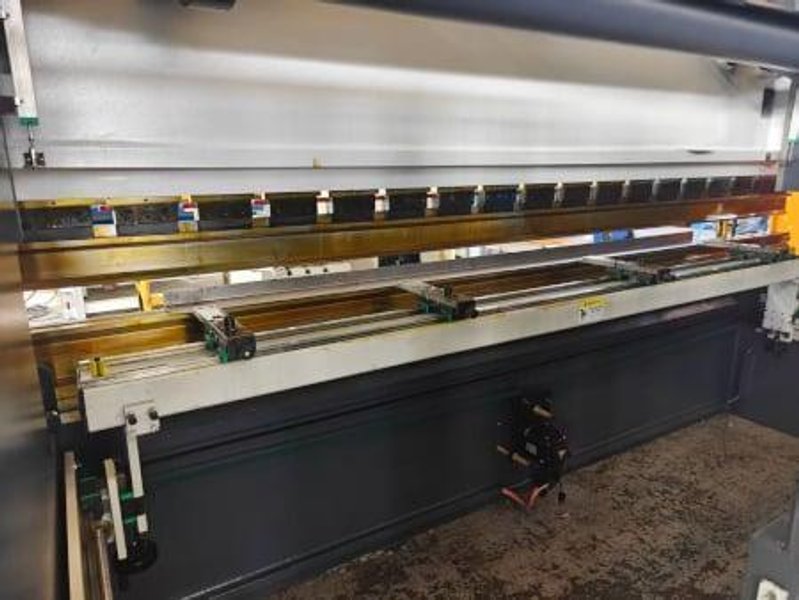

INCLUDES: YCTech TP10 S Control X - Axis / Y1 & Y2 Gauging System, Three Modes of Operation: Inch, Single or Continuous, Full Length Gooseneck Punch & 4-Way Diem Full Length Filler Block, LNTech Front Light Curtain and Rear Metal Sliding Safety Door.

***All Price, Location and Specifications Subject to Change without Notice***
