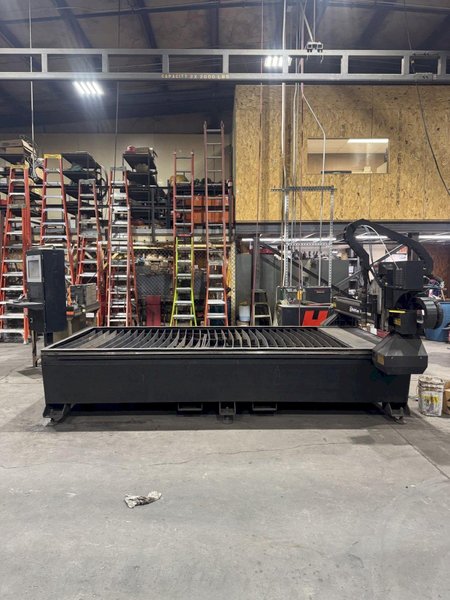

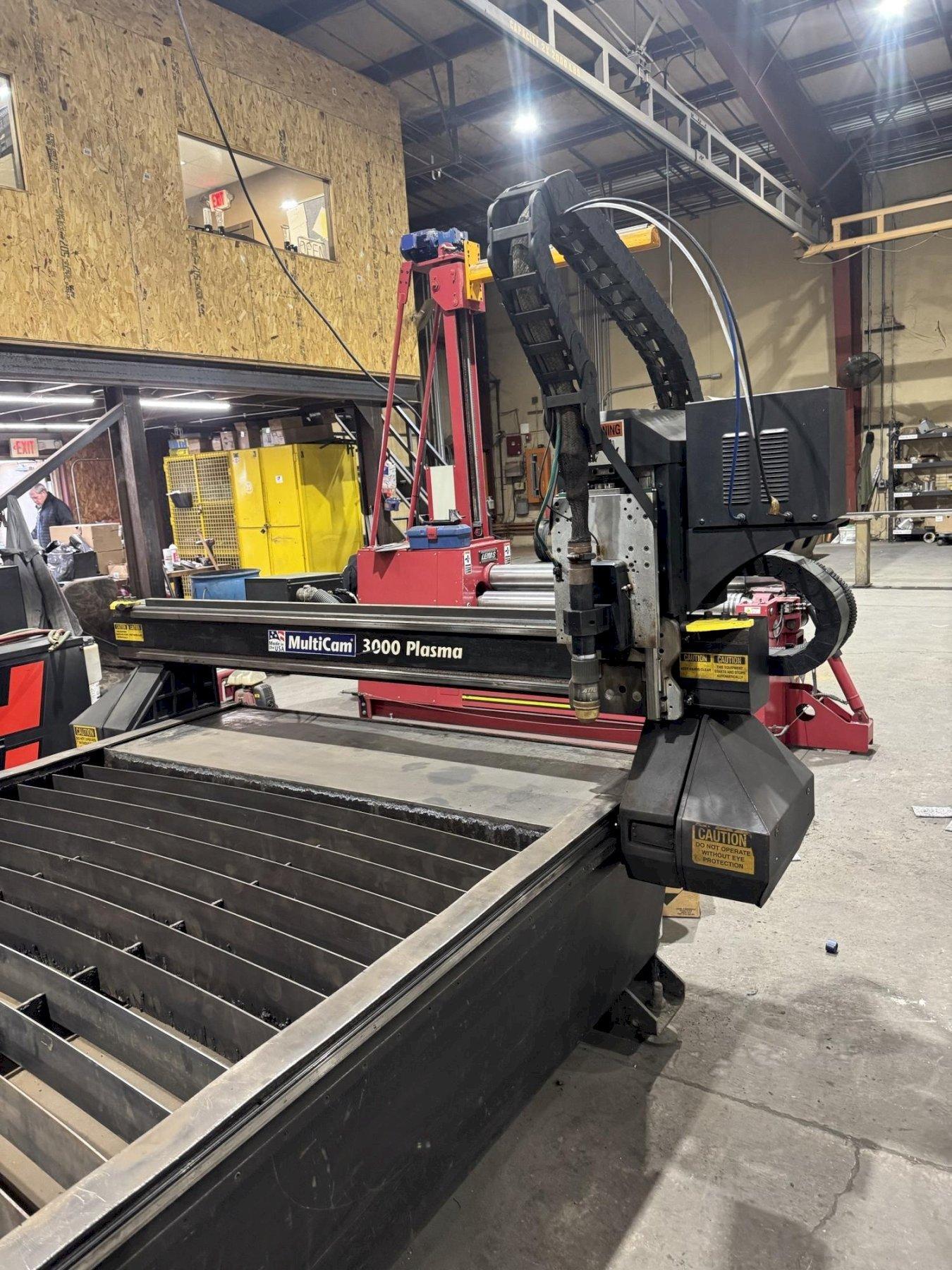

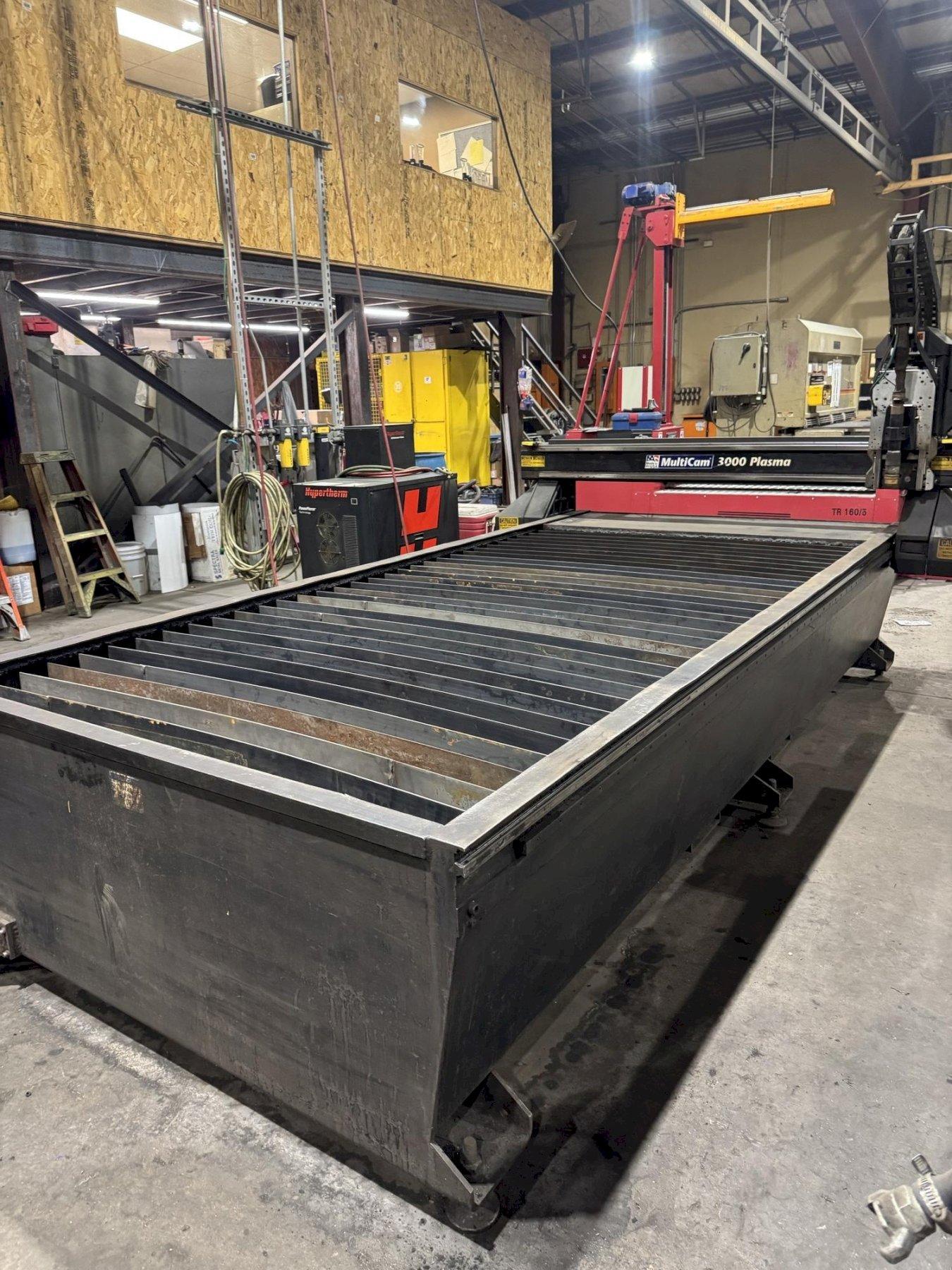

5 x 10 Multicam 3000 Plasma Table, 2016 – Hypertherm HPR130xd

Table Size (L x W): 120″ x 60″ X Axis: 120″ Y Axis: 60″ Z Axis: 6″ Z Axis Clearance: 4″ Cut Speed: 400 – 1000 IPM Rapid Traverse: 1800 – 2300 IPM Repeatability: ±0.001″ Drive System (X & Y): Rack & Pinion Drive System (Z): Lead Screw Weight: ~9000 Lbs Electrical: 460V 3 Phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Cut Thickness (Mild Steel): Production Pierce: ~1‑1/4″ Maximum Cutting Capacity: ~1‑1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Cut Thickness (Stainless Steel): Production Pierce: ~3/4″ Maximum Cutting Capacity: ~1″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Cut Thickness (Aluminum): Production Pierce: ~3/4″ Maximum Cutting Capacity: ~1″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

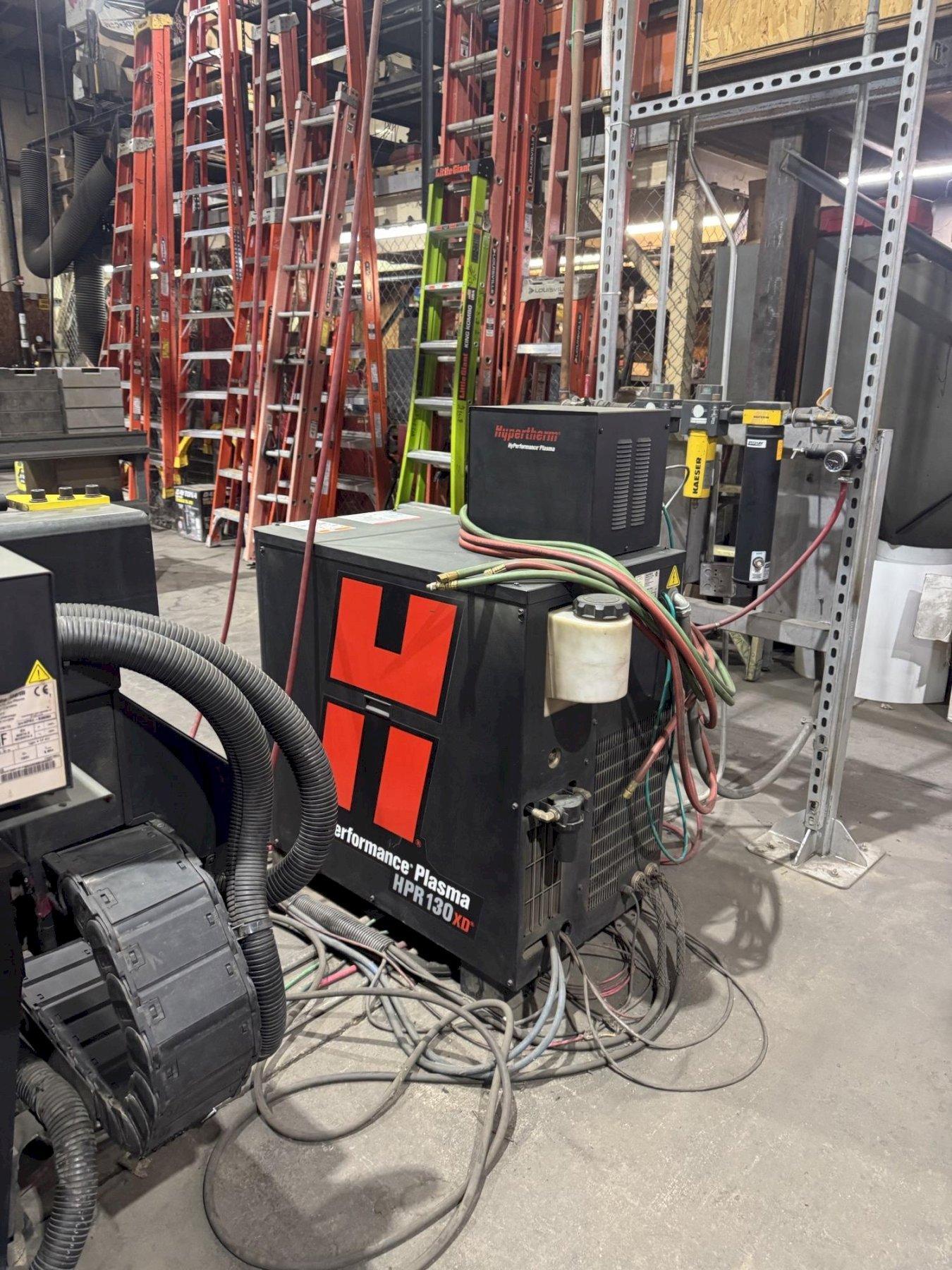

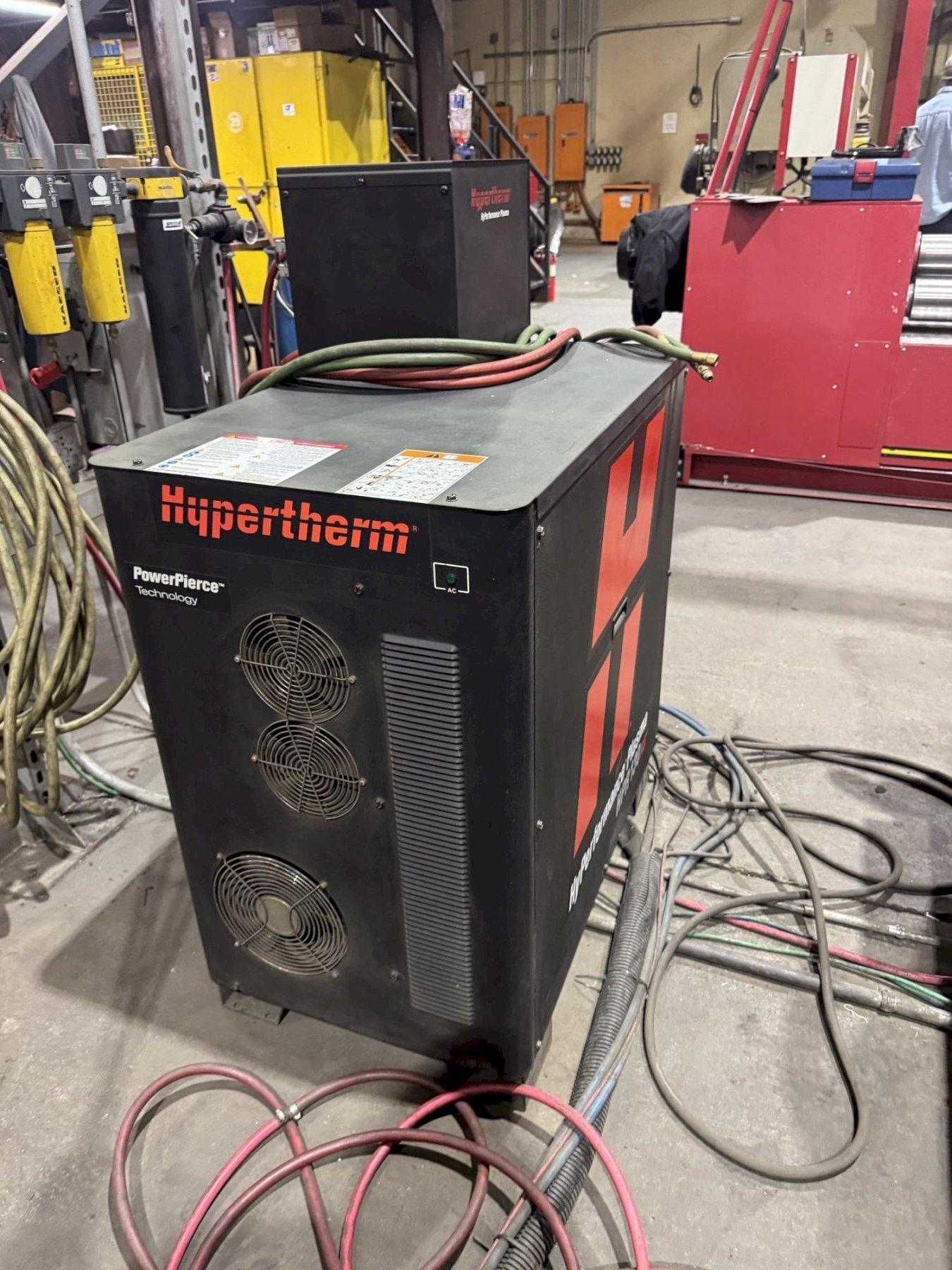

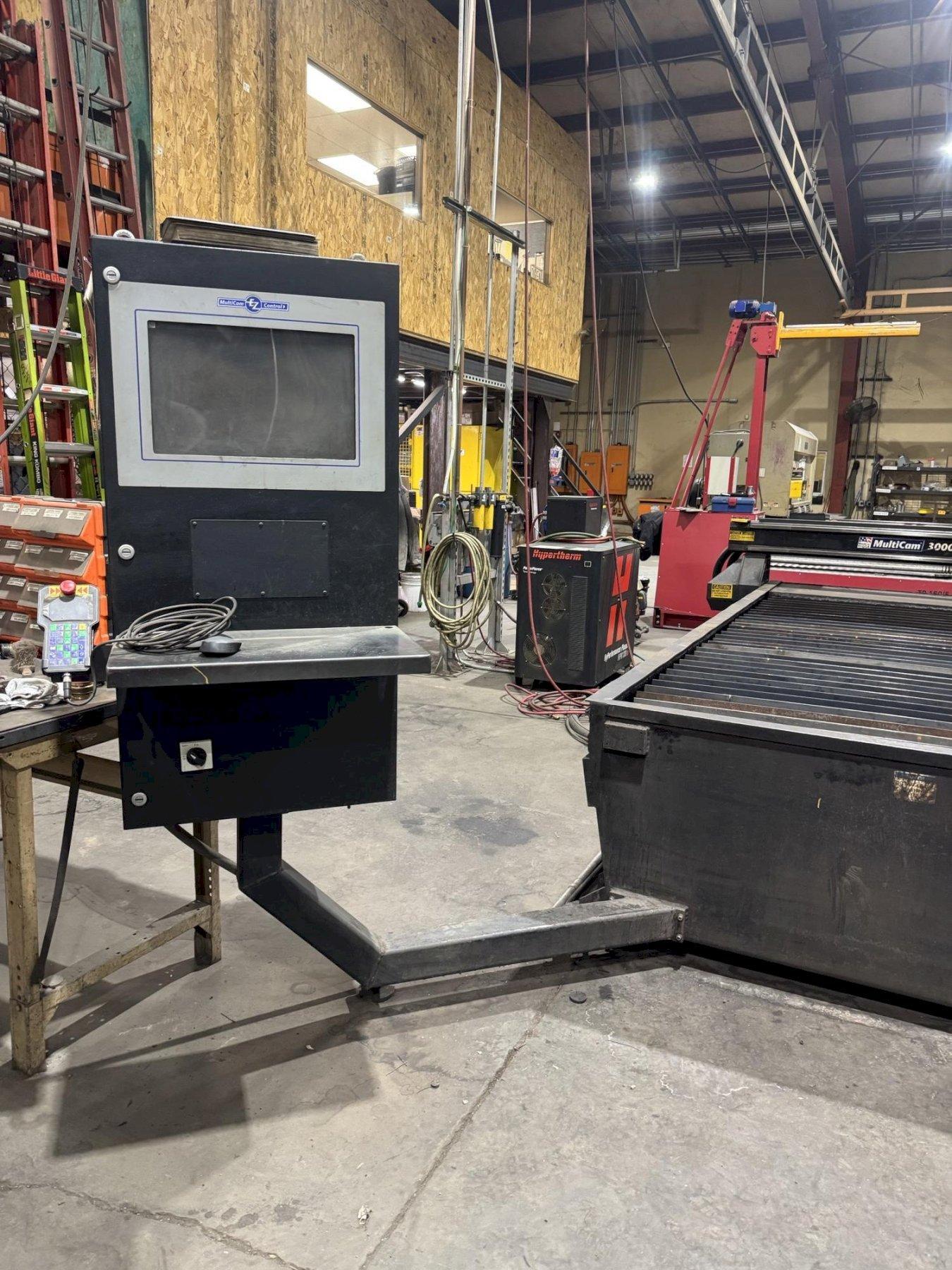

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MultiCam EZ Control Hypertherm HPR130XD Plasma Power Supply Brushless AC Servo Drives Automatic Torch Height Control (ATHC) All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
