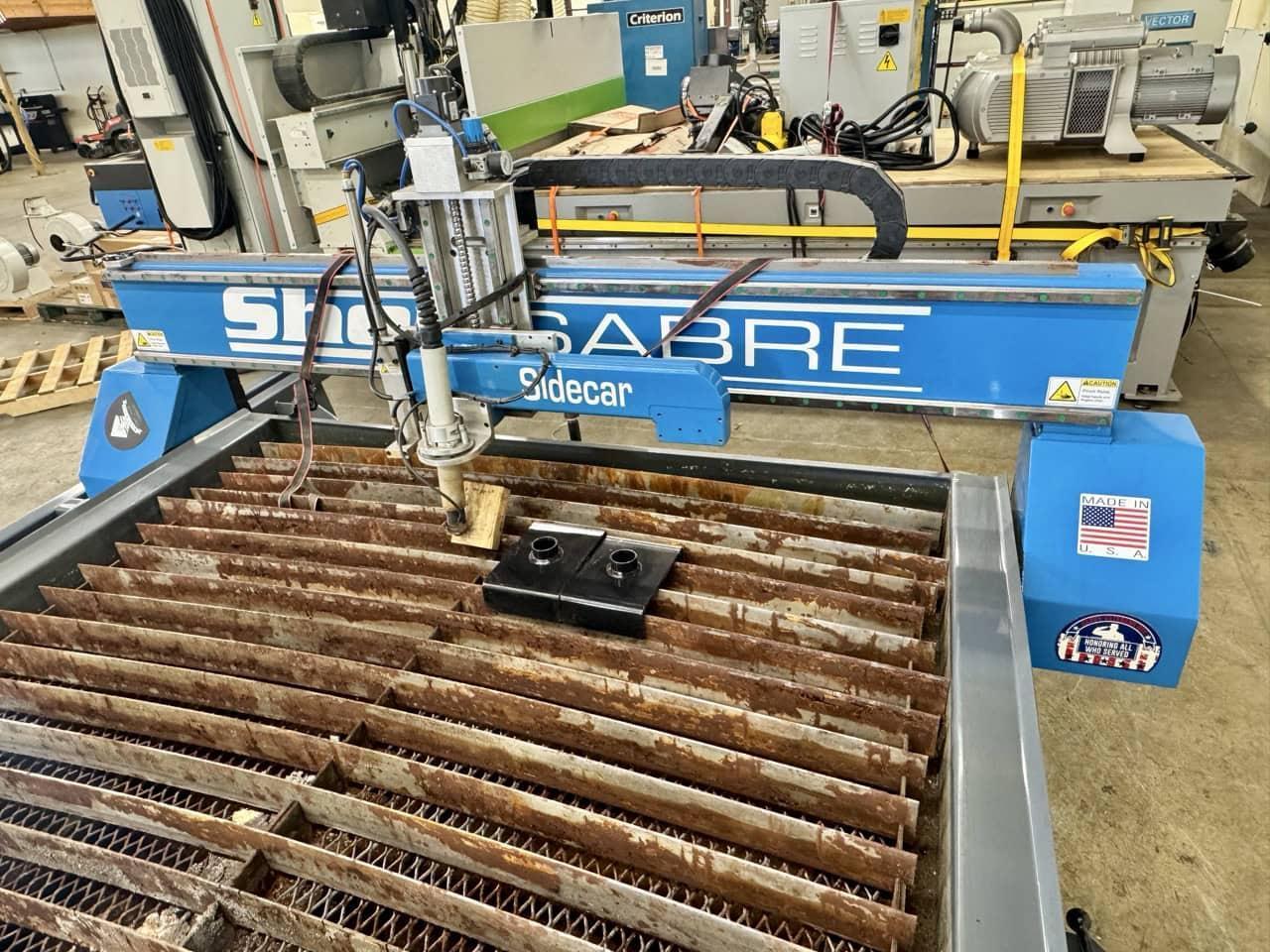

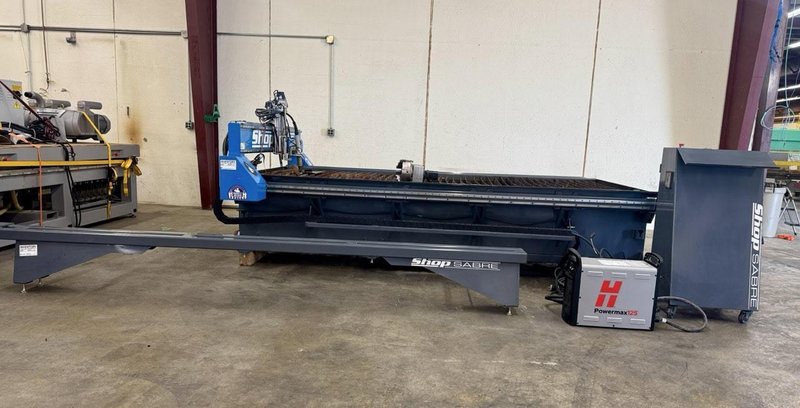

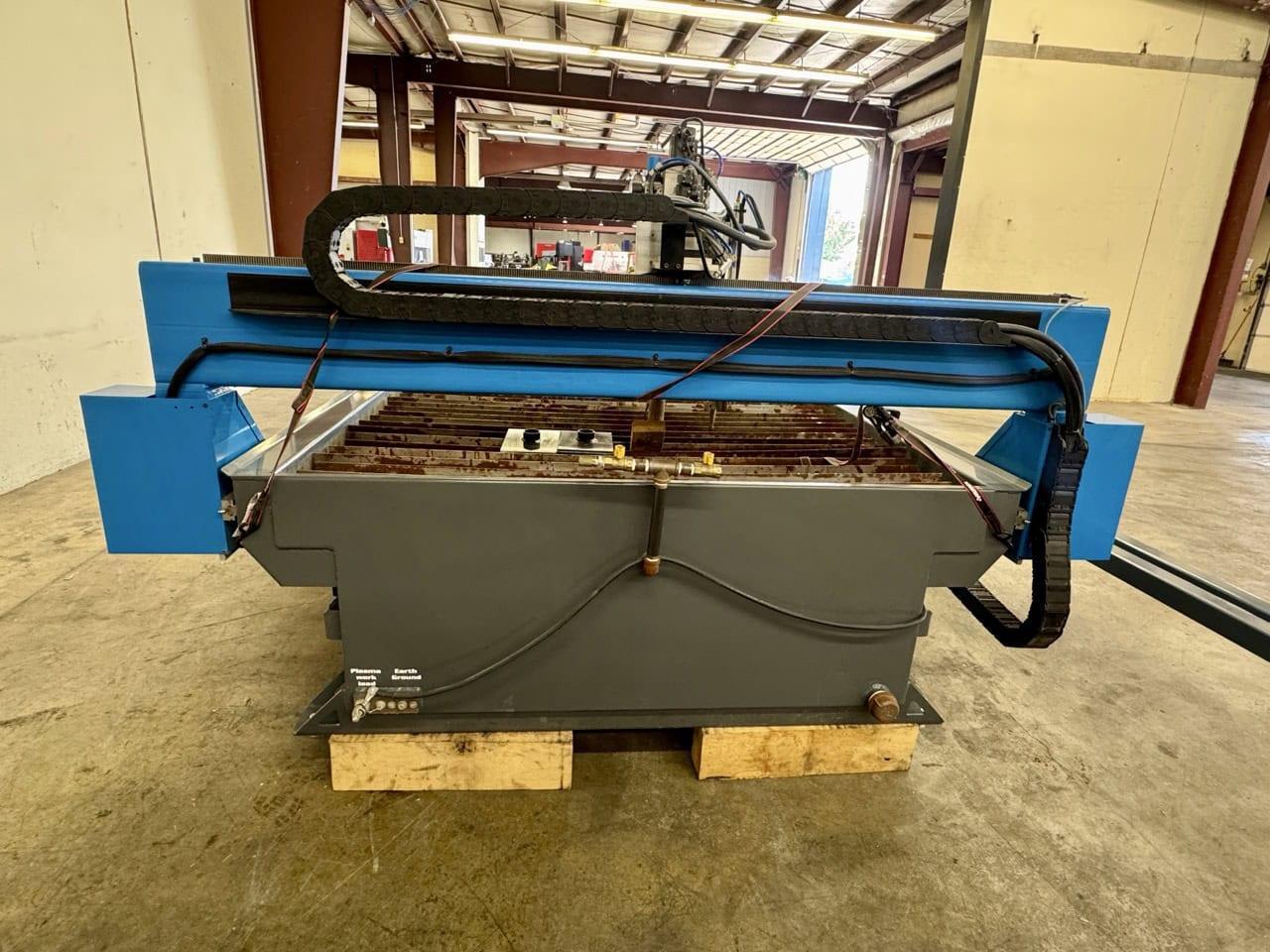

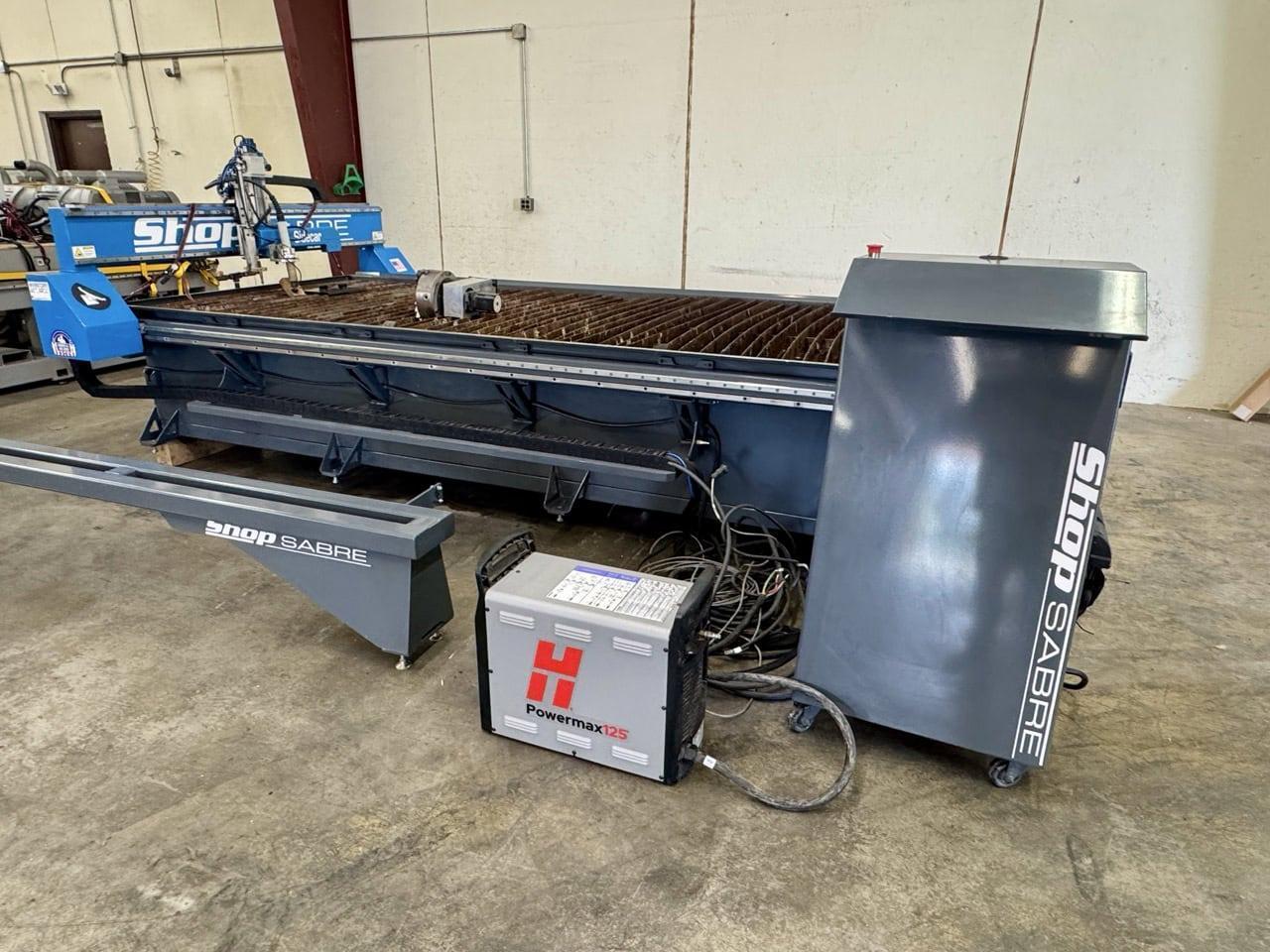

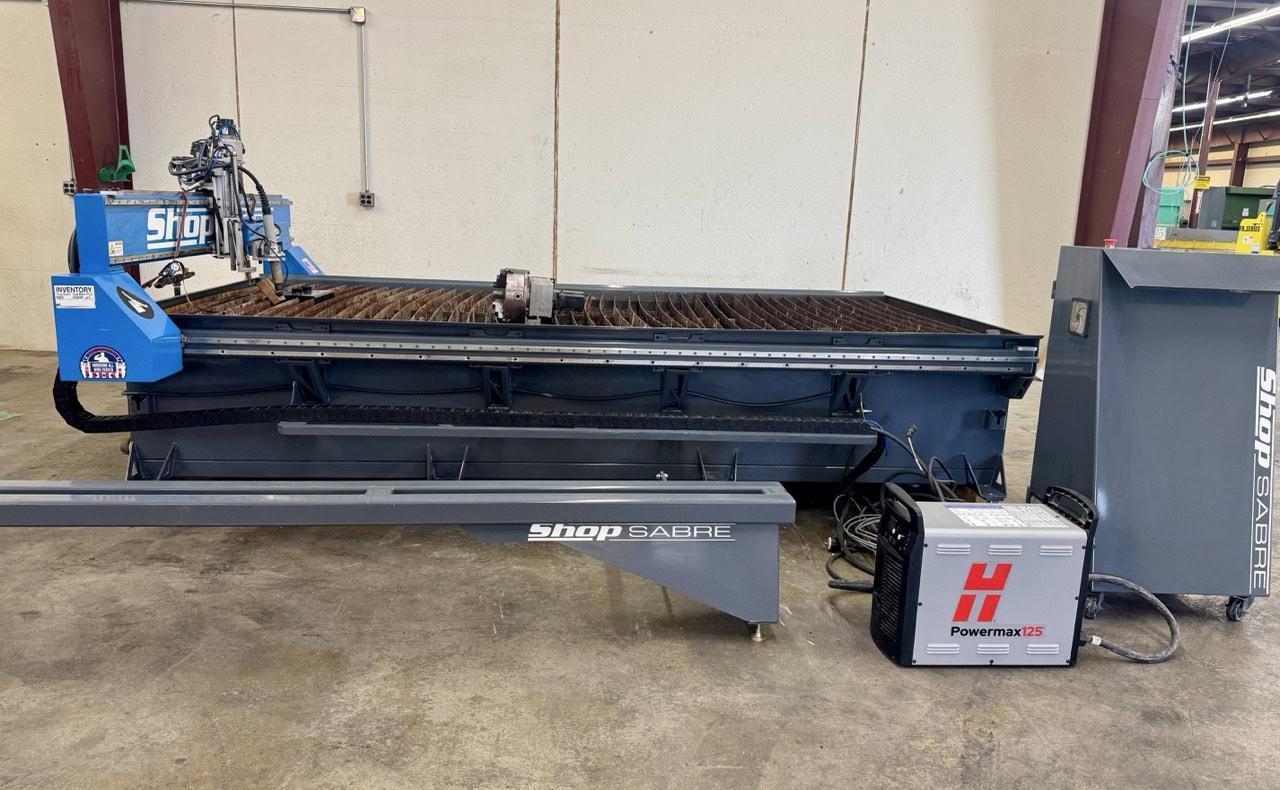

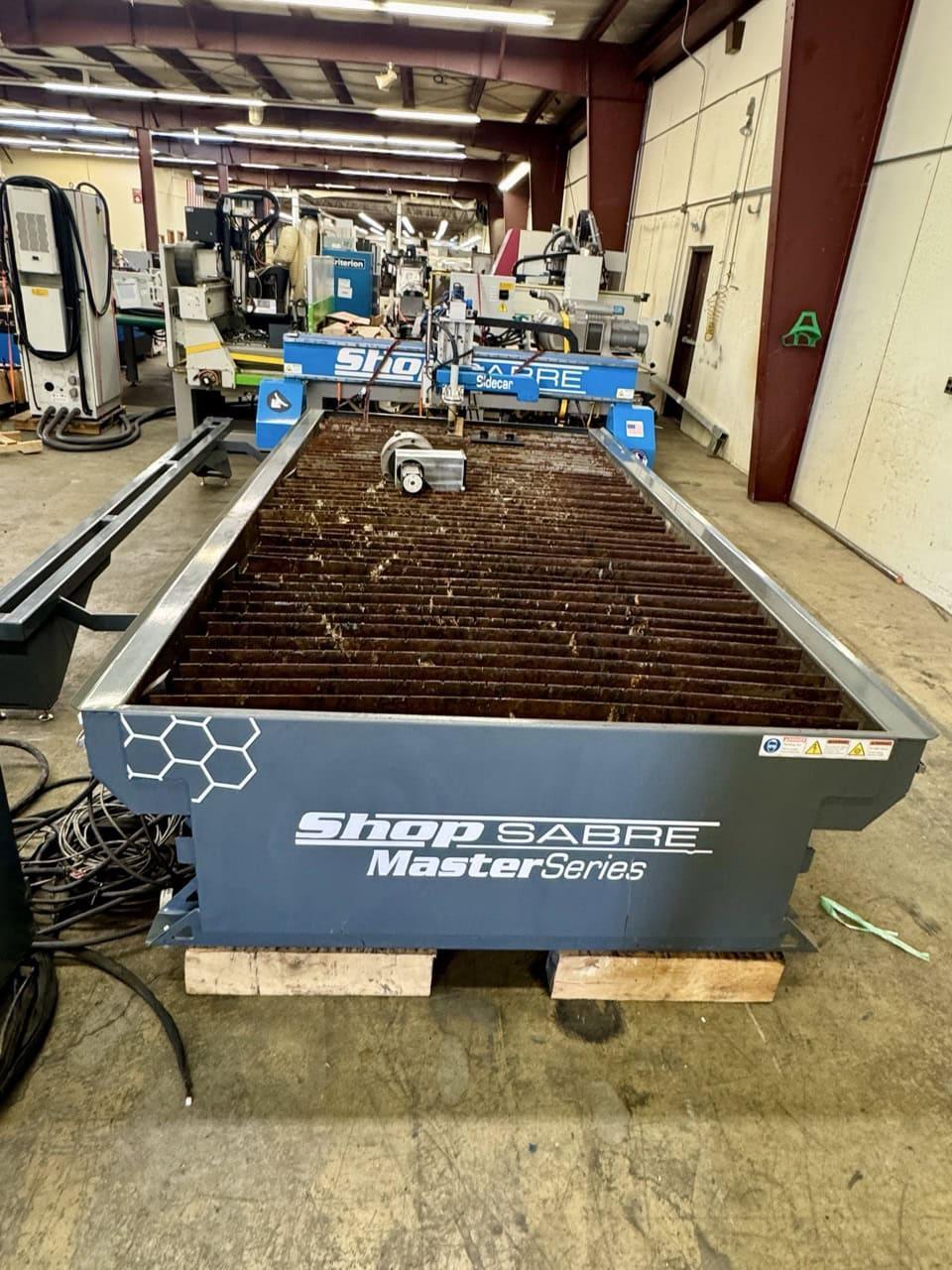

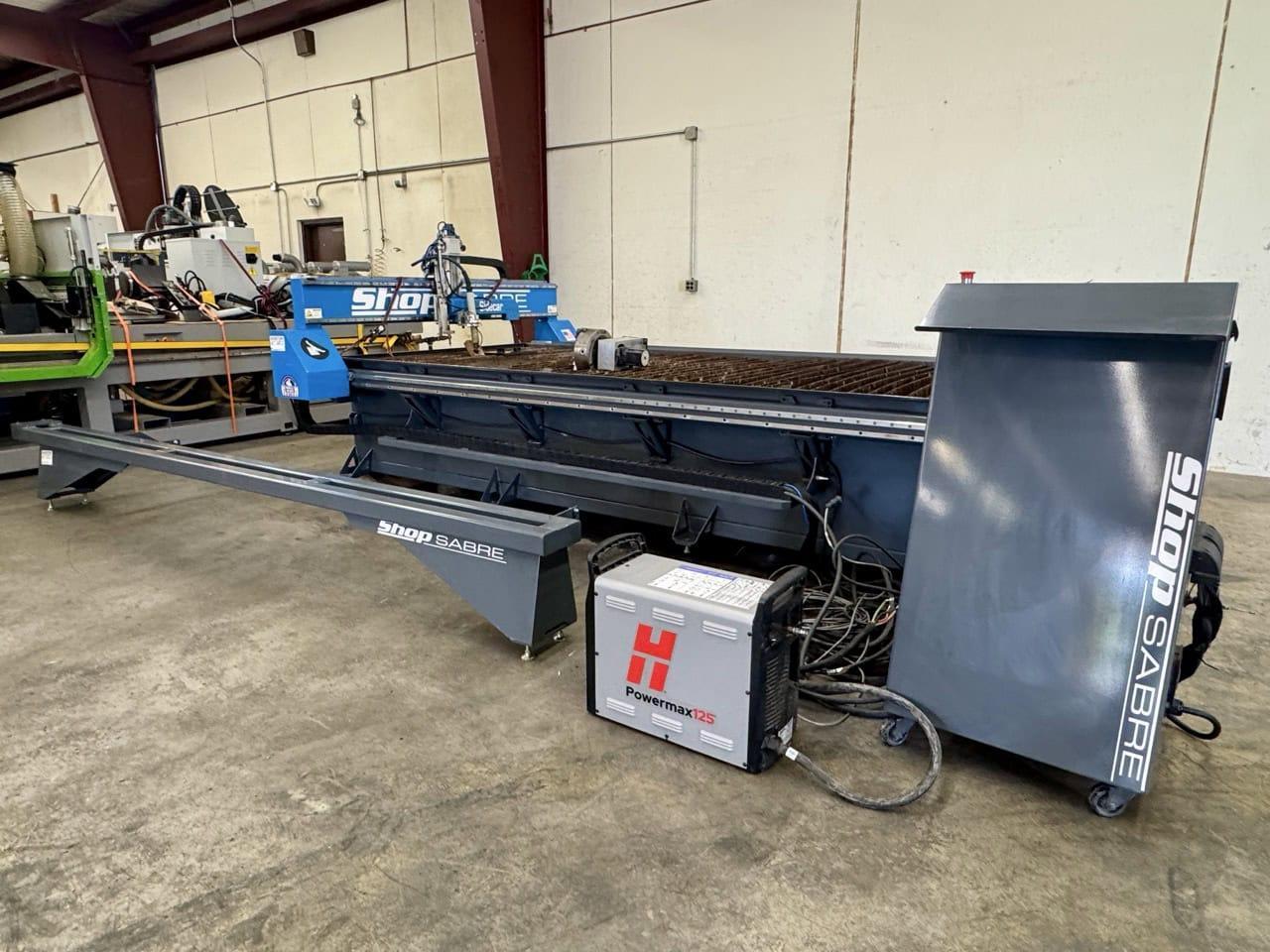

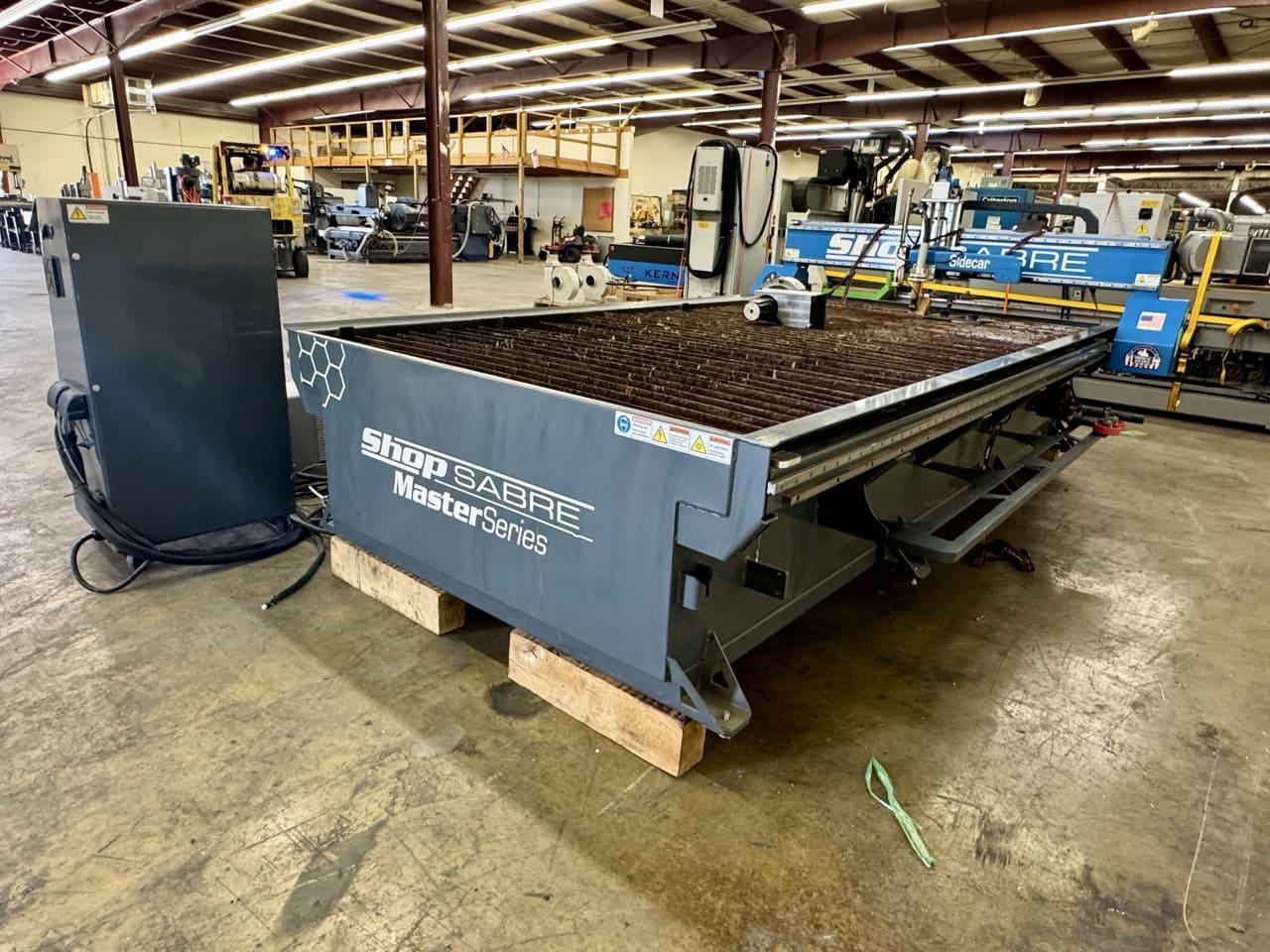

ShopSabre ShopMaster PRO 10 CNC Plasma Cutter, 2024 – 5′ x 10′ Table, Hypertherm Powermax125

2024 ShopSabre ShopMaster PRO 10 industrial CNC plasma cutting system featuring a 5′ x 10′ cutting table and Hypertherm Powermax125 125-amp plasma source for high-production cutting of mild steel, stainless steel and aluminum.

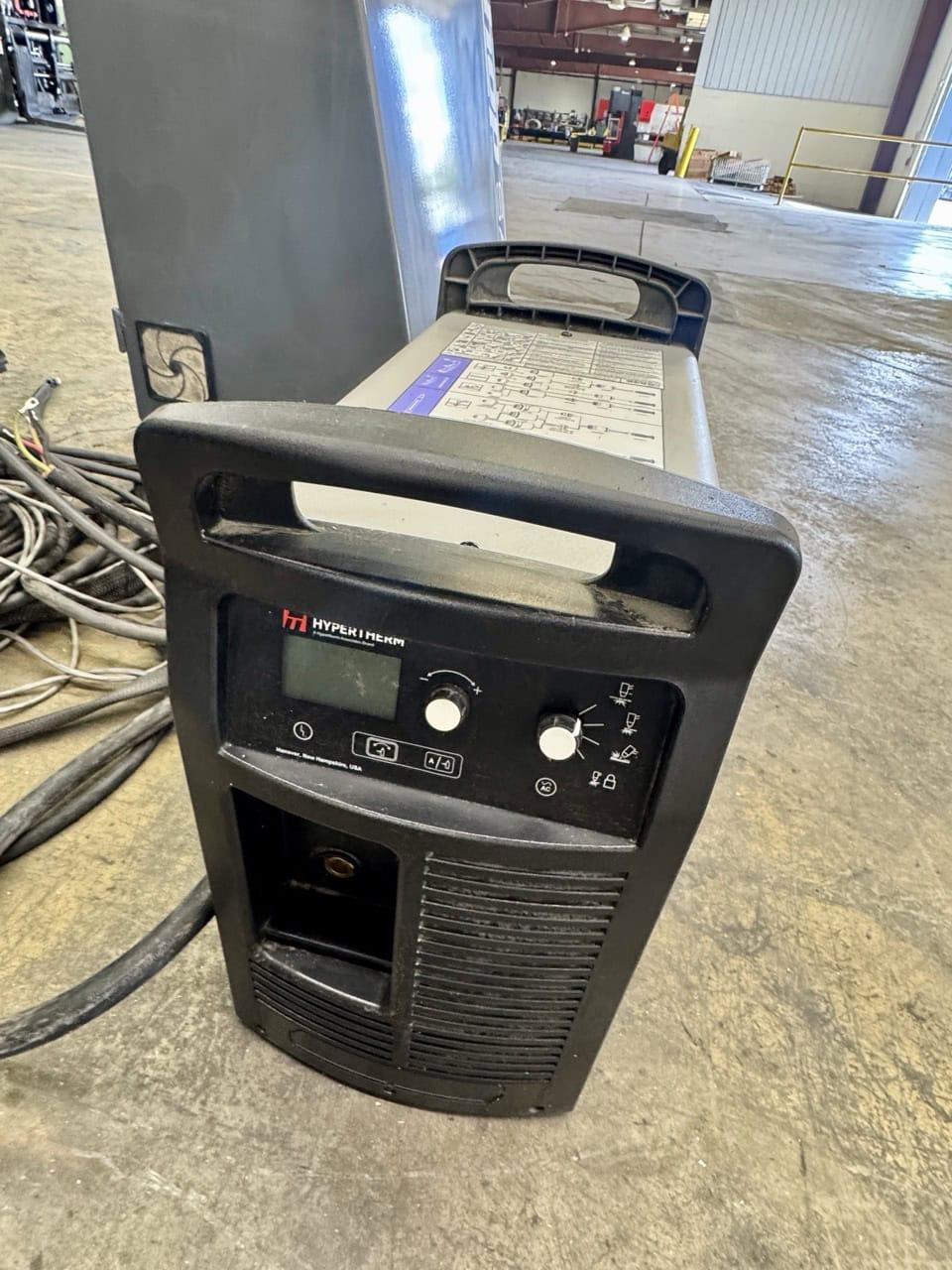

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer ShopSabre Model ShopMaster PRO 10 Year 2024 Machine Type CNC Plasma Cutting Table Nominal Processing Size 5′ x 10′ X-Axis Travel 121 in. Y-Axis Travel 64 in. Z-Axis Travel 9 in. Z-Axis Clearance 8 in. standard Rapid Traverse Up to 2,500 IPM Positional Repeatability ±0.002 in. Motion System AC digital closed-loop servo motors with encoder feedback Maximum Cutting Capacity Up to 6 in., plasma/process dependent Plasma Power Source Hypertherm Powermax125 Plasma Output 125 amps Powermax125 Duty Cycle 100% at rated 125A output Mechanized Pierce Capacity 1 in. / 25 mm Plasma Gas Clean, dry, oil-free compressed air or nitrogen Required Air Flow Approx. 9.2 SCFM / 260 L/min @ 85 PSI while cutting Powermax Technology Inverter / IGBT Powermax Electrical Efficiency Approx. 91–92% Powermax Input Power 3-phase; exact voltage configuration should be verified from data plate Torch Hypertherm mechanized machine torch; verify exact torch/lead length Torch Height Control Automatic CNC torch-height control; verify installed configuration Cutting Materials Mild steel, stainless steel, aluminum and other electrically conductive metals Table Type Verify water table / downdraft configuration Controller ShopSabre CNC control system CAD/CAM Software Verify software package and transferable licenses Machine Footprint Approx. 91″ W x 148″ L x 59″ H for current PRO 10 configuration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
