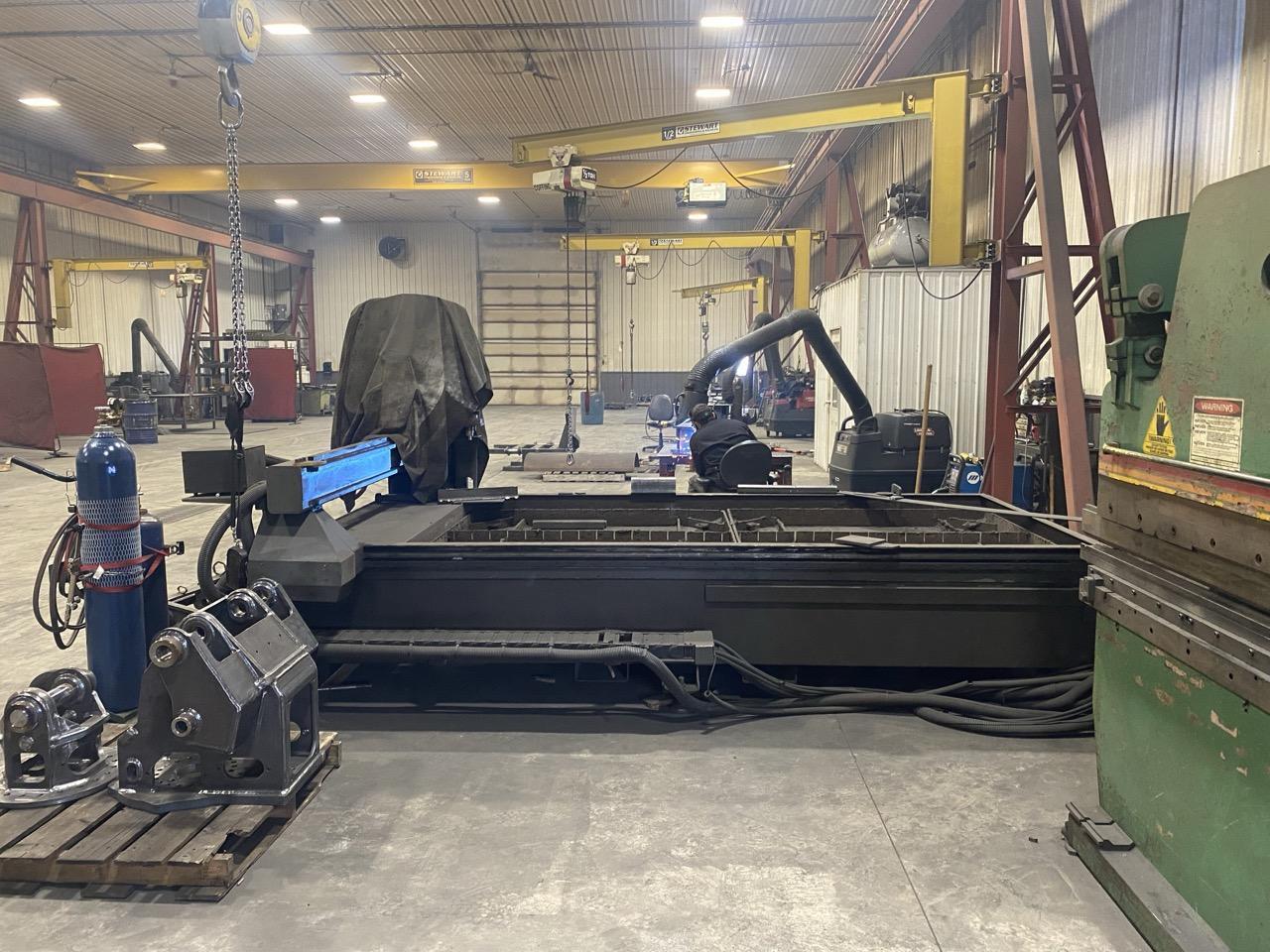

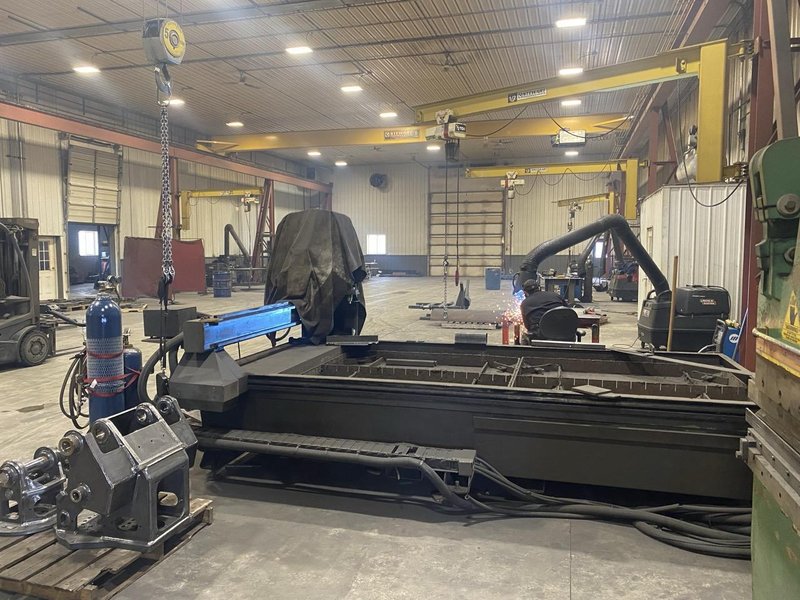

5′ x 10′ MultiCam 3000 CNC Plasma Table, 2014 – 260 Amp Hypertherm HPR260XD
Brand
Category
Type
Model
3000
Stock #
173777
Year
2014
Condition
Not specified
Location
Not specified
|
Table Size (L × W): 120″ × 60″
X Axis: 120″
Y Axis: 60″
Z Axis: 6″
Cut Speed: 1,000 IPM
Rapid Traverse: 2,300 IPM
Repeatability: ± 0.001″
Max Mild Steel Cut Capacity: 2.5″
Max Mild Steel Production Pierce: 1.5″
Max Mild Steel Dross‑Free: 1.25″
Max Stainless Steel Cut Capacity: 2.0″
Max Aluminum Cut Capacity: 2.0″
Weight: ~9,000 lbs
Power Requirement: 460 V 3‑Phase
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– MultiCam EZ Control – Hypertherm HPR260XD Plasma Power Supply – Brushless AC Servo Drives – Automatic Torch Height Control (ATHC) All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
