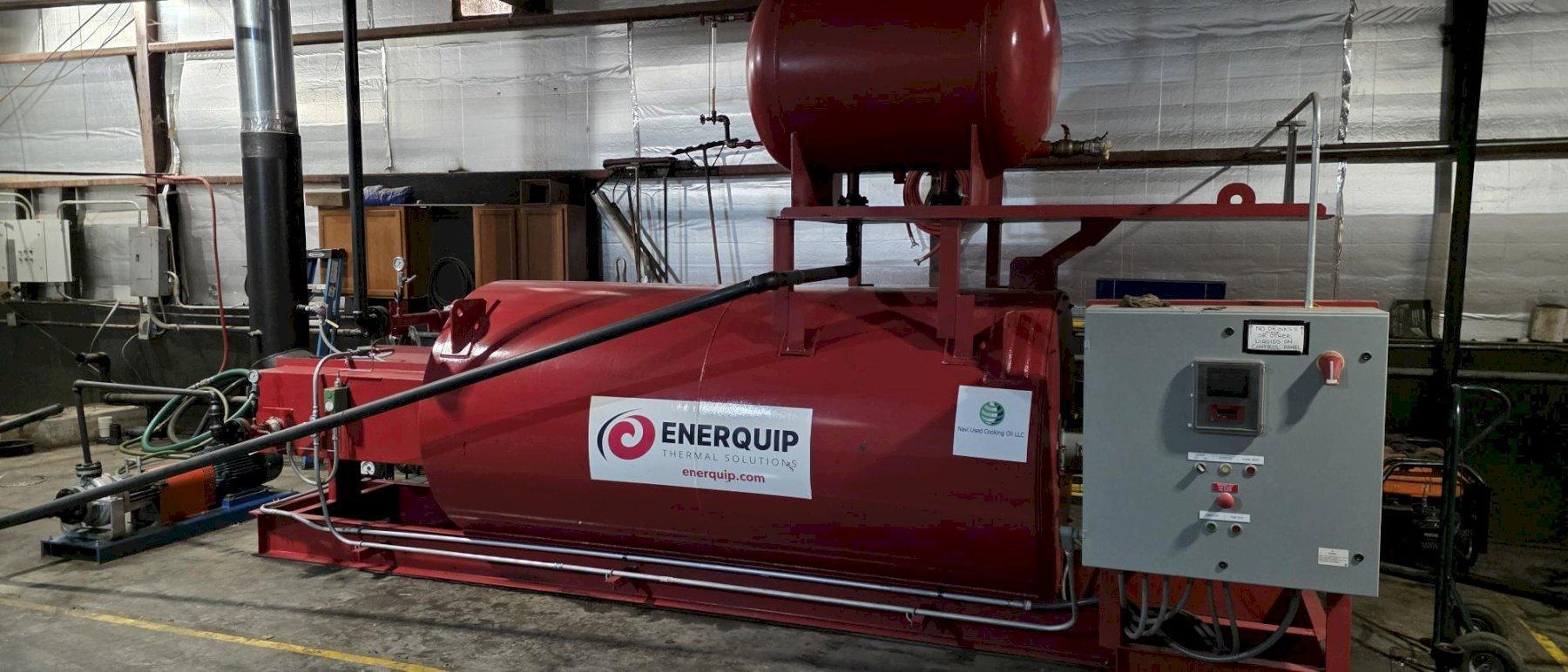

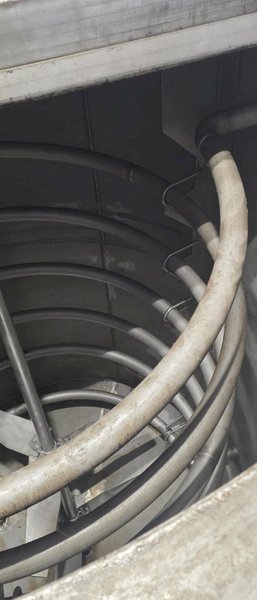

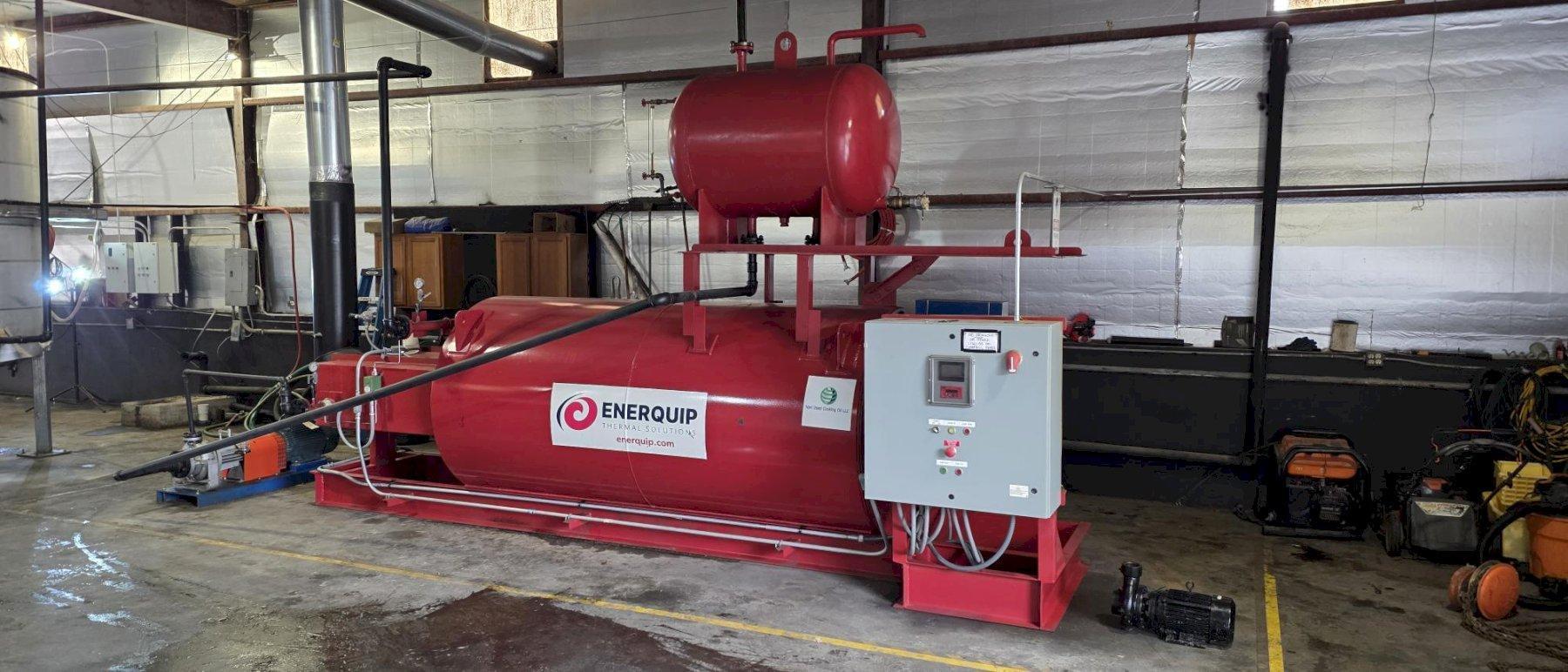

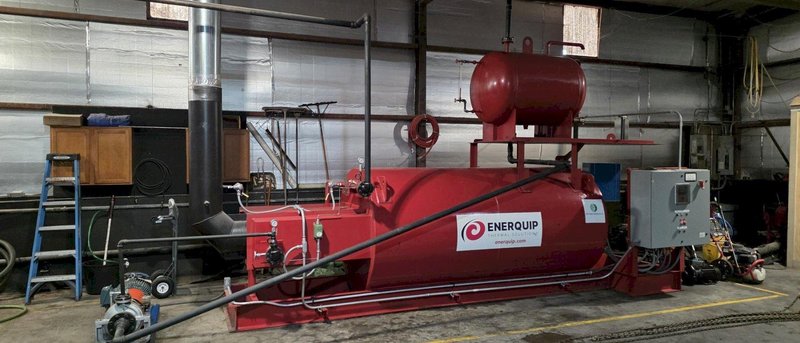

Enerquip AHE-235 Commercial Hot Oil Heater, 2023 – Thermal Fluid Heating Unit
Brand
Not specified
Category
Model
AHE-235
Stock #
503151
Year
2023
Condition
Not specified
Location
Michigan
|
Duty: 2.4 MM Btu/hr Heat Absorption
Fluid: 281M Marine Hot Oil
Flow Rate: 100 gpm (Inlet and Outlet)
Inlet Temperature: 180.2 Deg F
Outlet Temperature: 300 Deg F
Fuel Type: Propane
Calculated Efficiency (LHV): 86%
Design Pressure: 150 psig
Design Fluid Temperature: 300 Deg F
Max Design Metal Temp: 550°F (Internal)
Hydrostatic Test Pressure: 195 PSIG
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,More Information Available Upon Request All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
