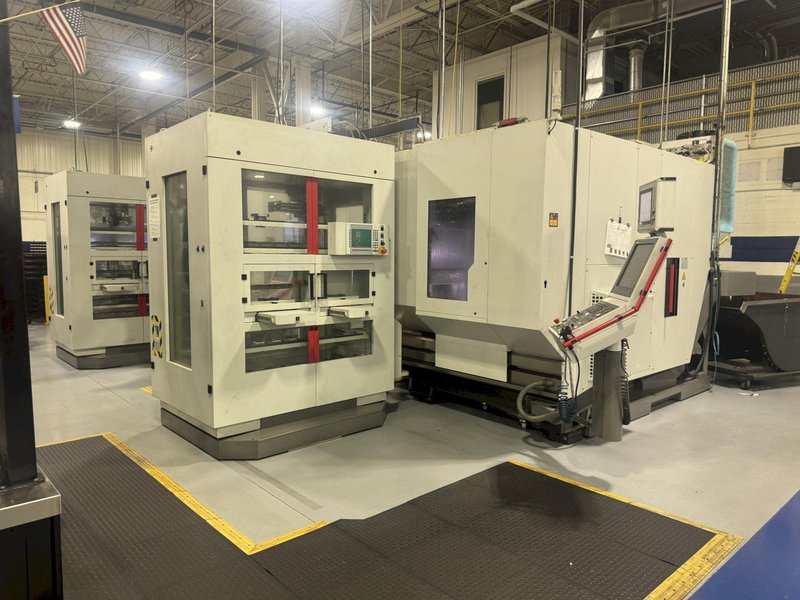

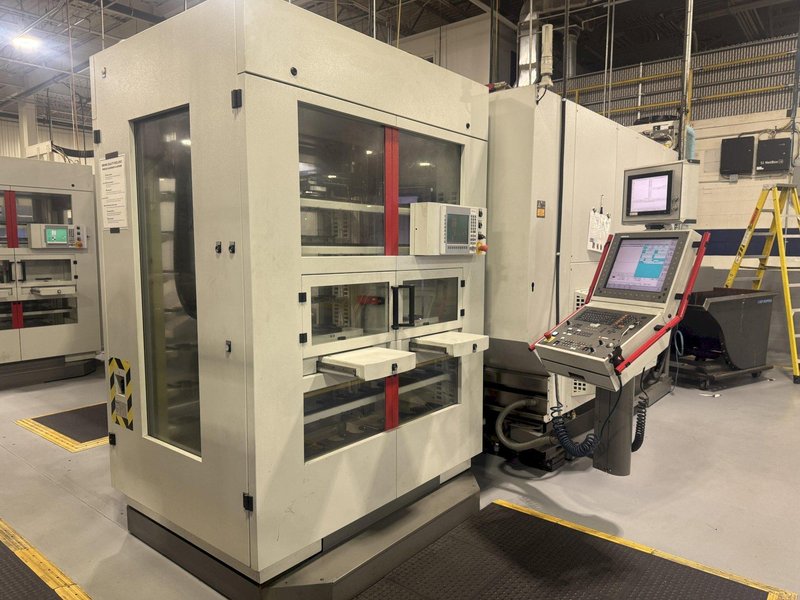

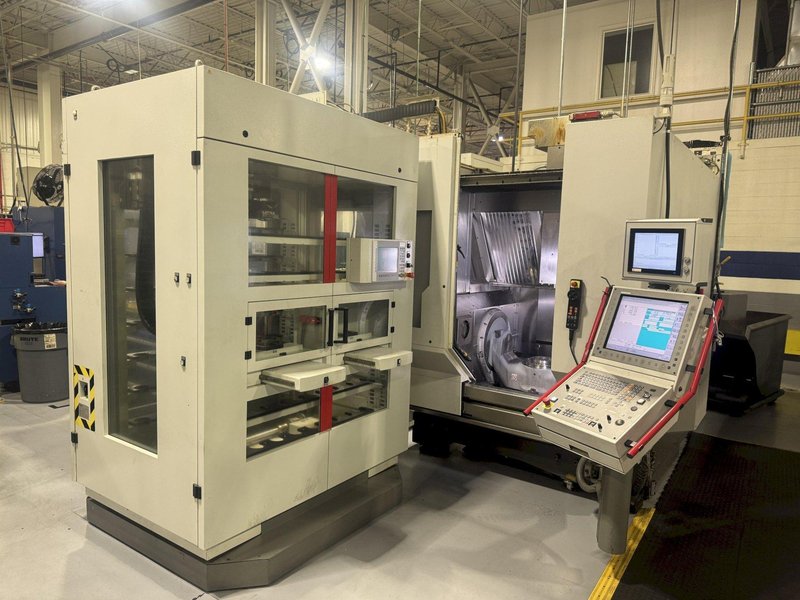

Used 2012 Hermle C22U 5-Axis CNC Vertical Machining Center For Sale
Brand
Category
Model
C22U
Stock #
15334
Year
2012
Condition
Used
Location
Not specified
| CNC Control | yes |
| Type Of CNC Control | Heidenhain iTNC 530 |
| # Axis | 5 |
| Table Size | 12.6" Diameter |
| Max Table Load | 330 pounds |
| X-Axis Travel | 17.7 inches |
| Y-Axis Travel | 23.6 inches |
| Z-Axis Travel | 12.99 inches |
| B Axis Rotary | +/- 135° |
| A Axis Rotation | 0.001° |
| Spindle Taper | HSK 63 |
| Spindle Speed | 18,000 rpm |
| Main Motor | 35 hp |
| ATC Capacity | 55 |
| Coolant Thru Spindle | yes |
| Machine Dimensions | 185" x 93" x 125" |
| Machine Weight | 20000 pounds |
|
- Heidenhain iTNC-530 CNC Control
- 96 Station HSK 100 Receiver Pallet Pool - (2) Loading/Unloading Stations - Table Receiver is HSK 100 - Chip Conveyor - Coolant Tank & Pump - Glass Scales on X/Y/Z Axes - Hi-Pressure Coolant Thru Spindle - Blum Laser - Tool Break Off Detection - Capable of Running with or without Loading Station - Kinematic Opt - Hardware
- Spindle 18,000 1/min HSK-A63
- Linear Axis Dynamic Version
- NC swivel rotary table Ø 320
- Torque drive
- A-axis dynamics package
- Internal coolant supply 80 bar
- Blowing air through the center of the spindle
- Swarf Spray Gun
- Bed Wash
- Oil mist extraction
- Automatic Cabin Door
- Electr. iTNC Heat Compensation
- Electr. iTNC manual control module |
|
