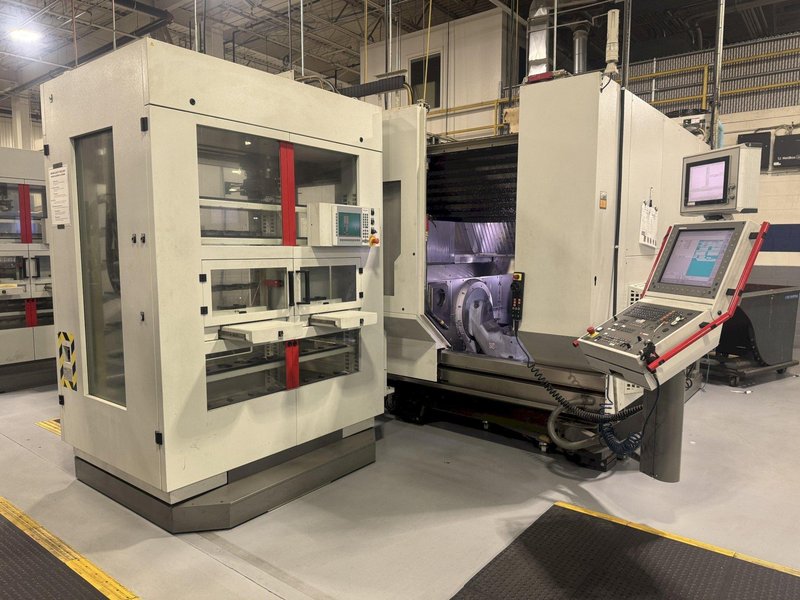

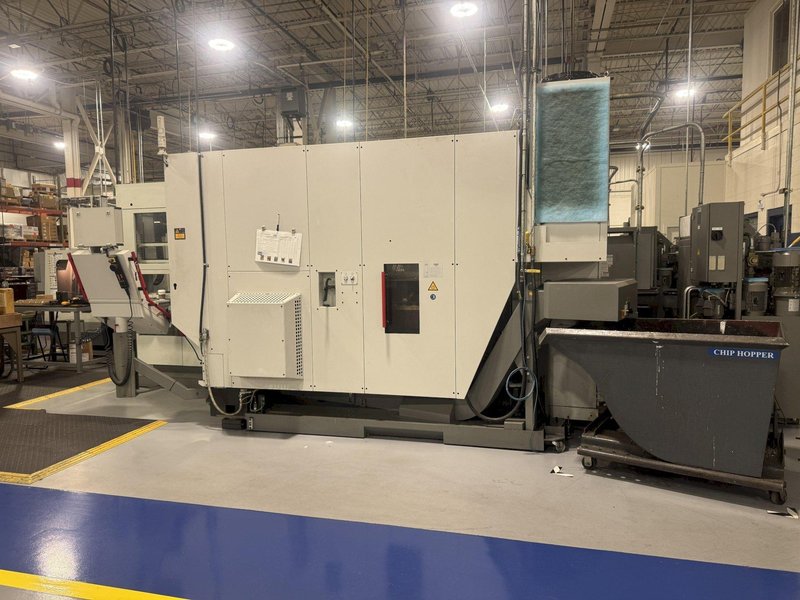

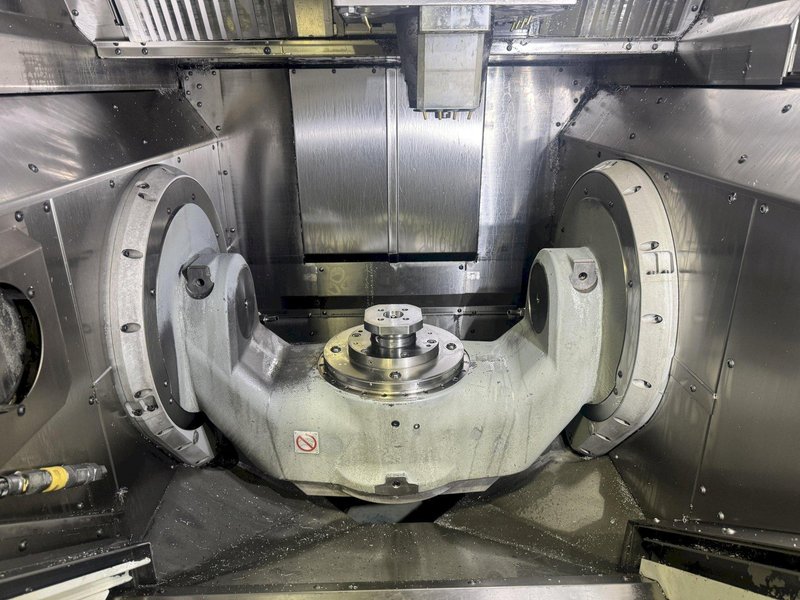

Used 2012 Hermle C22U 5-Axis CNC Vertical Machining Center For Sale

Name: Used 2012 Hermle C22U 5-Axis CNC Vertical Machining Center For Sale
Brand: HERMLE
SKU: 15333
Availability: PreOrder

Brand

HERMLE

Michigan

CNC Control	yes

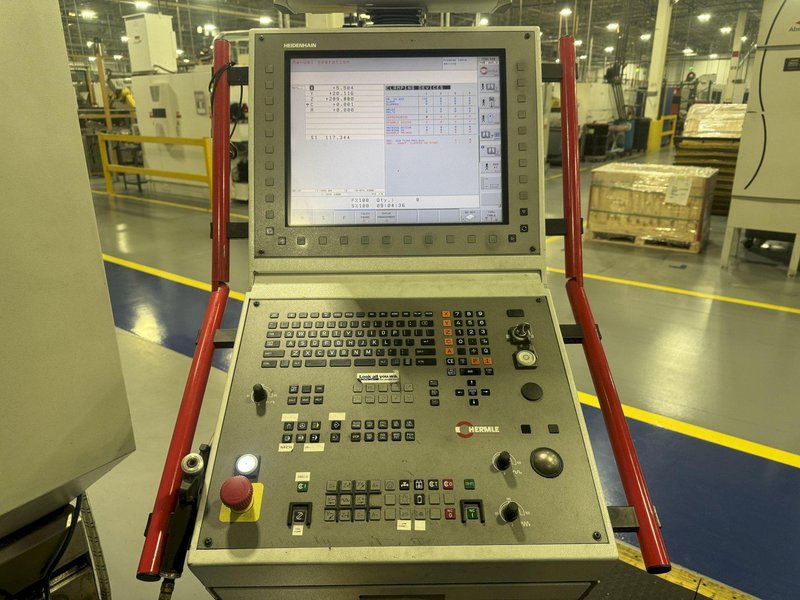

Type Of CNC Control	Heidenhain iTNC 530
# Axis	5
Table Size	12.6" Diameter
Max Table Load	330 pounds
X-Axis Travel	17.7 inches
Y-Axis Travel	23.6 inches
Z-Axis Travel	12.99 inches
B Axis Rotary	+/- 135°
A Axis Rotation	0.001°

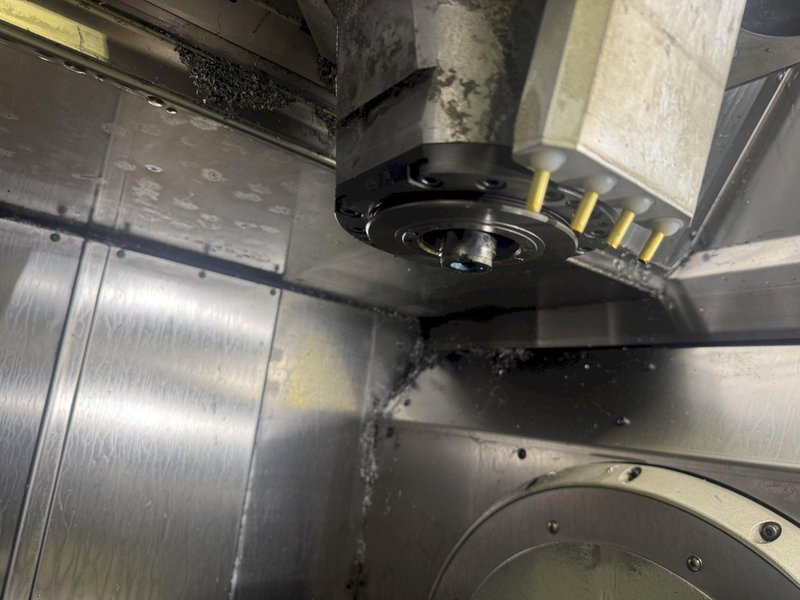

Spindle Taper	HSK 63
Spindle Speed	18,000 rpm
Main Motor	35 hp
ATC Capacity	55
Coolant Thru Spindle	yes
Machine Dimensions	185" x 93" x 125"
Machine Weight	20000 pounds

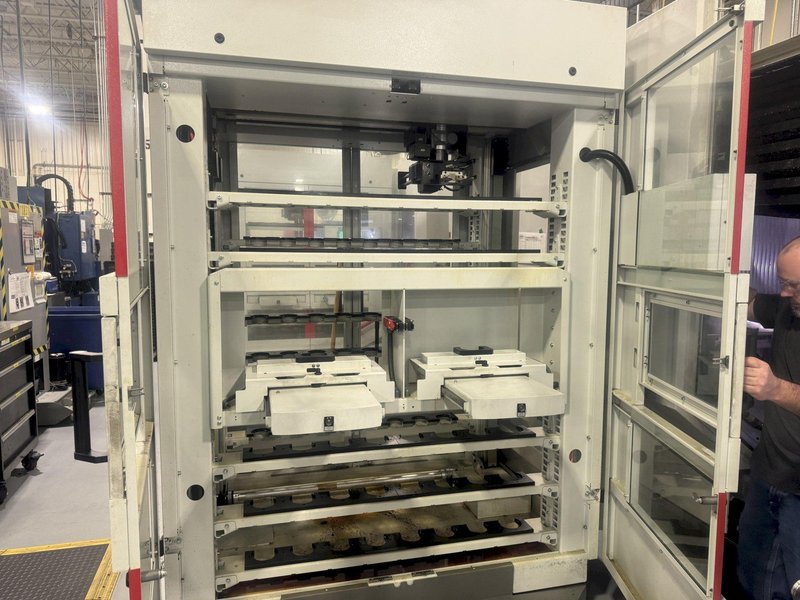

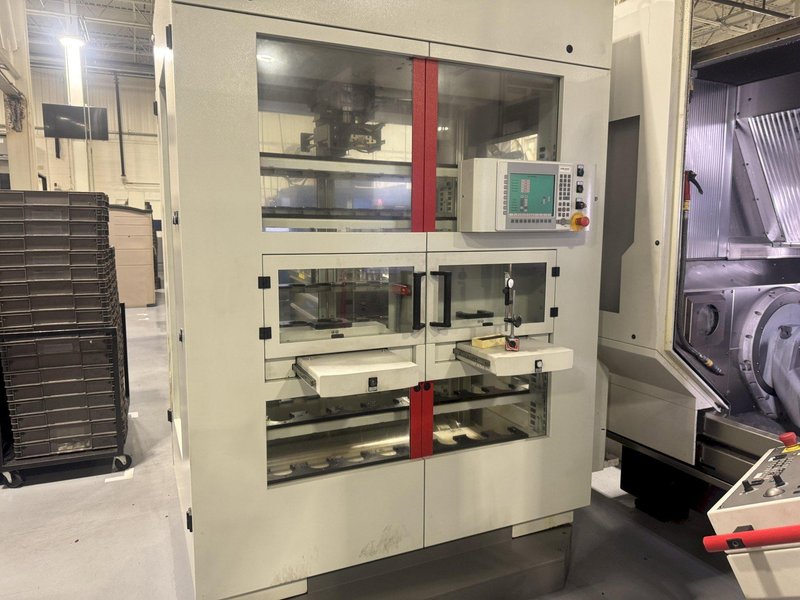

- Heidenhain iTNC-530 CNC Control - 96 Station HSK 100 Receiver Pallet Pool - (2) Loading/Unloading Stations - Table Receiver is HSK 100 - Chip Conveyor - Coolant Tank & Pump - Glass Scales on X/Y/Z Axes - Hi-Pressure Coolant Thru Spindle - Blum Laser - Tool Break Off Detection - Capable of Running with or without Loading Station - Kinematic Opt - Hardware - Spindle 18,000 1/min HSK-A63 - Linear Axis Dynamic Version - NC swivel rotary table Ø 320 - Torque drive - A-axis dynamics package - Internal coolant supply 80 bar - Blowing air through the center of the spindle - Swarf Spray Gun - Bed Wash - Oil mist extraction - Automatic Cabin Door - Electr. iTNC Heat Compensation - Electr. iTNC manual control module
