2019 FRYER TC-120V | Machining Centers, Vertical, (5-Axis or More)

2019 FRYER TC-120V | Machining Centers, Vertical, (5-Axis or More)

Name: 2019 FRYER TC-120V | Machining Centers, Vertical, (5-Axis or More)
Brand: Unknown
SKU: 34128
Availability: PreOrder

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Machining Centers, Vertical, (5-Axis or More)

Manufacturer:

FRYER

Model:

TC-120V

Year:

2019

Stock #:

34128

Status:

For Sale

Description

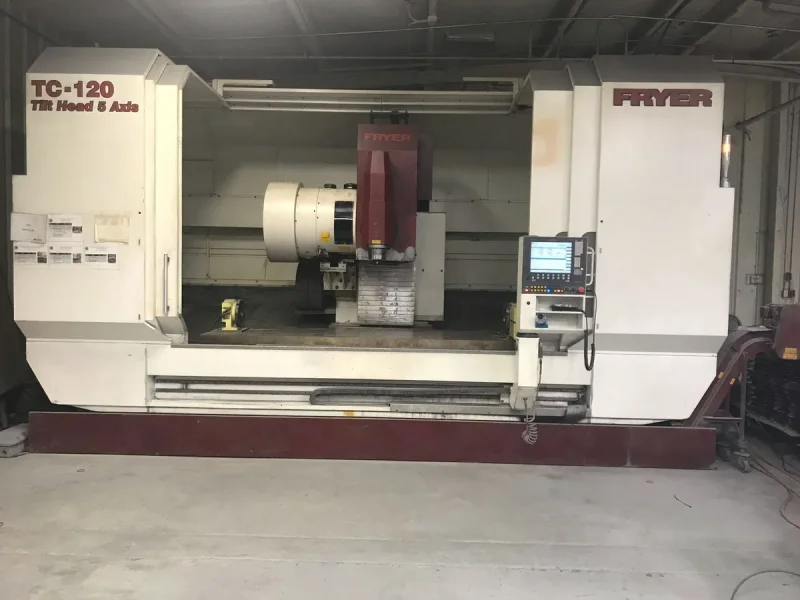

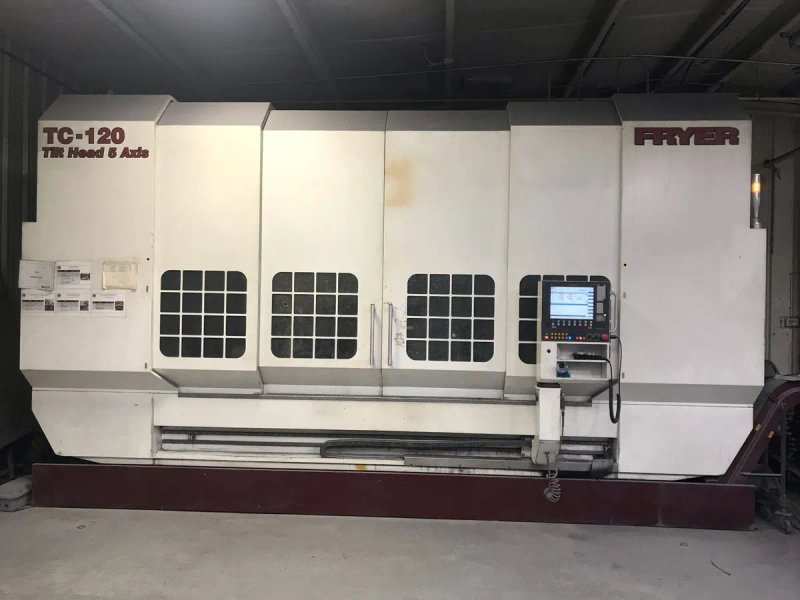

2019 Fryer TC-120 5-Axis Traveling Column Machining Center
120" x 32" x 28" Travels, 18K RPM, Big Plus 40, Nikken Rotary Table, Siemens 840D CNC Control

ImperialMetric

X	120"	3,048 mm
Y	24"	609.6 mm
Z	24"	609.6 mm
# Axis	5	5
Power	30 hp	22.4 kW
RPM	8,500 RPM	8,500 RPM
# ATC	24	24
Taper	CAT-40	CAT-40

Fryer TC-120V Traveling Column 5-Axis Vertical Machining Center
New: 2019

Specifications:
Travels:
X-Axis: 120"
Y-Axis: 32"
Z-Axis: 28"
B-Axis: +/- 100°
A-Axis: +/- 360°
Table Size: 120" x 32"
Table Load: 10,000 Lbs
T-Slots: 6/.787"
Table Top to Floor: 38"
Spindle Motor: 40 HP
Spindle Speed: 18,000 RPM
Spindle Taper: CAT 40 BIG PLUS
Spindle Center-Column: 32"
Tool Changer: 24 ATC

Equipped With::
Siemens 840D SL CNC Control
Full 5-Axis Contouring
Nikken 10" High Accuracy Rotary Table
10" Nikken Heavy Duty Tailstock with Brake
Automatic Door System
Chip Conveyor
Chip Washdown System
Roller Linear Ways
300 PSI Coolant Thru Spindle

Dimensions: 245" x 138" x 118" H, 42000 Lbs
