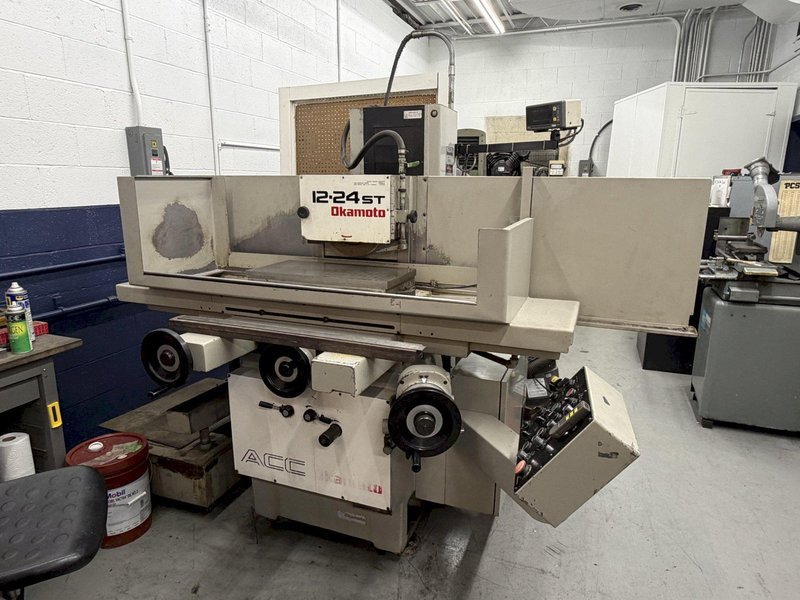

Okamoto 12/24 ST Hydraulic 3 Axis Surface Ggrinder

12" X 24" OKAMOTO ACC-12-24-ST 3-AXIS HYDRAULIC SURFACE GRINDER
Machine Model No.: ACC-1224ST

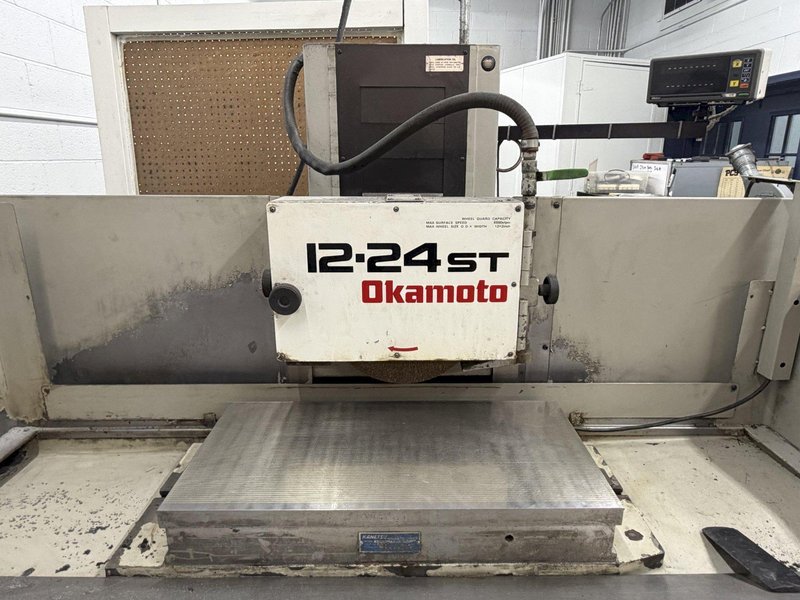

12" x 24" Kanetsu Electro Magnetic Chuck & Control
Max. Longitudinal Table Travel: 29.5"
Max. Cross Travel: 13.6"
Max. Distance Table Under 12" Dia. Wheel: 13.7"
Hydraulic Table Feed Rate: 1 to 82 FPM
Hydraulic Cross Feed in Increments: .02" to .8"
Hydraulic Continuous Cross Feed: 4 to 40 IPM
Automatic Head Down Feed per Table Stroke: .0001" to .0015"
Rapid Traverse to Wheel Head
Max. Wheel Size: 12" Dia. x 1.5" Wide x 5" Hole
5 HP Spindle Motor,
3 Phase, 60 Cycle, 480 Volts
2 HP Hydraulic Pump Motor,
3 Phase, 60 Cycle, 480 Volts
1/2 HP Wheel Head Traverse Motor,
Coolant System with Paper Filtration
Overall Machine Dimensions: 100" L-R x 76" F-B x 72" H
Coolant System Dimensions: 44" L x 28" W x 32" H
