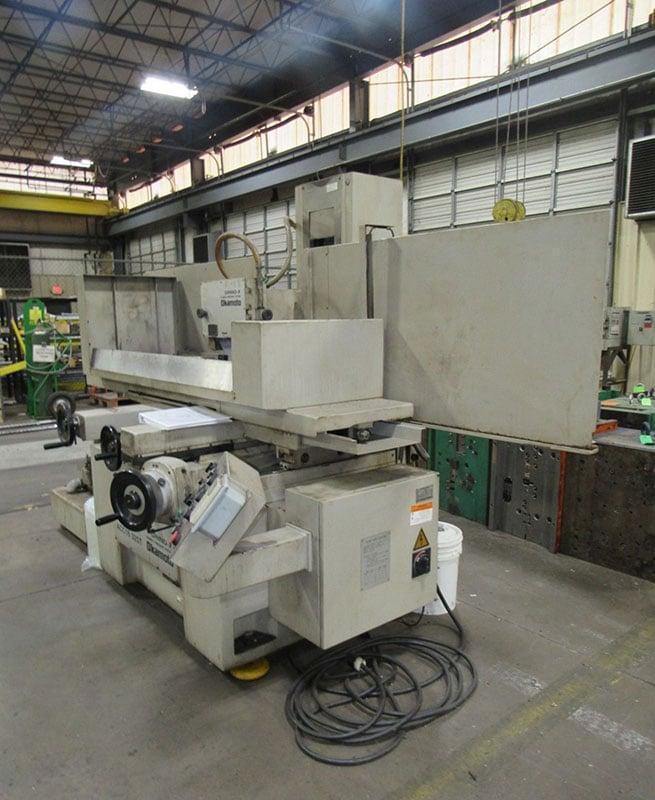

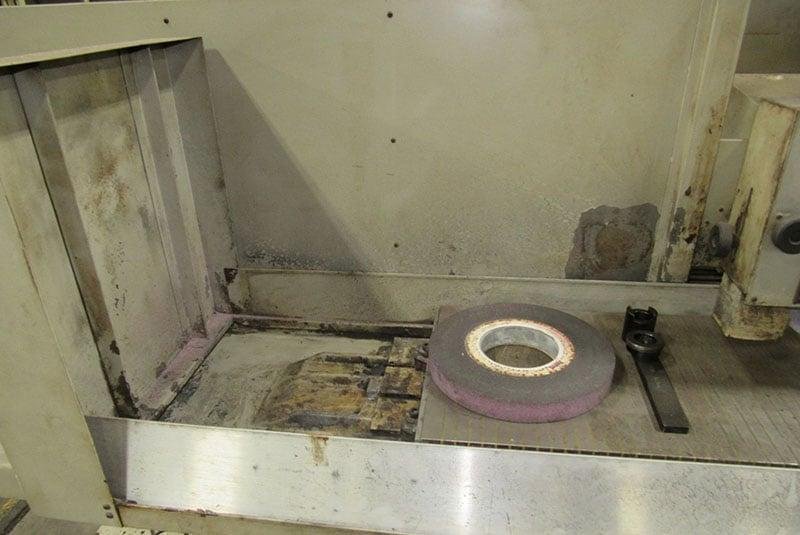

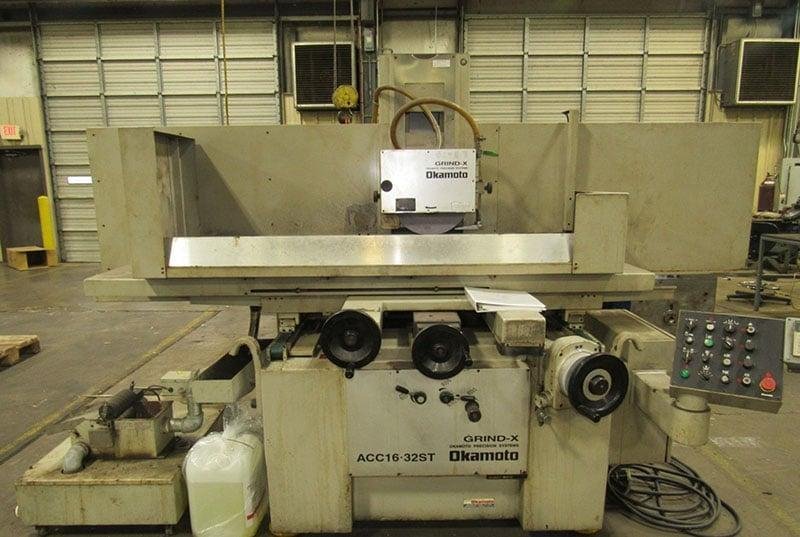

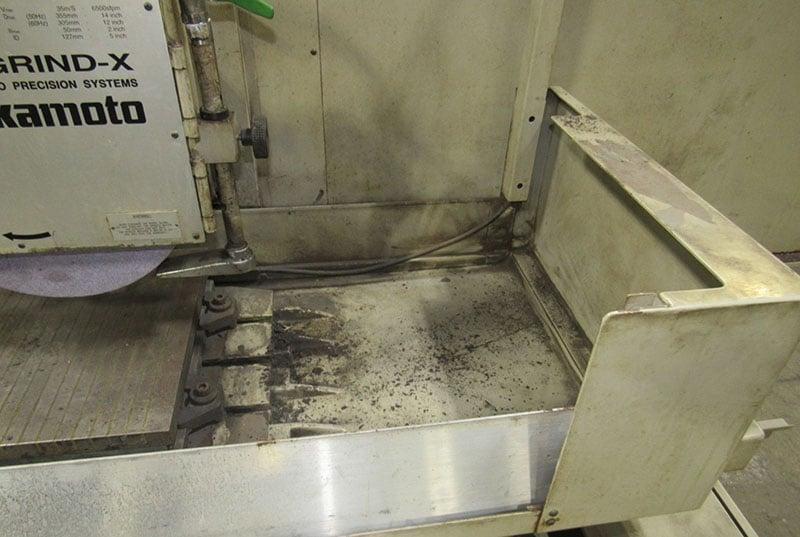

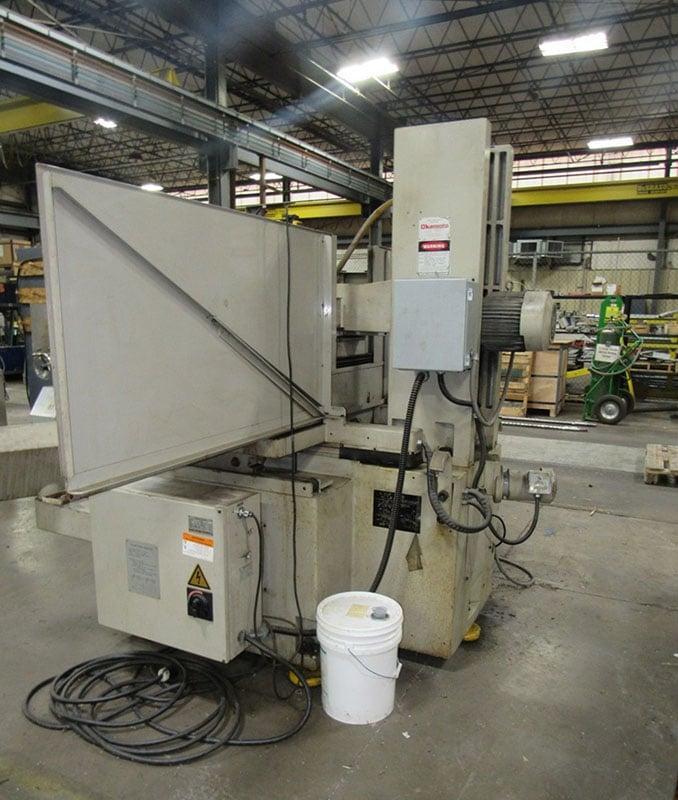

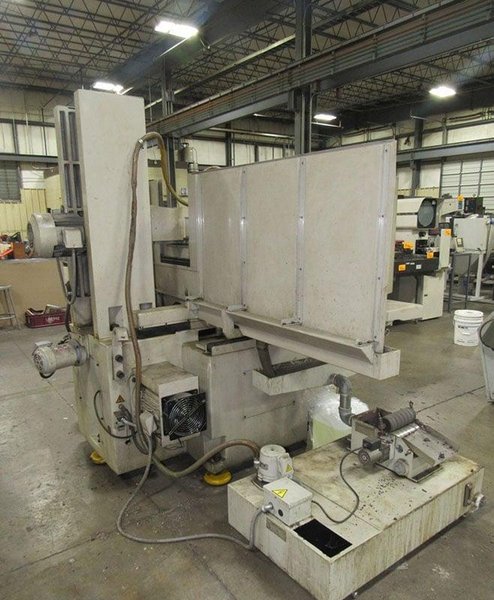

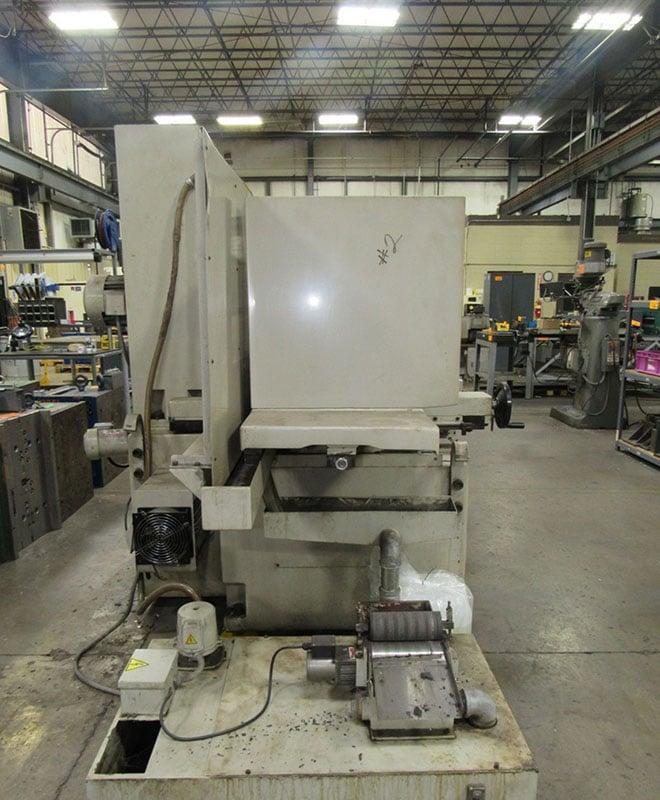

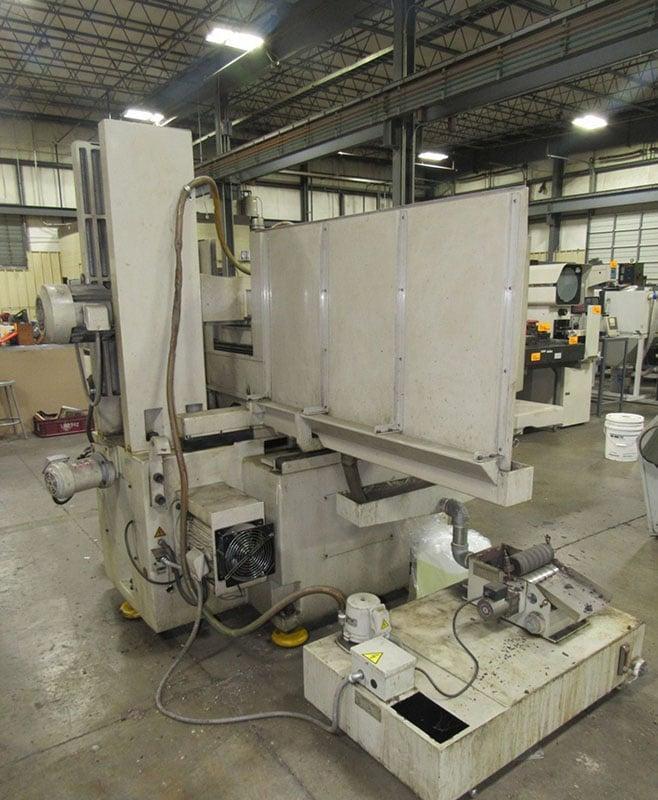

16” X 32” Surface Grinder with Centralized Operator Controls, Auto Incremental Downfeed, Surface Plunge Modes, Manual Fine Feed Push Button, Automatic Sparkout of Wheel Up to 5 Passes, Automatic Table Park, Gravity Feed Automatic Lubrication System, Kanetsu Cross-Pole Electro-Magnetic Chuck, Variable Hold Neutorfier on the Console Control and Coolant System.

GENERAL SPECIFICATIONS
Max. Grinding Length:                    32”
Max. Grinding Width:                    16”
Max. Height Under 12” Wheel:                21.5”
Max. Longitudinal Movement:                37.5”
Max. Cross Movement:                    175”
Longitudinal Hydraulic Feed:                10’ - 82’ FPM
Longitudinal Feed Per Handwheel Rev:            1.85”
Cross Feed Hydraulic Intermittent:            0.02” - 0.8”
Hydraulic Continuous:                    4” - 40” IPM
Hand Feed / Revolution:                    0.05”
Graduation of Handwheel:                    0.0001”
Rapid Feedrate:                        16” IPM

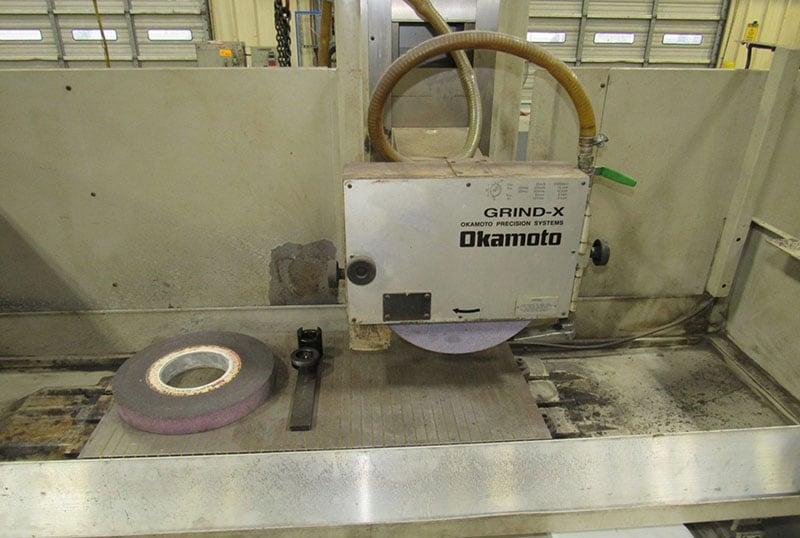

Grinding Wheel Dimensions:                12” X 1-½” X 5”
Spindle Speed:                        1,800 RPM

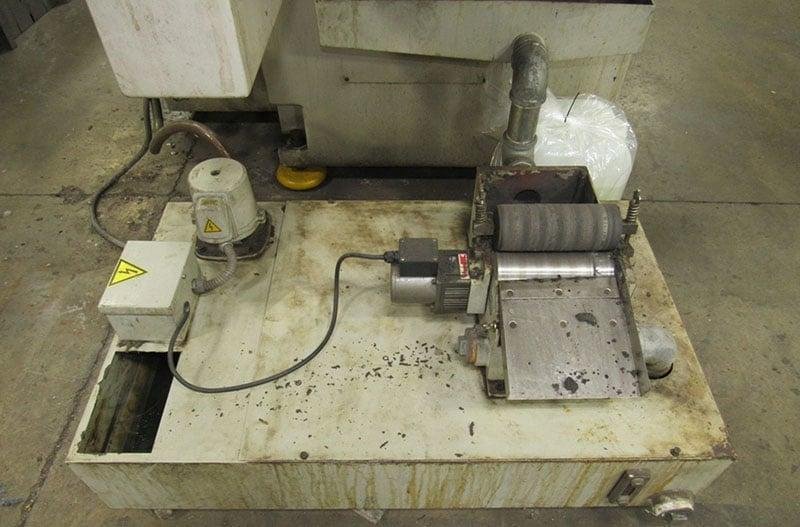

Reservoir Capacity:                        48 Gallons
Spindle Motor:                        5 HP
Hydraulic Pump Motor:                    3 HP
Vertical Rapid Feed Motor:                    0.5 HP
Approx Floor Space Required:                130” X 88” X 80”
Approx. Weight:                        7,600 Lbs

INCLUDES: Centralized Operator Controls, Auto Incremental Downfeed, Surface Plunge Modes, Manual Fine Feed Push Button, Automatic Sparkout of Wheel Up to 5 Passes, Automatic Table Park, Gravity Feed Automatic Lubrication System, Kanetsu Cross-Pole Electro-Magnetic Chuck, Variable Hold Neutorfier on the Console Control and Coolant System.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
