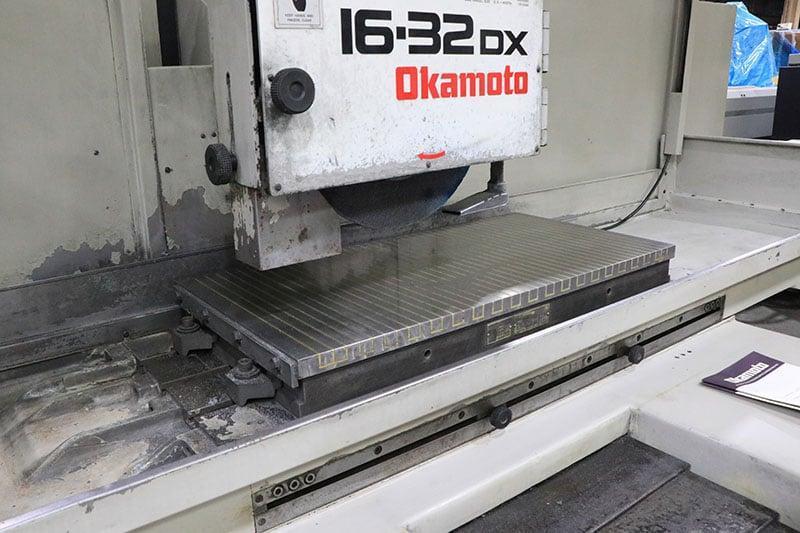

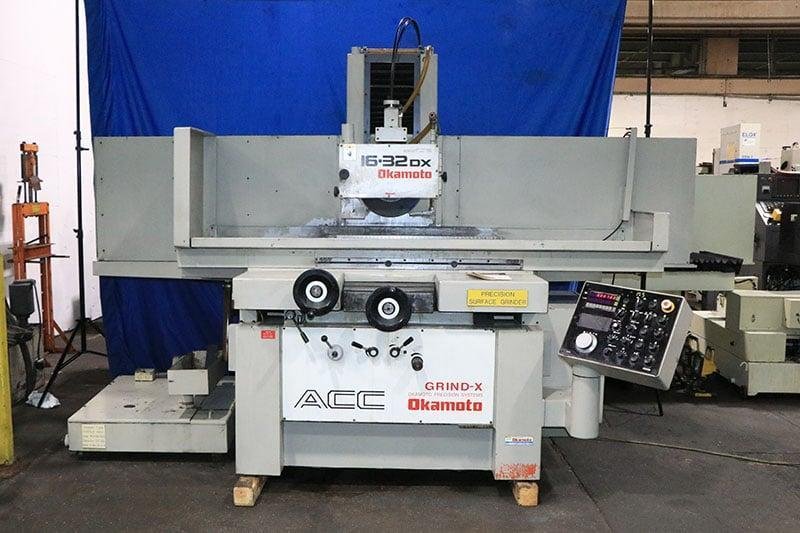

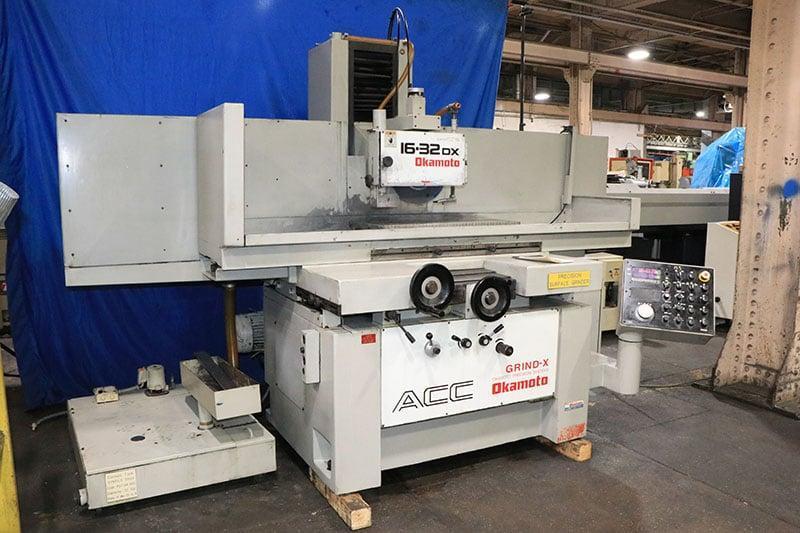

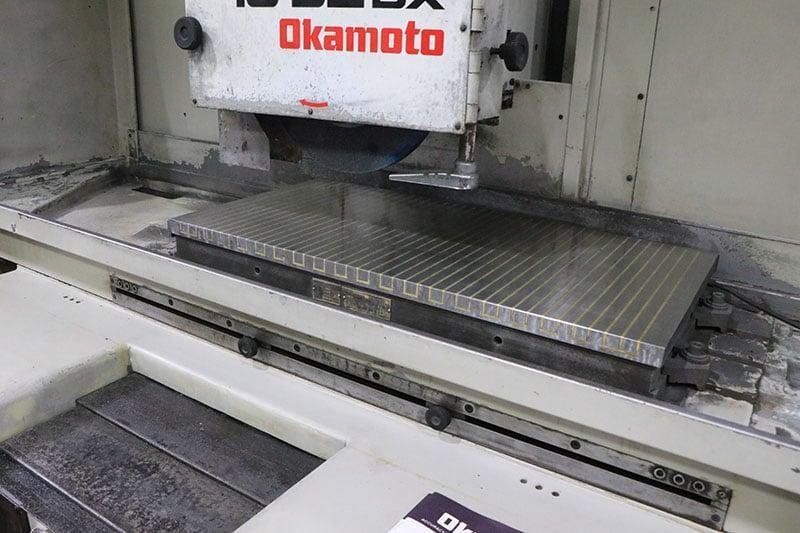

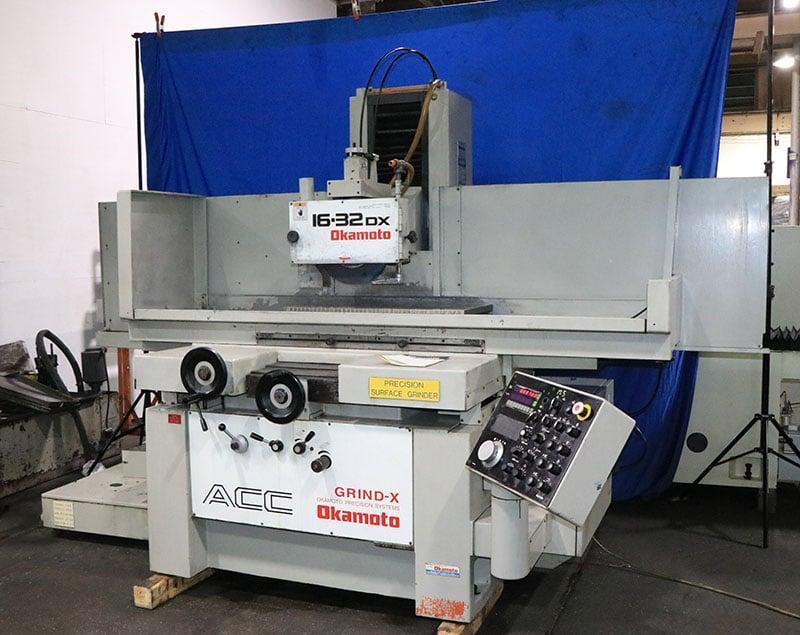

16” X 32” Automatic Surface Grinder with Electro-Magnetic Chuck, Variable Hold Chuck Control, Power Over-the-Wheel Dresser with Micrometer Adjustment, Coolant System, Power Rapid Wheel Positioning, Electronic Handwheel for Manual Vertical Adjustment, Digital Display, Hydraulic Table Traverse and Automatic Crossfeed.

GENERAL SPECIFICATIONS
Nominal Grinding Capacity:                 16” X 32”
Max Height to Table Surface:               21.5”
Table Speed:                                        Up to 82’ / Min (Infinitely Variable)
Max Longitudinal Table Movement:     38”
Auto Crossfeed Increment:                  0.002” - 0.80”
Auto Continuous Crossfeed:                4’ - 40’ / Min
Crossfeed, Manual Handfeed Per Rev.: 0.25”
Max Crossfeed (Manual):                    18”
Auto Incremental Downfeed:               0.00005” - 0.0015
Power Rapid Wheel Positioning Rate: 16 IPPM
Spindle Motor:                                     5 HP
Hydraulic Pump Motor:                       3 HP
Vertical Rapid/Downfeed Motor:         0.5 HP

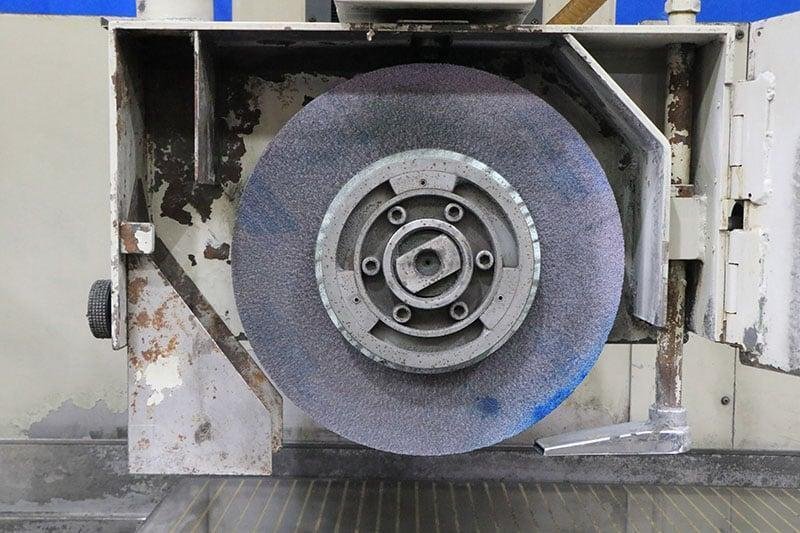

Wheel Size:                                        12” X 1.5” X 5”
Wheel Speed:                                     6,500 SFPM
Grinding Wheel Speed:                      1,800 RPM

Voltage:                                              440V
Approx Machine Weight:                   8,800 Lbs
Machine Dimensions:                       132” X 87” X 82”

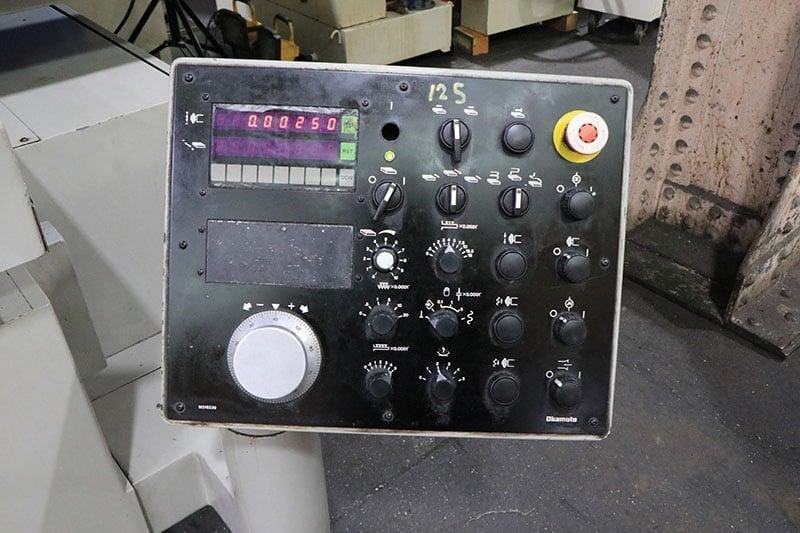

INCLUDES: Electro-Magnetic Chuck, Variable Hold Chuck Control, Power Over-the-Wheel Dresser with Micrometer Adjustment, Coolant System, Power Rapid Wheel Positioning, Electronic Handwheel for Manual Vertical Adjustment, Digital Display, Hydraulic Table Traverse and Automatic Crossfeed.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
