Buflovac / Hebeler 12-04878 Double-Effect Rising/Falling Film Evaporator System, 2017 – 6,500 lb/hr 316L SS Food/Protein Concentrator

BUFLOVAC / HEBELER —DOUBLE-EFFECT, REVERSE-FED RISING/FALLING FILM EVAPORATOR SYSTEM Designed for concentrating hydrolyzed slurry or similar foods / protein-based liquids.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SPECIFICATIONS: •MODEL# 12-04878 | Year of manufacture: 2017

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Feed Rate: 6,500 lb/hr (≈13 GPM) @ 15 wt% solids

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Evaporation Rate: 4,140 lb/hr water

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Concentrate Output: 2,360 lb/hr @ 41 wt% solids

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Feed Temperature: 150°F

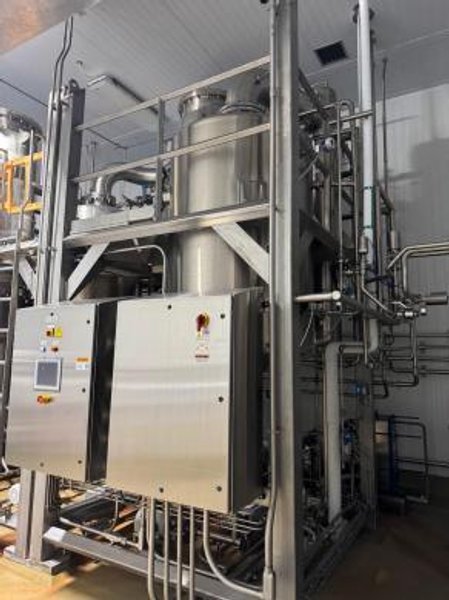

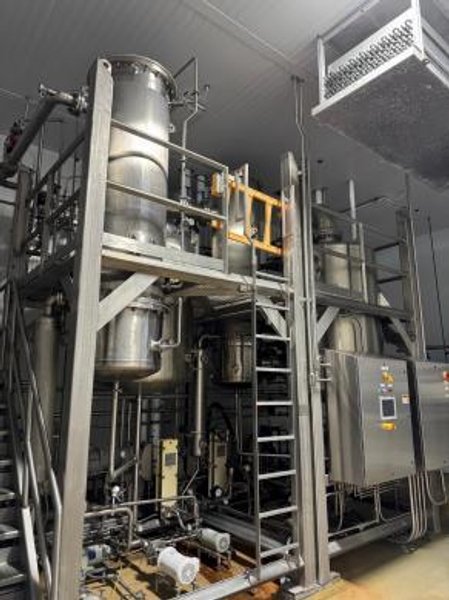

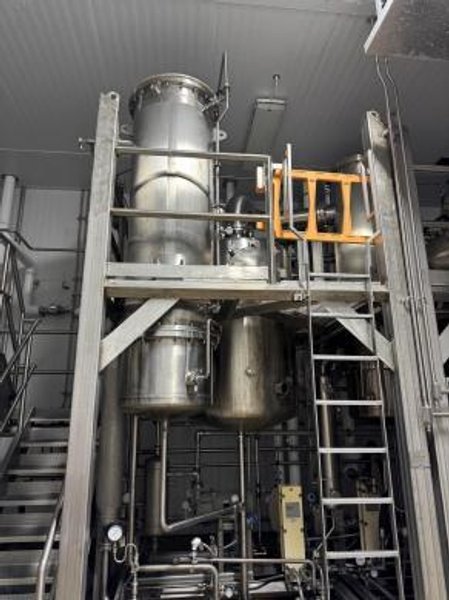

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•316L SS: all product contact surfaces | 304L SS: utilities & structural components Constructed with stainless steel for product contact surfaces and mounted on dual stainless steel skids. Complete with platform, ladder, and stainless deck grating for operator access. Engineered for low-temperature, low-residence-time operation to minimize color degradation and fouling —ideal for sensitive food, protein, and slurry applications.

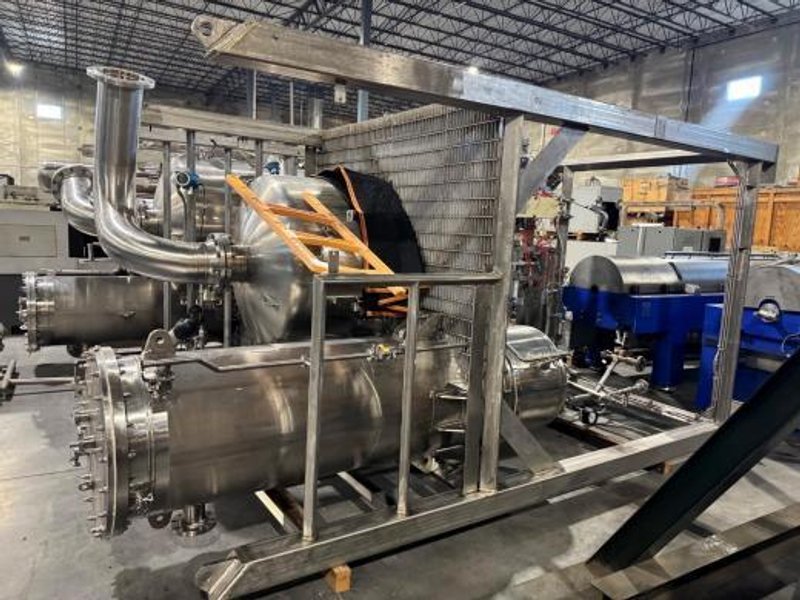

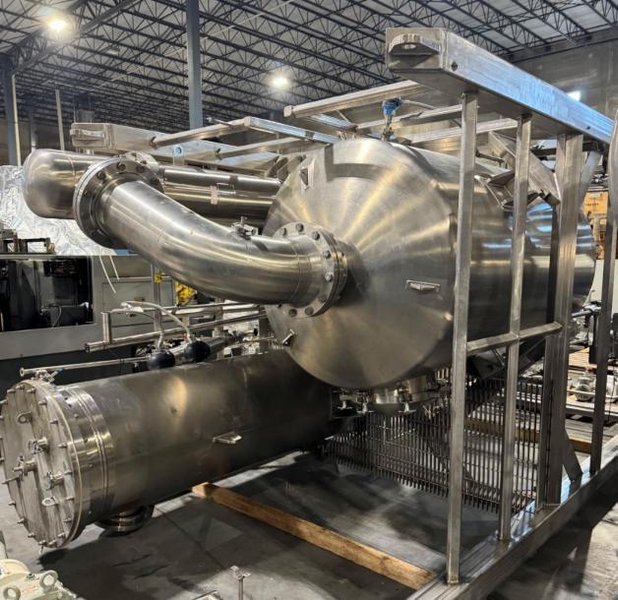

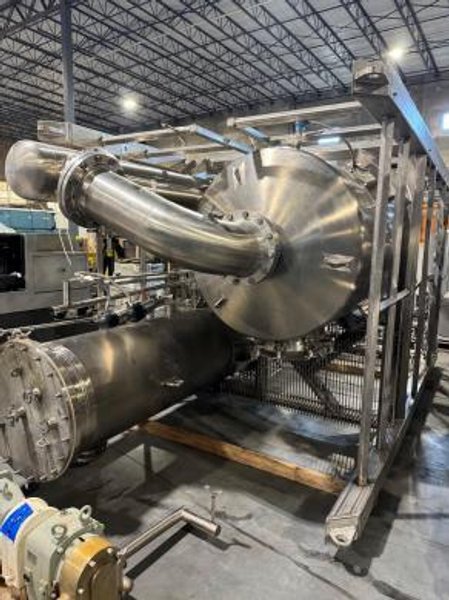

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MAJOR COMPONENTS INCLUDE: •(2) Vertical shell-and-tube effects (24” dia. × 84” L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Vapor-liquid separators (48” and 54” dia.)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Vertical surface condenser

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Plate & frame cooler: 180,000 BTU/hr | Transfer heater: 58,000 BTU/hr

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•SIHI liquid ring vacuum pump: 130 ACFM @ 75 Torr, 7.5 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•(5) Stainless centrifugal pumps with VFDs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•Allen-Bradley CompactLogix PLC with PanelView Plus 7 HMI

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,•PowerFlex drives
