2016 Schroder PowerBend Professional 3200/3.0 | Up-and-Down Technology | Folding Machine

2016 Schroder PowerBend Professional 3200/3.0 | Up-and-Down Technology | Folding Machine

Name: 2016 Schroder PowerBend Professional 3200/3.0 | Up-and-Down Technology | Folding Machine
Brand: SCHRODER
Availability: PreOrder

Brand

SCHRODER

Location

Ontario, Canada

REQUEST FINANCING

Specifications
Files & Videos

Max Thickness (gauge)

2016 Schröder PowerBend Professional 3200/3.0 | Up-and-Down Technology | Folding Machine

Professional Description

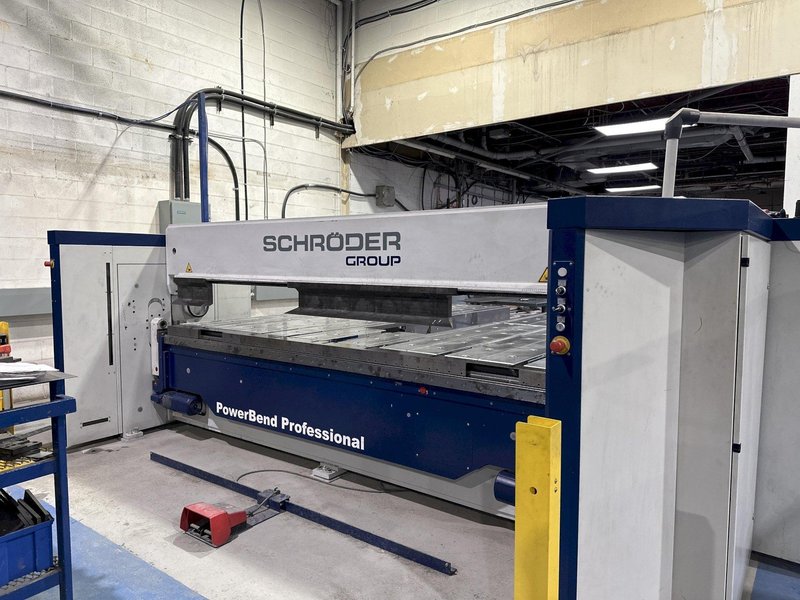

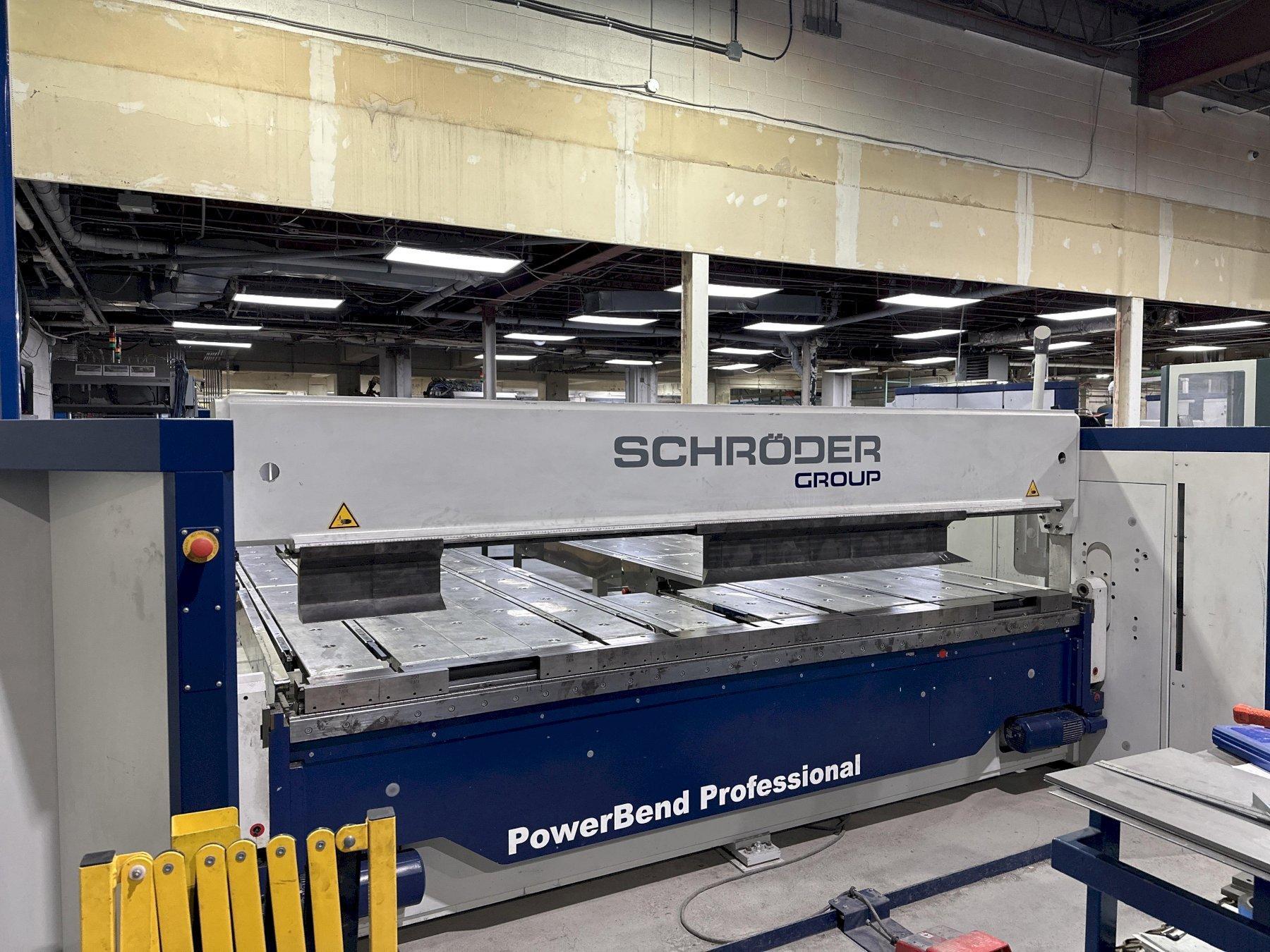

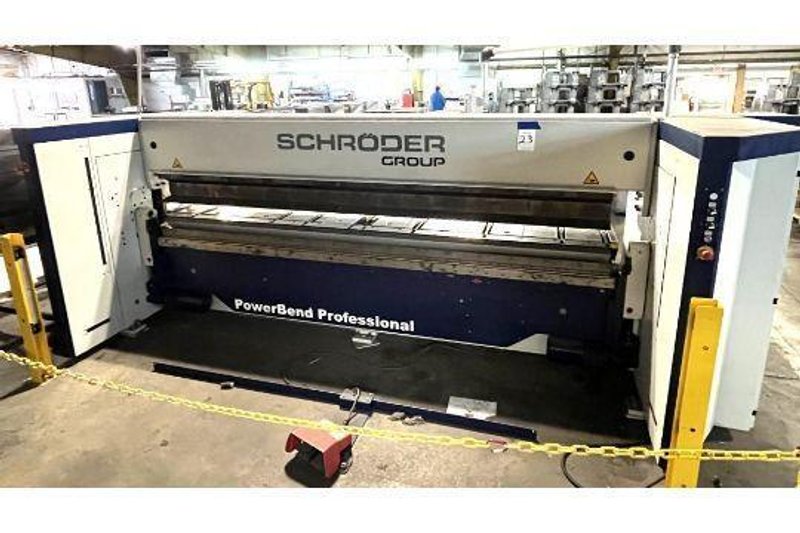

High-Performance Motorized Folder with Up-and-Down Functionality For sale is a 2016 Schröder PowerBend Professional, a robust and precise industrial folding solution designed for high-speed production. This "3200/3.0" model offers a 127" (3240mm) working length and can handle up to 11-gauge (3.0mm) mild steel.

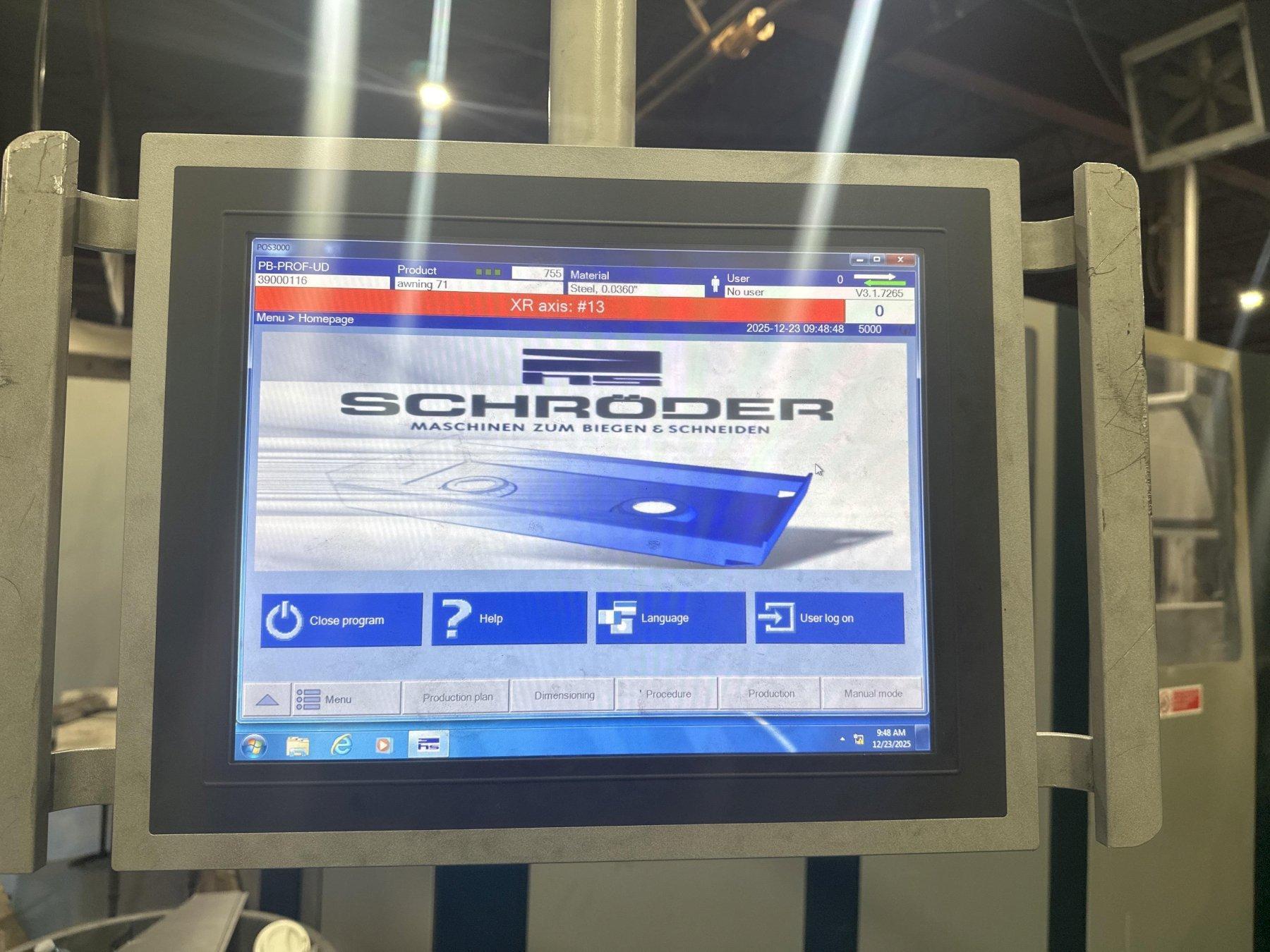

Equipped with the Up-and-Down folding beam, this machine significantly reduces handling time by allowing counter-bends in a single sequence. The POS 2000 Professional CNC control provides a graphic interface that makes programming complex parts intuitive for operators.

Technical Specifications

Specification	Value
Working Length	127.5" (3240 mm)
Bending Capacity (Mild Steel)	11 Gauge (3.0 mm)
Bending Capacity (Stainless)	14 Gauge (2.0 mm)
Clamping Beam Stroke	19.6" (500 mm)
Clamping Beam Speed	2.55 in/sec (65 mm/sec)
Folding Beam Speed	100° / sec
Back Gauge Range	0.39" – 63" (10 – 1600 mm)
Drive System	Servo-regulated High-Performance Drives
Machine Weight	Approx. 17,200 lbs (7,800 kg)
