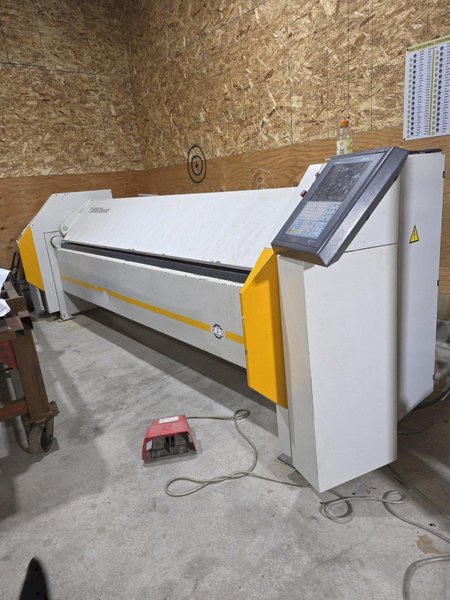

16 Gauge x 10′ RAS 61.31 CNC Folding Machine, 2011

Max Thickness: 0.0591″ Max Thickness (gauge): 16 gauge Max Bending Length Length: 124″ (3150 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Sheet Thickness: 16 ga/1.5mm CNC Folding Beam Adjustment: 0” – 0.217”/ 0 – 5.5mm Maximum Length: 124”/3150mm Motor Drive Power Upper Beam: 1 hp/.75 kw Back gauge Depth: 0.236” – 39.4” / 6-1000mm Motor Drive Power Folding Beam: 1.5 hp/1.1 kw Machine Length: 170”/4320mm Down stroke Speed: 2.5”/sec 6mm/sec Machine Width: 55.1”/1400mm Folding Beam Speed: 180 degrees/sec Machine Height: 54.33”/1380mm Back gauge Speed: (0.4” to 39.3”/8mm – 1000mm) 1.9 sec Working Height: 33.5”/850mm Back gauge Accuracy: .004”/.15mm Max Upper Beam Upstroke: 0 – 4.73”/ 0 – 120mm Approx. Dimensions: 175″ L x 64″ W x 56″ H Approx. Machine Weight: 5,500 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
