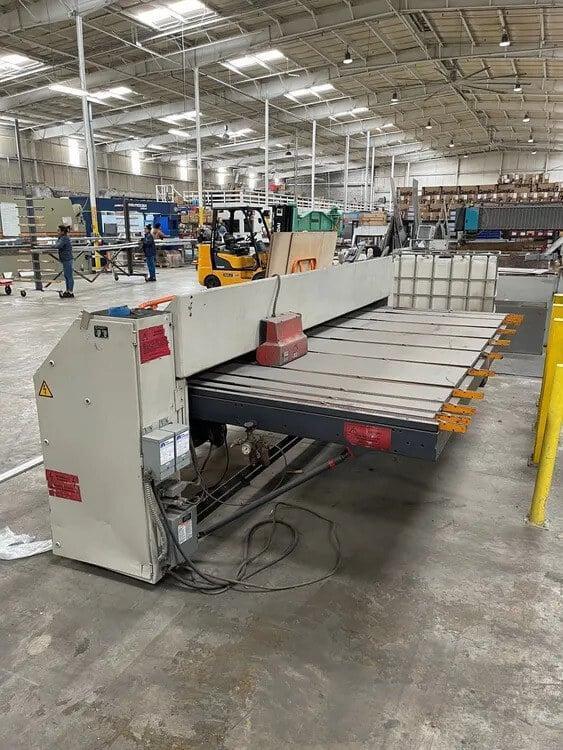

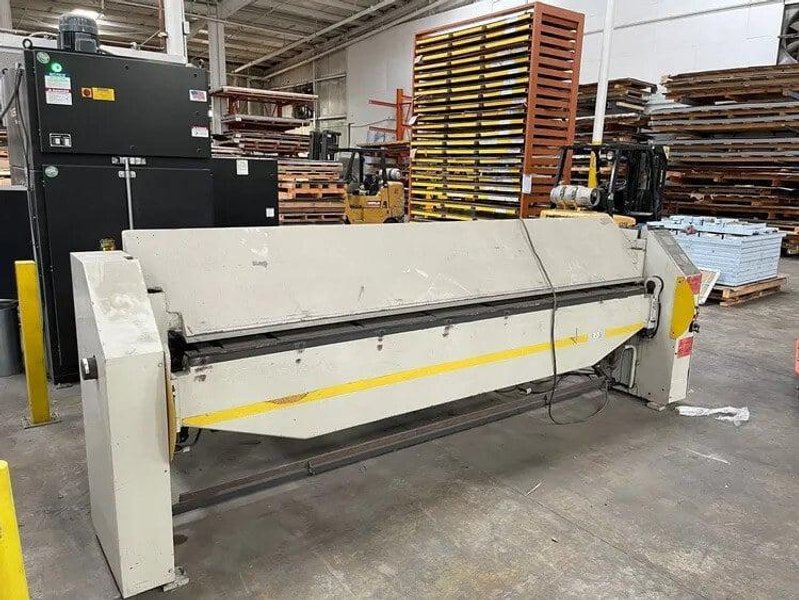

16 Ga. X 126” Folding Machine with Multibend 2000 CNC Control

GENERAL SPECIFICATIONS
Max. Thickness:                        16 Gauge
Overall Length:                        126”
Smallest Permissible inner Bend Radius:            1.25 X Sheet Thickness
Min. Flange Height:                        6 X Sheet Thickness
Working Height:                        35.4”
Clamping Beam Opening Height:                7.87”
Folding Beam Adjustment Range:                1.18”
Angle Setting Range:                    0° - 180°
Max Folding Speed:                        41°/Sec
Drive Power:                            3.5 HP (2 Motors)
Approx. Weight:                        5,500 Lbs

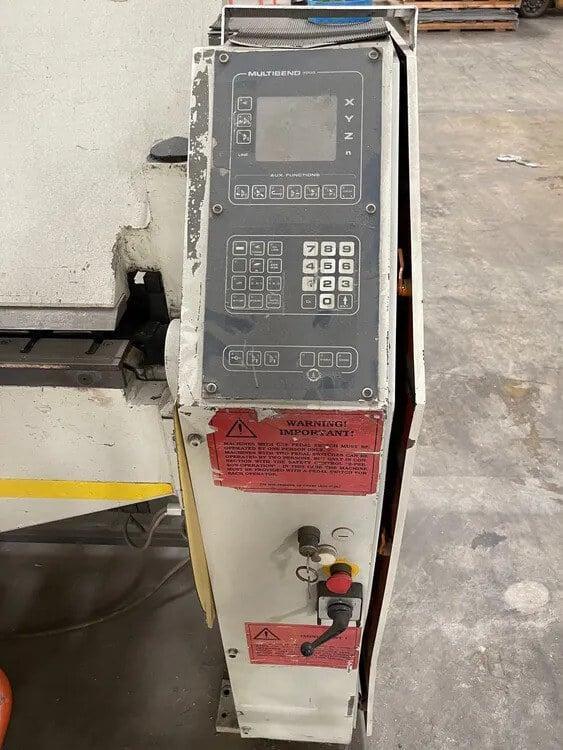

INCLUDES: Multibend 2000 CNC Control

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
