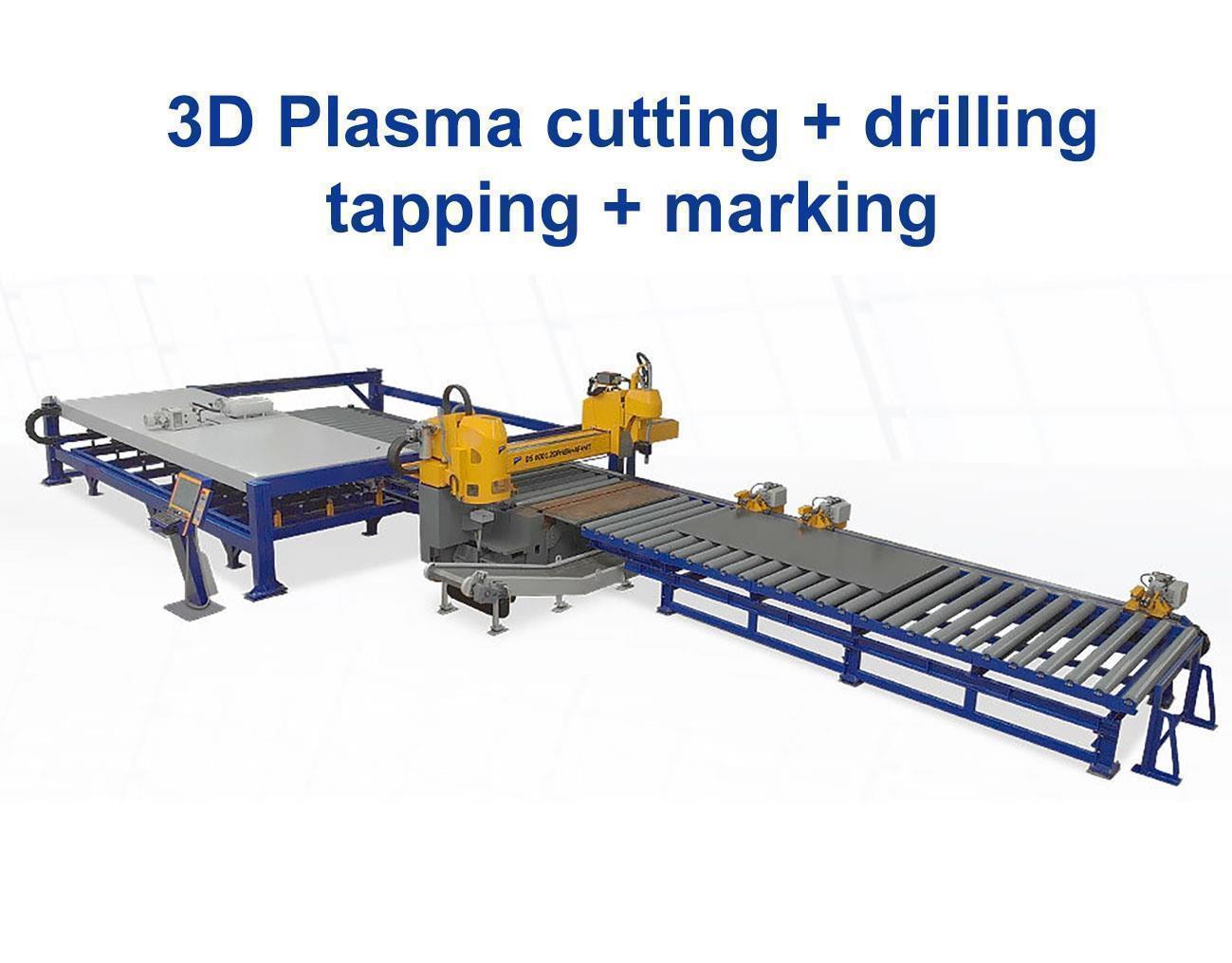

MicroStep DS automatic process line

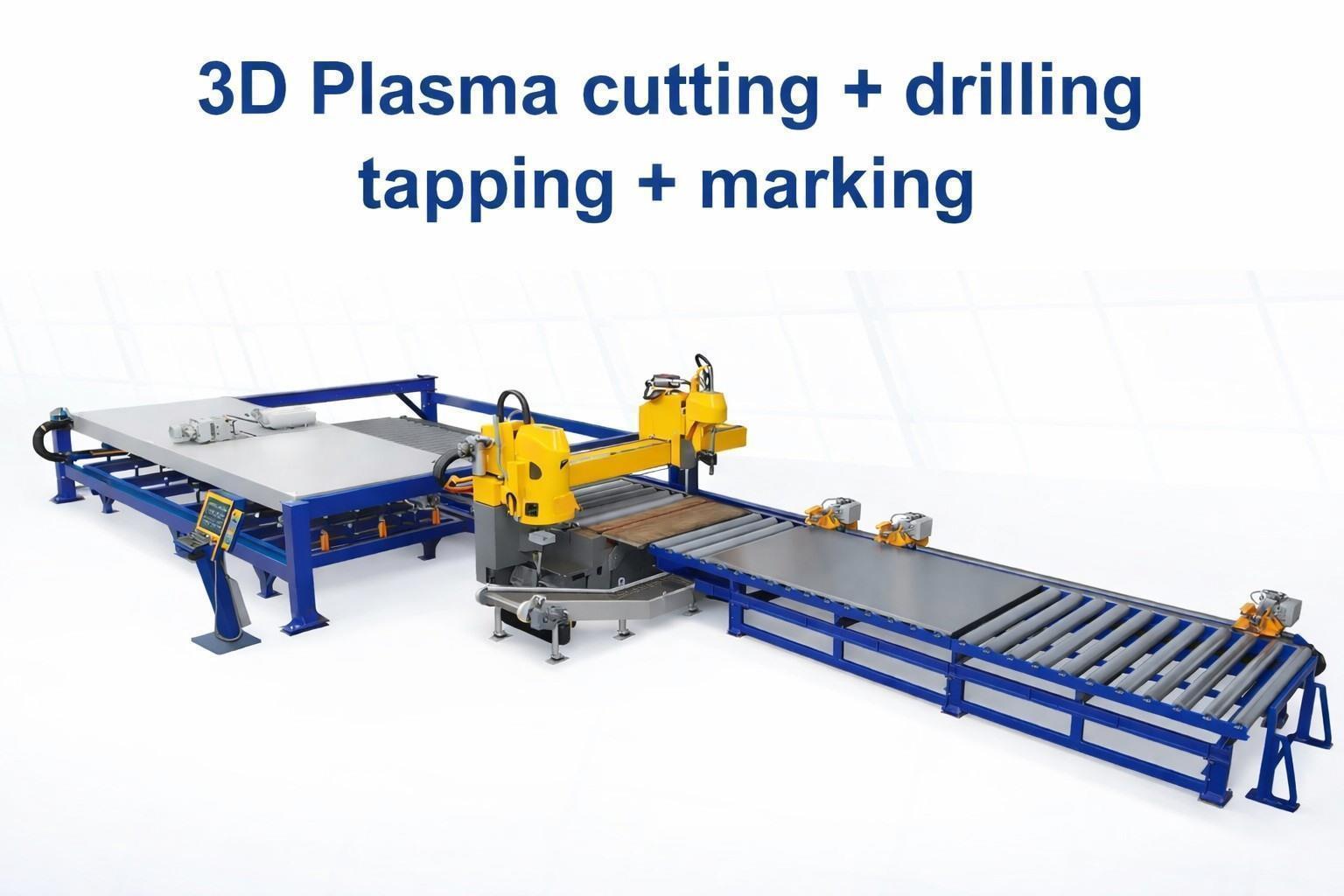

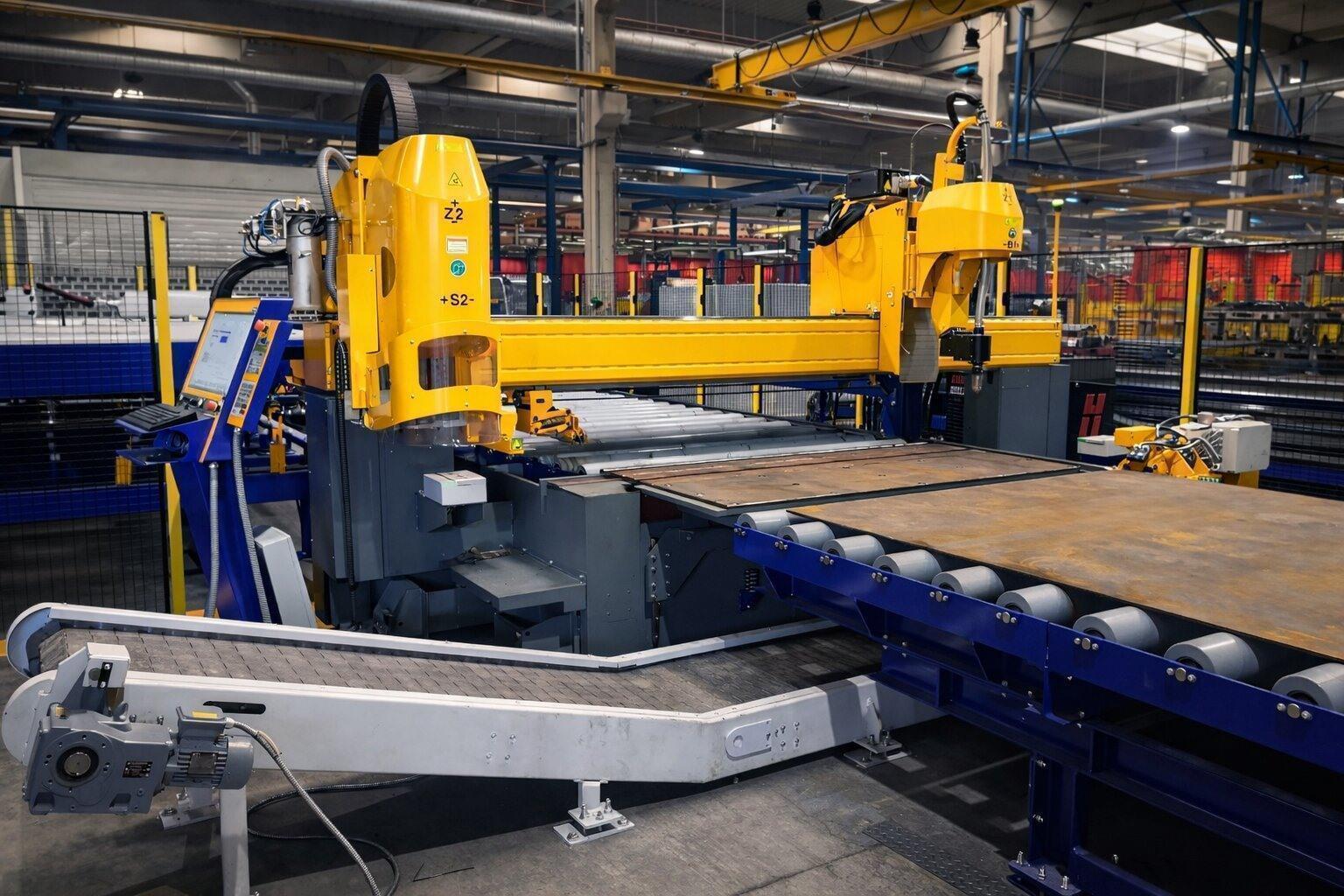

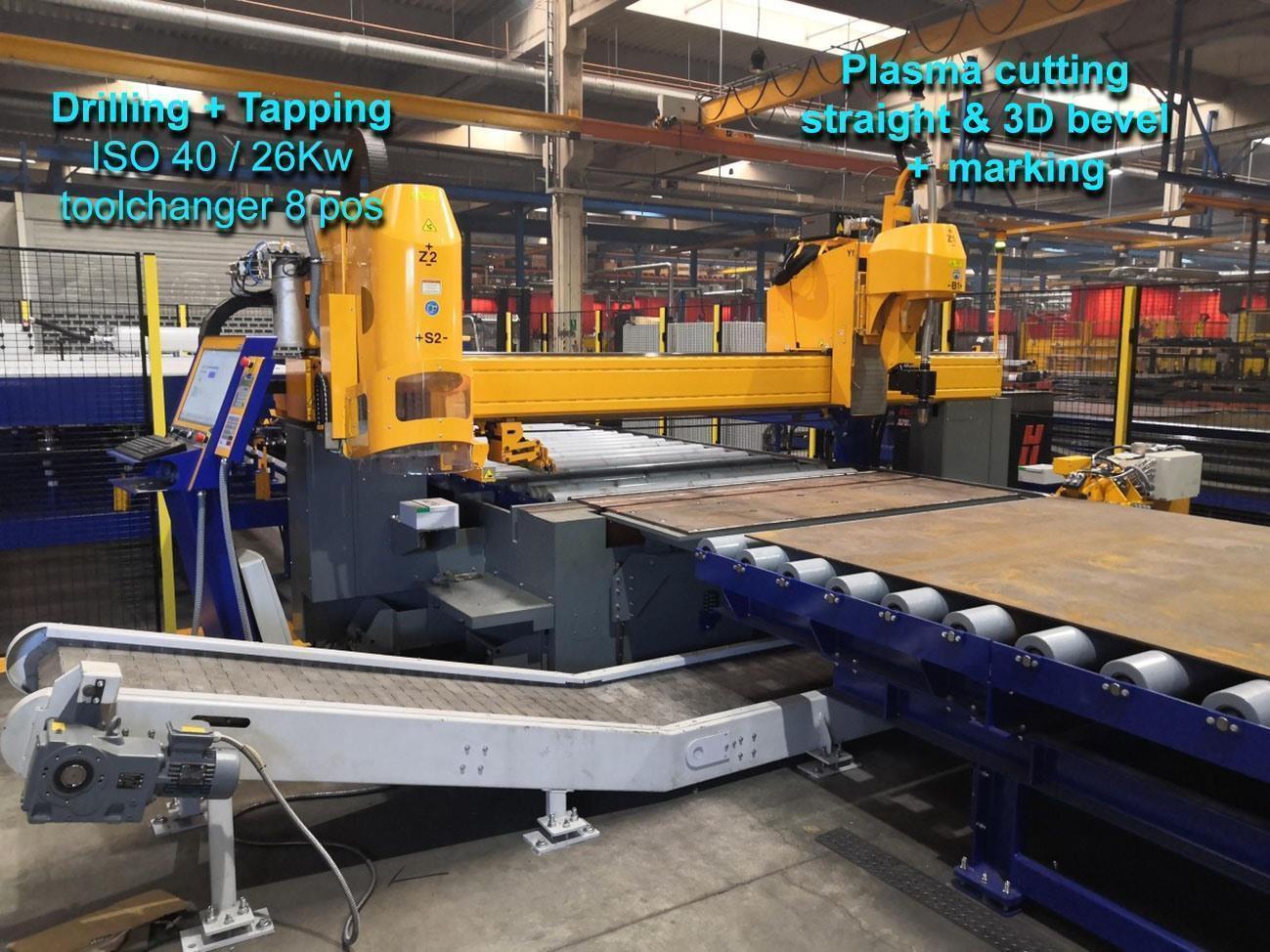

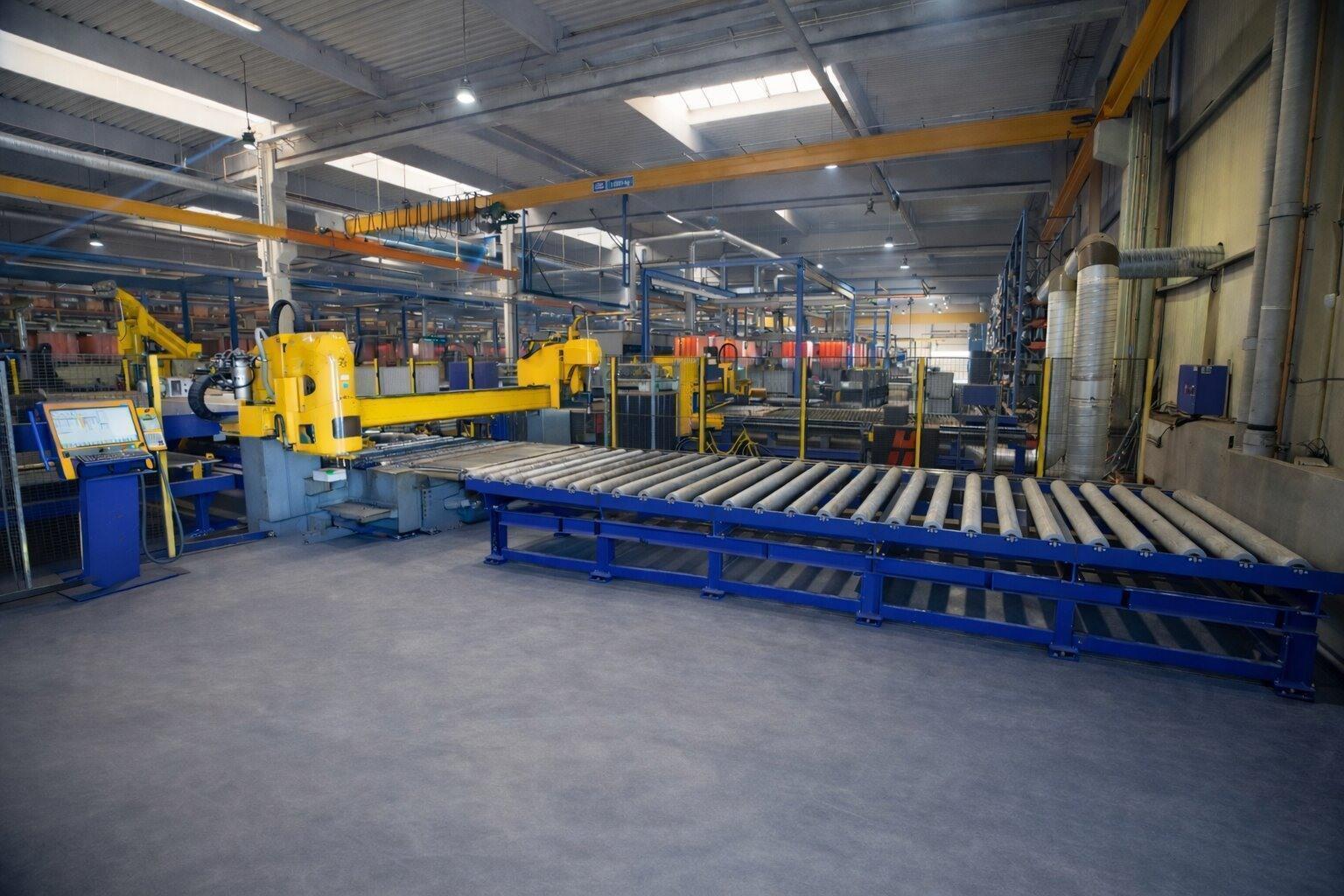

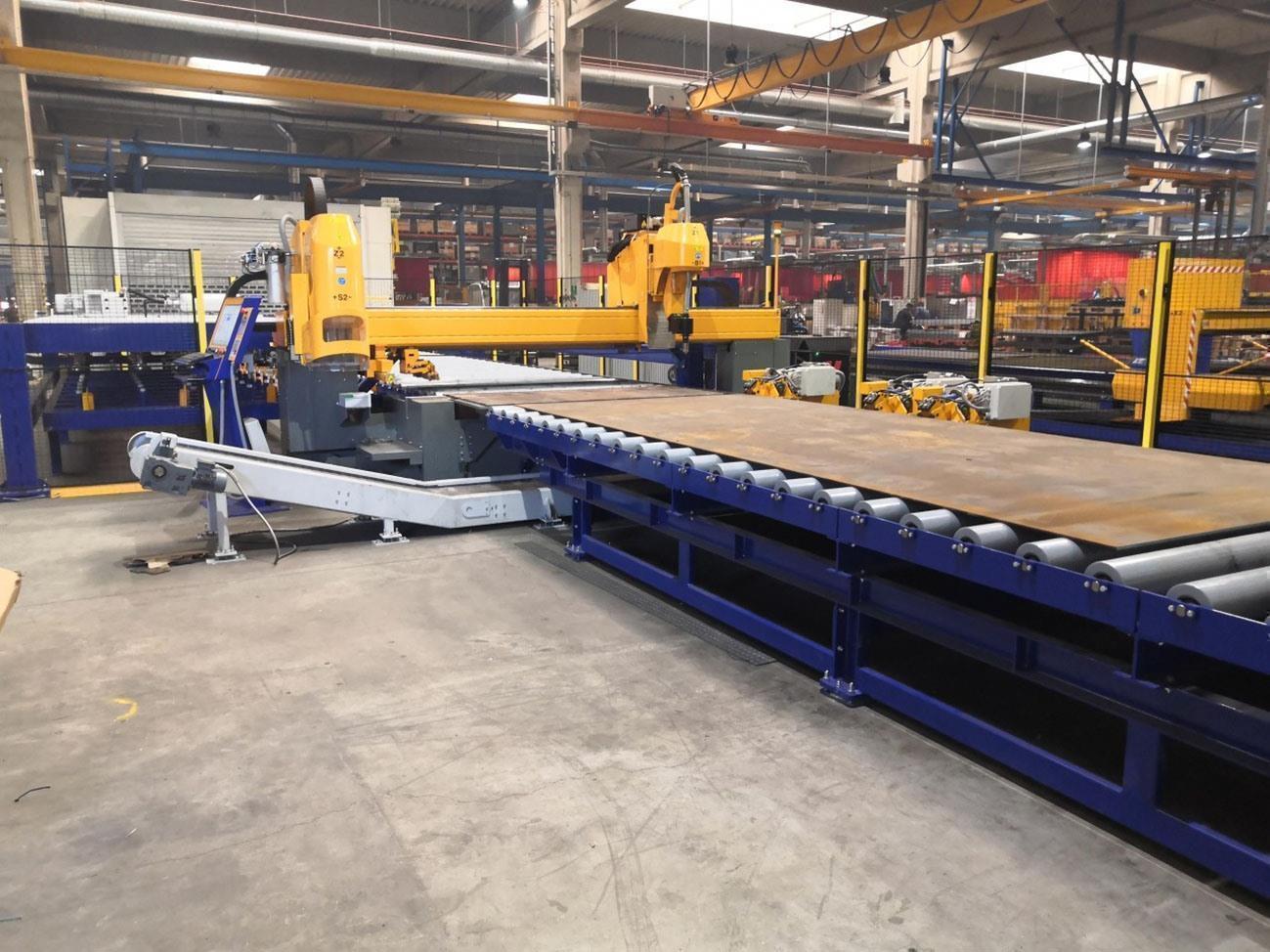

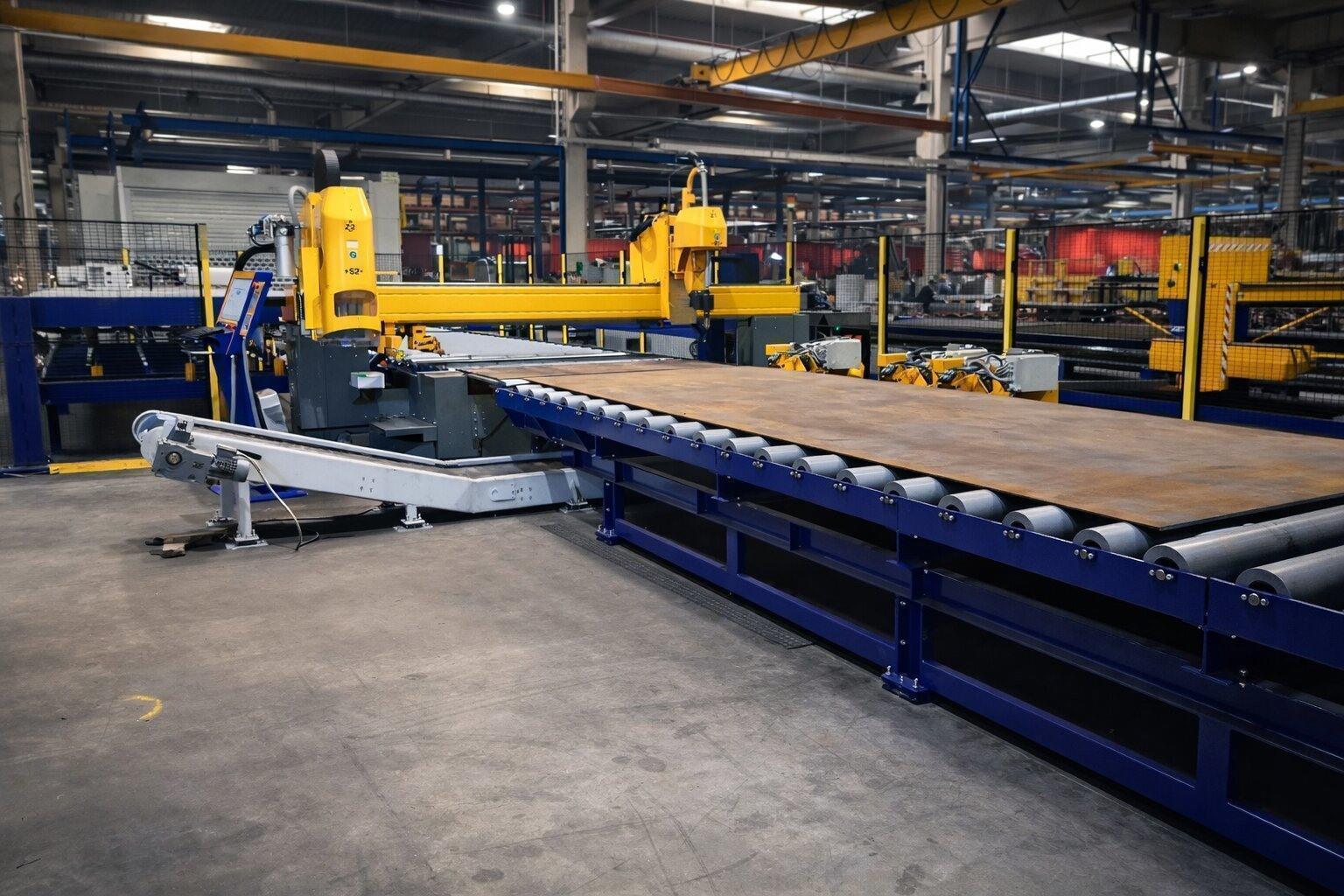

The automated plate processing line DS was designed for high-efficiency drilling and plasma cutting with the possibilities of automatic plate feeding and automatic part sorting on output. The machine is dedicated to heavy-duty structural steel applications such as production of high-precision fittings, gussets and end plates.

Type: DS 6001.20P

Plasma cutting:

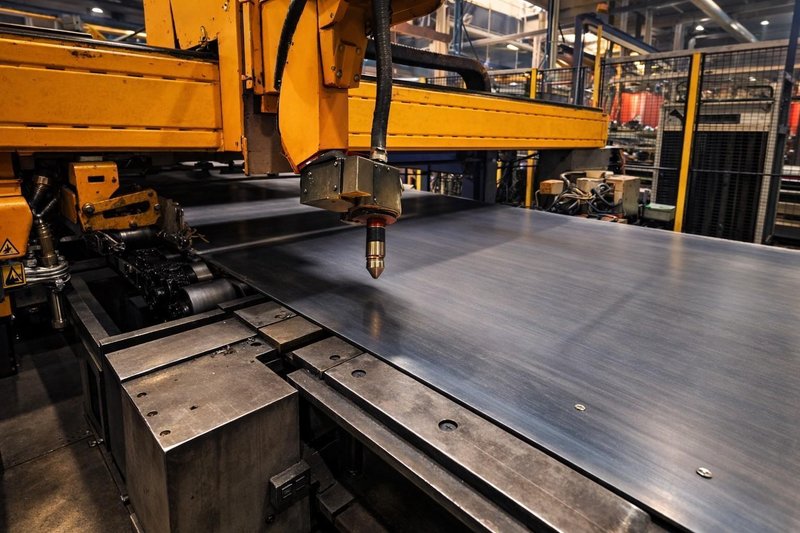

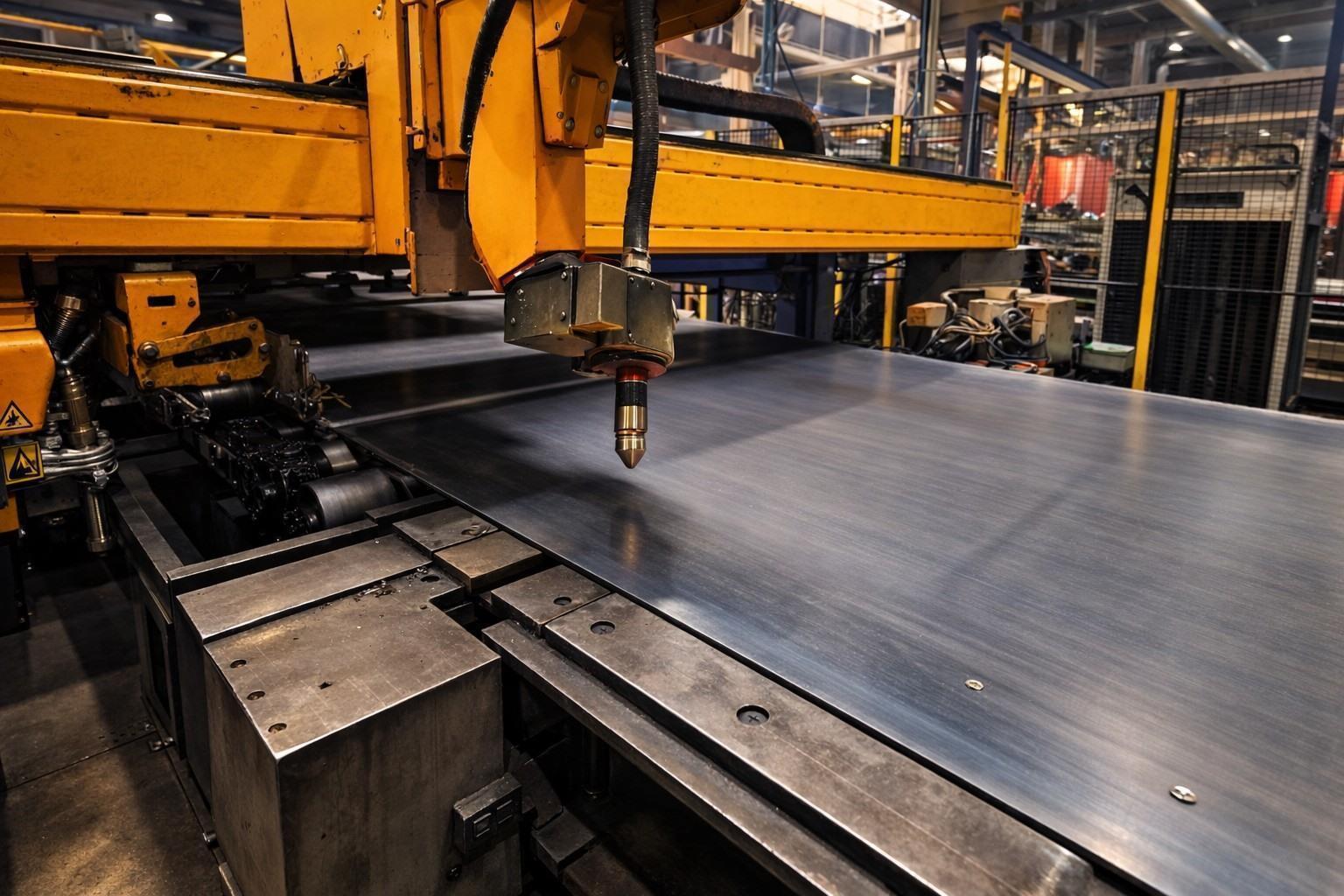

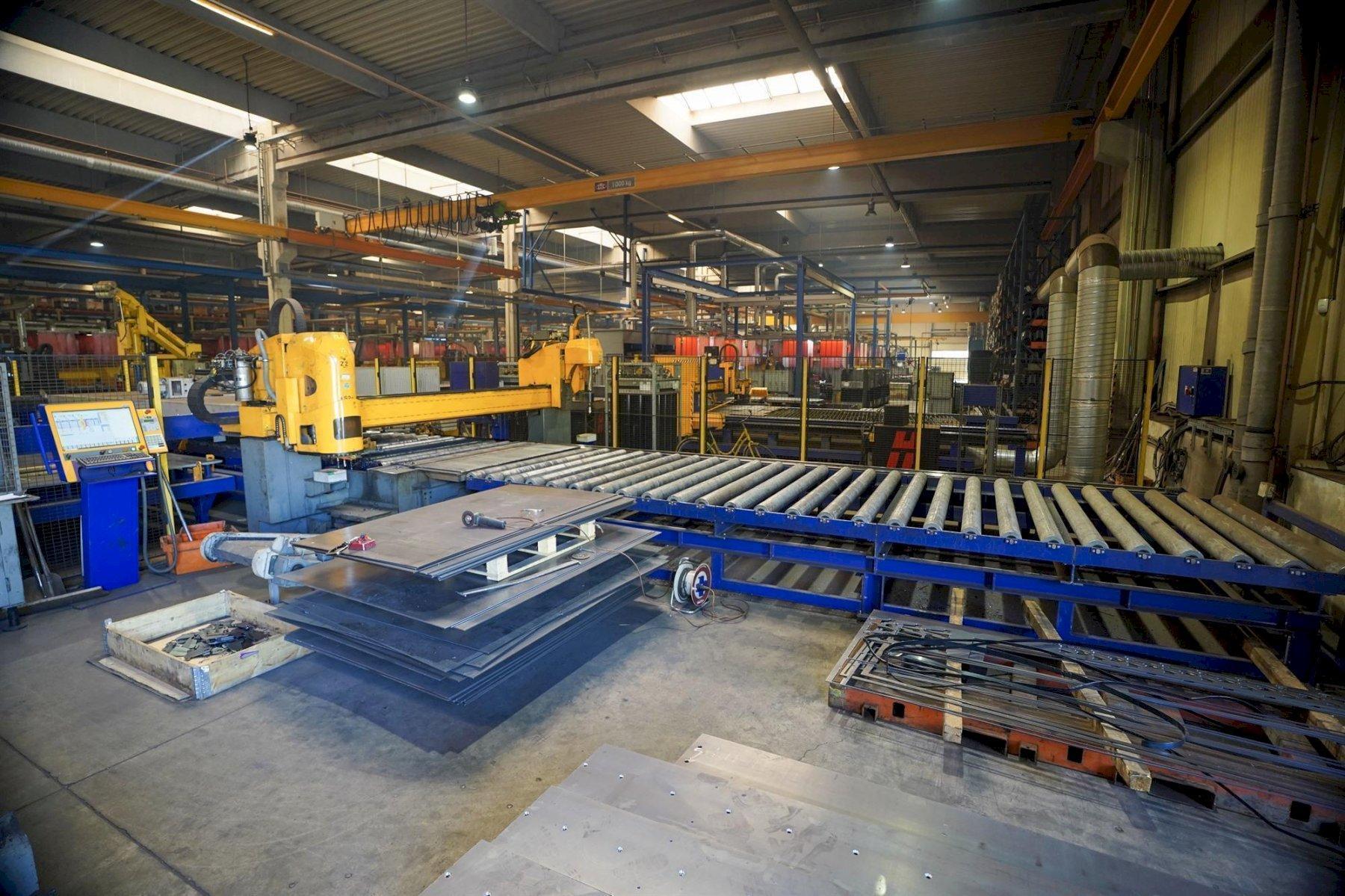

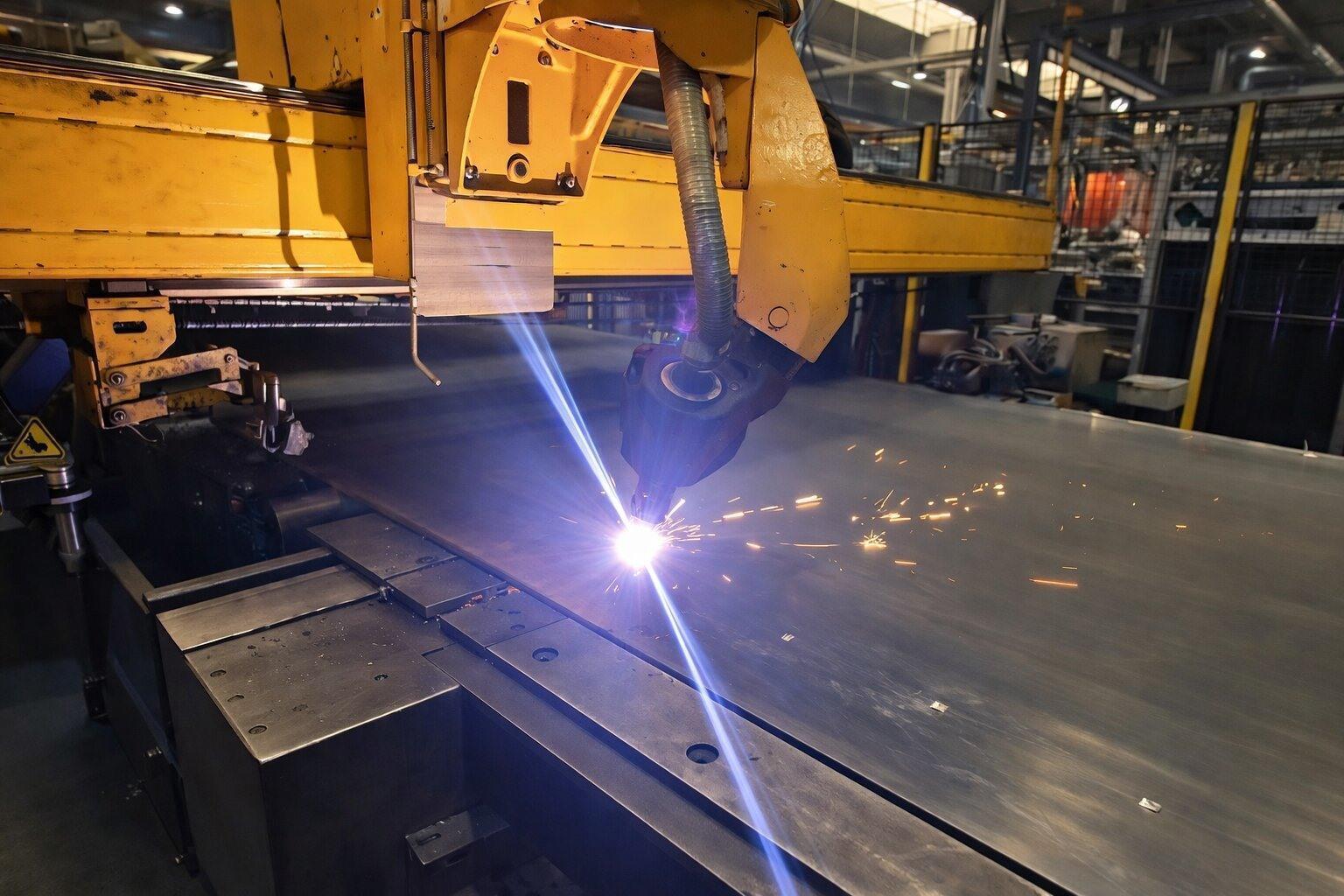

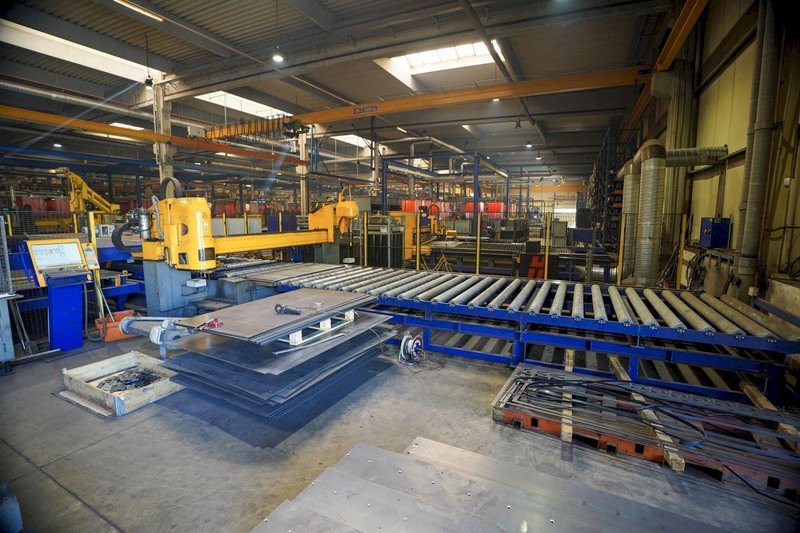

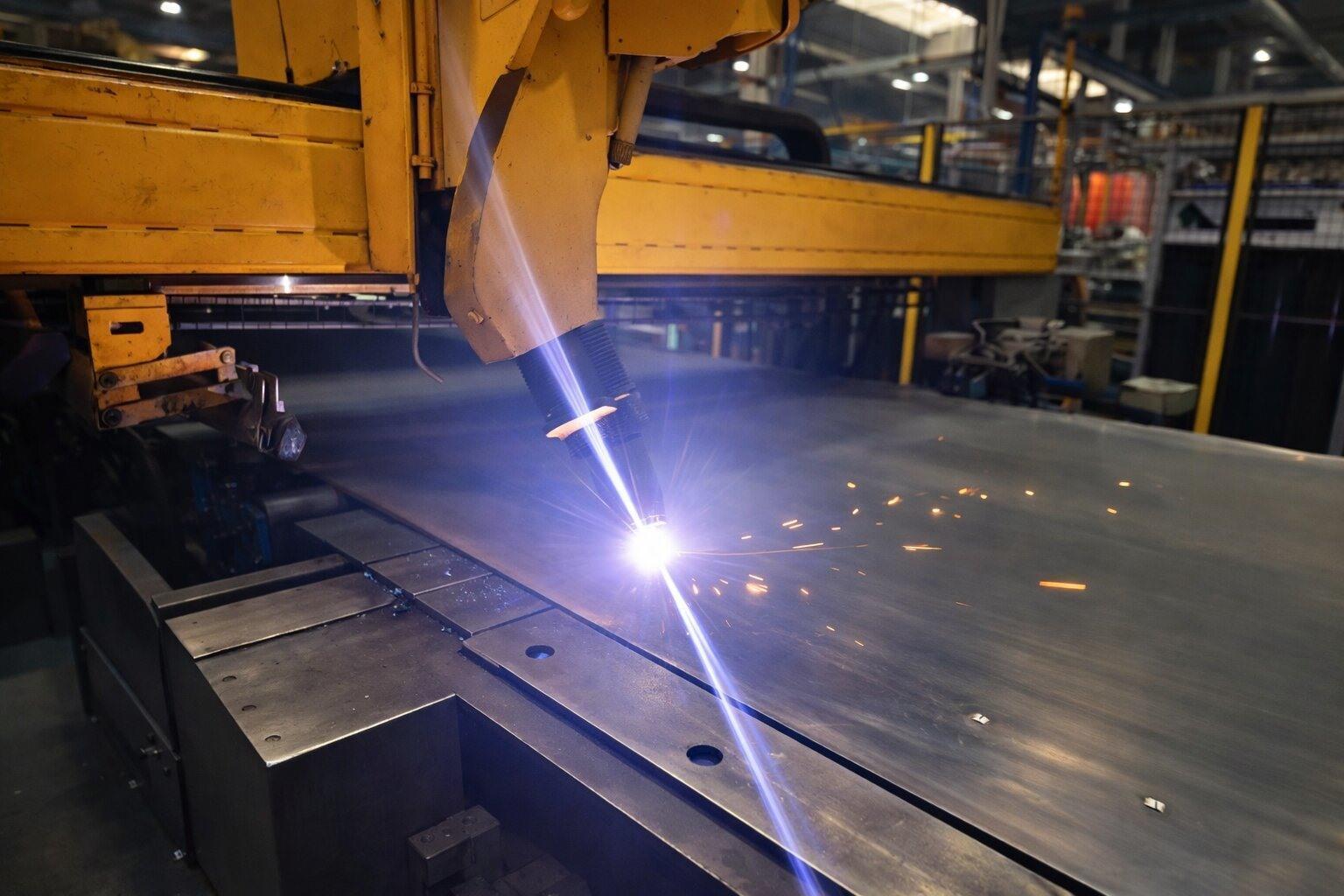

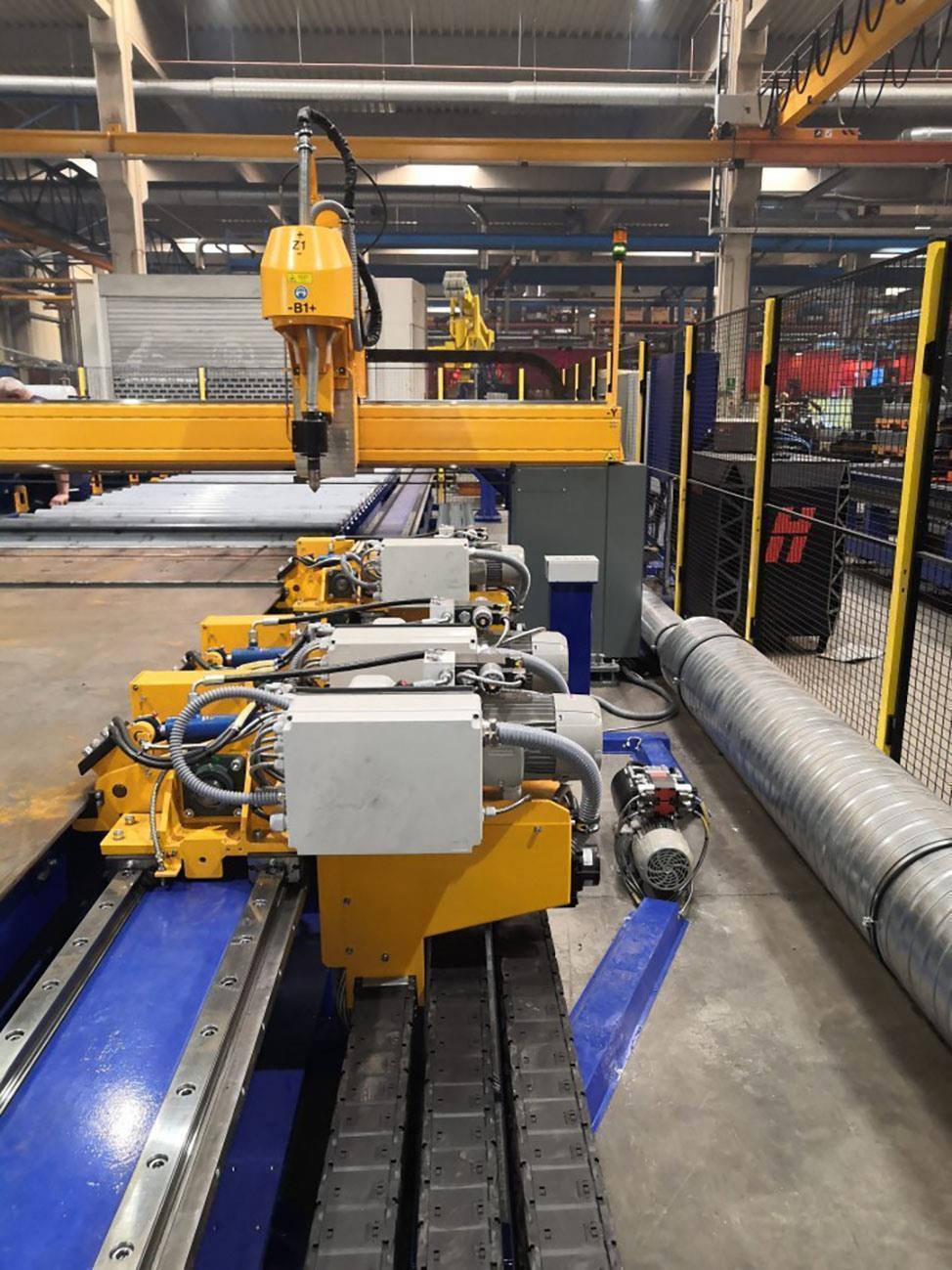

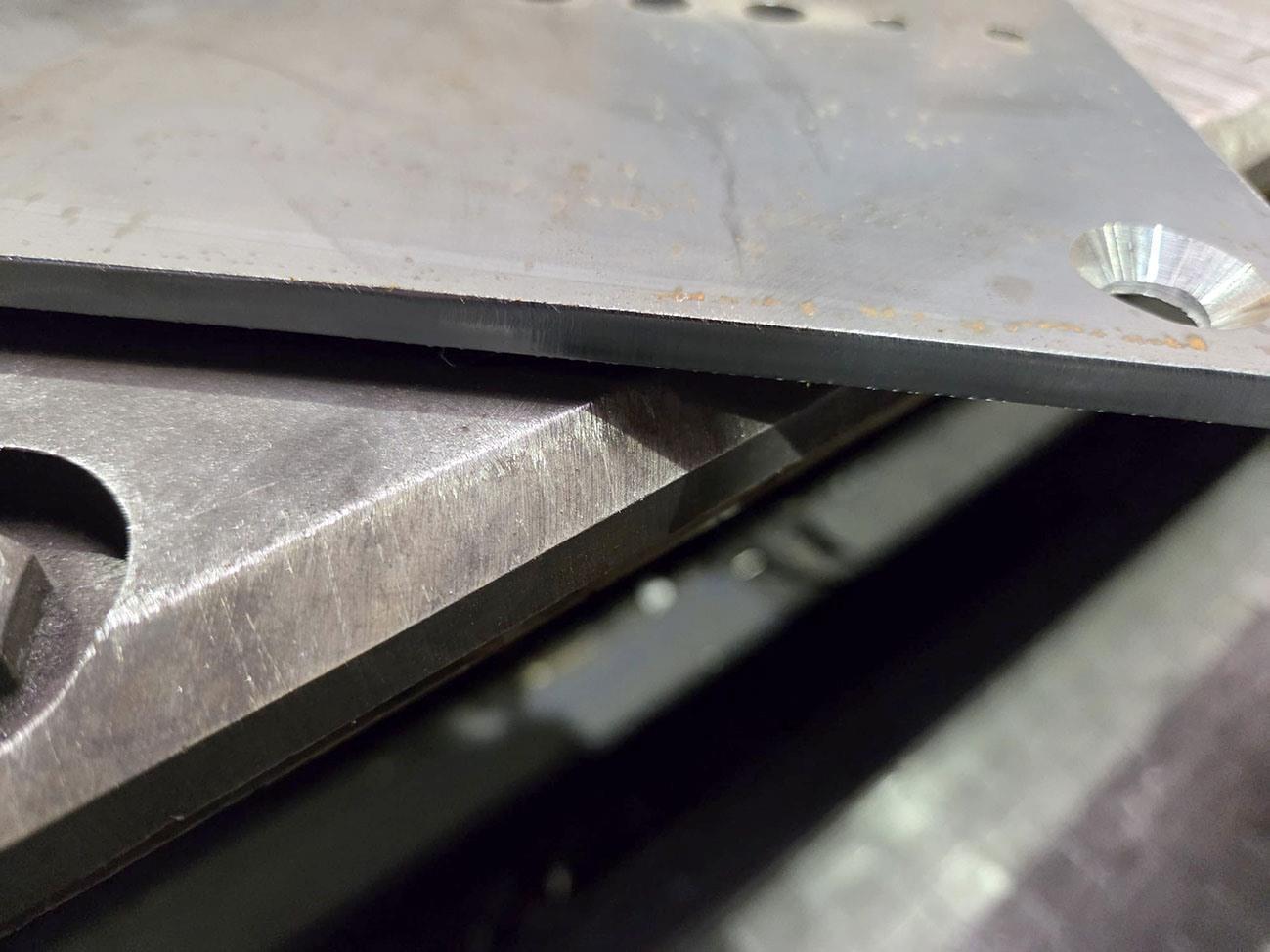

- 3D plasma bevel head for straight cutting and angle cutting up to +-50°
- Hypertherm XPR 300 (piercing 45 mm)
- max sheet size: 6000 x 2000 mm
- material thickness: 3 > 30 mm
- laser light

Plasma marking

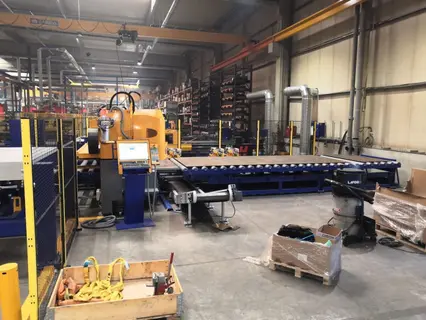

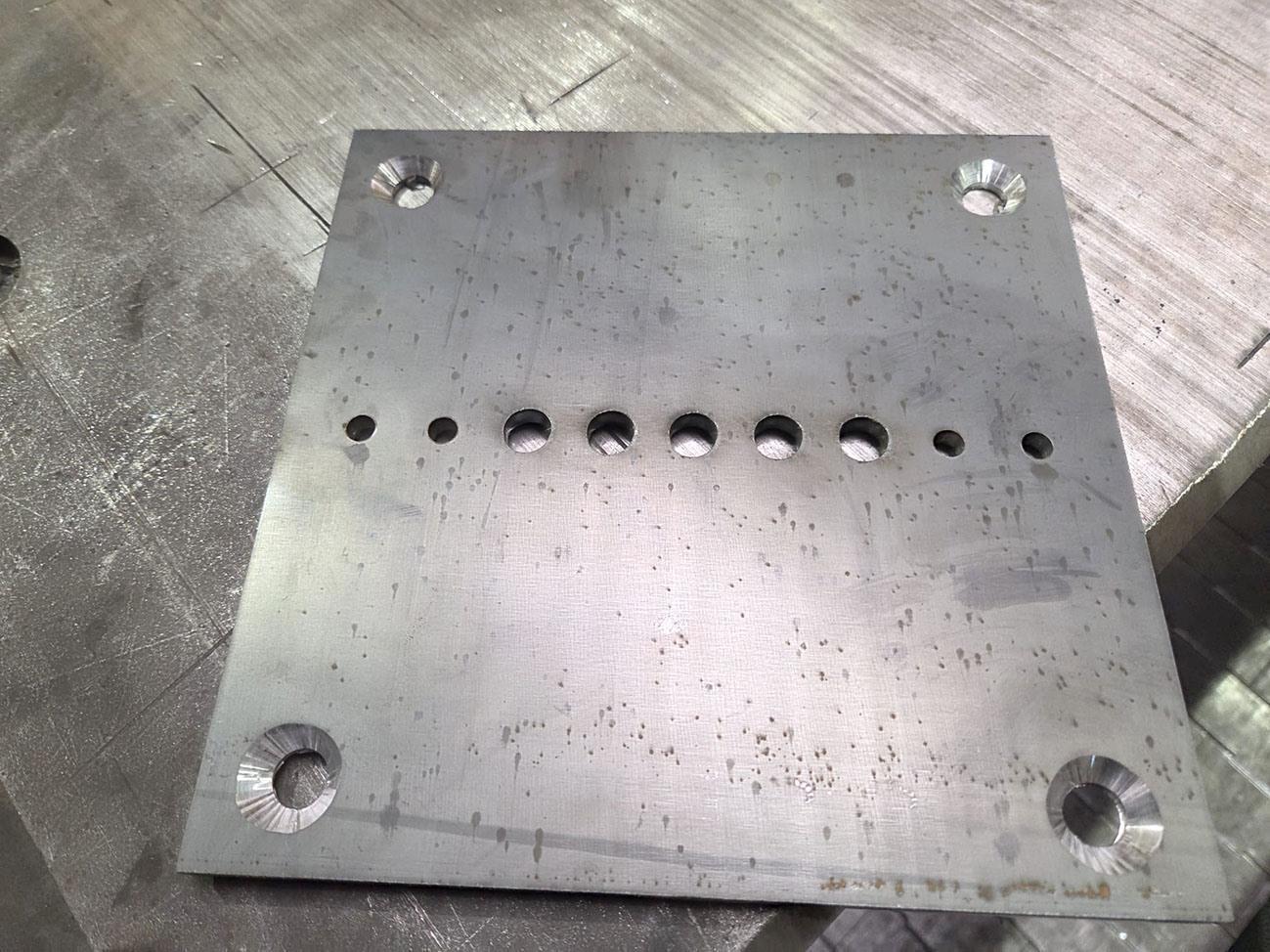

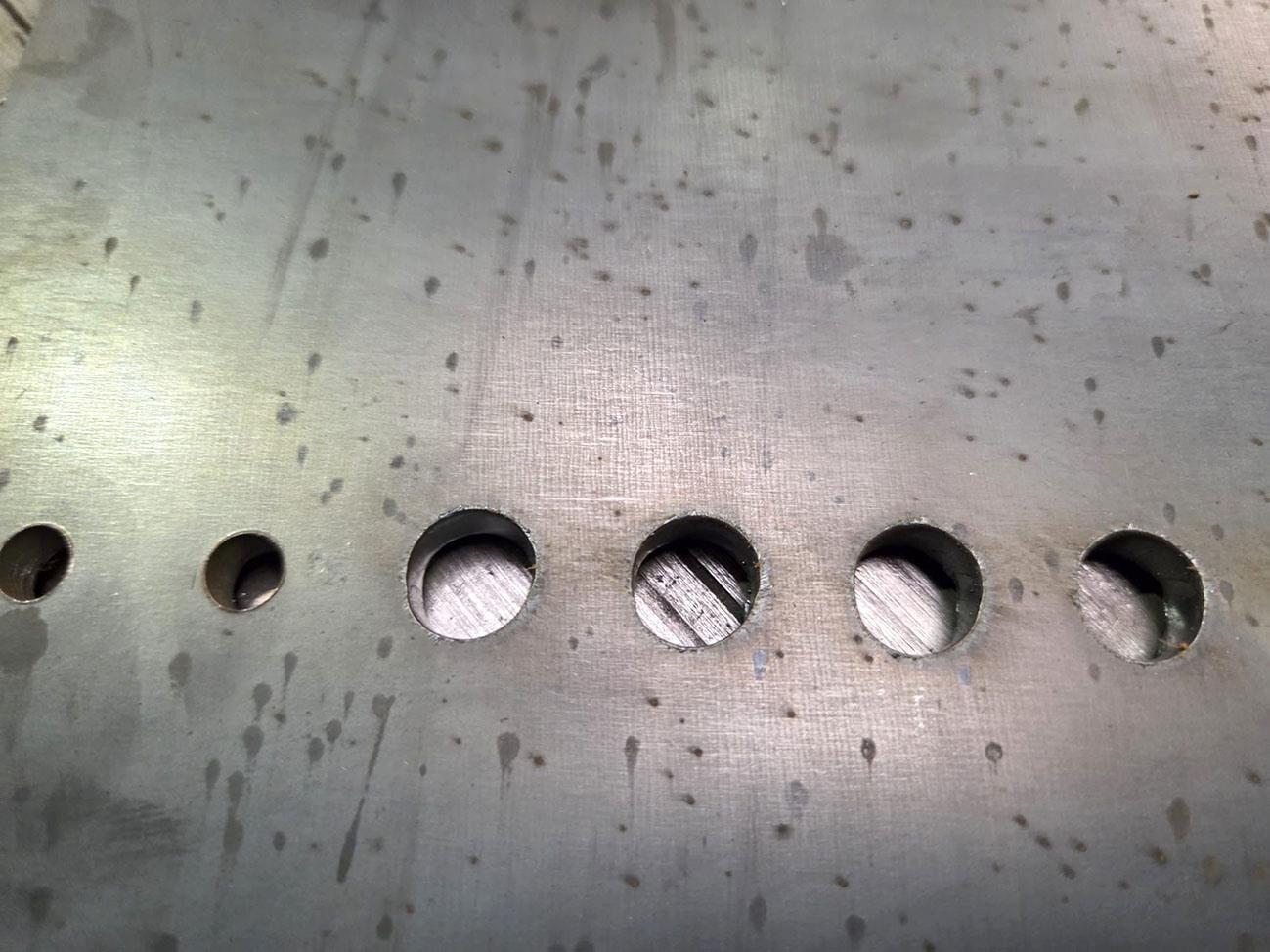

Drilling:
- MG-40 P26 drilling device ISO 40
- drilling range: dia 4 > 40 mm
- thread cutting: M4 > M33
- max thickness: 100 mm
- stroke: 400 mm
- 26 kW on spindle ISO 40
- max 1829 rpm

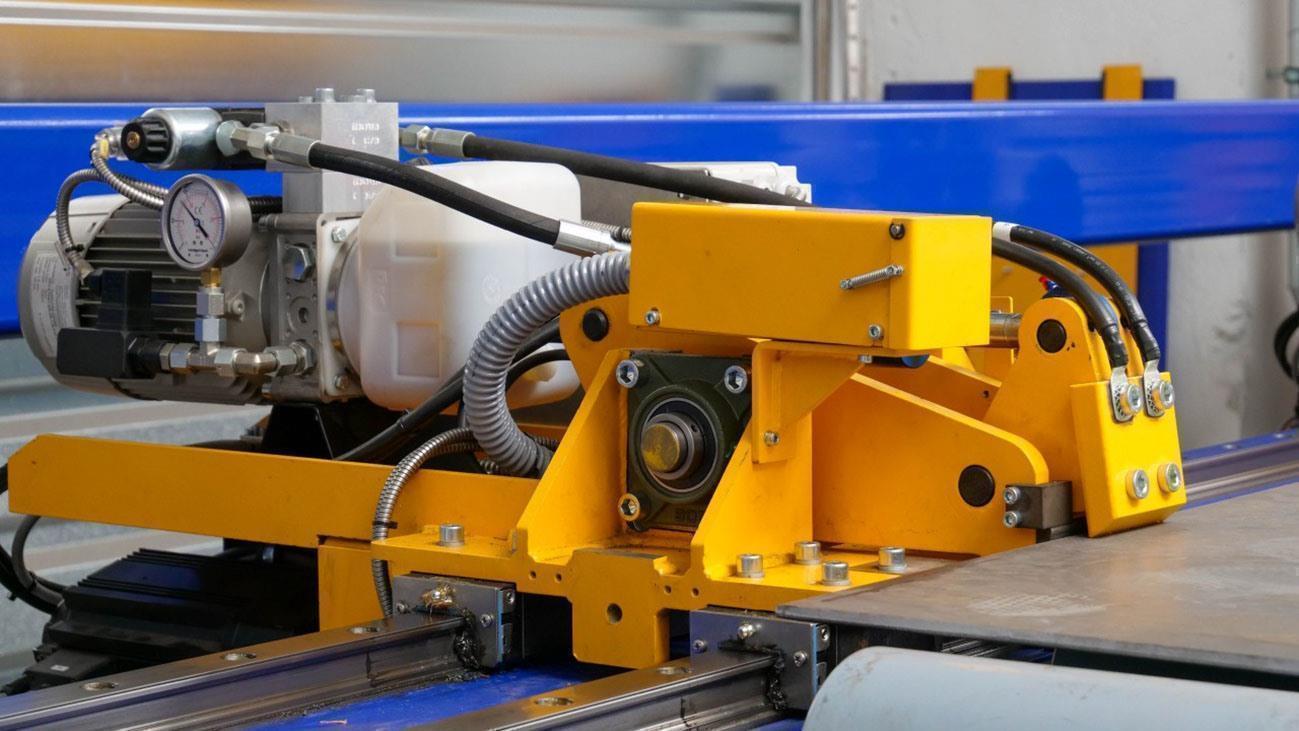

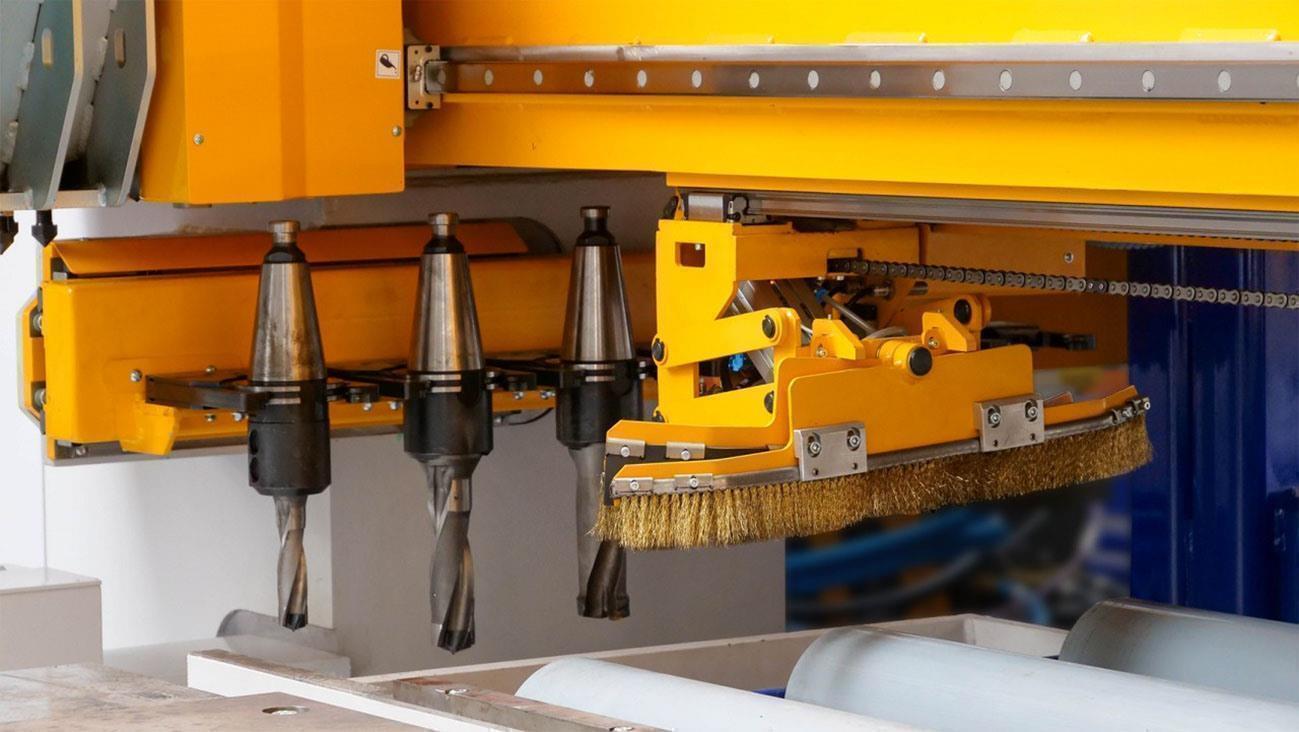

- automatic tool changer; 8 tool positions ISO 40
- external & internal tool cooling

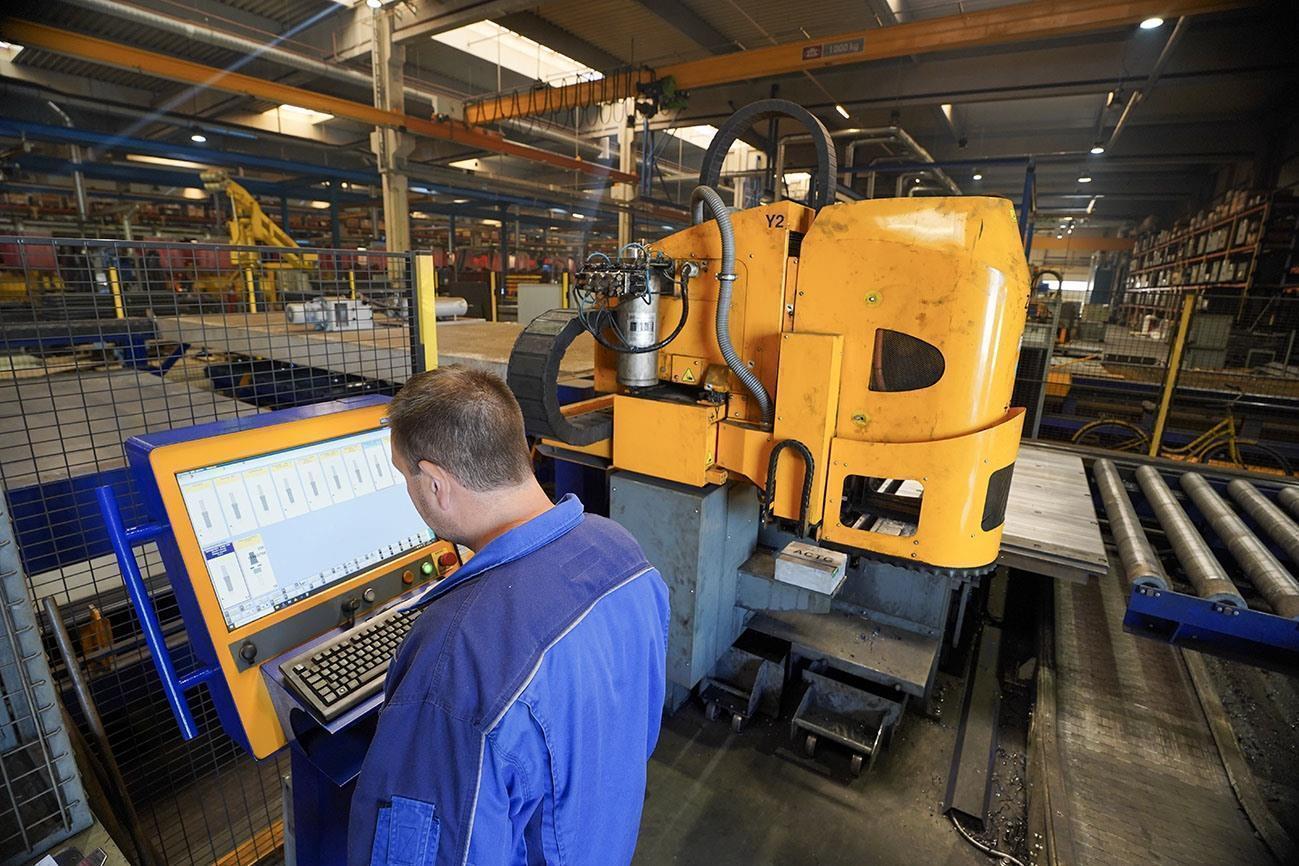

CNC control:
iMSNC system for Windows® 10TM' 64-bit PRO with integrated network card and USB port

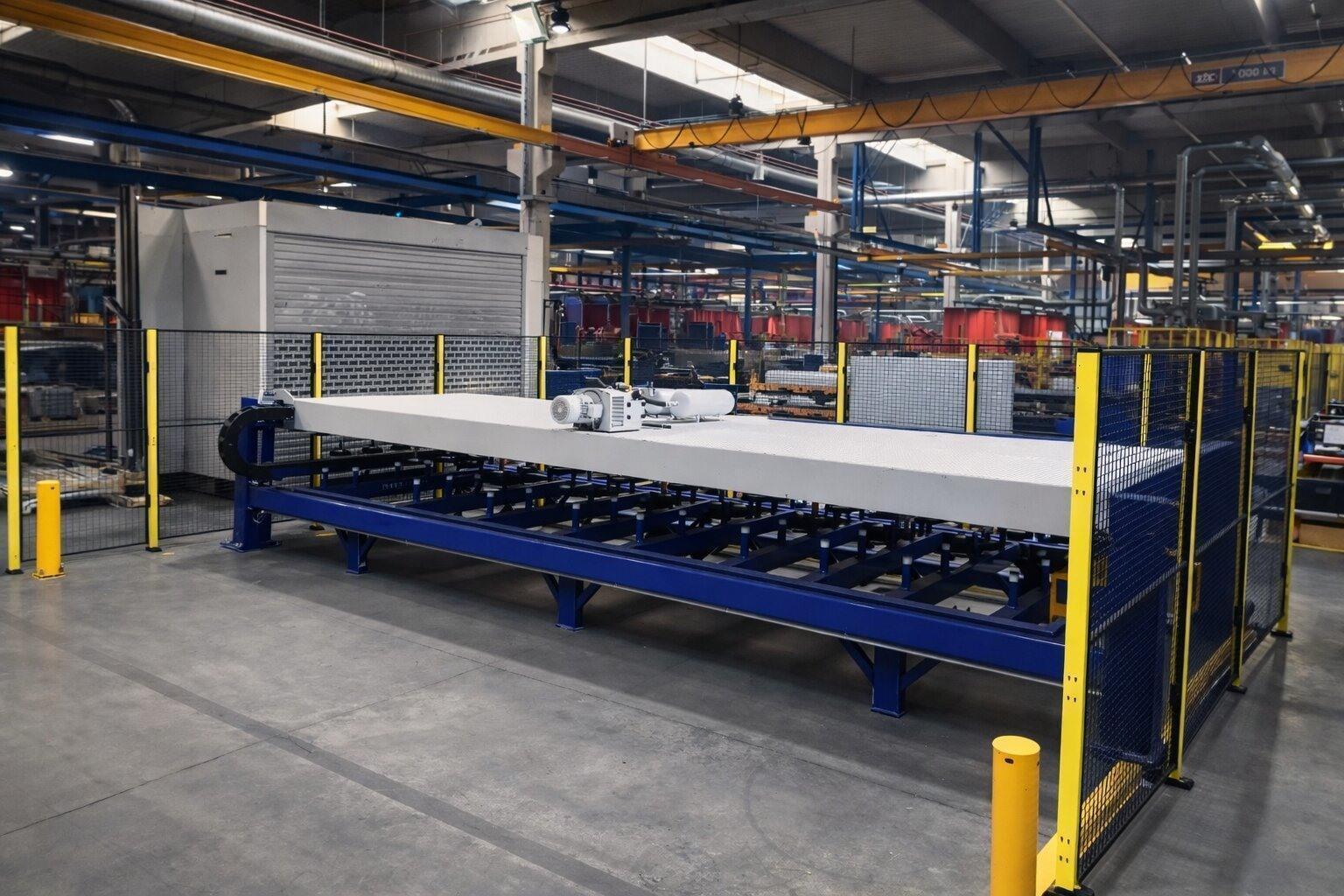

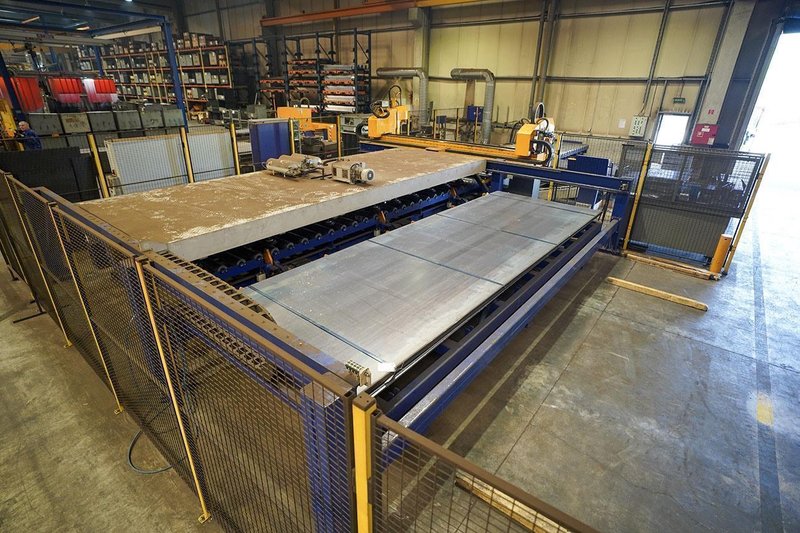

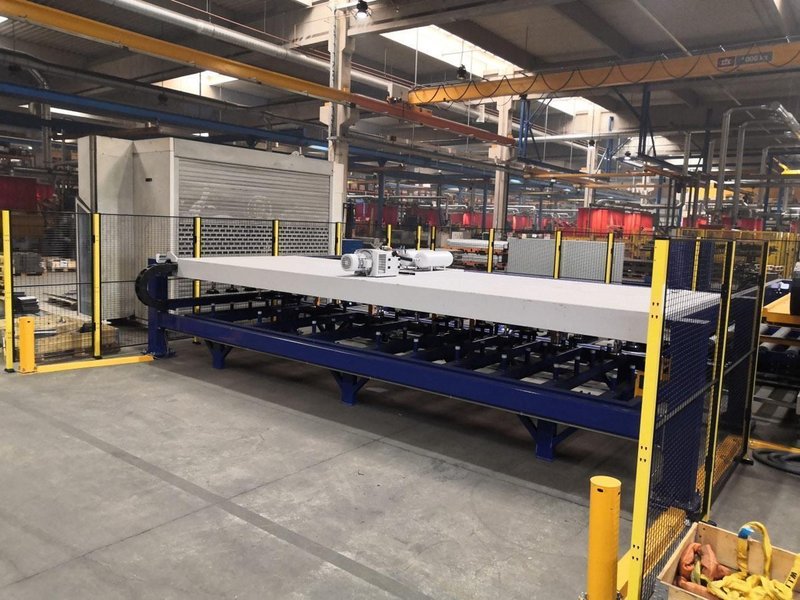

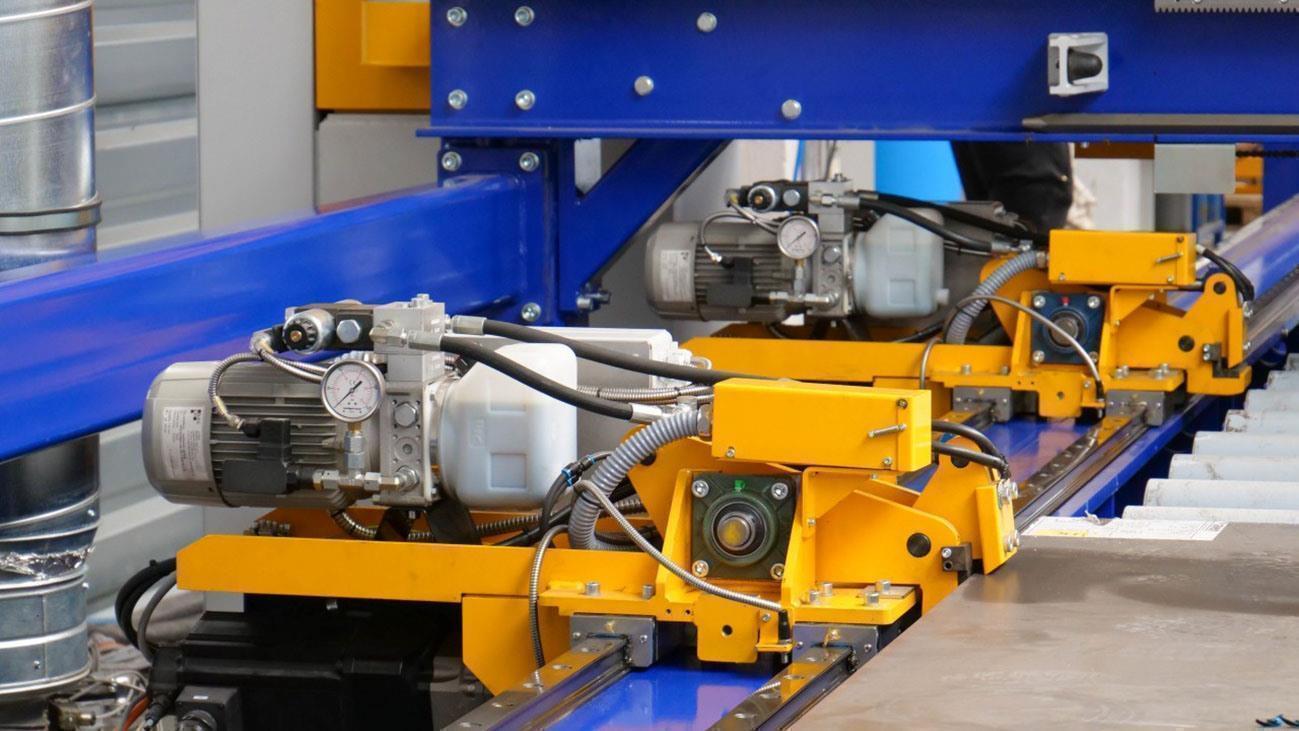

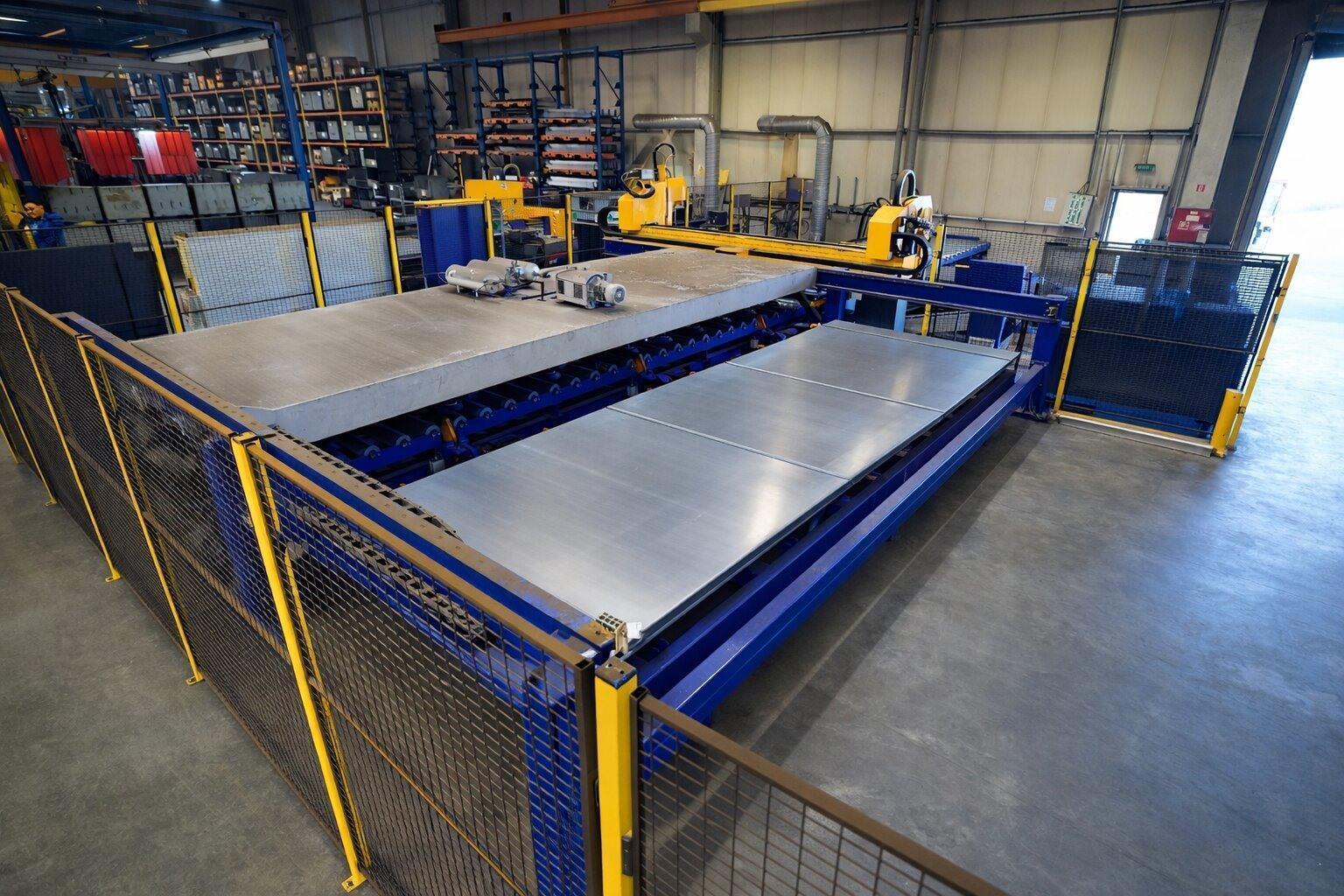

With a vacuum suction system sheets can be loaded onto the cutting table

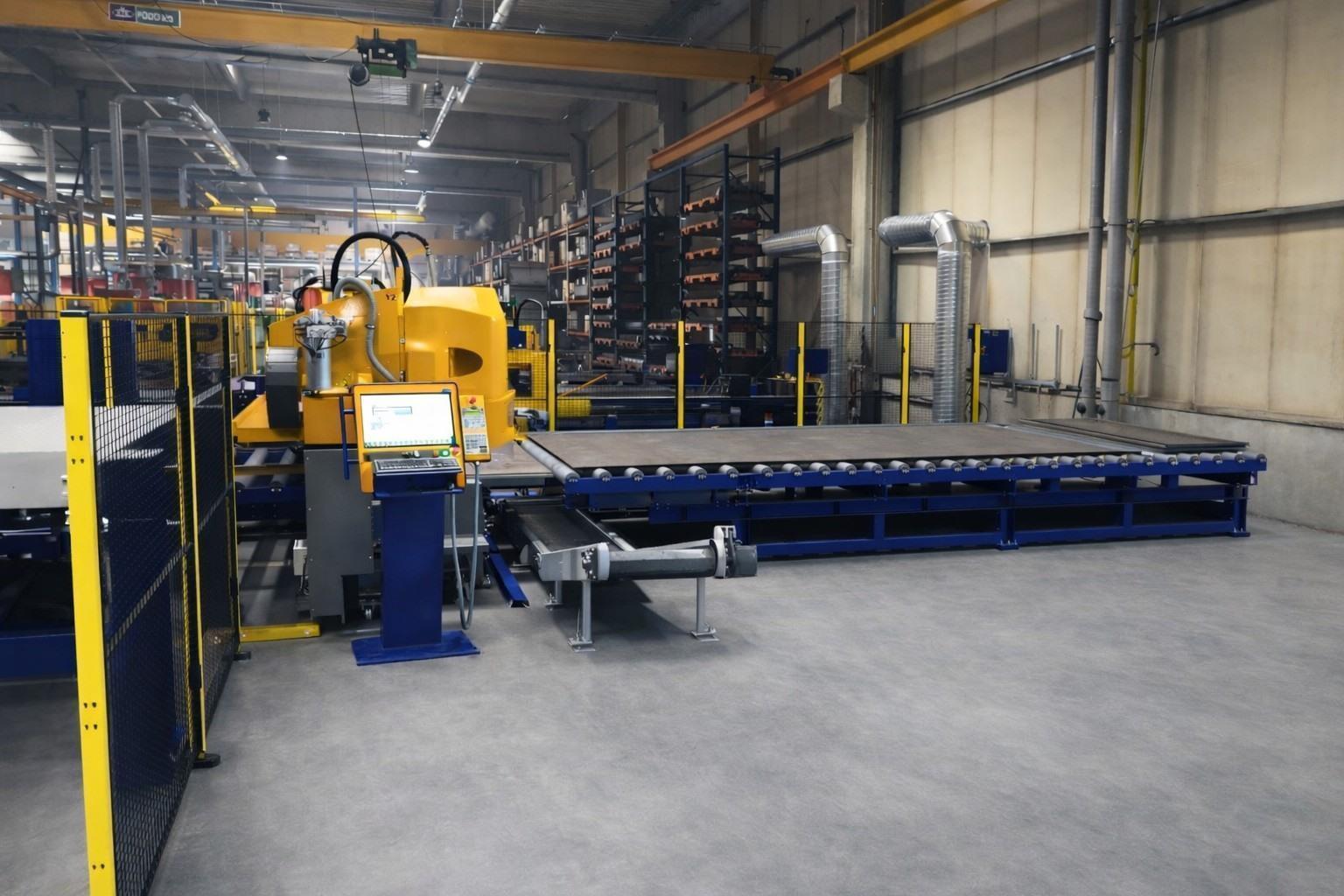

Total weight: 30 tons

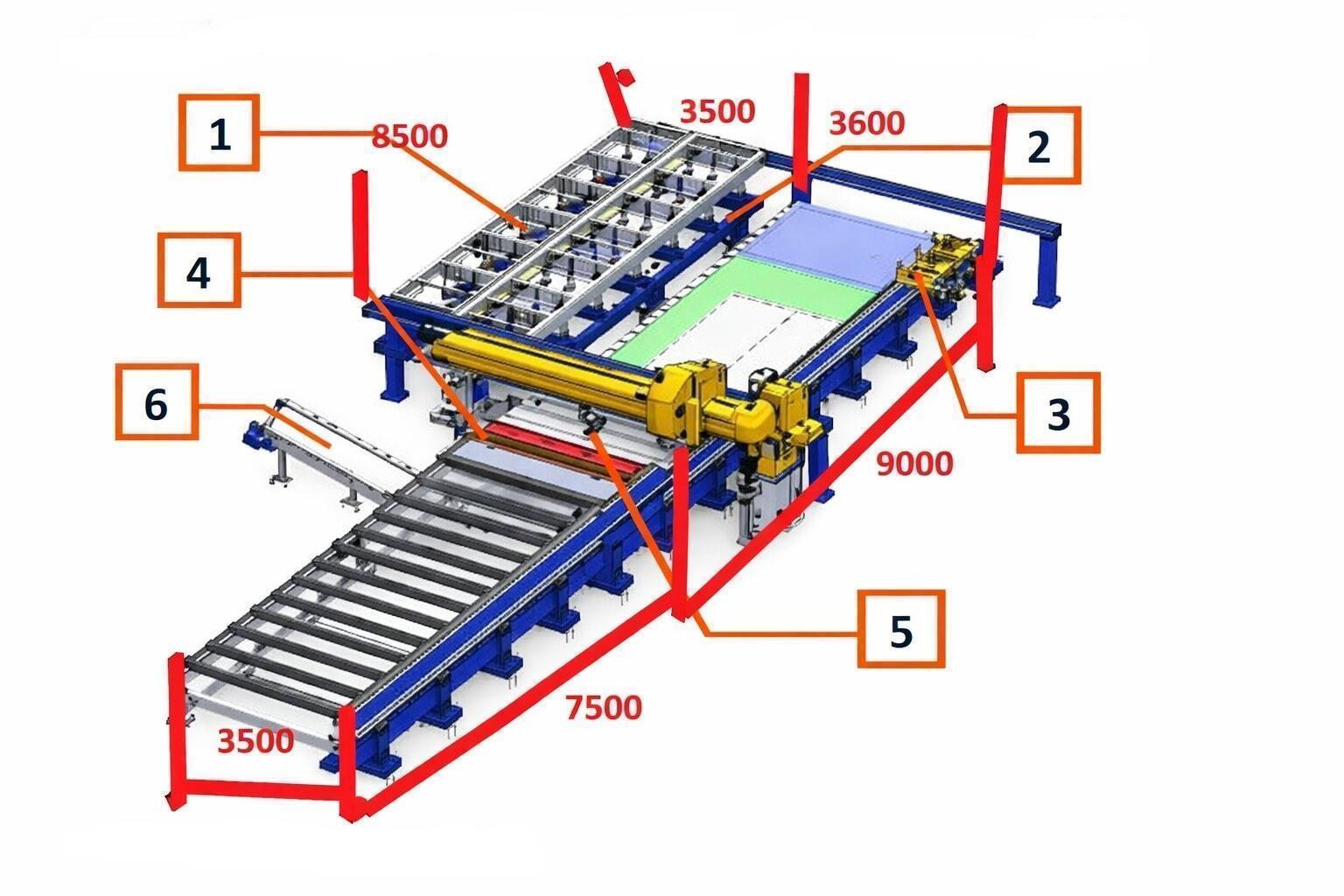

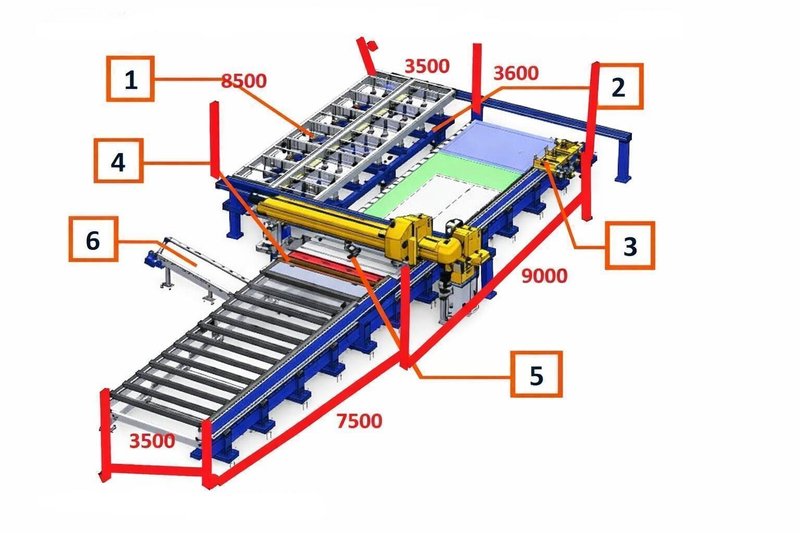

Required space: 16 500 x 7100 mm
