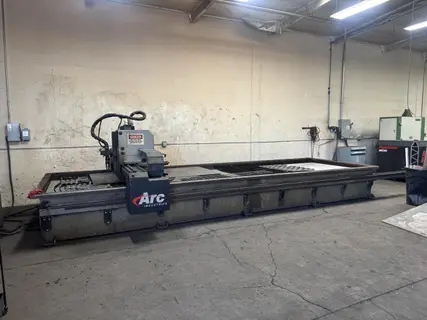

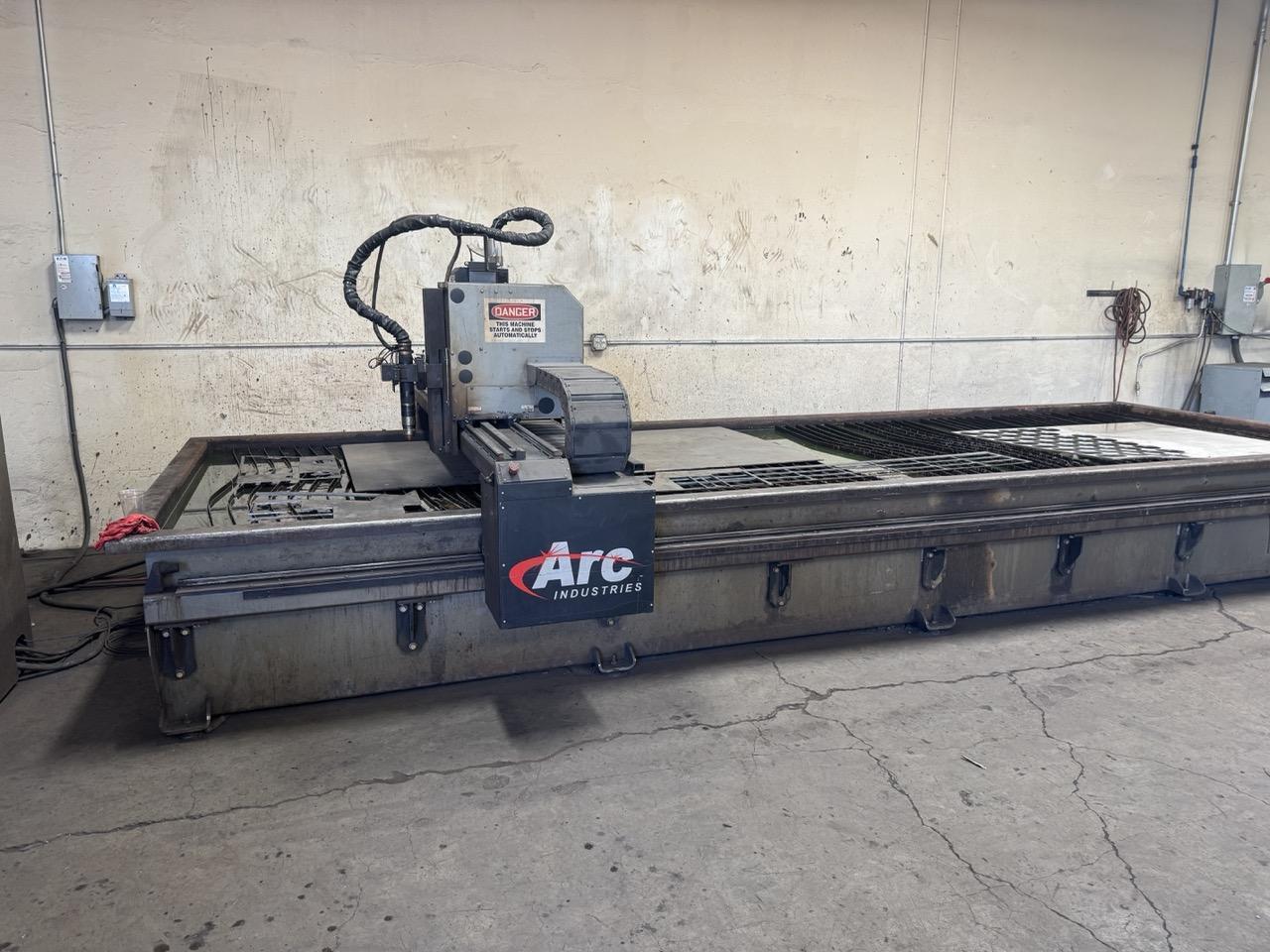

6′ x 20′ Arc Cut Pro 20620 Plasma, 2022 – Hypertherm XPR 300

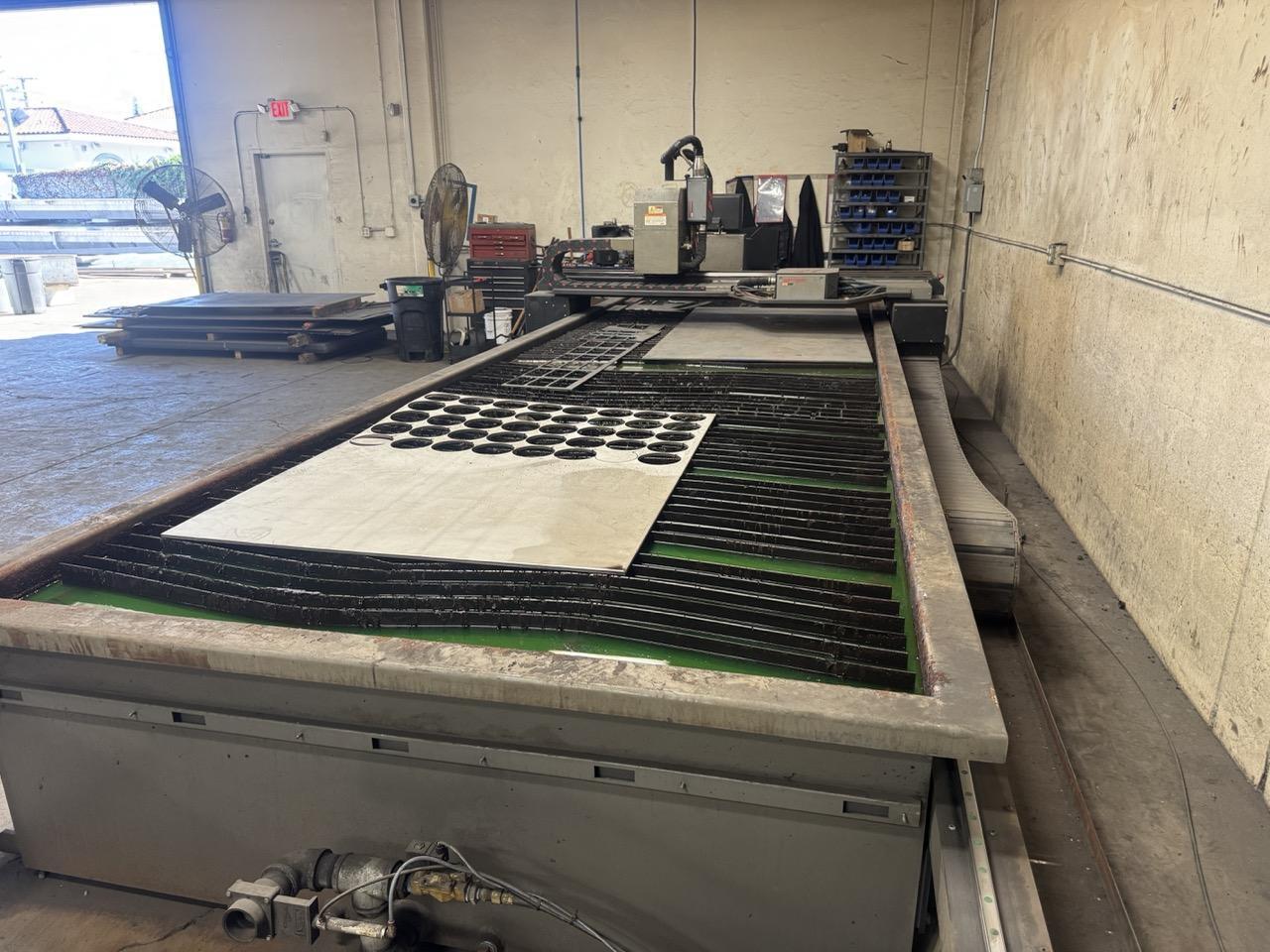

Machine & Table Effective cut width: 78″ Effective cut length: 252″ Maximum plate thickness capacity: 4″ Precision Ground Linear Profile Rails Helical Rack and pinion drive, 2-1000 IPM Maximum load capacity: 19,700 lbs (evenly distributed) Approximate shipping weight: 9,950 lbs Water capacity (unitized table): 1,444 gallons (12,500 lbs when filled)

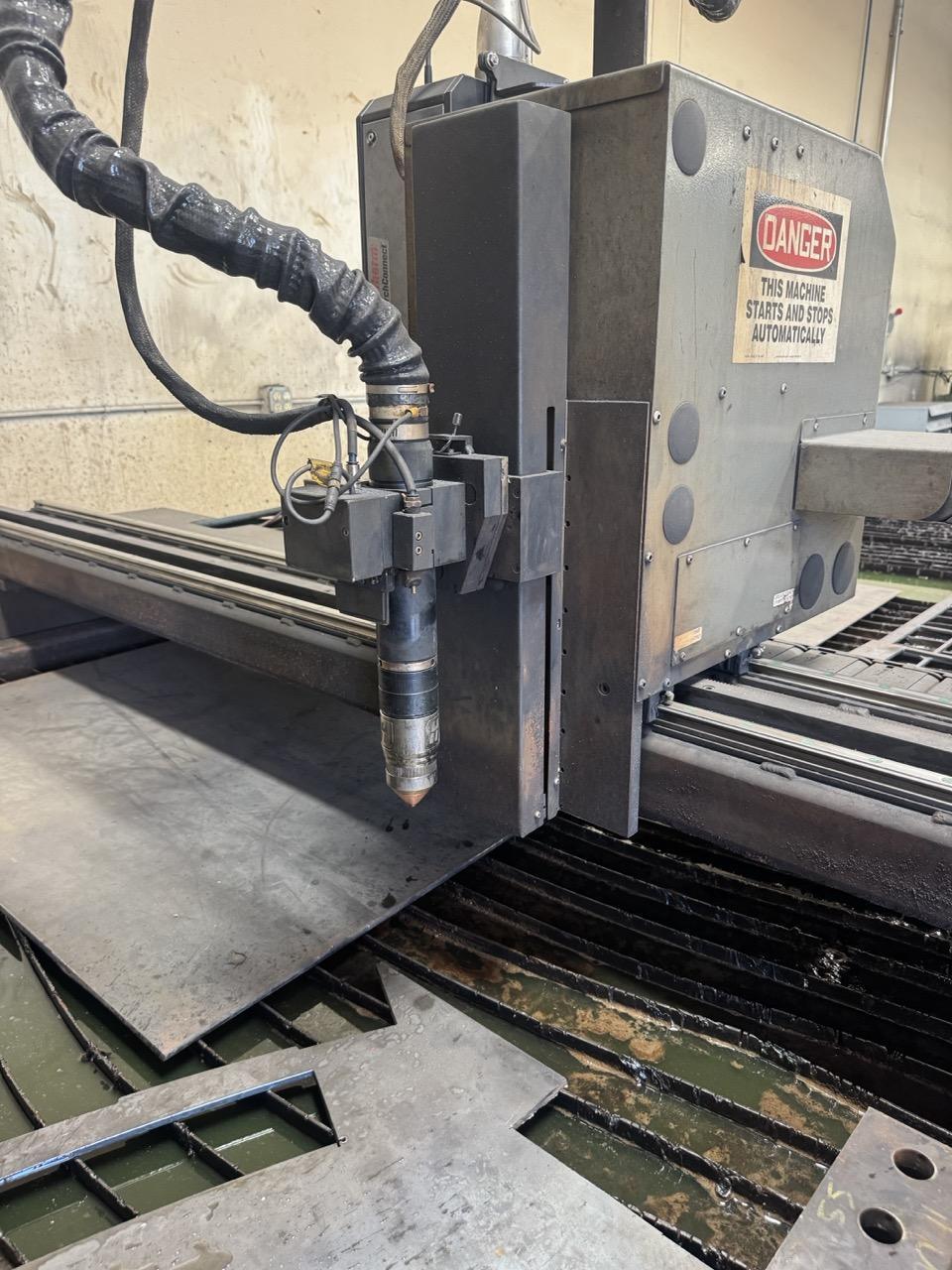

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Torch & Cutting Specs Torch height control range: 8.5″ motion range Cutting speed: up to 1,000 IPM Pierce capacity (mild steel, O₂): 1.75″ Pierce capacity (argon-assist): 2″ Severance capacity (mild steel): 3.125″ Severance capacity (stainless steel): 3″ Severance capacity (aluminum): 2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:;

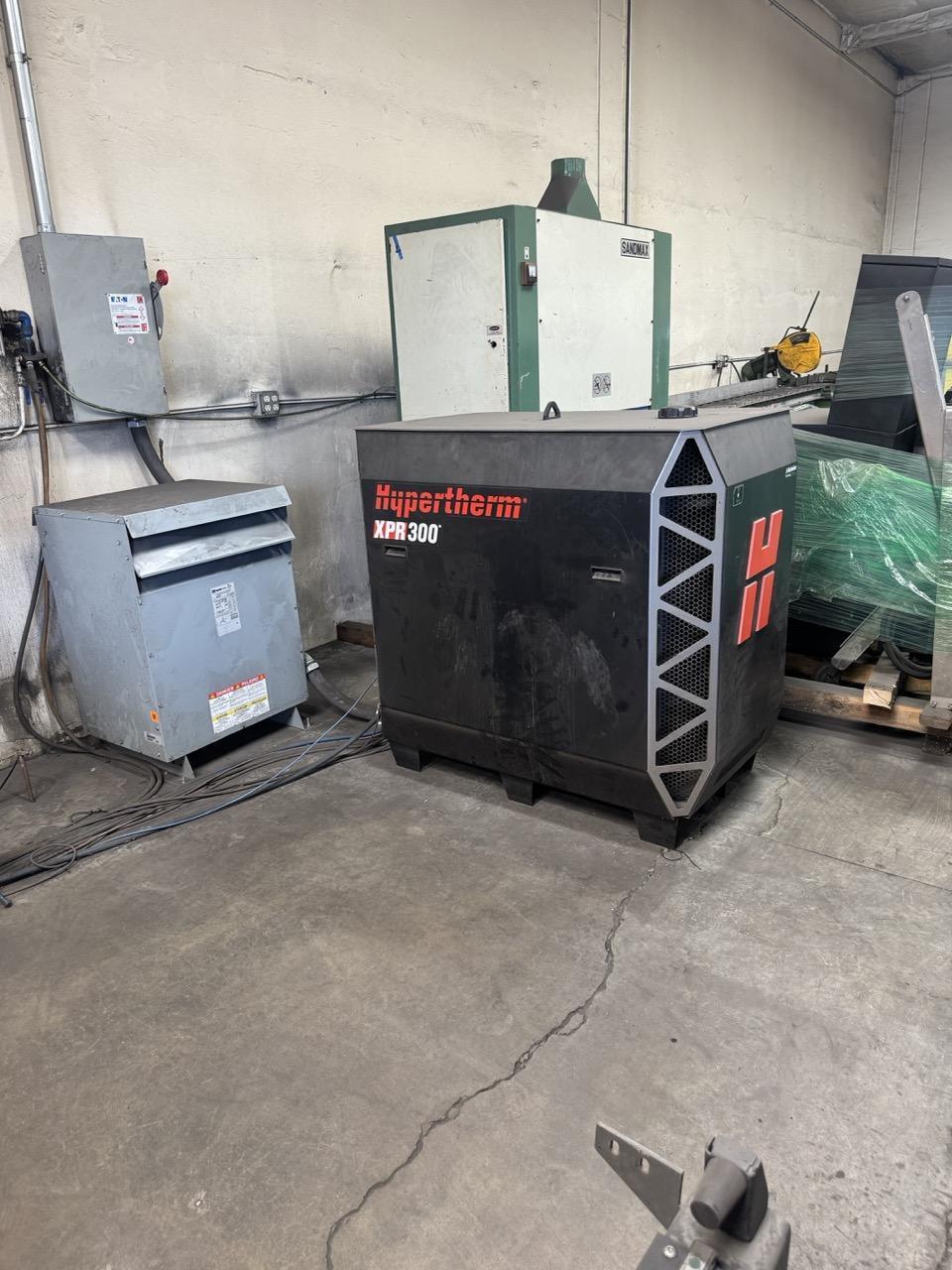

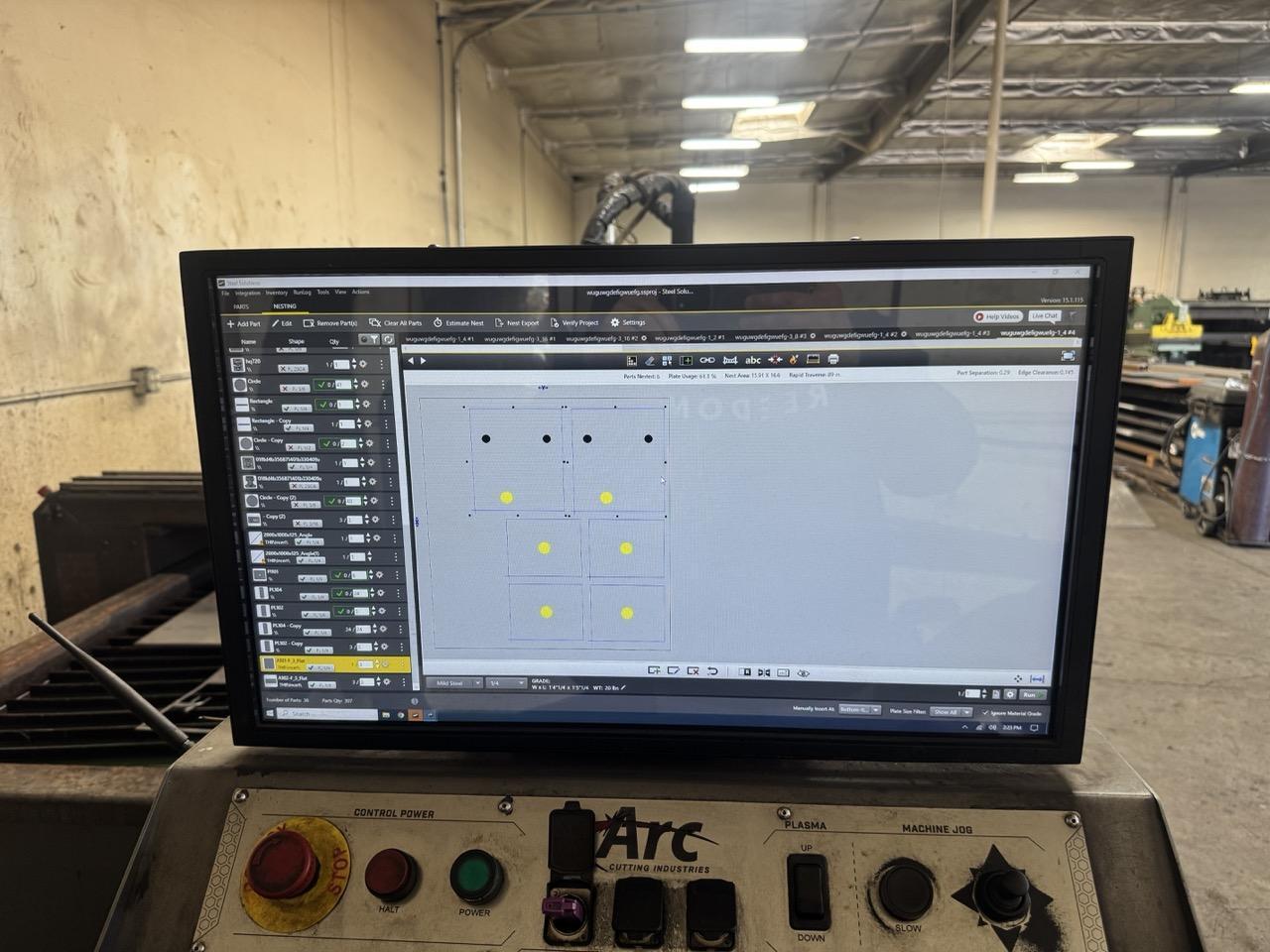

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Arc Cutting Industry ATek Series Control Pneumatically adjustable water level for easy cleanout Dual chamber water table with 2″ drain valve Heavy-duty linear rails tucked under frame for protection Helical rack & pinion drive with planetary gearboxes (low backlash) Yaskawa Sigma-7 servo drive package (up to 1,000 IPM) Hypertherm XPR 300 plasma system with VWI gas console

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
