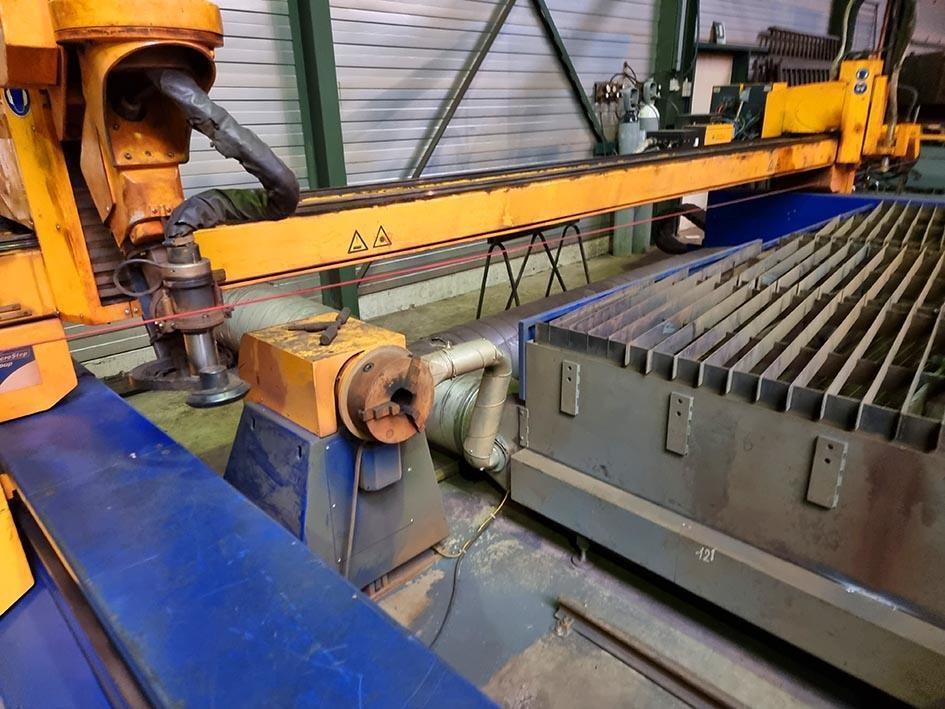

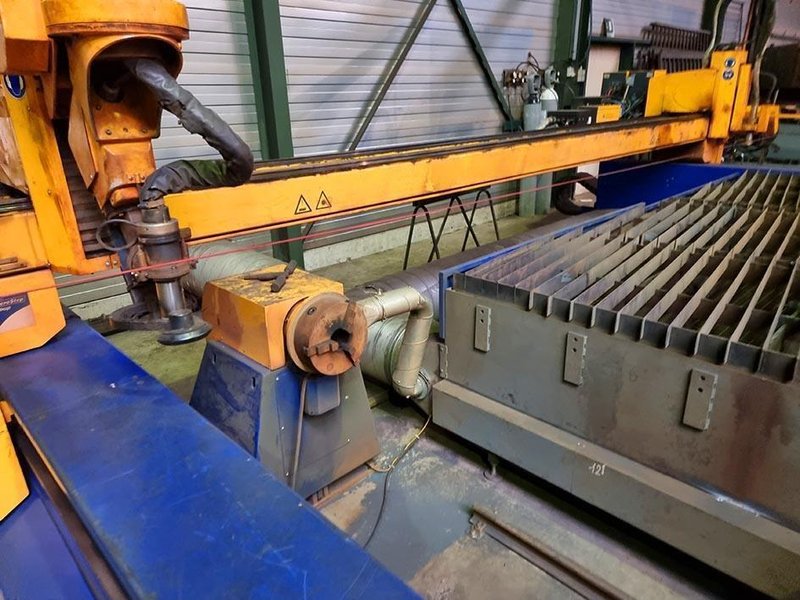

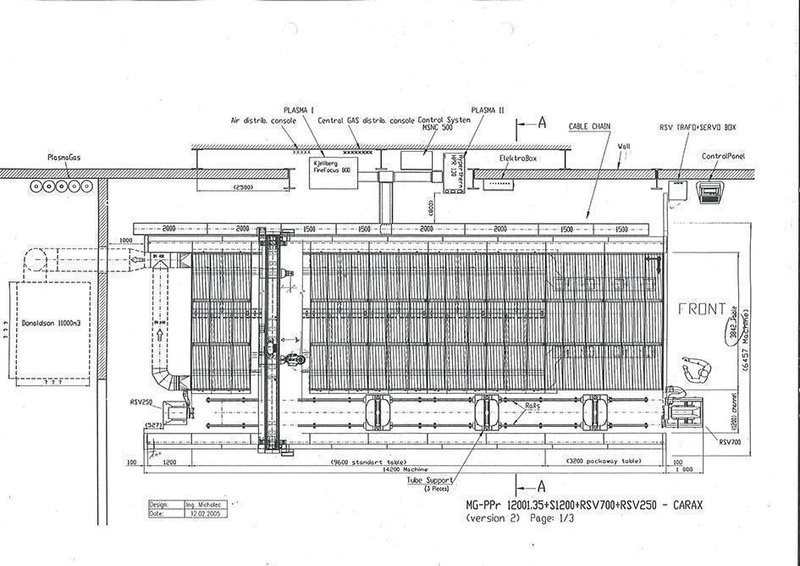

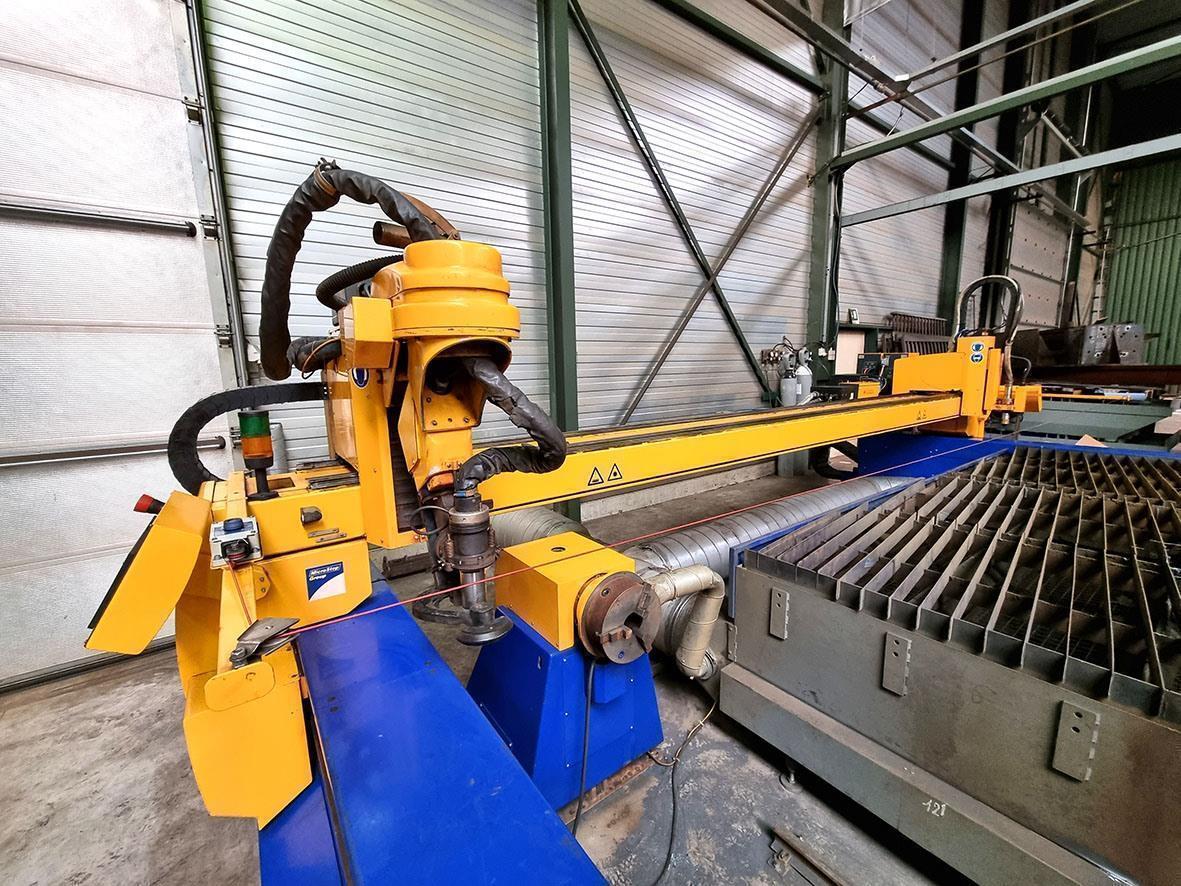

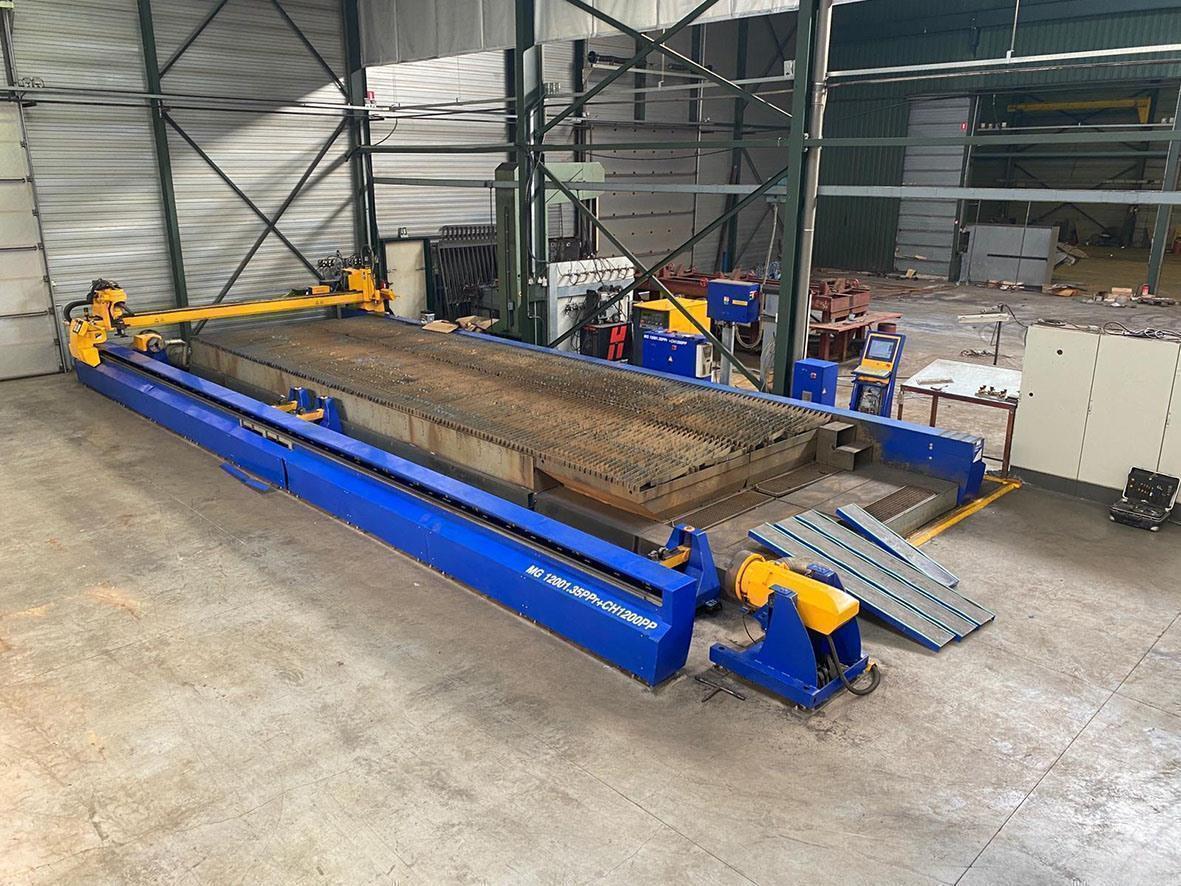

MicroStep CNC Plasma - 12 000 x 3500 mm plate/tube/dome 3D

Plasmacutting machine for plates / tubes / domes!

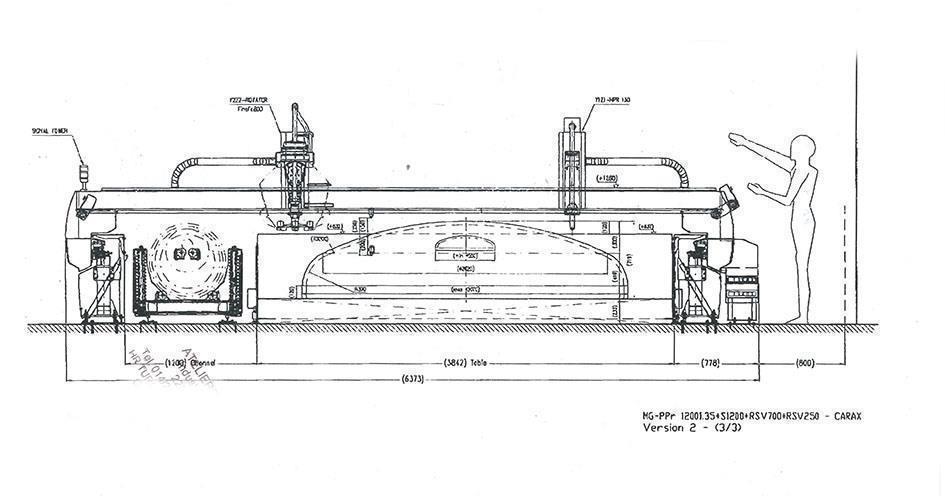

Type: MG 12001.35PPr + CH1200PP

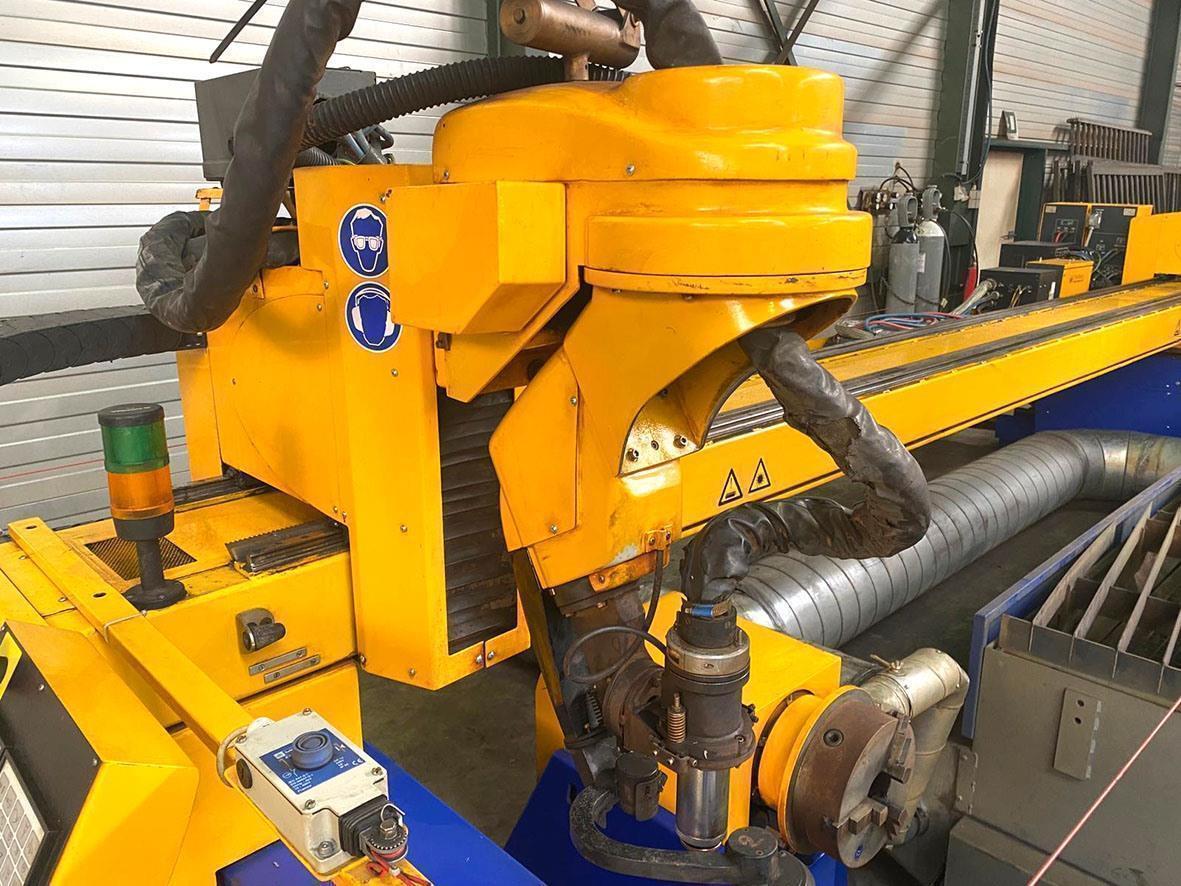

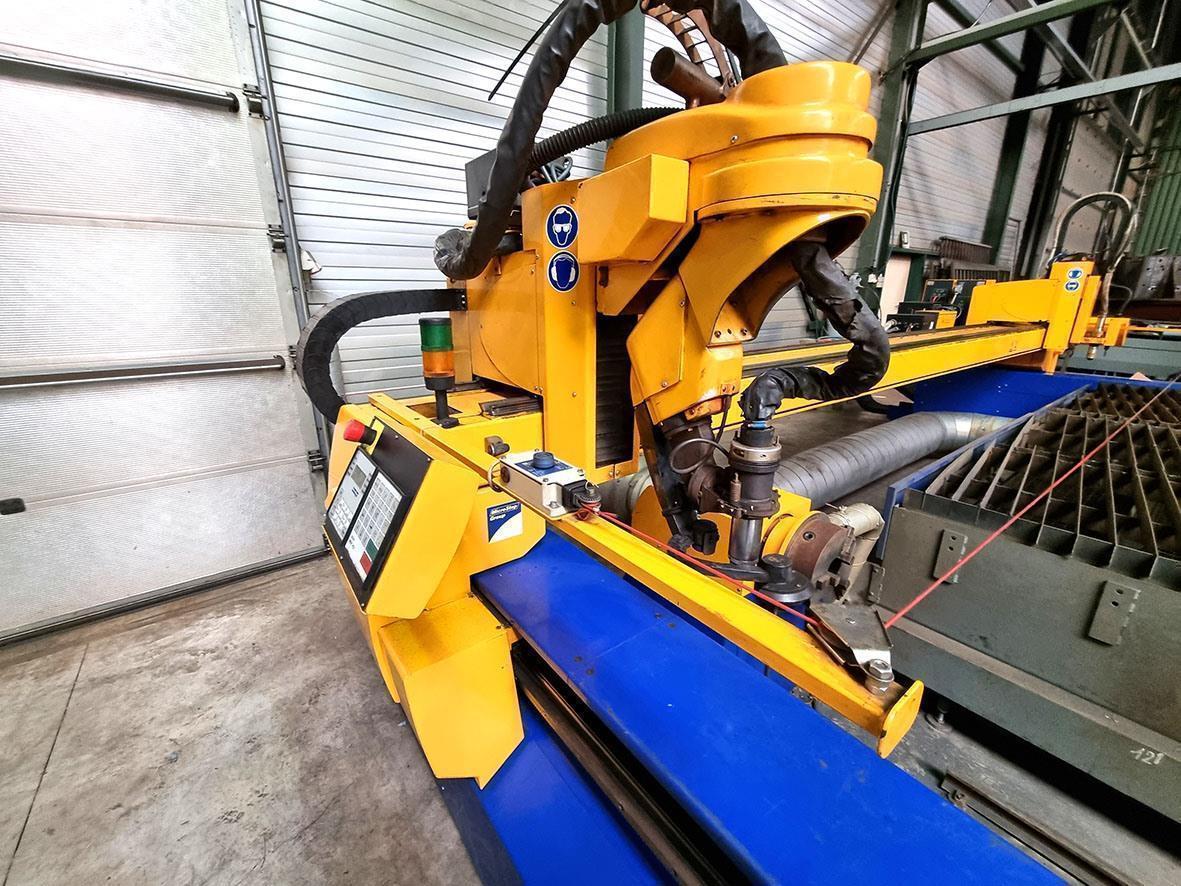

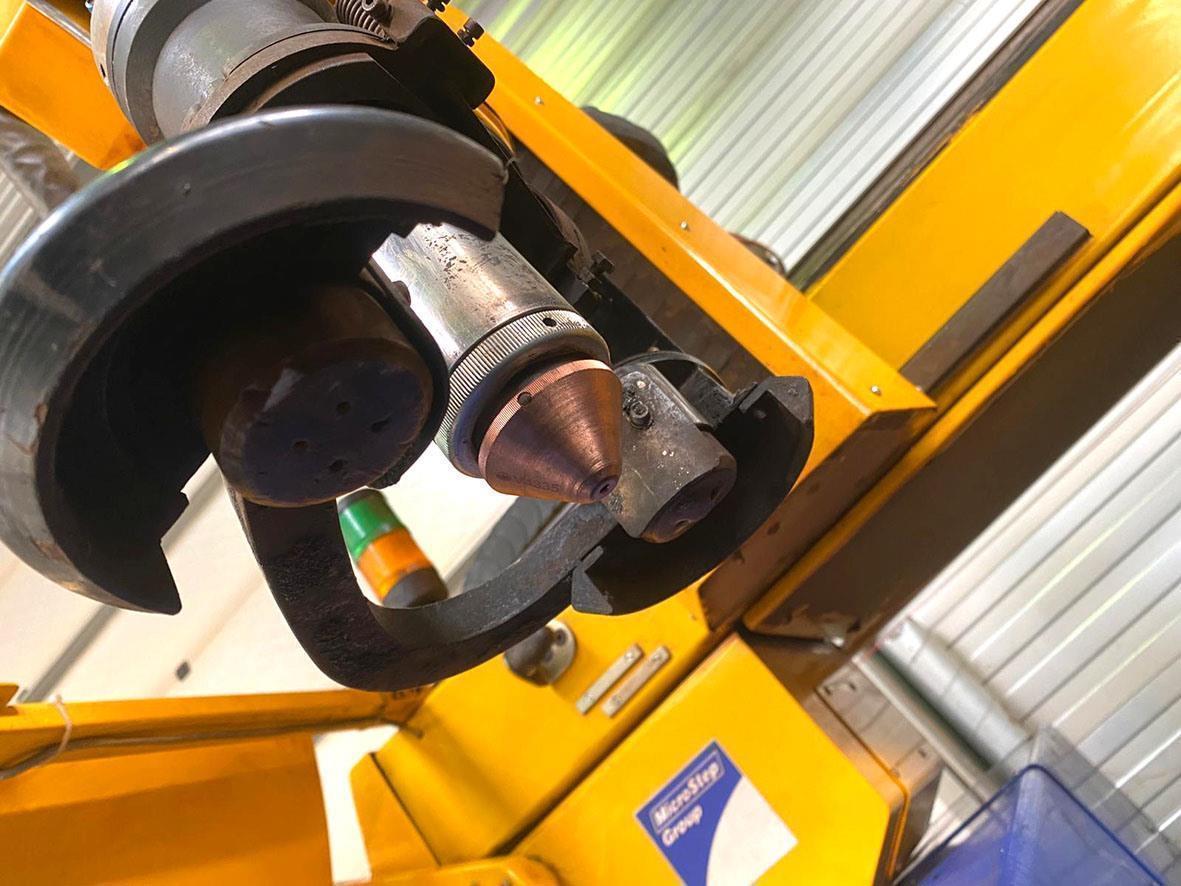

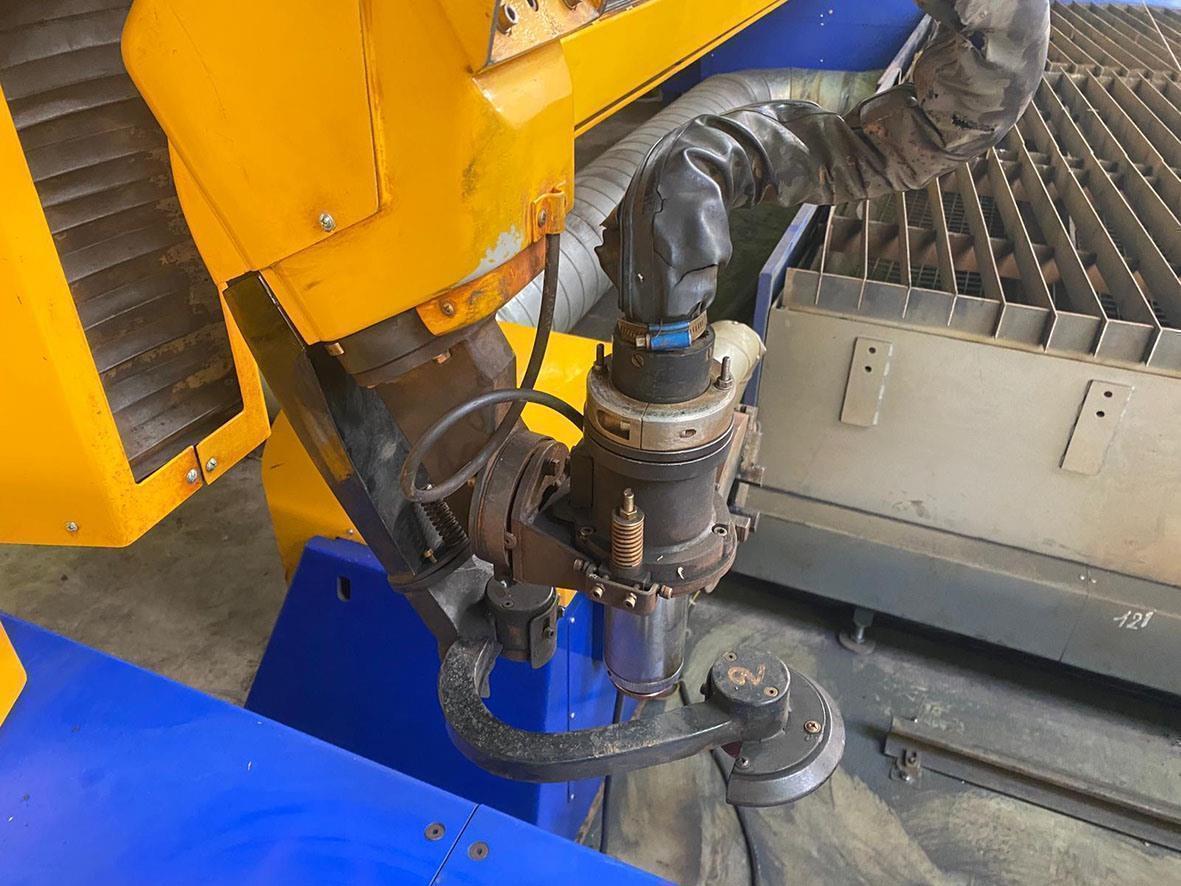

One 3D rotator cutting head (-45° / +45°) powered by Kjellberg Fine Focus 800
> max cutting thickness: 80 mm (dependant of material)

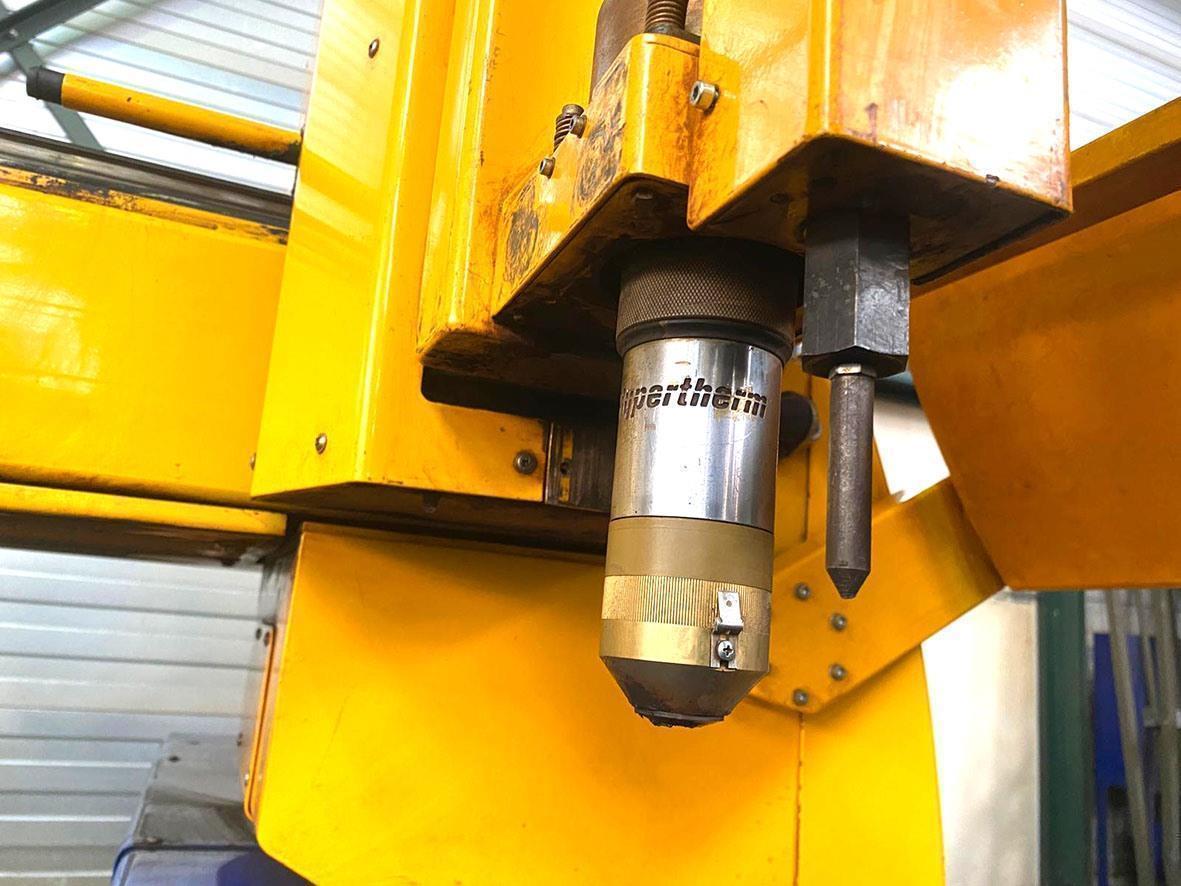

One straight cutting head powered by Hypertherm HPR130
> max cutting thickness: 35 mm (dependant of material)

Tube cutting:
- One unit for cutting tubes dia 25 > 100 mm
> max length: 12 meter
> turning speed: 1 > 180°/sec

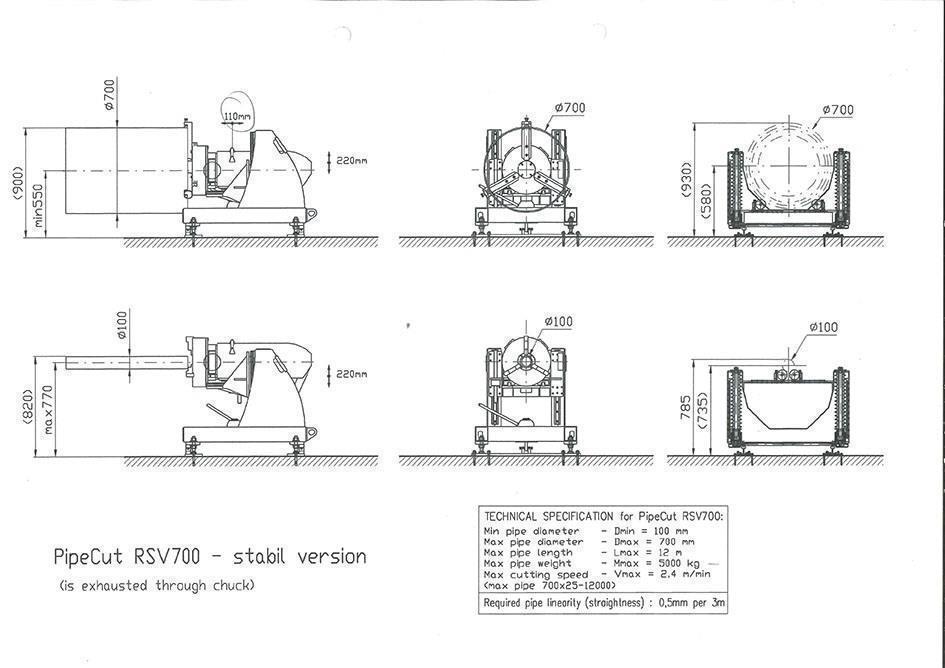

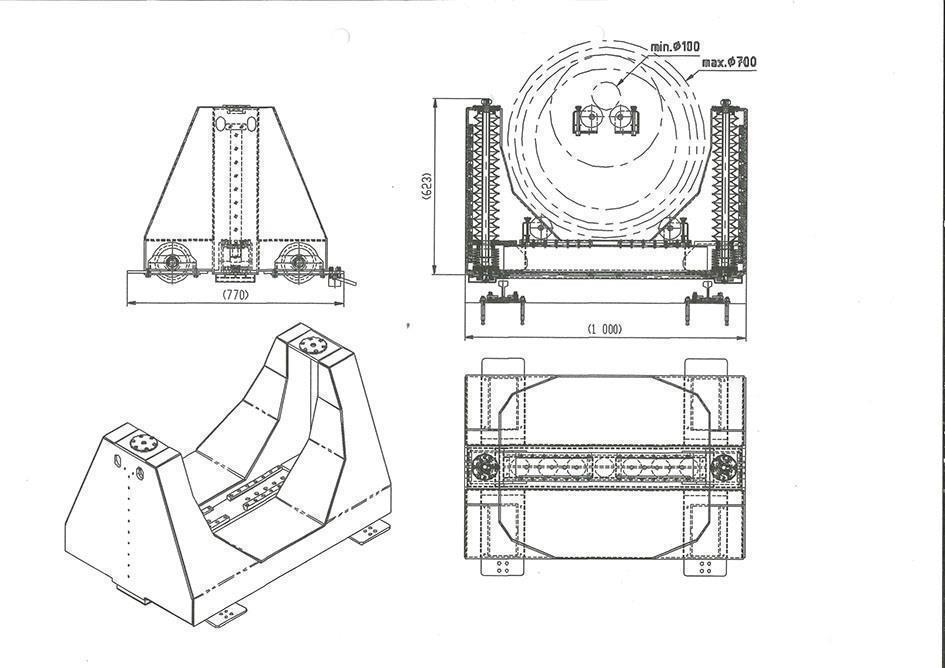

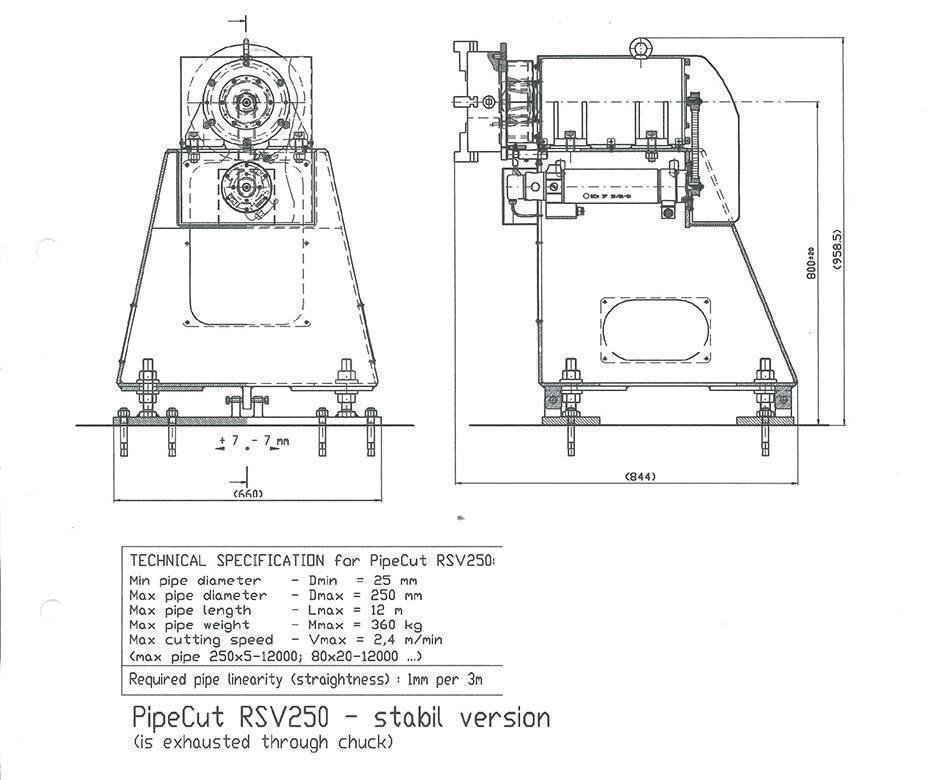

- One unit for cutting tubes dia 100 > 650 mm
> max length: 12 meter
> turning speed: 1 > 60°/sec

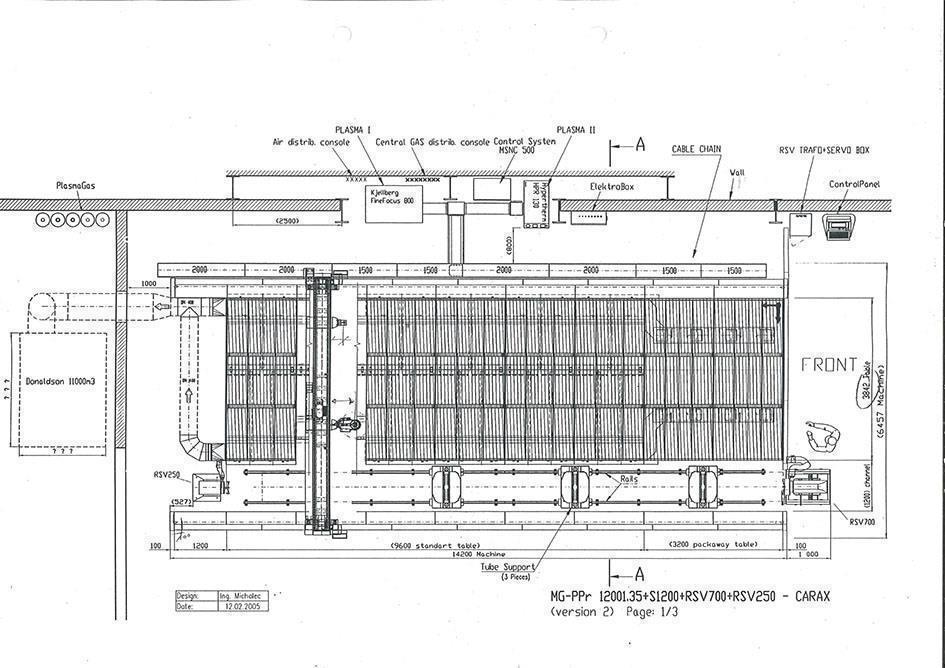

Cutting table:
- surface area: 12 000 x 3500 mm
- valves integrated into the sides for extraction of fumes
- valves controlled by MSNC 500 control

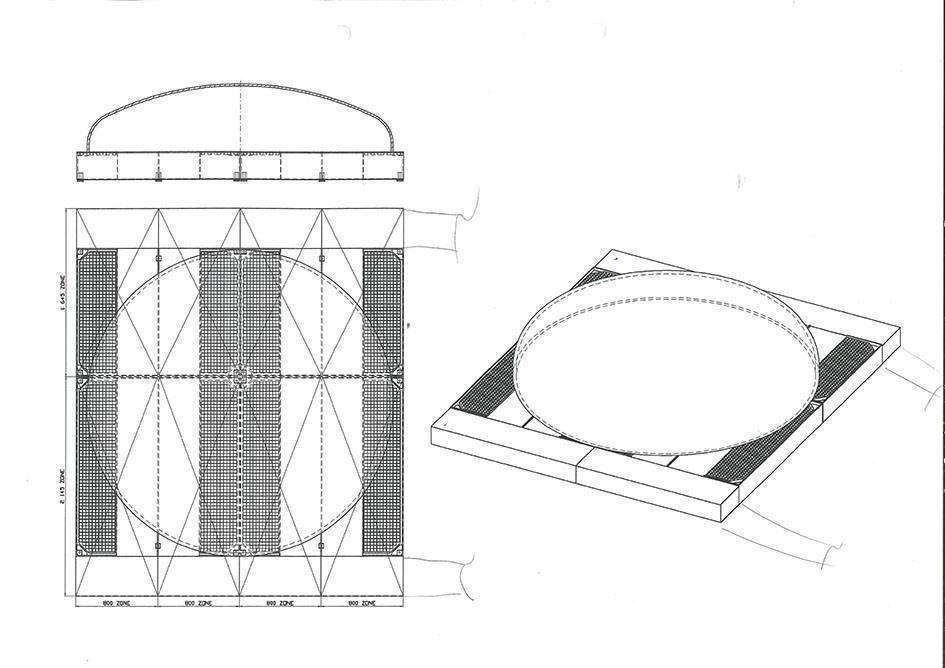

- also possible to process dome/dish end bottoms
> max height of dome/dish end bottoms: 720 mm
> max width of dome/dish end bottoms: 3000 mm

MSNC-500 cnc control:
- windows 2000 platform with network capabilities

Asperwin CAM-program:
- design software developped by MicroStep
- can load DXF-files, DSTV files, ESSI programs
- library with programmable 2D figures
- Options:
> module multiple tool
> module automatic nesting
> modue tube cutting "pipe select"
> module bevelcutting with rotator
> module for cutting dome/dish end bottoms
> module cutouts in tube unfolds

Donaldson Torit Downflo Plus filter + soundproof chamber
- 11 000m3/h
