Giddings & Lewis 6 axes X: 24 000 - Y: 2133 - Z: 4572 mm CNC

Brand
GIDDINGS & LEWIS
Category
CNC, Metalworking & Manufacturing
Type
Milling Machines
Model
6 axes X: 24 000 - Y: 2133 - Z: 4572 mm CNC
Stock #
B.04 14151
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Longitudinal travel X-axe 24 000 mm
  • Crosstravel Y -axe 2133 mm
  • Travel Z-axe (Height) 4572 mm
  • Power on spindle 85 HP / 65 kW
  • Admission in millingheadspindle (ISO) ISO 60 (dia 254 mm)
  • Max speedrange 1,5 > 1200 rpm
  • Control Heidenhain

Additional info

  • Type: 65-P10-CF
    Heavy duty milling & boring machine
    Longitudinal X-travel of column: 24 meters
    Cross Z-travel or spindle dia: 254 mm - travel: 2133 mm
    incl adapter ISO-60 to ISO-50

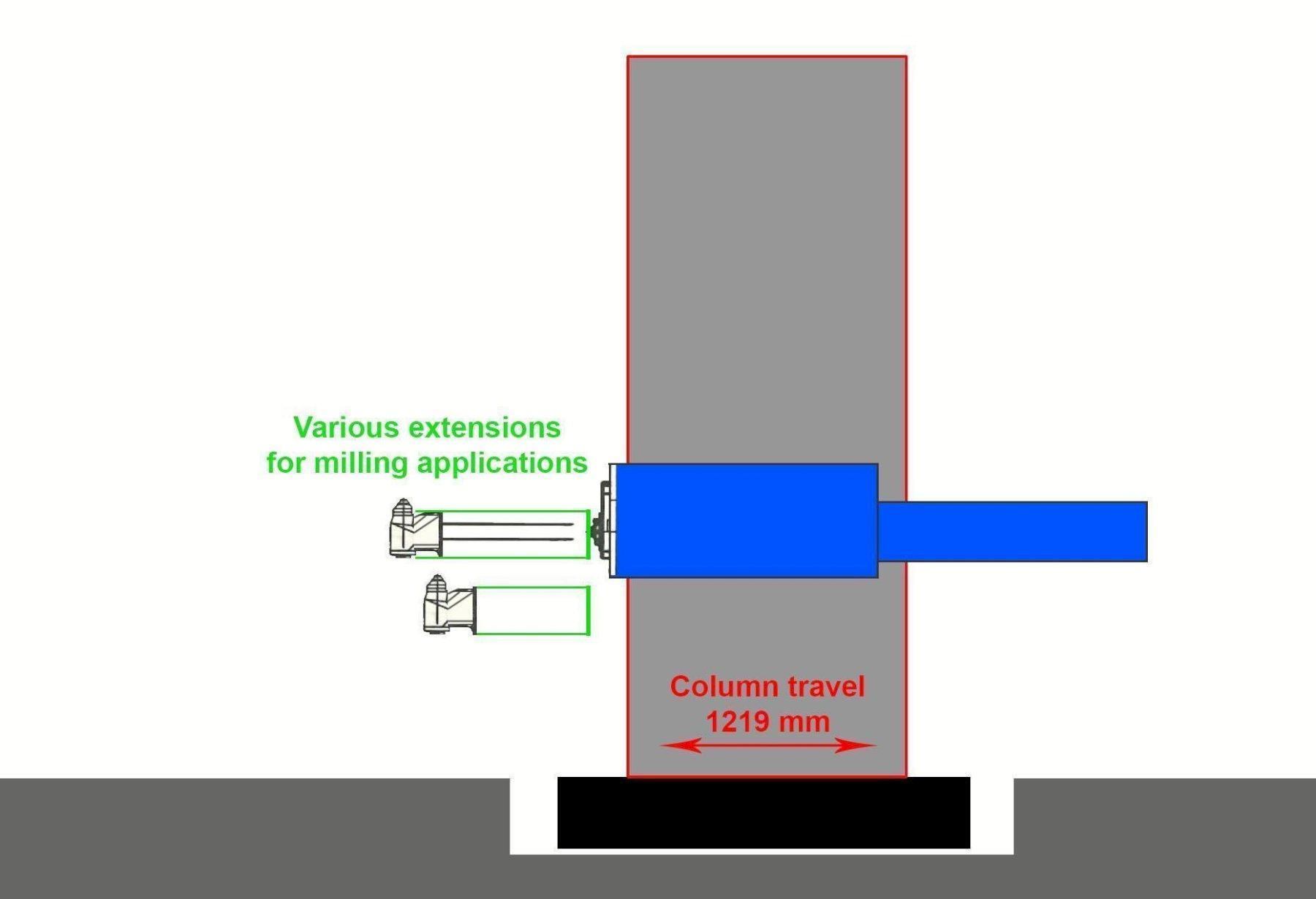

    incl many different extensions for spindle & milling heads

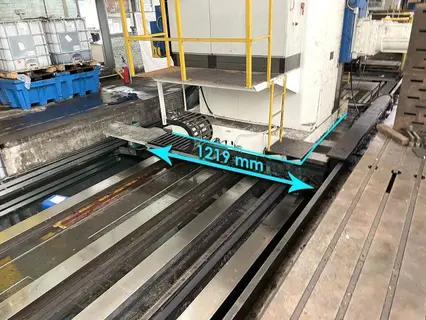

    Cross W-travel of column: 1219 mm (ballscrew)

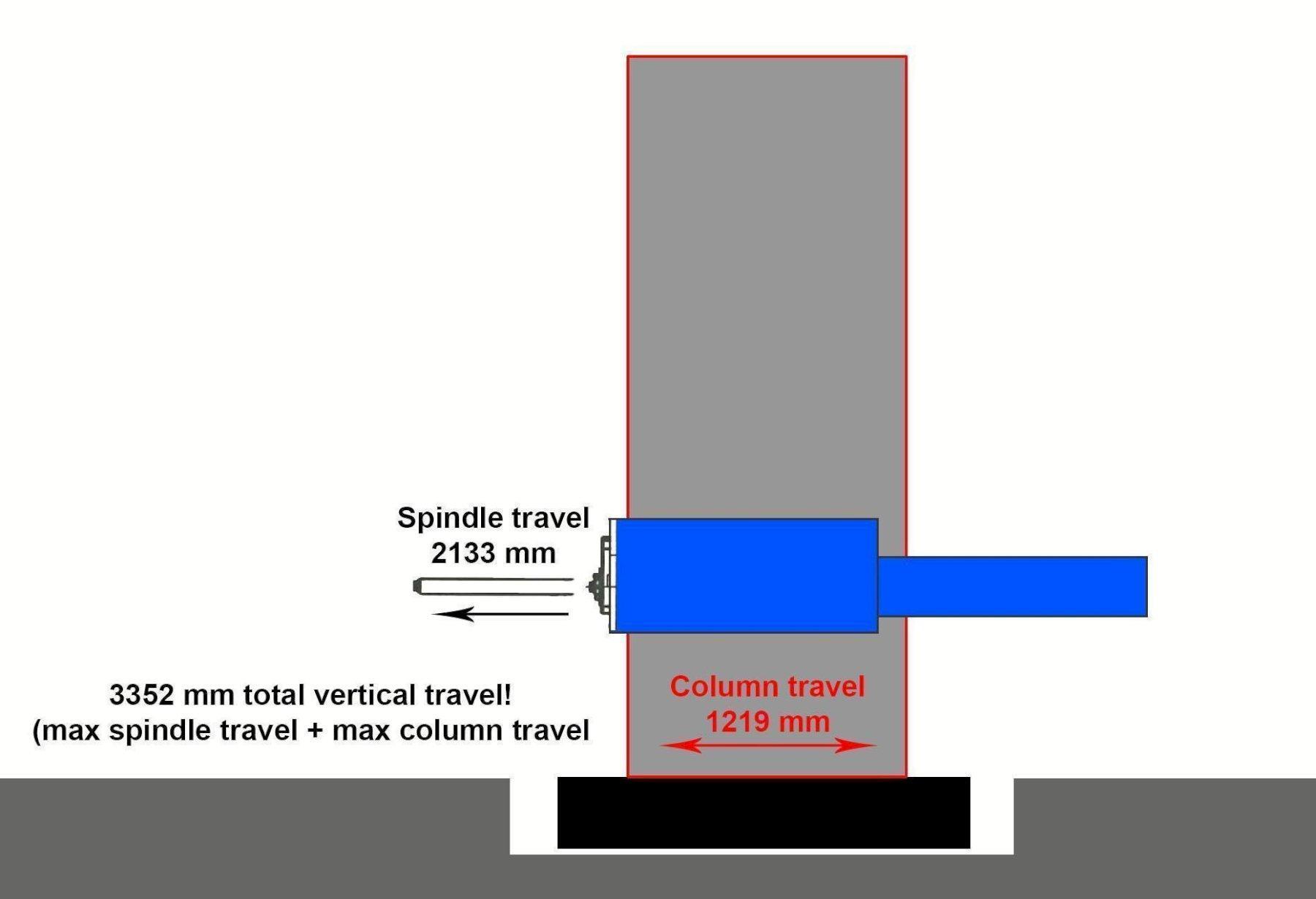

    Total vertical travel: 3352 mm!
    Vertical Y-travel of column: 4572 mm
    Weight of machine + turntable: 200 tons

    4 hardened guides
    integrated lubrification

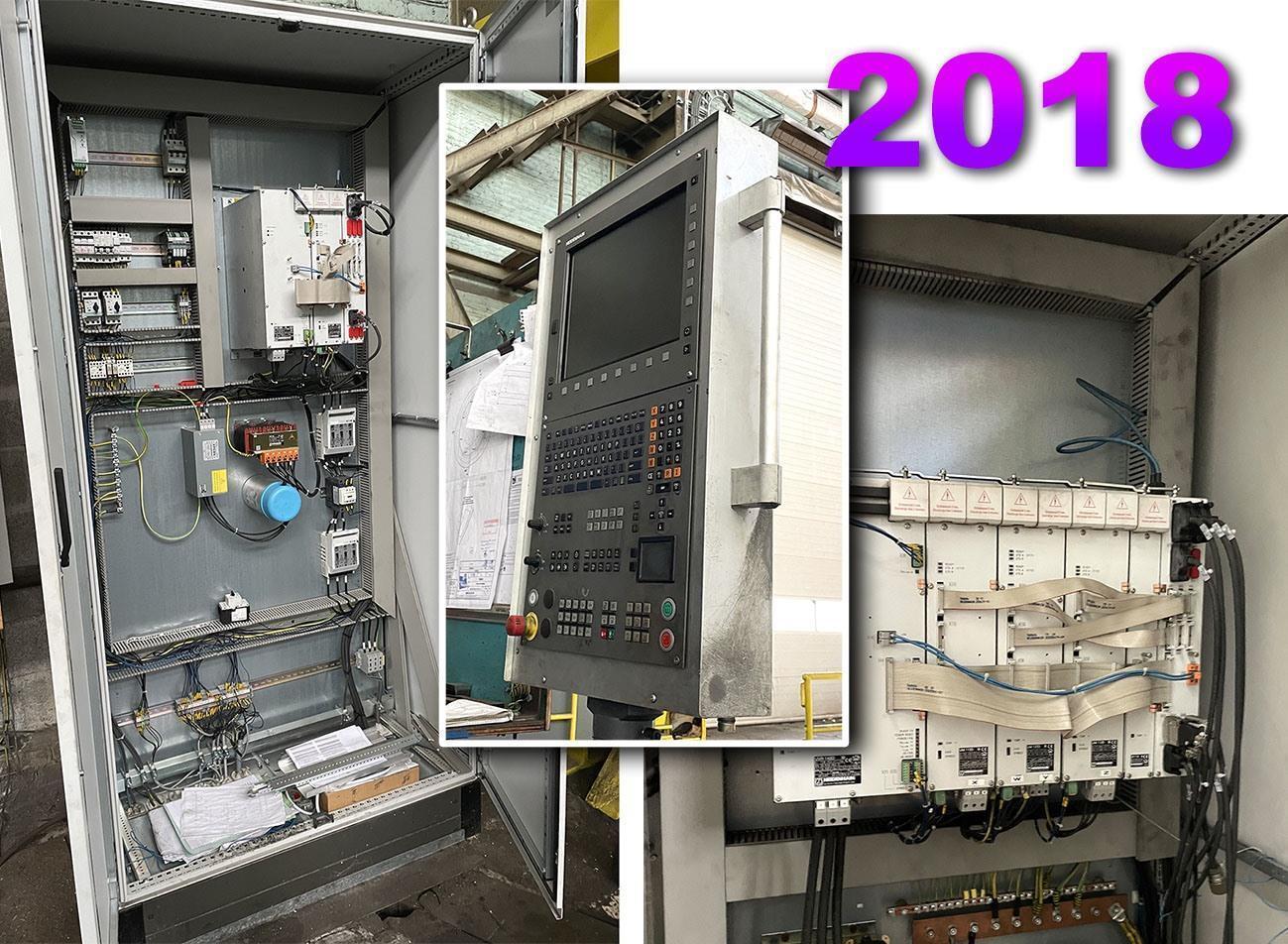

    Heidenhain CNC control

    CNC Turntable continuous: 4500 x 3500 mm
    Max 60 tons on table
    Cross travel of table: 2000 mm

    Surface area t-slot tables: 25,000 x 6,900 mm
    Weight of t-slot tables: 180 tons
