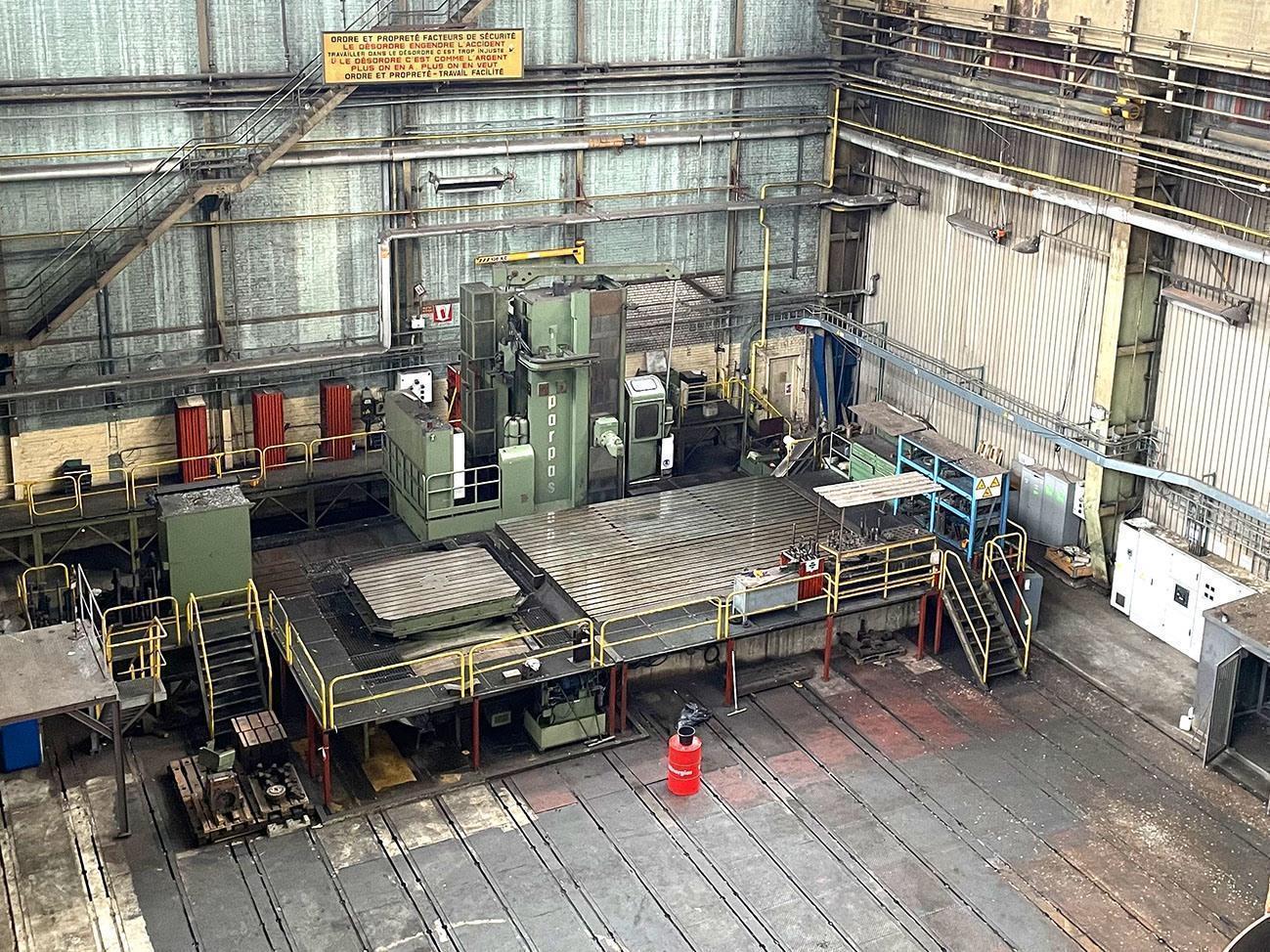

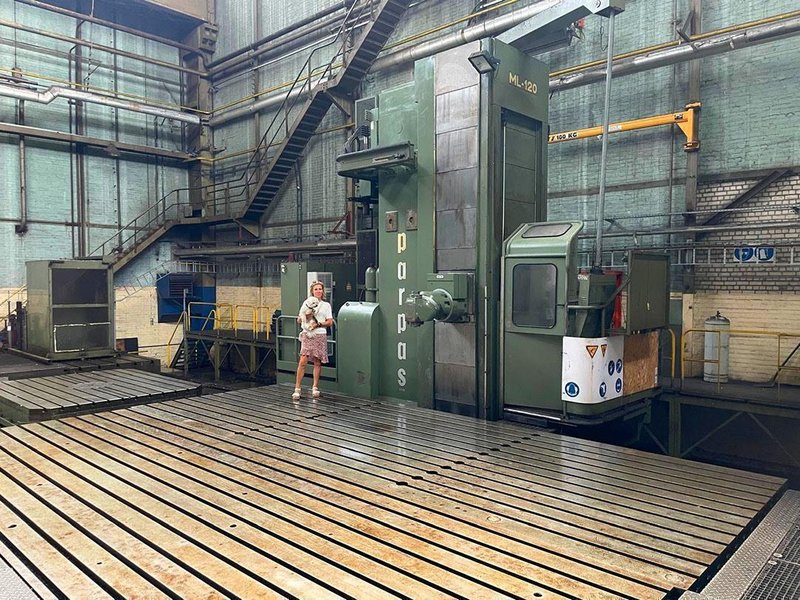

Parpas ML120-1 -8 axes X: 12 000- Y: 3500- Z: 1250 mm CNC

Type: ML120-12000
6 axes simultaneously (X / Y / Z / W / B / V) + 2 axes indexing milling head (2.5°)
8 axes simultaneously (X / Y / Z / W / B / V) + continuous orthogonal milling head (A: +-120° / C: +-180°)

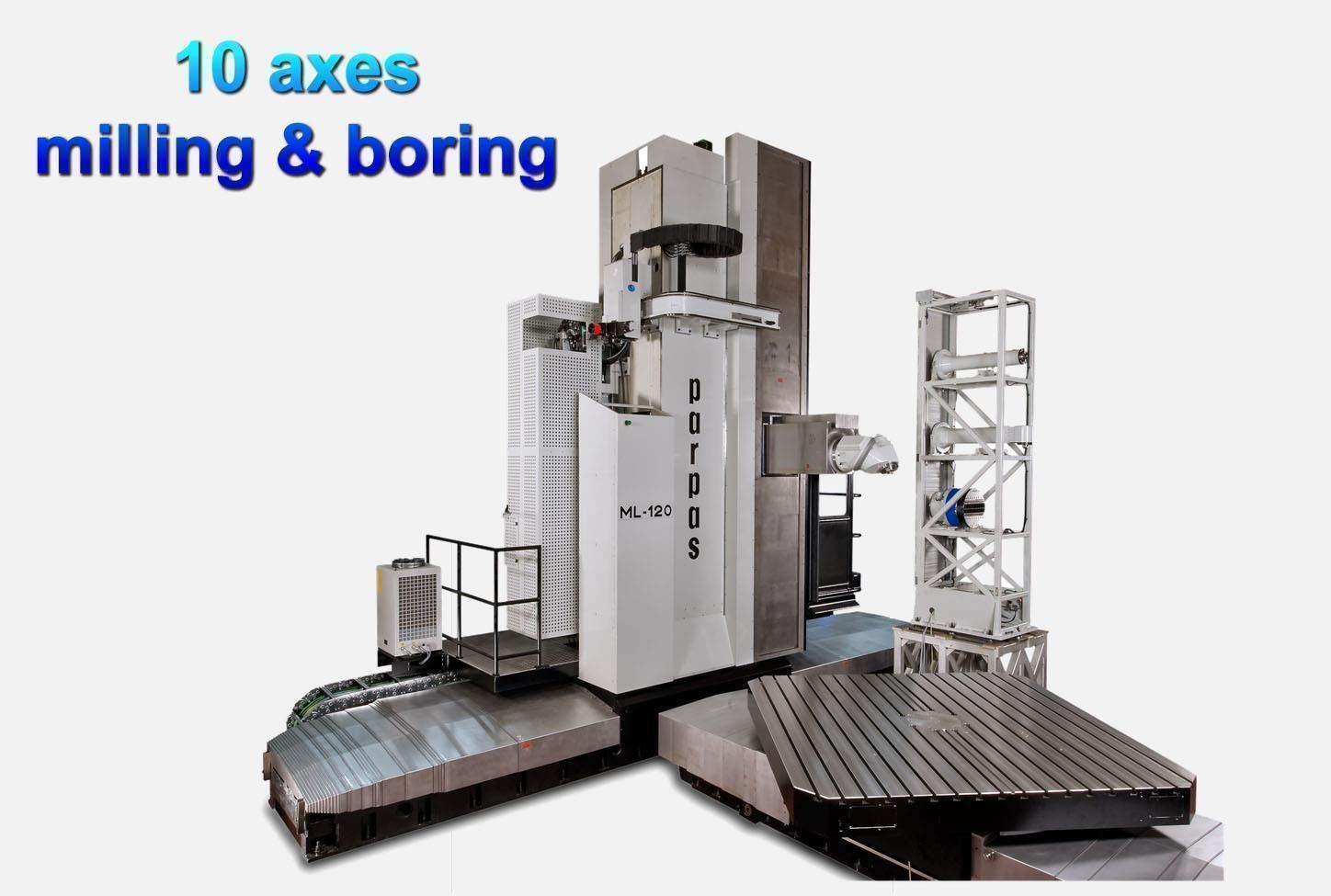

Heavy duty CNC milling & boring machine / CNC floor type borer & floor type milling

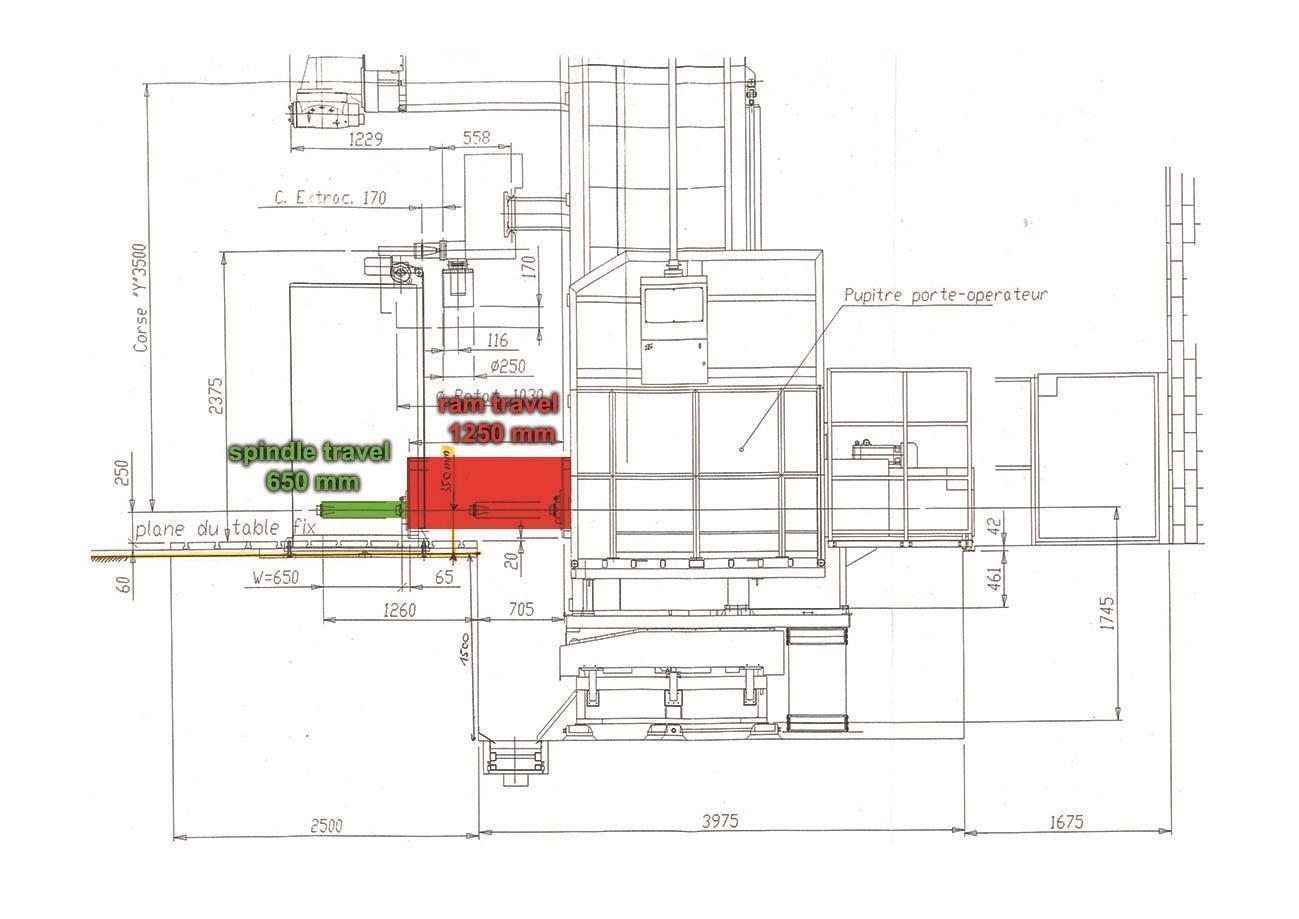

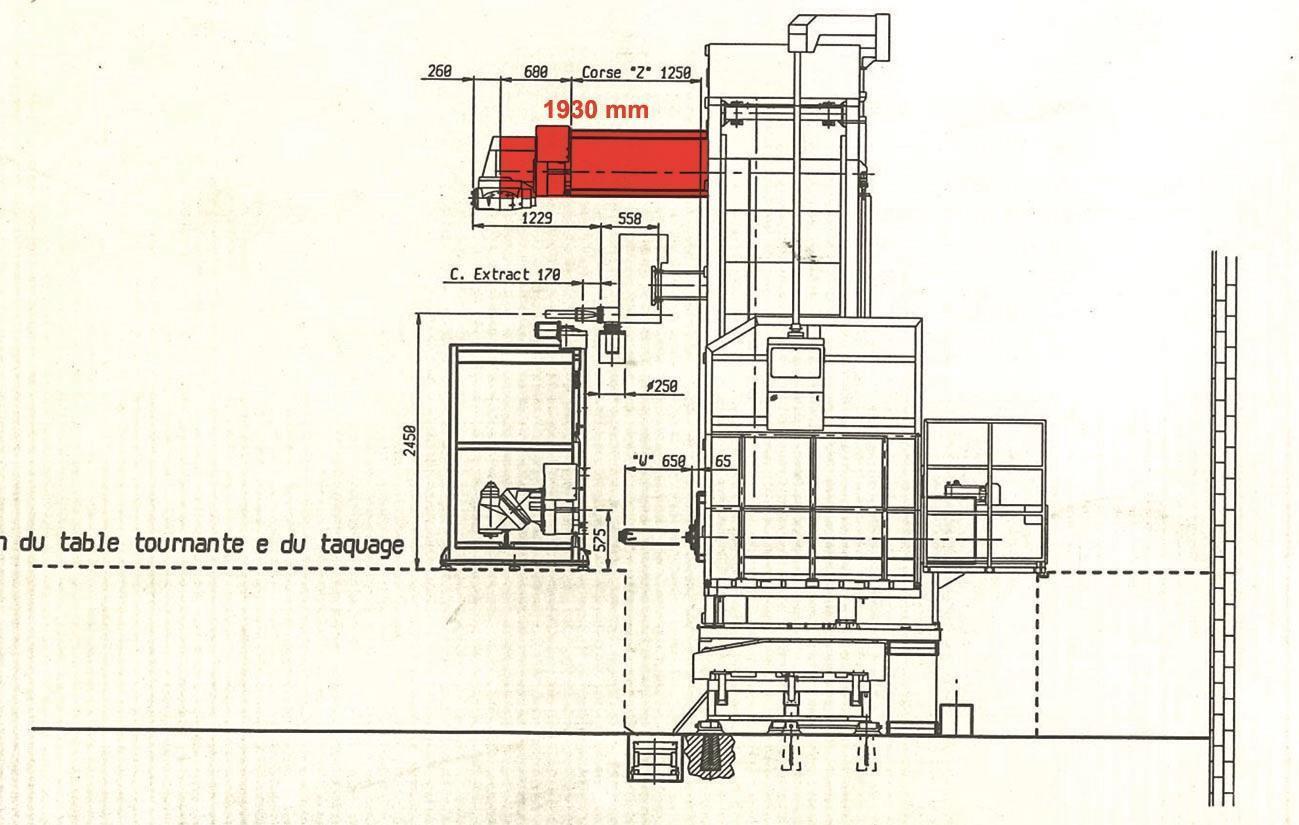

ram size: 630 x 500 mm - ram travel: 1250 mm
spindle dia 130 mm - travel: 650 mm - without milling head you can use as borer

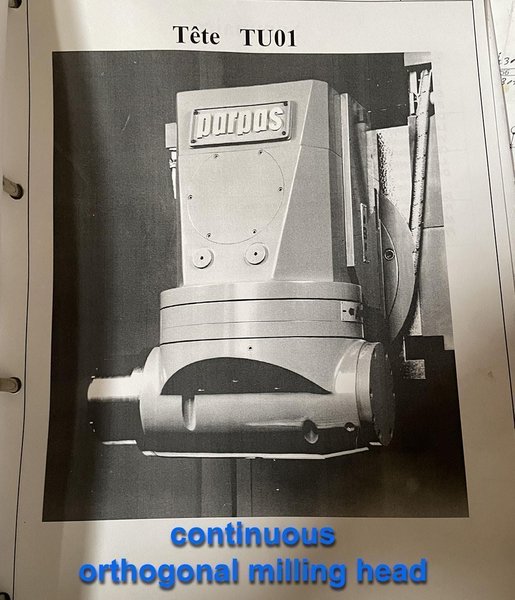

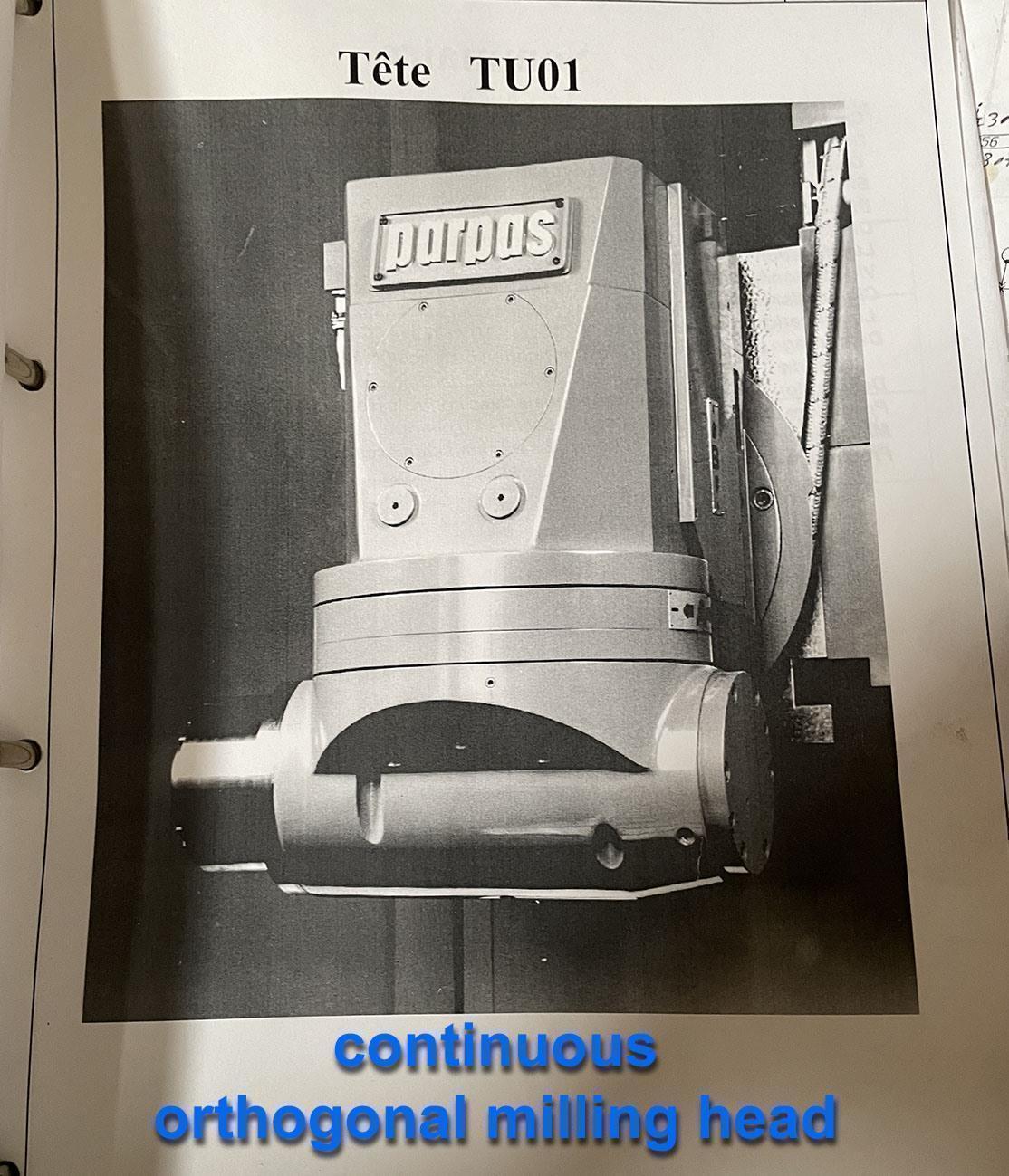

CNC continuous orthogonal milling head (A: +-120° / C: +-180°)

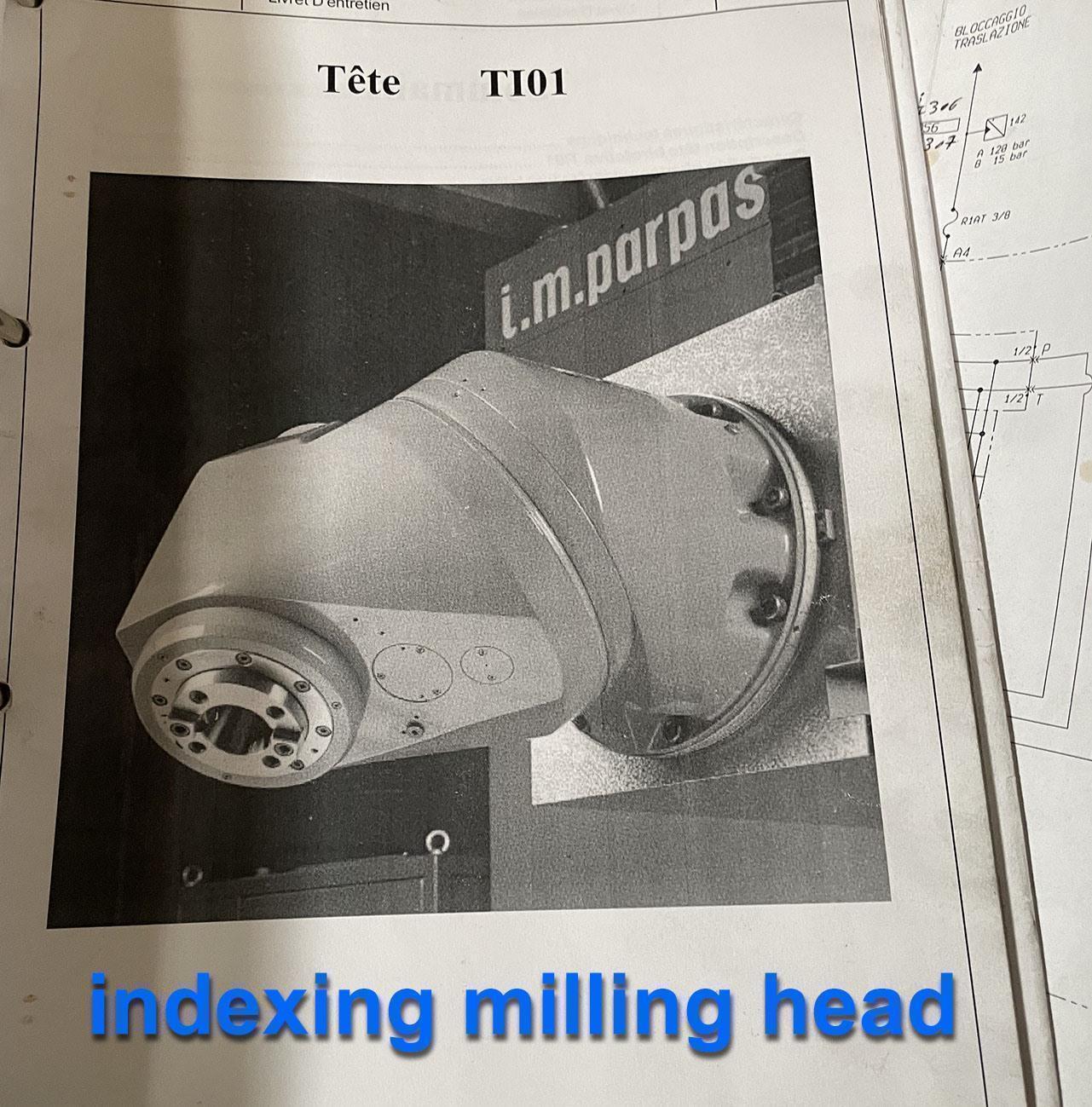

CNC indexing milling head (2.5°)
toolchanger for automatic changing two milling heads
cooling through spindle

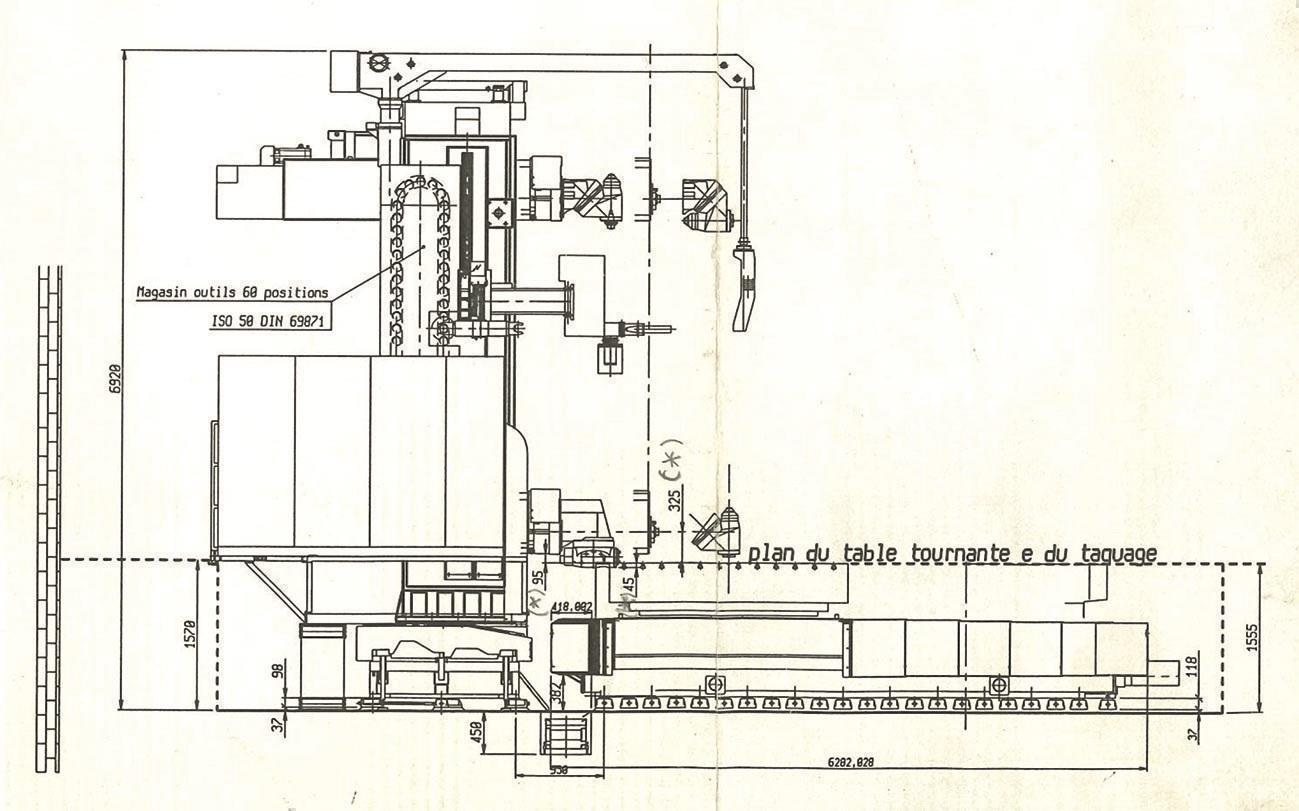

tool changer with 60 positions
chip conveyor
Siemens drives & motors

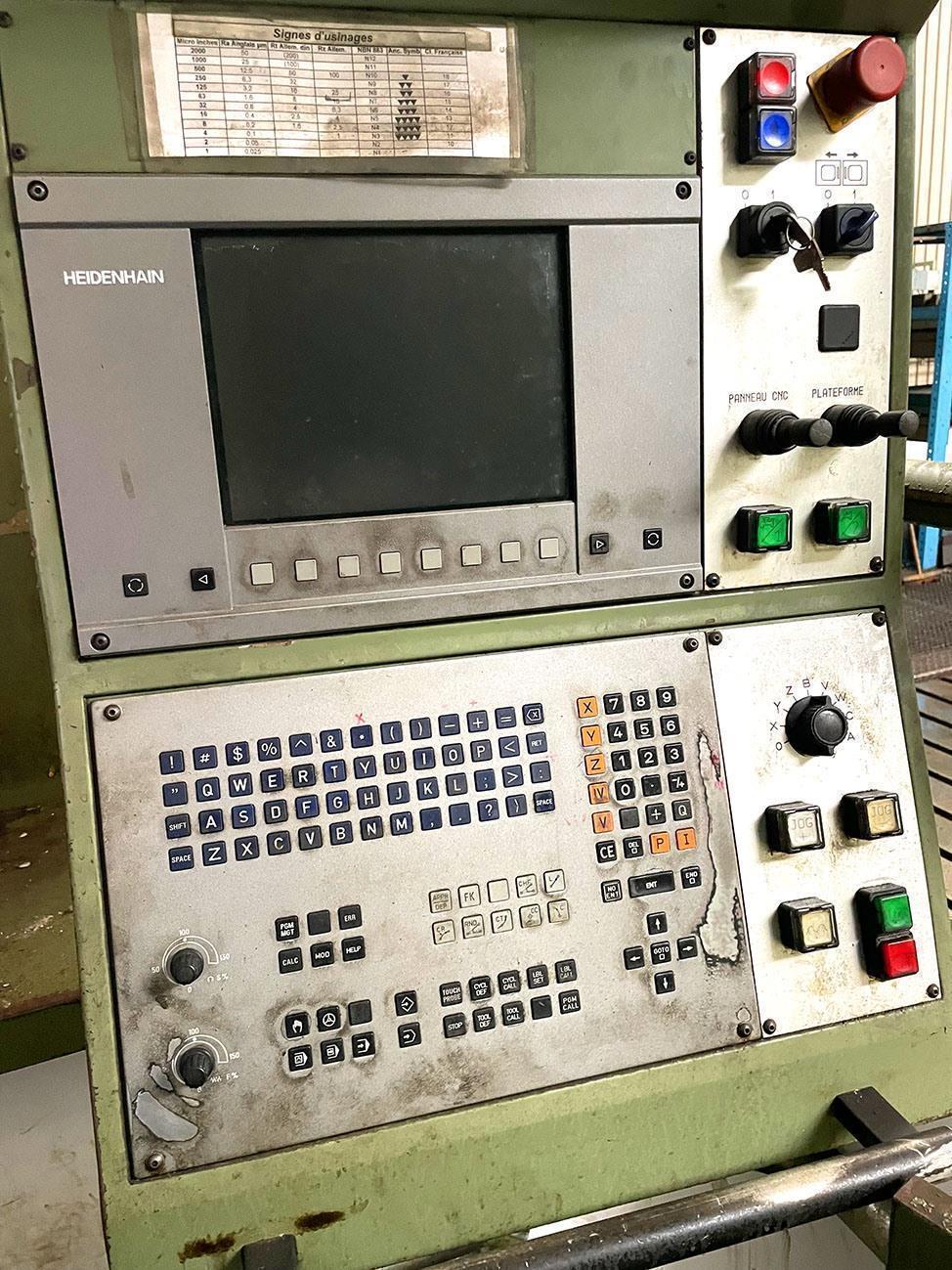

Heidenhain control & measuring rulers
weight of machine: 60 tons

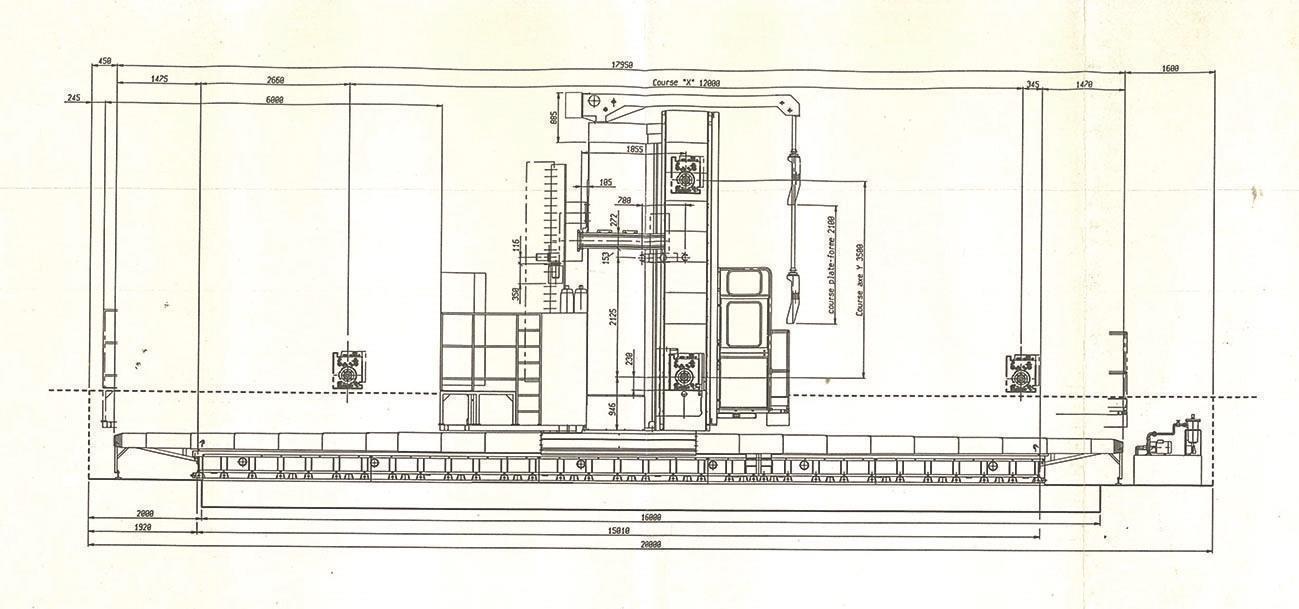

dimensions of machine: 19 meters x 12 meters x 6.65 meters

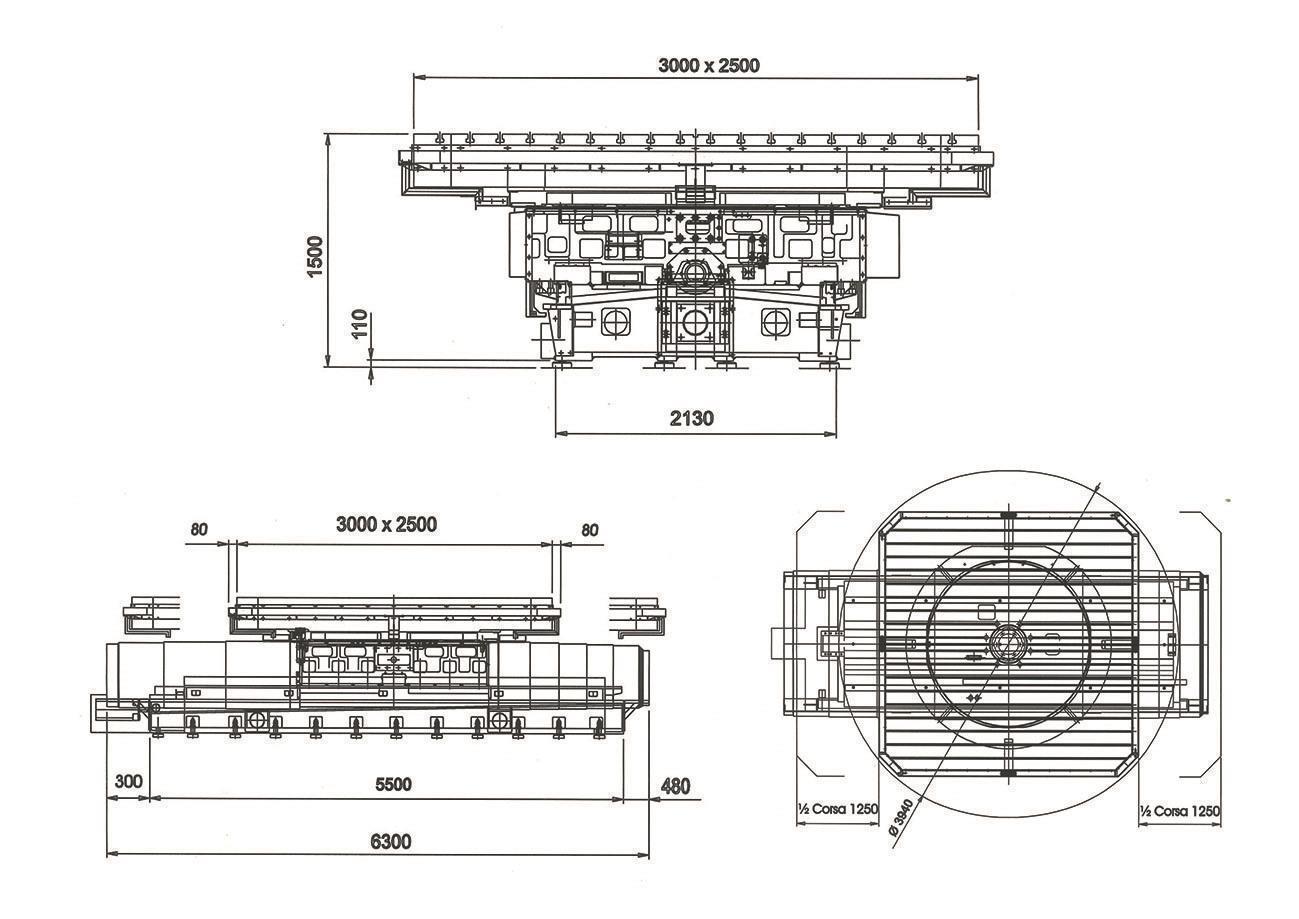

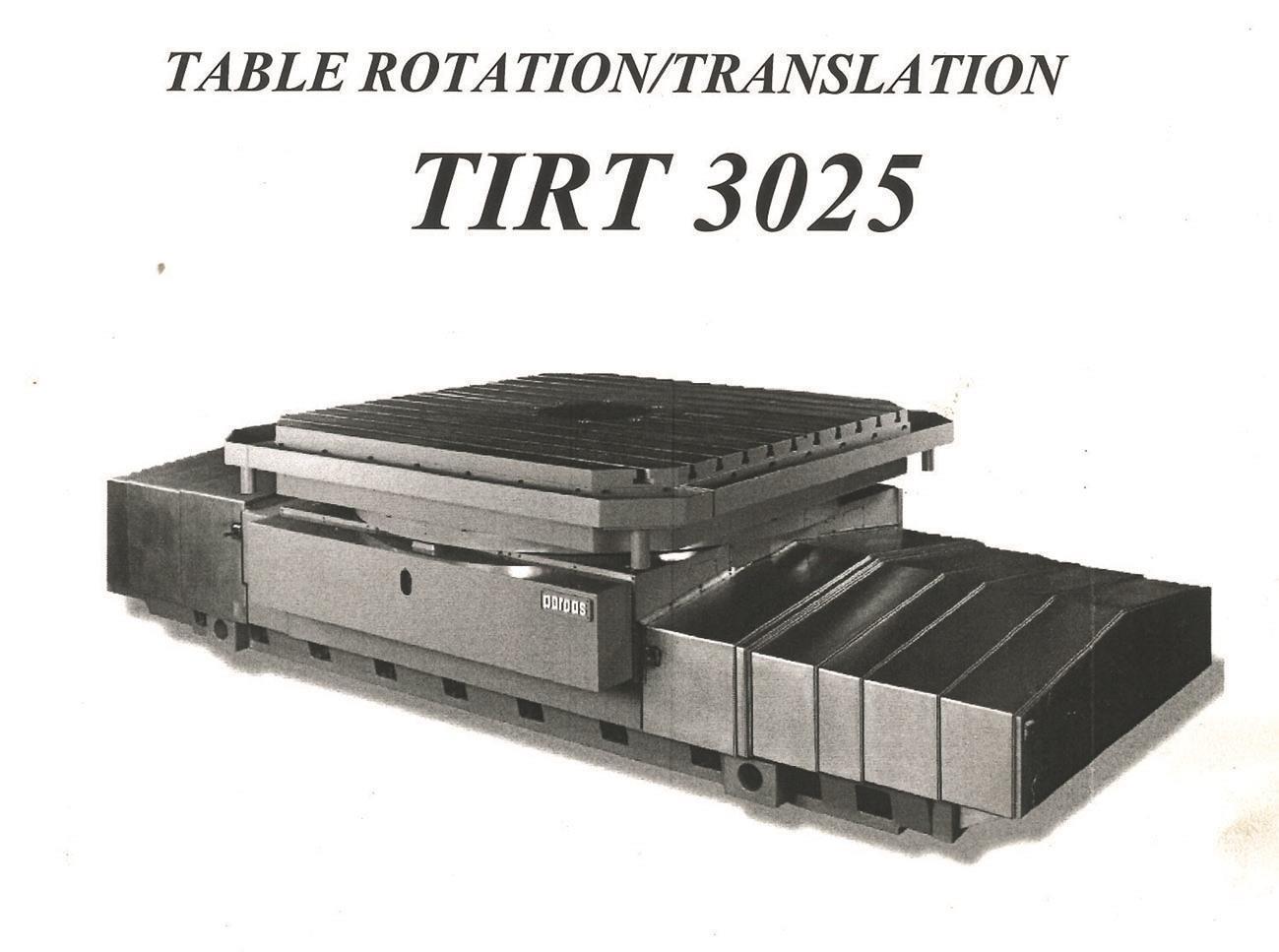

TIRT3025 CNC turntable continuous:
- max 60 ton workpiece weight
- hydrostatic table
- dimensions: 3000 x 2500 mm
- travel or turntable: 2500 mm
- max 2 rpm
- weight of table: 37 tons
- dimensions: 6500 x 2500 x 1500 mm

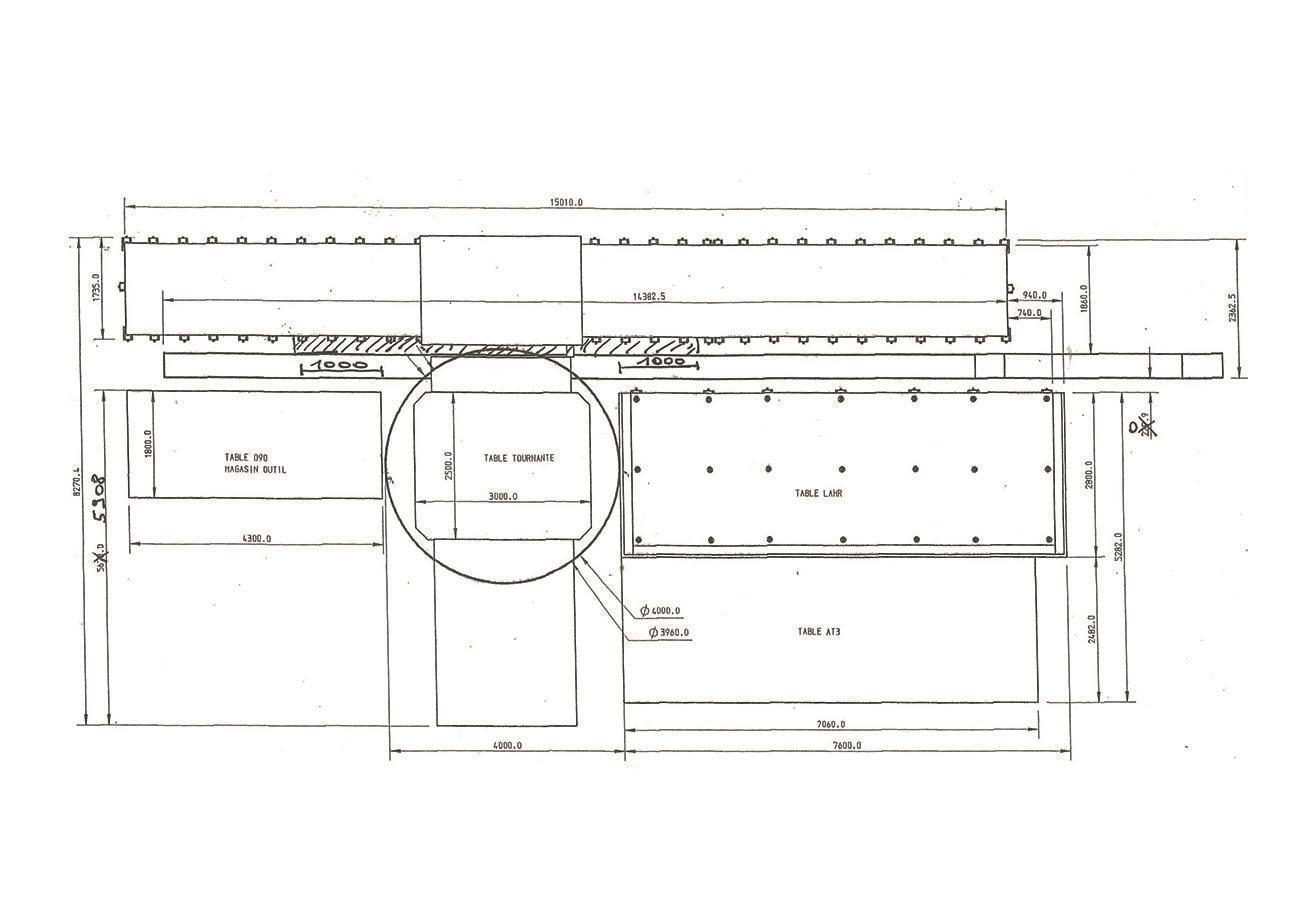

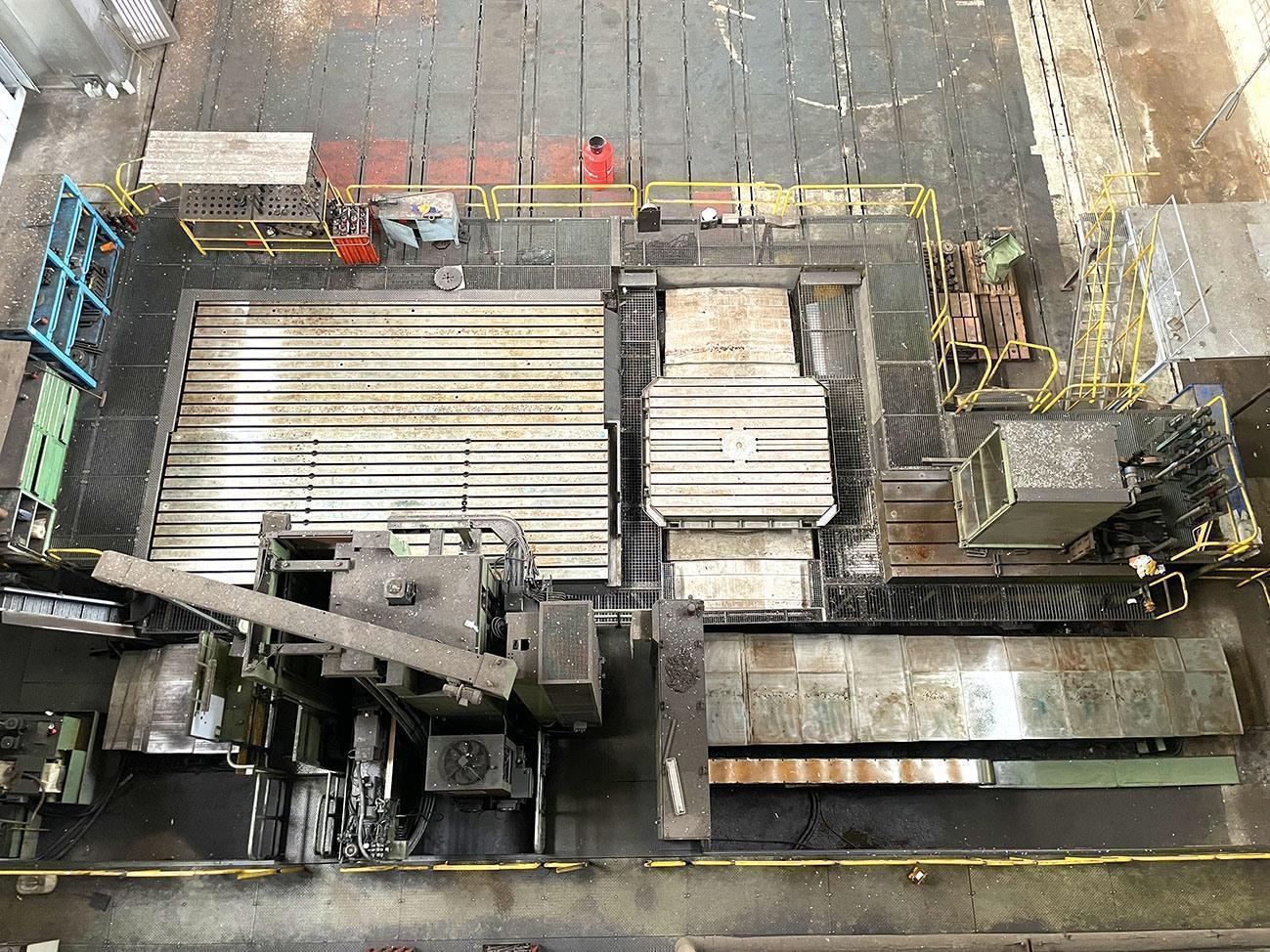

3 T-slot tables
- 7600 x 2800 mm
- 7600 x 2480 mm
- 4300 x 1800 mm
- weight of tables: 50 tons

Fresatrice a montante mobile - Milling machine with mobile column - Fraiseuse-aleseuse avec montant mobile - Fräs-Bohrmaschine mit beweglichem Ständer
