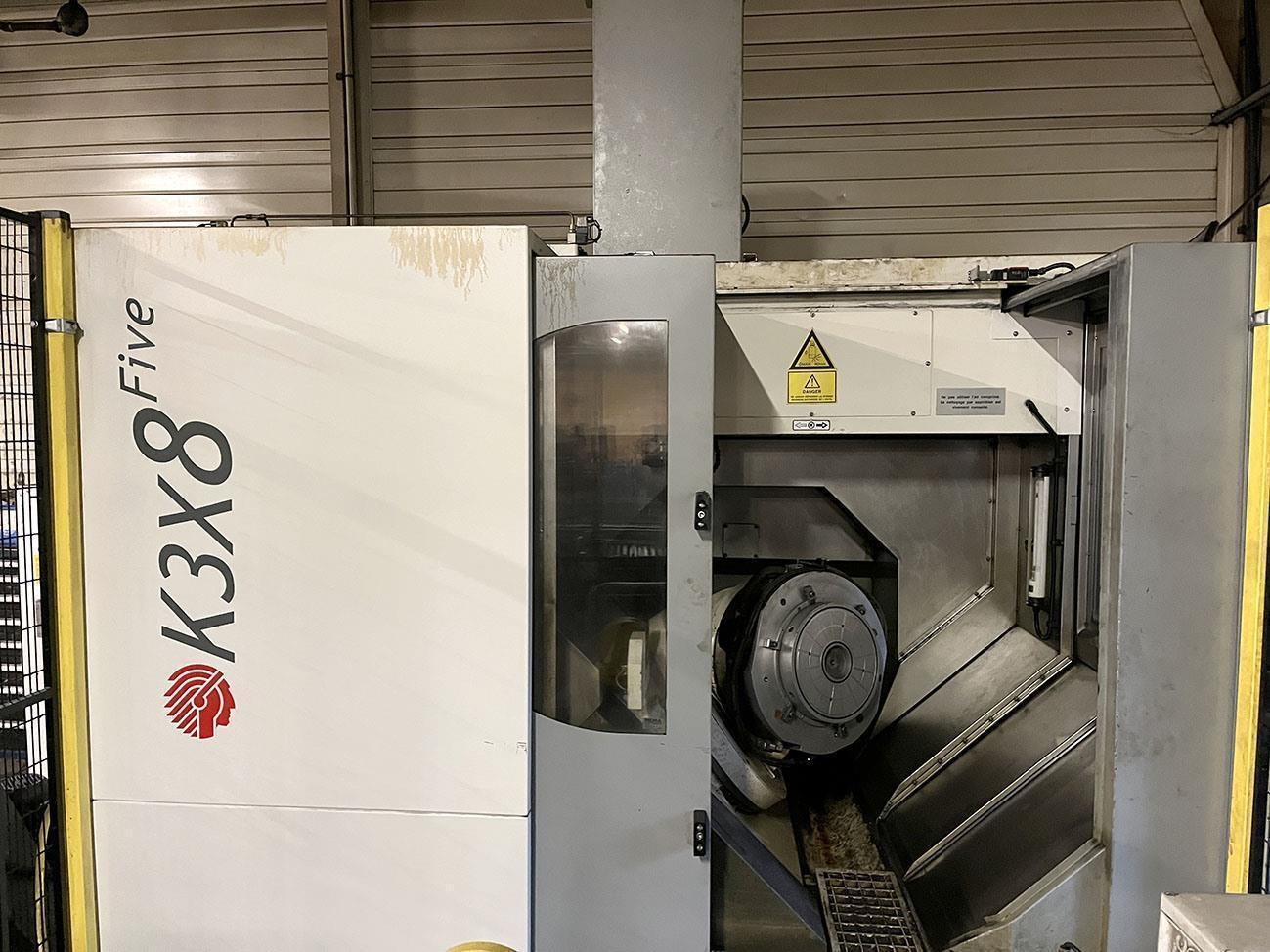

Huron K3X8F X: 780 - Y: 700 - Z: 500 mm CNC

Brand
HURON
Category
CNC, Metalworking & Manufacturing
Type
Milling Machines
Model
X: 780 - Y: 700 - Z: 500 mm CNC
Stock #
B.01 15212
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

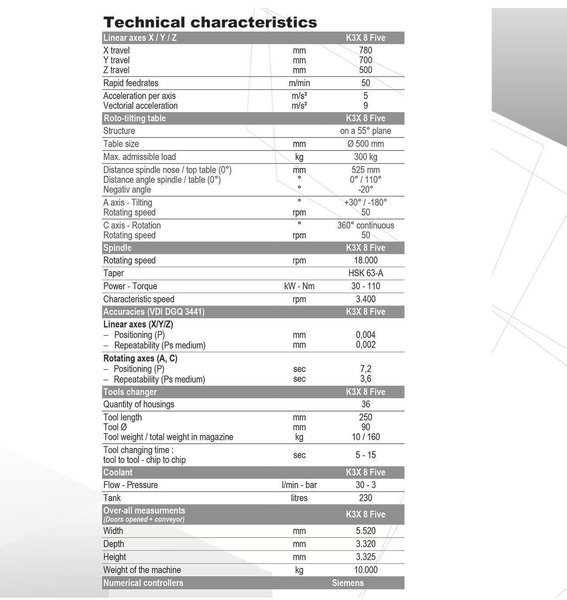

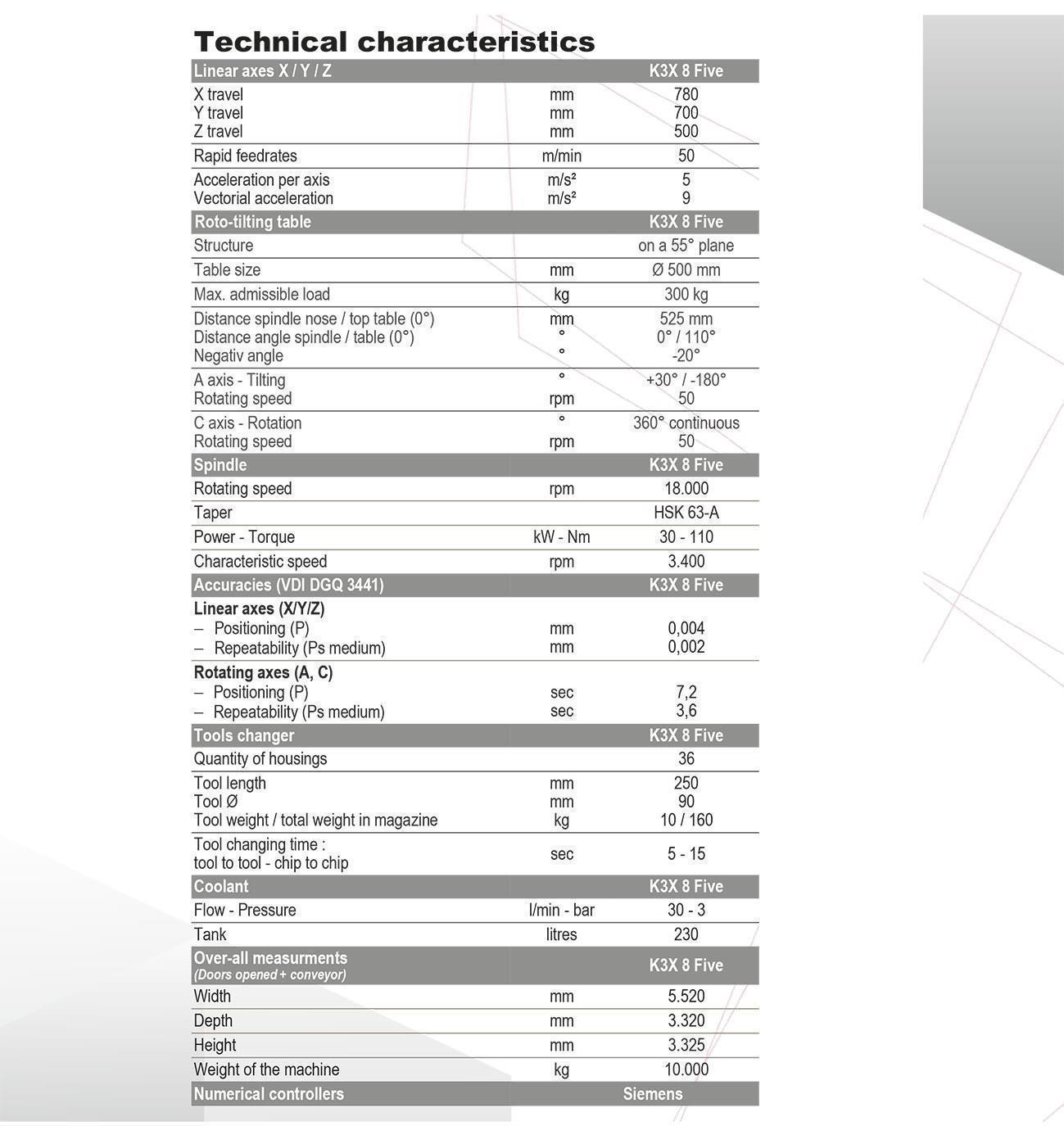

Technical information

  • Max longitudinal travel X-axe 780 mm
  • Max cross-travel Y-axe 700 mm
  • Max travel Z-axe 500 mm
  • Admission in millinghead HSK 63A

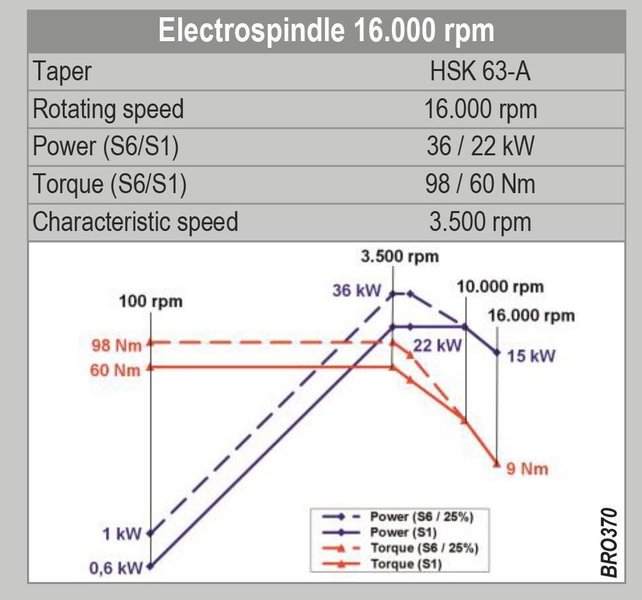

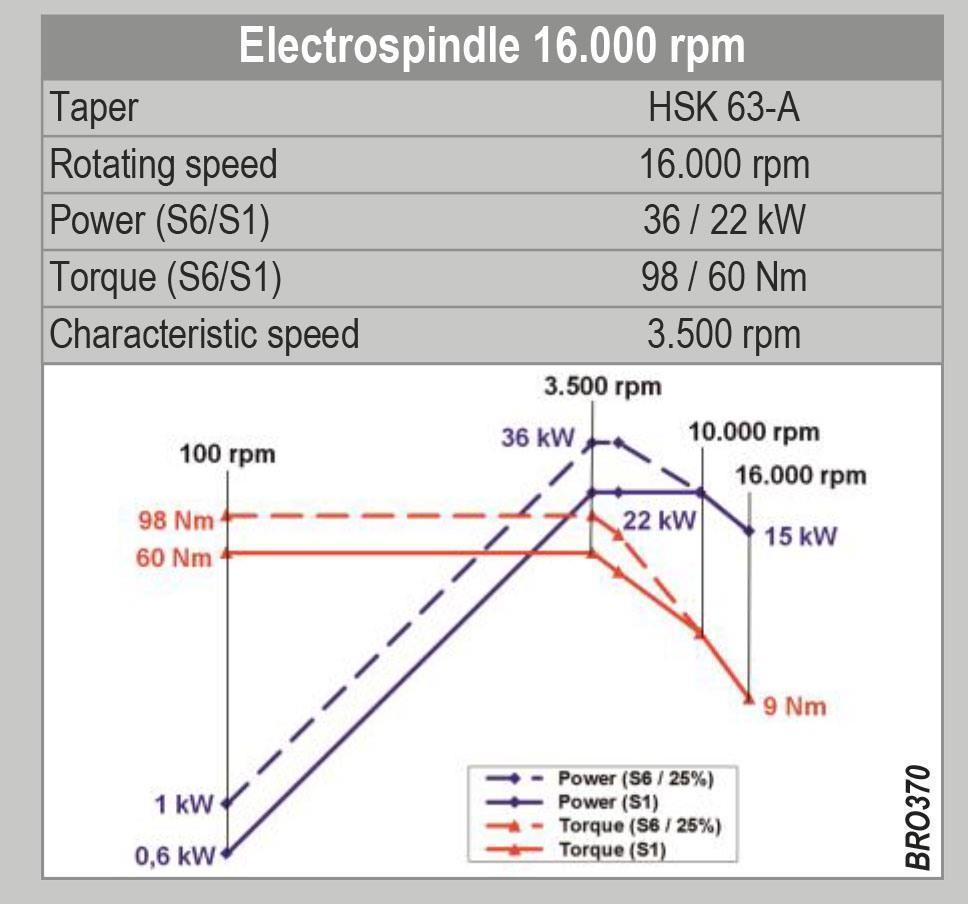

  • Spindlespeeds 16 000 rpm

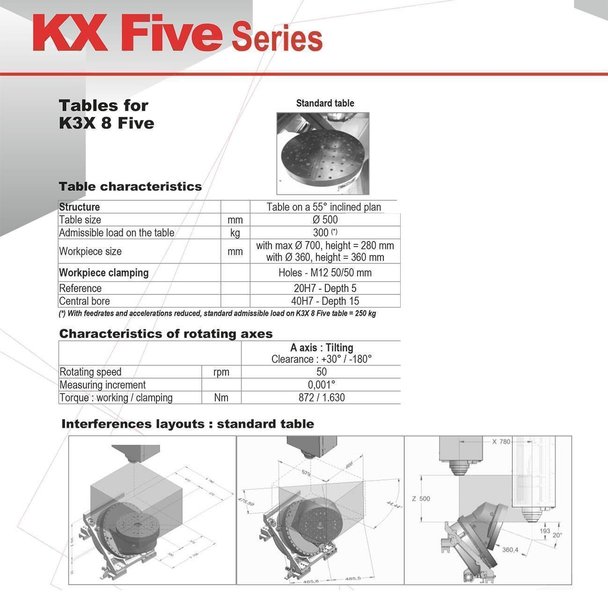

  • Table size dia 500 mm

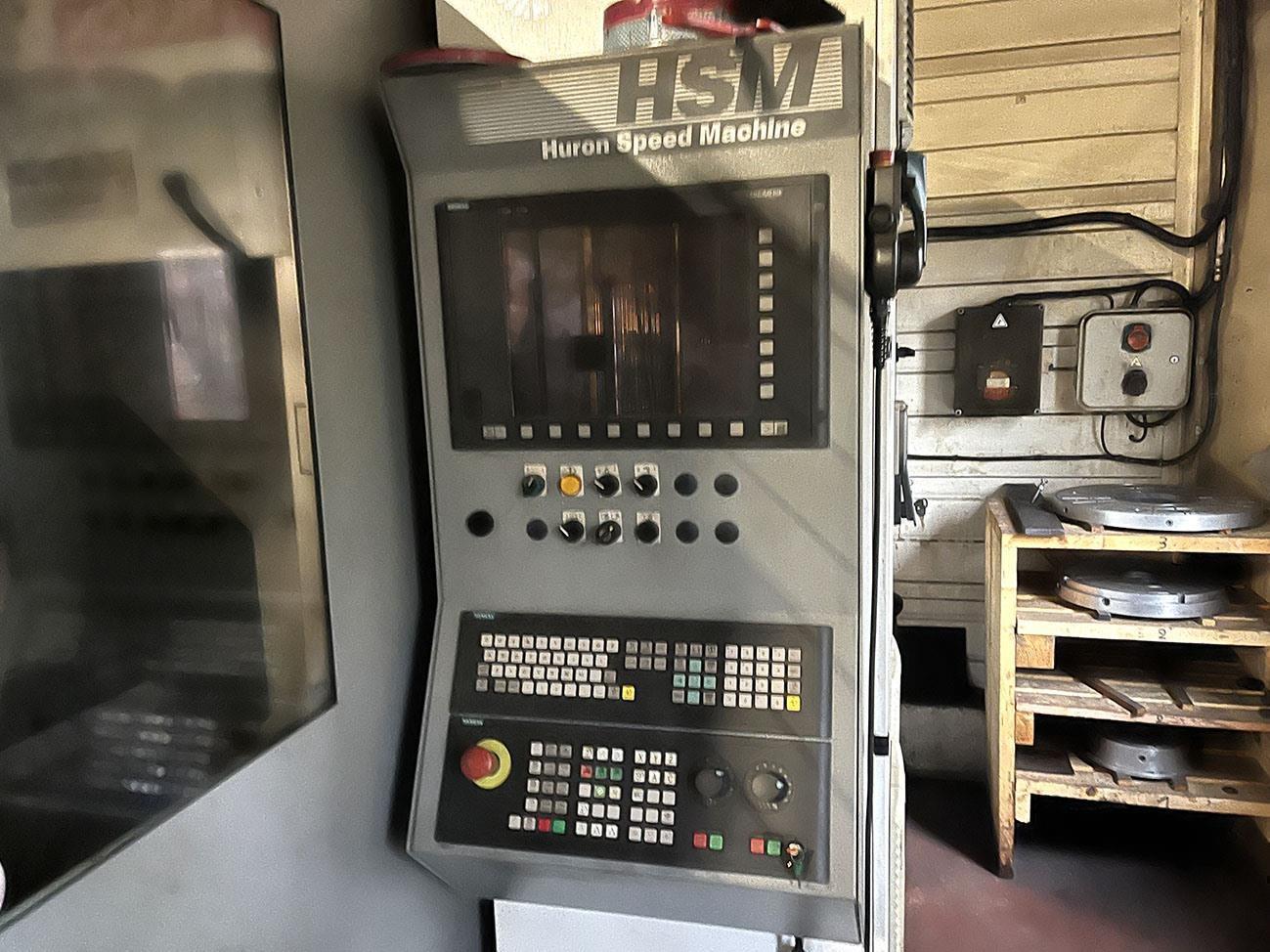

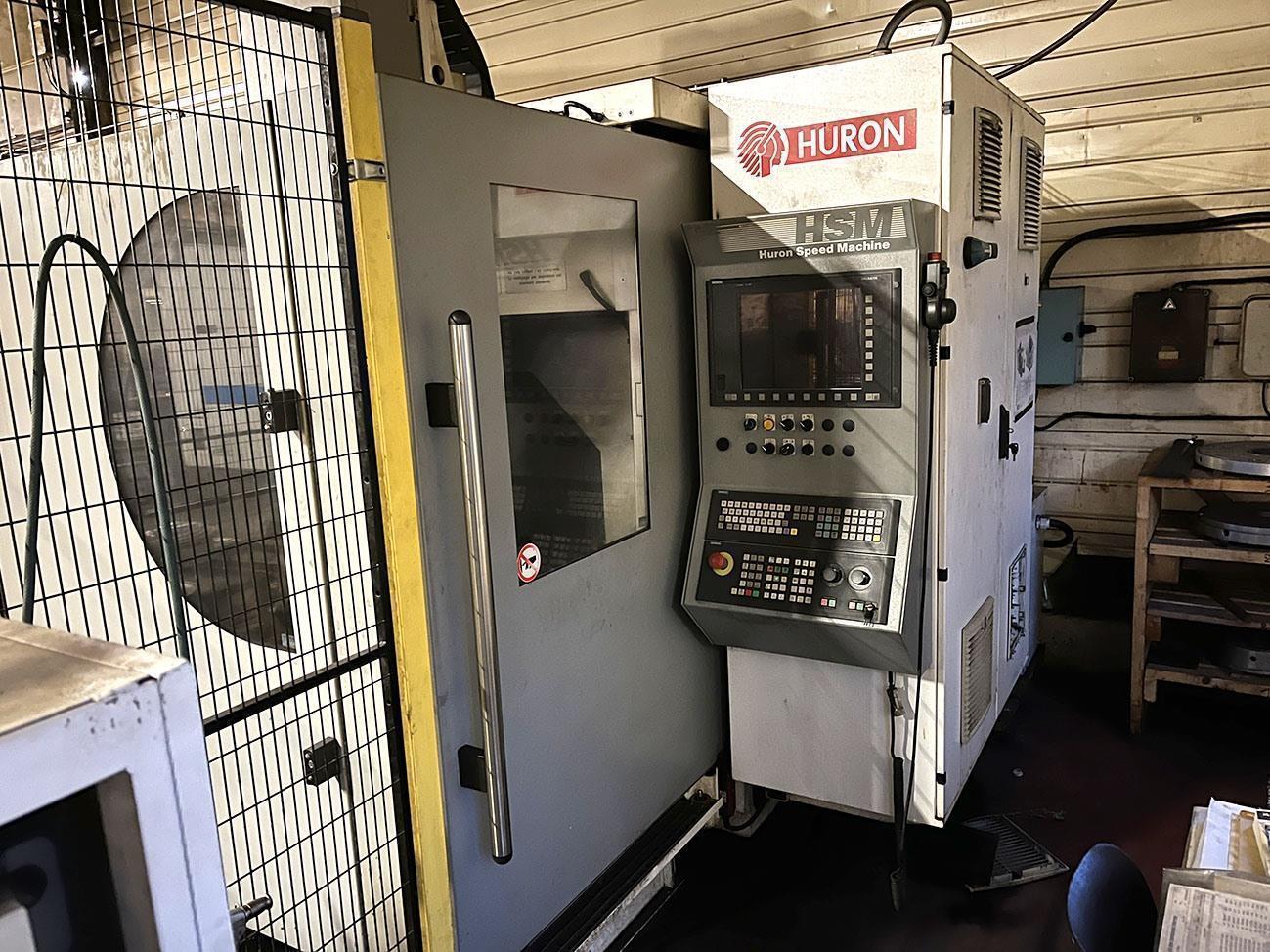

  • Control Siemens 840DSL
  • Power needed 50 kW
  • Length 5520 mm
  • Depth 3320 mm
  • Height 3325 mm
  • Weight 10 ton
  • Toolholder yes
  • Number of tools 36 toolpositions

Additional info

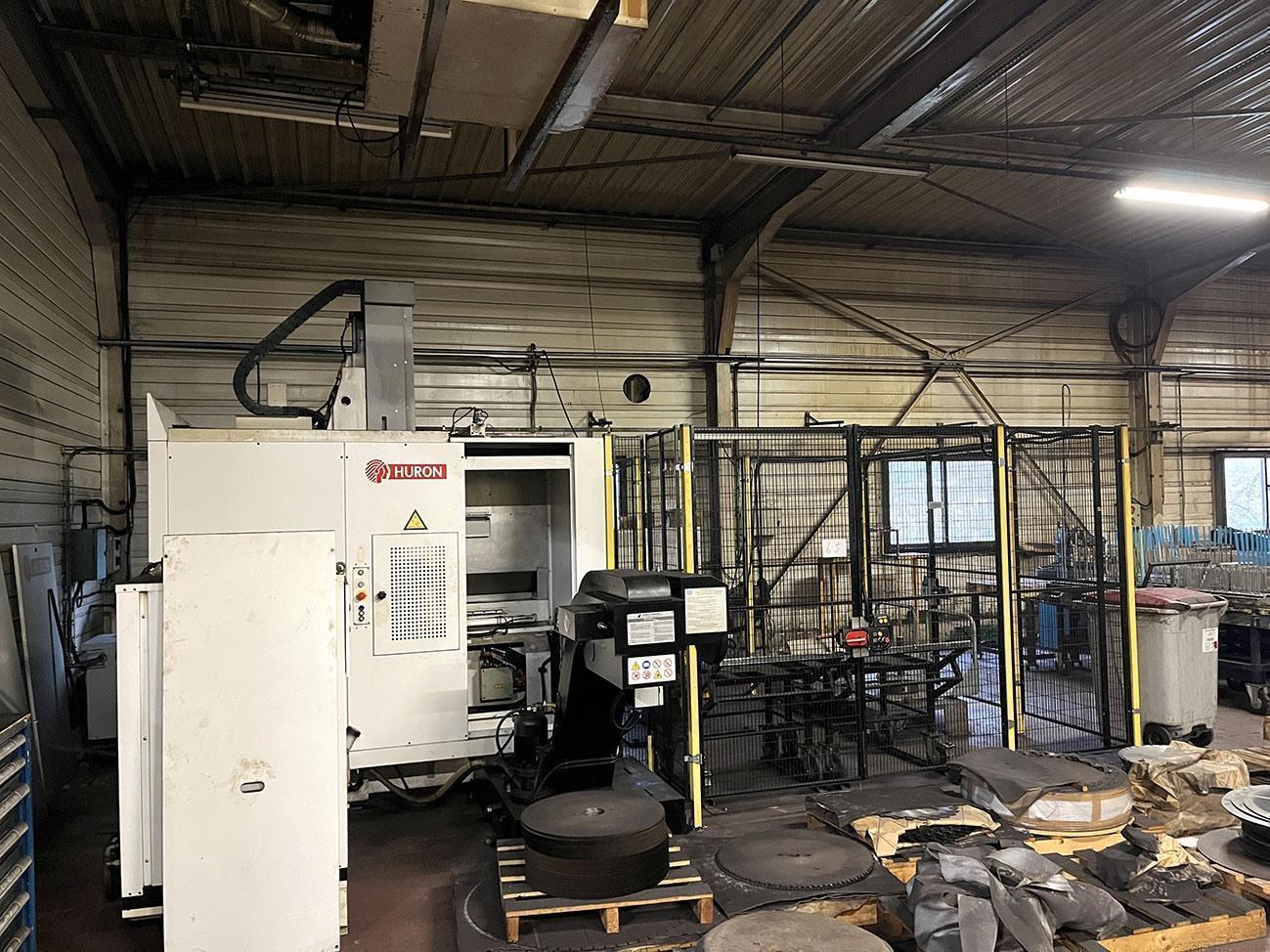

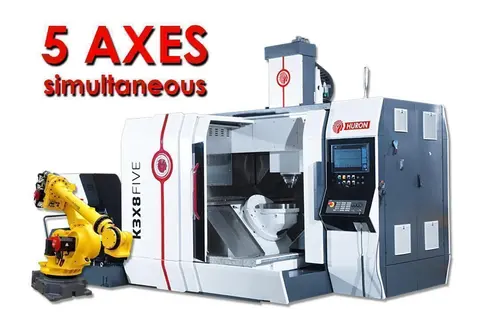

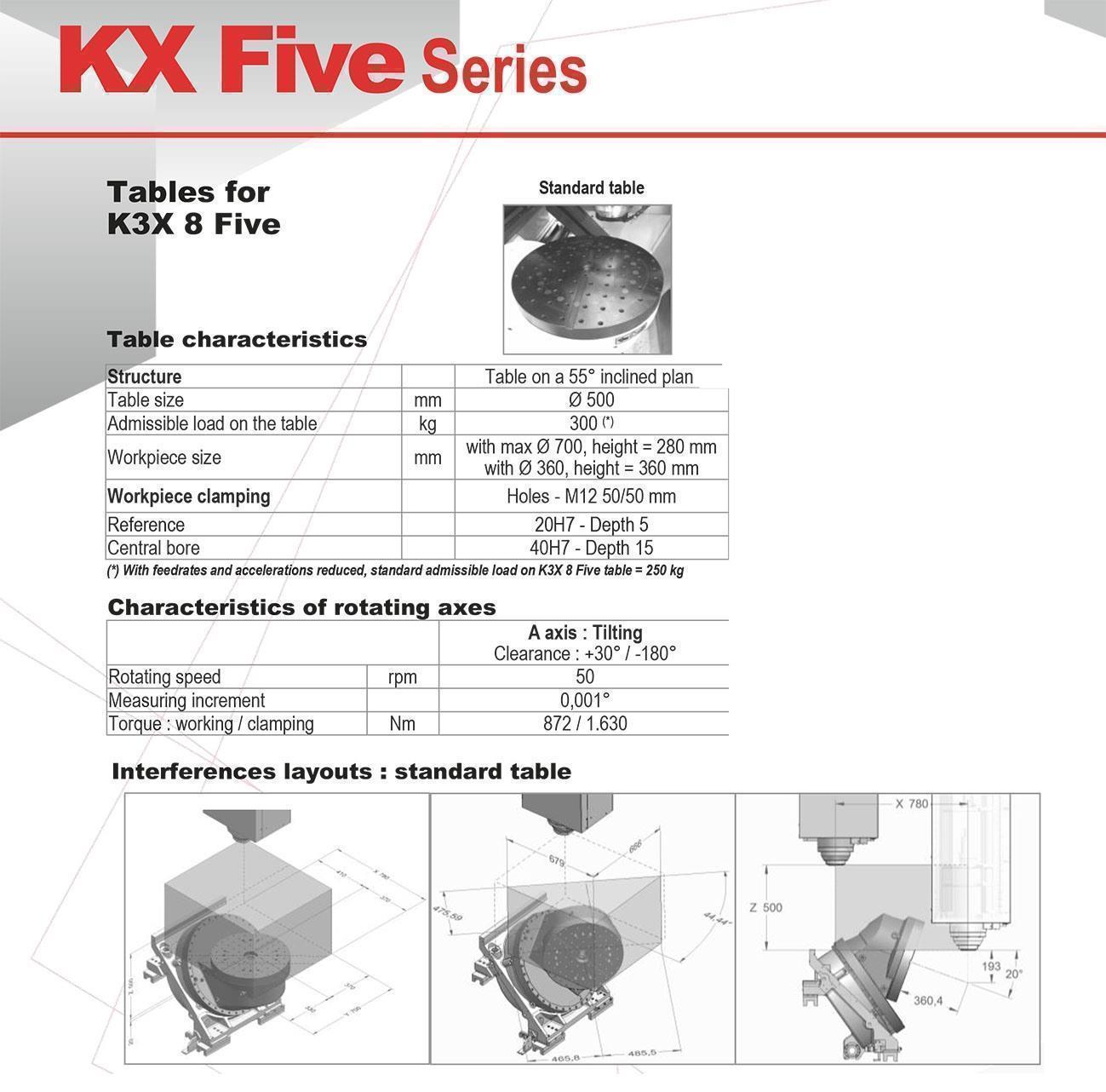

  • 5-axis simultaneous machining center
    Type: K3X8F
    max. workpiece: dia 700 mm
    max. workpiece weight: 300 kg
    distance spindle nose / top table: 525 mm

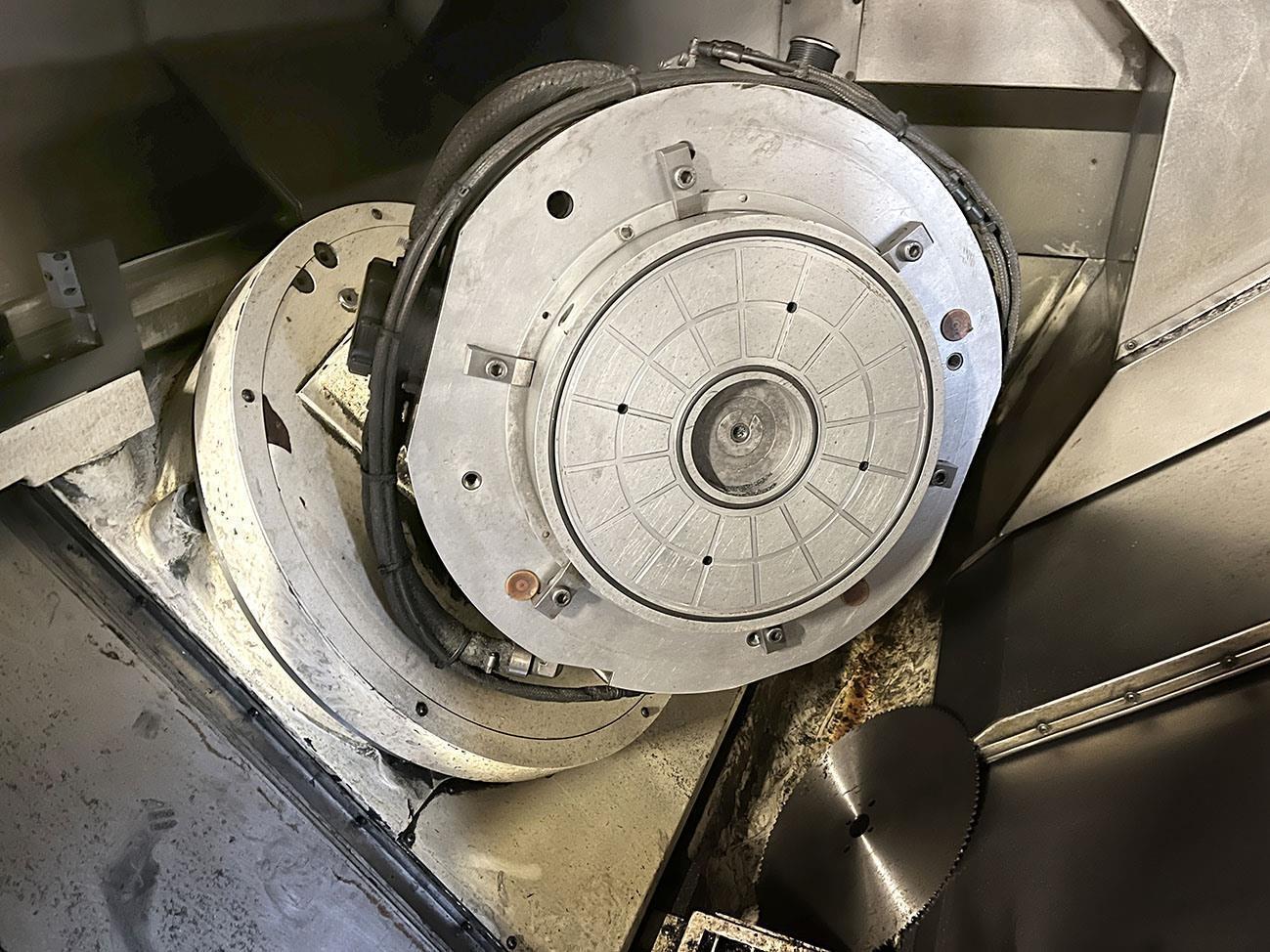

    A-axis (tilt): +30°/-180°
    C-axis (rotation): 360° continuous
    fast movements: 50,000 mm/min
    high pressure cooling by spindle
    chip conveyor belt
    vibration monitoring
    laser tool probe Blum Micro
    workpiece probe Blum TC52

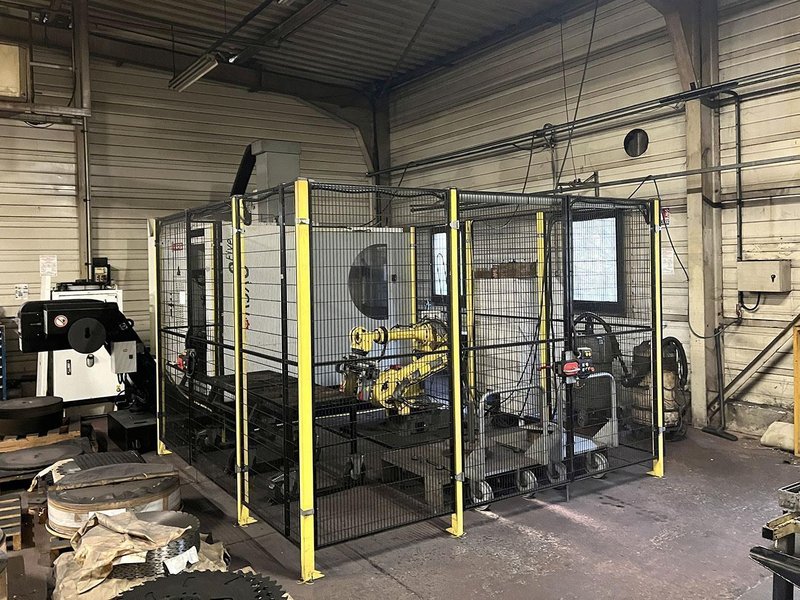

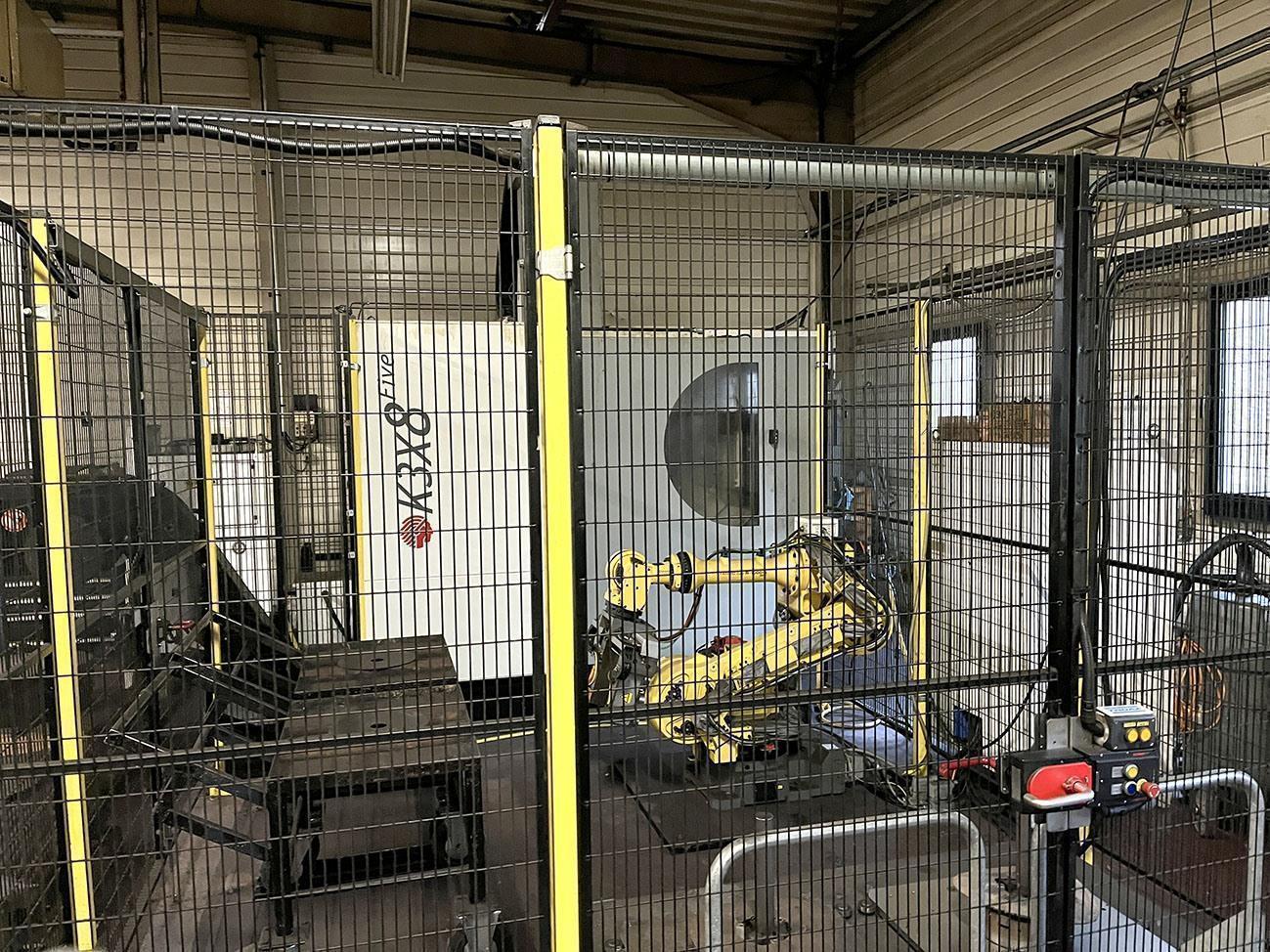

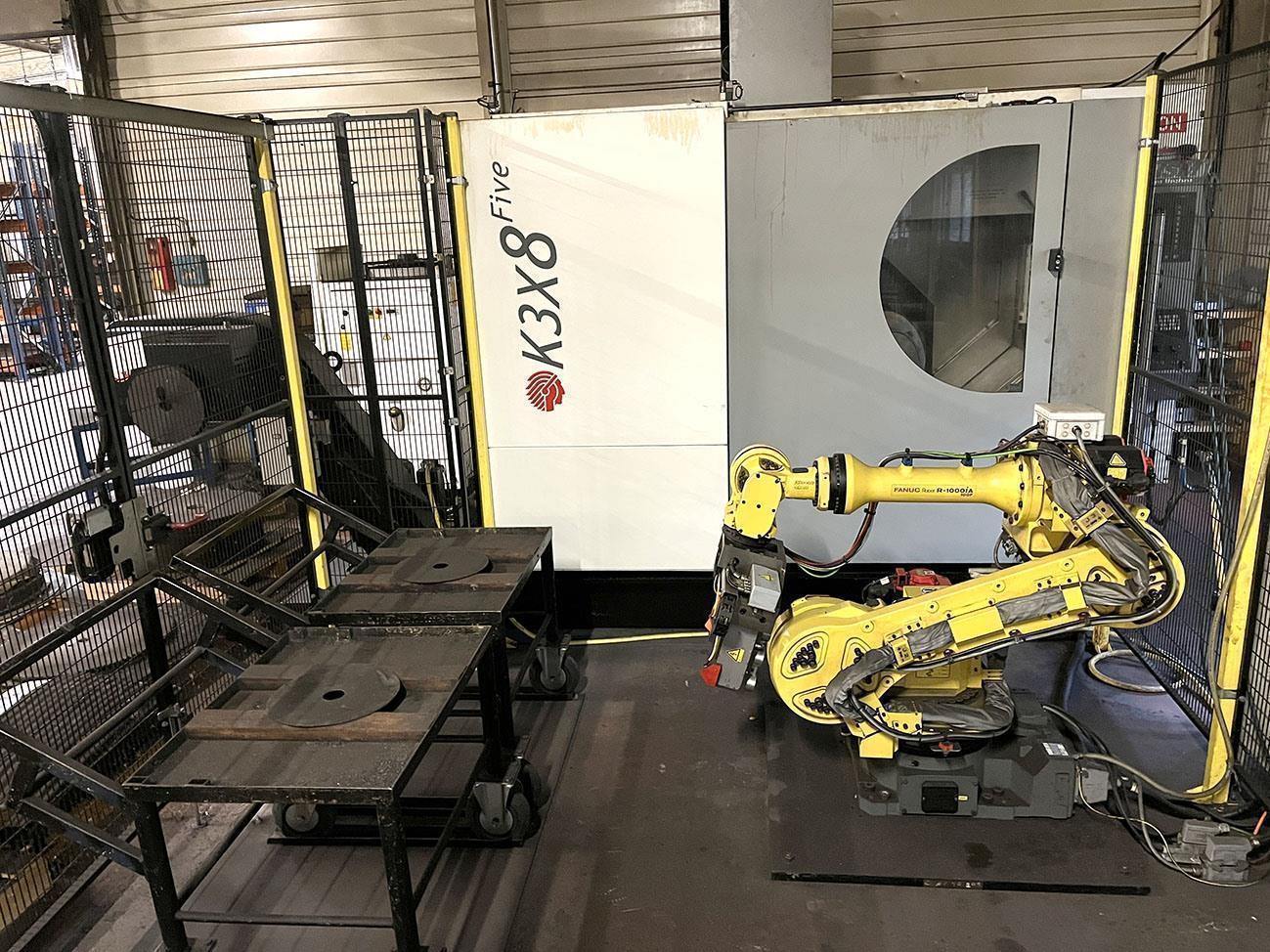

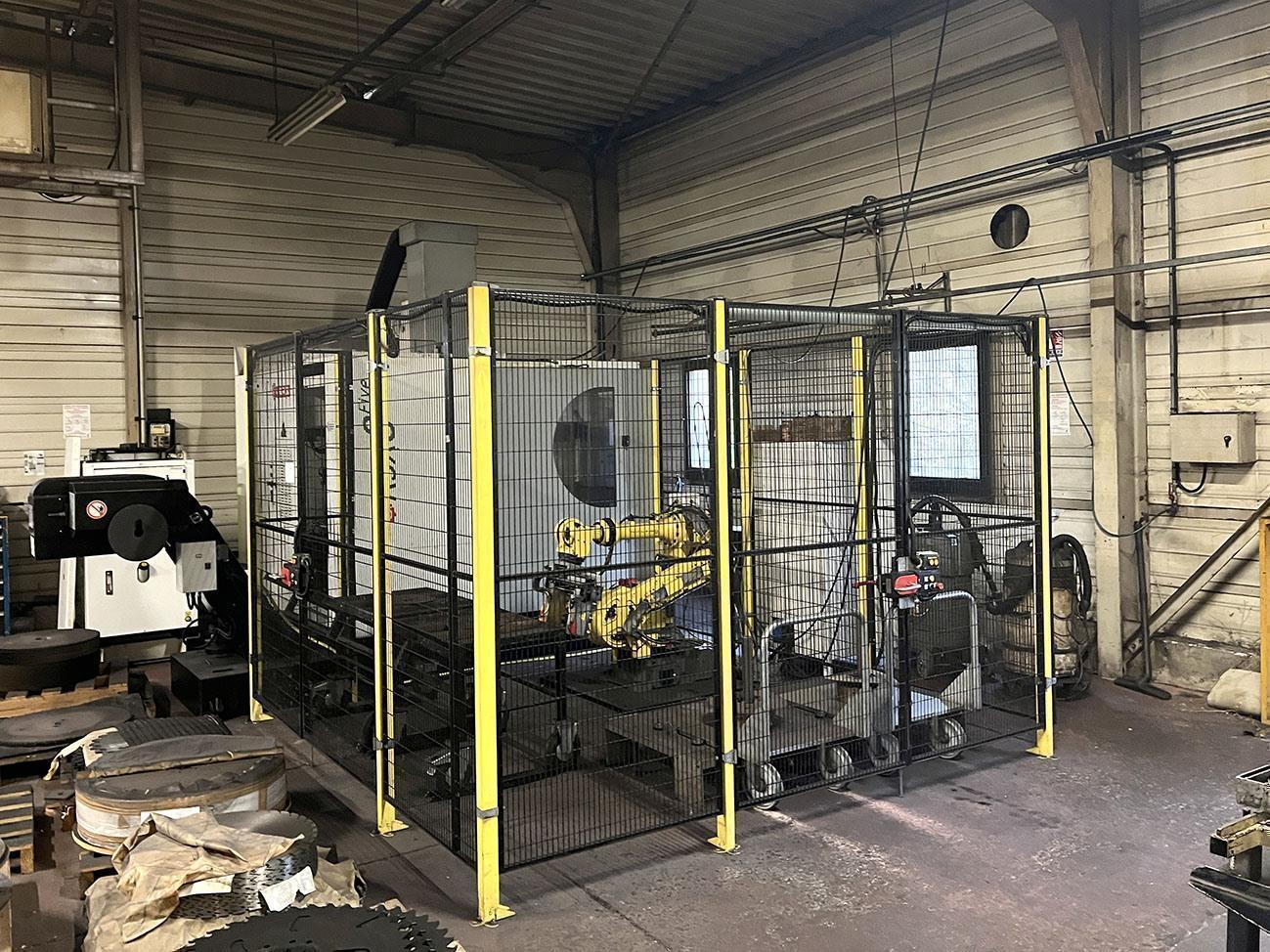

    with Fanuc Robot charging system RB:

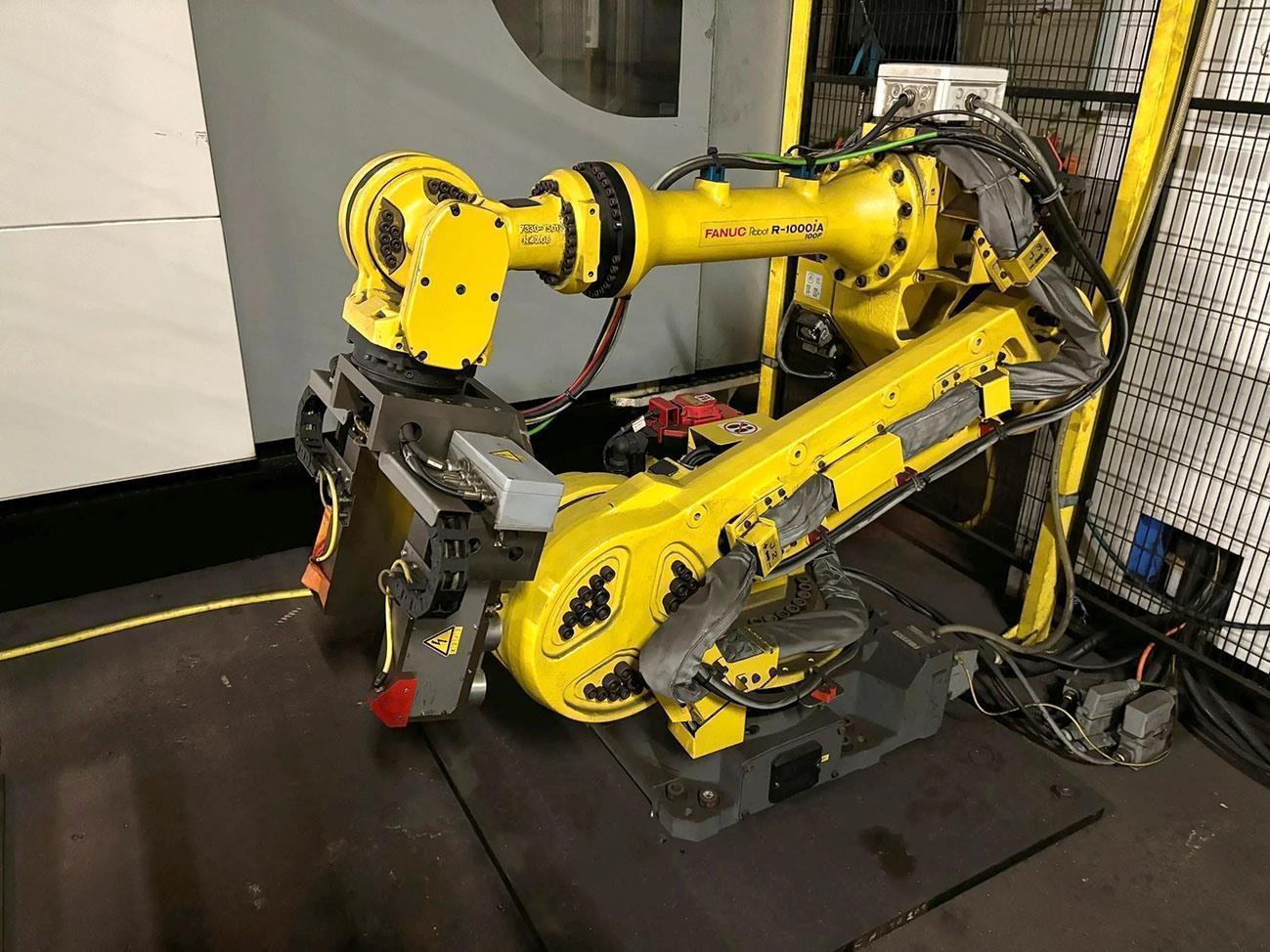

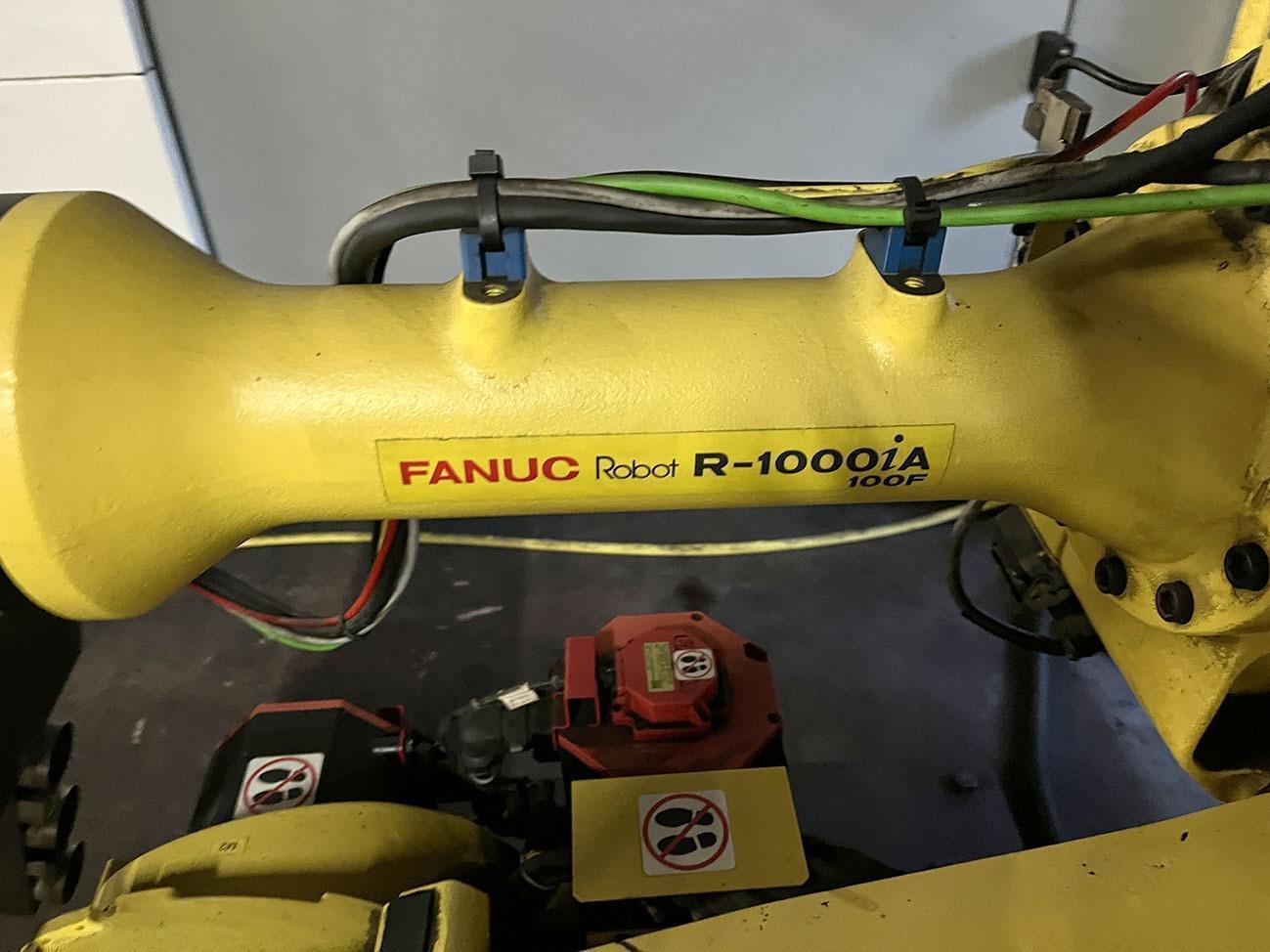

    Robot: A05B-1330-B205 (Fanuc Robot R-1000iA/100F)
    Controller: A05B-2601-B112 (Fanuc system R-30iB)
