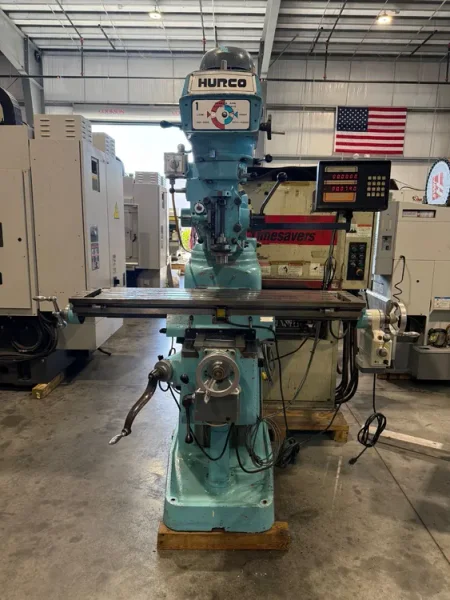

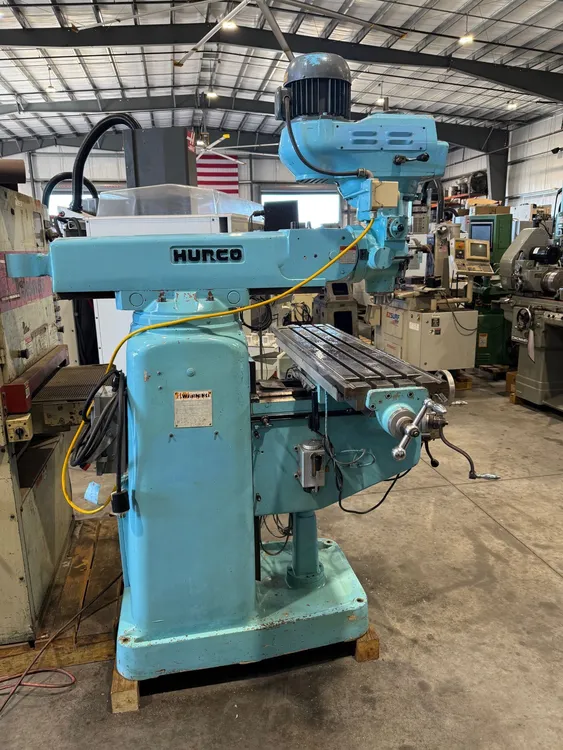

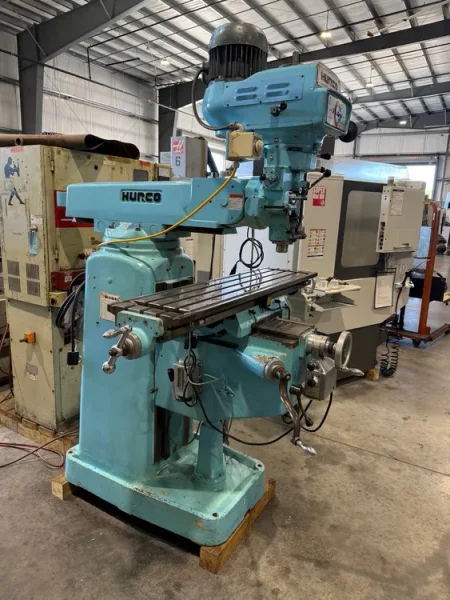

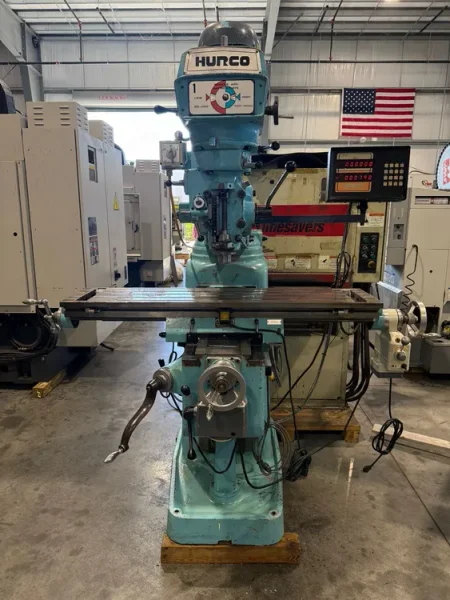

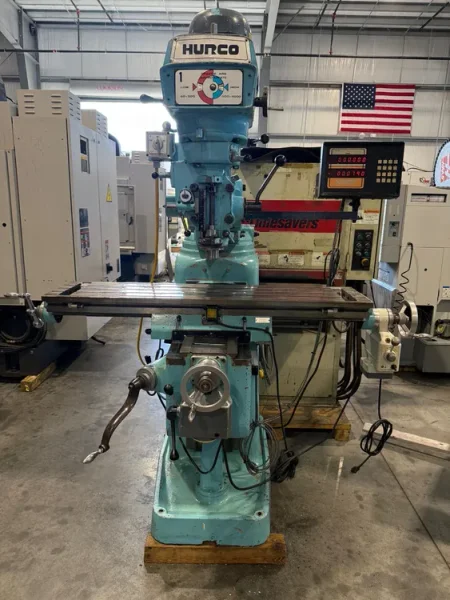

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151

Name: HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151
Brand: HURCO
SKU: 8151
Availability: PreOrder

Brand

HURCO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Milling Machines

Manufacturer:

HURCO

Model:

SM1

Stock #:

8151

Status:

For Sale

Description

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151

ImperialMetric

Table-W	12"	304.8 mm
Table-L	42"	1,066.8 mm
Power	3 hp	2.2 kW
RPM	4,000 RPM	4,000 RPM
Dimensions	72” x 68” x 91” H	72” x 68” x 91” H
Weight	2,750 Lbs.	2,750 Lbs.

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151
Reference # 8151
Model # SM-1

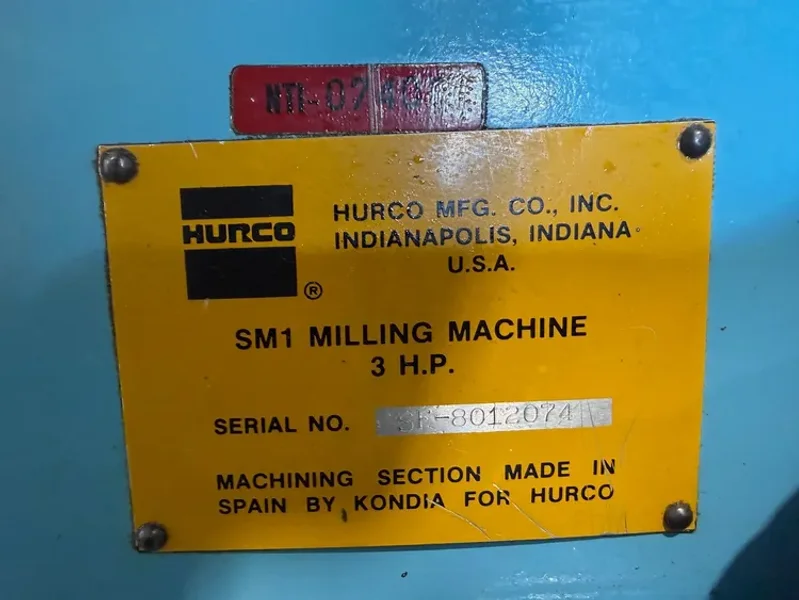

Serial # SF-8012074

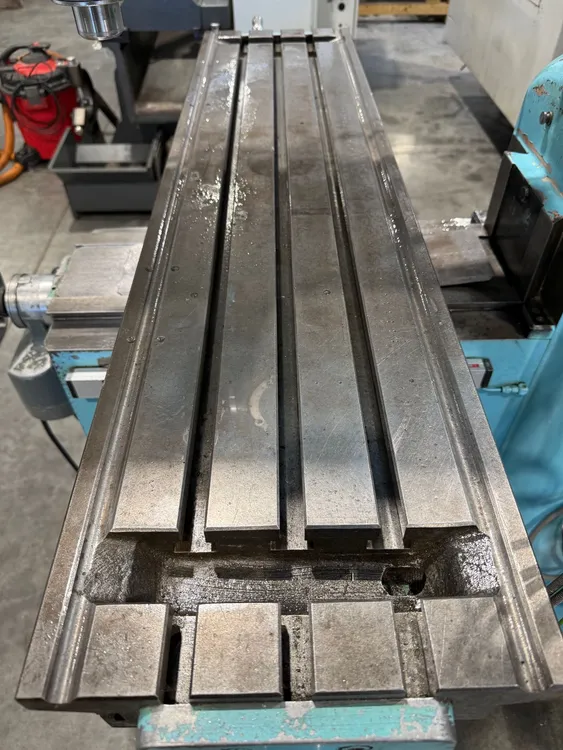

Overall Table Size 11” x 48”
Distance between T-Slots 2 ½”
Longitudinal Table Travel 30”
Cross Travel 14”
Vertical Travel 18”
Overarm Travel 23”
Distance Center of Spindle to Column 10” – 26”
Distance Center of Table to Column 6” – 19 ½”
Distance Spindle Nose to Top of Table 8 ½” – 30”

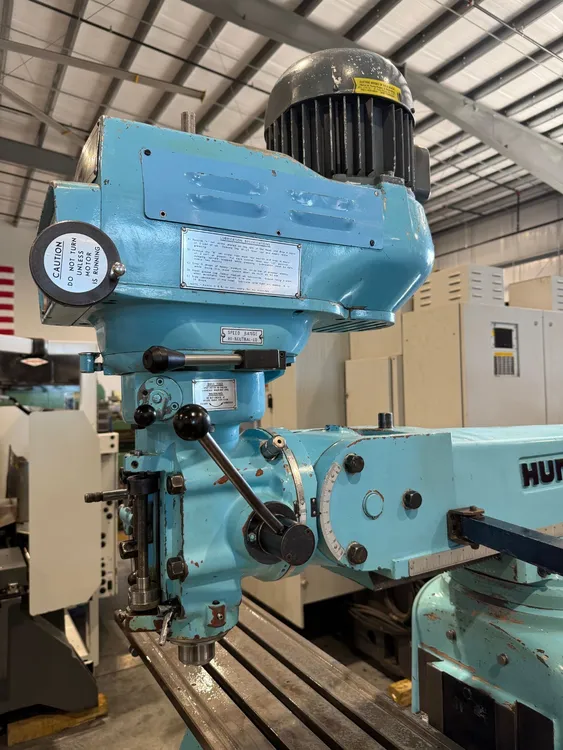

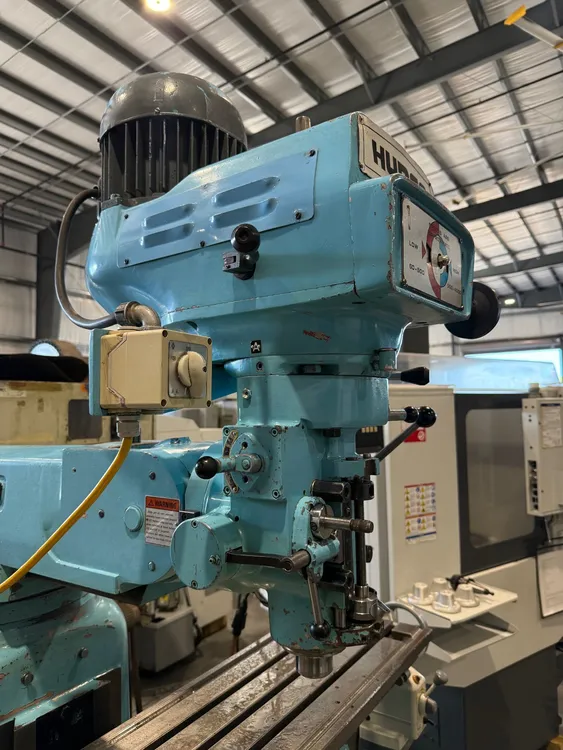

Head Tilt, Front to Back 45 degrees
Head Tilt, Side to Side 90 Degrees
Spindle Speeds 60-4000 ROM
Quill Feeds 5”
Quill Diameter 2”

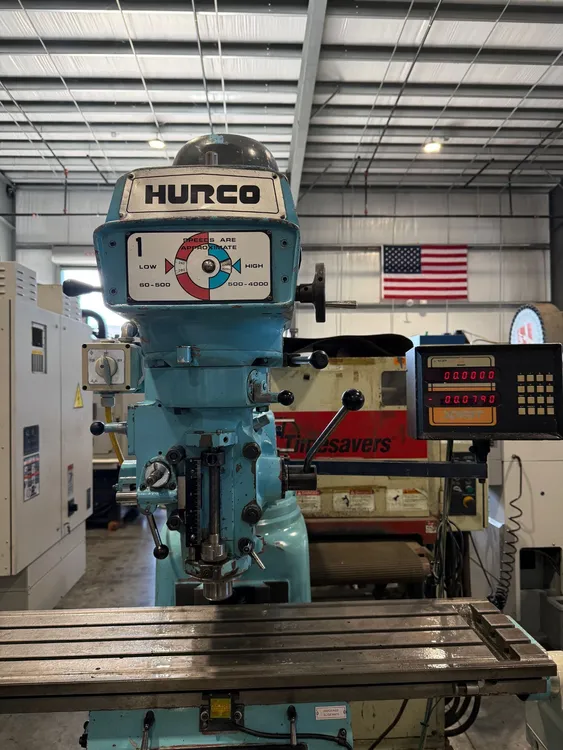

2 Axis DRO Digital Readout
Y & X power feeds
3 H.P Spindle motor
Machine is wired for 230 volt / 3 phase/ 60 H.Z.
Machine weight- 2,750 Lbs.
Machine dimensions-72” x 68” x 91” H
Machine location- F.O.B. Sarasota, Florida
