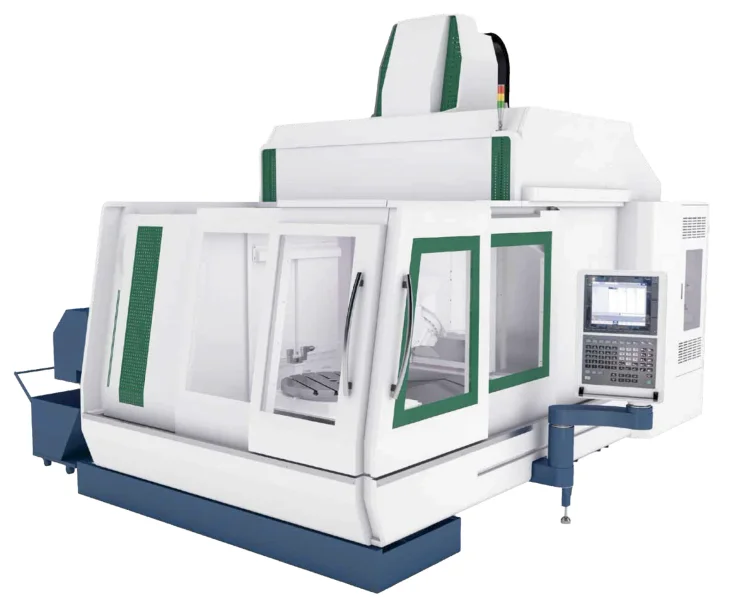

NEW KENT USA MODEL KMT-800-5AX 5-AXIS MILLING AND TURNING CENTER

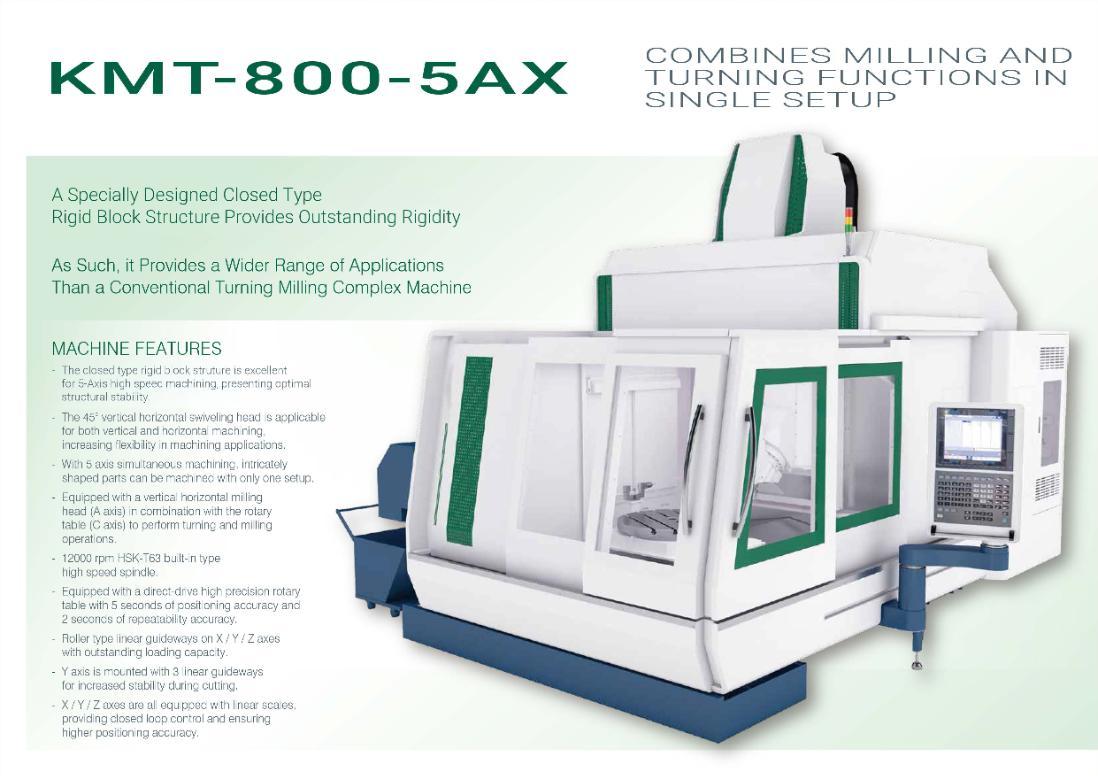

The KMT-800-5AX is a high-performance 5-axis milling and turning center engineered to deliver exceptional rigidity, precision, and flexibility. Featuring a specially designed closed-type rigid block structure, this machine integrates milling and turning operations into one seamless setup—significantly reducing setup time while expanding machining capabilities beyond conventional mill-turn solutions.

Built for demanding, high-speed, multi-axis applications, the KMT-800-5AX enables manufacturers to machine complex, high-precision parts with confidence and efficiency.

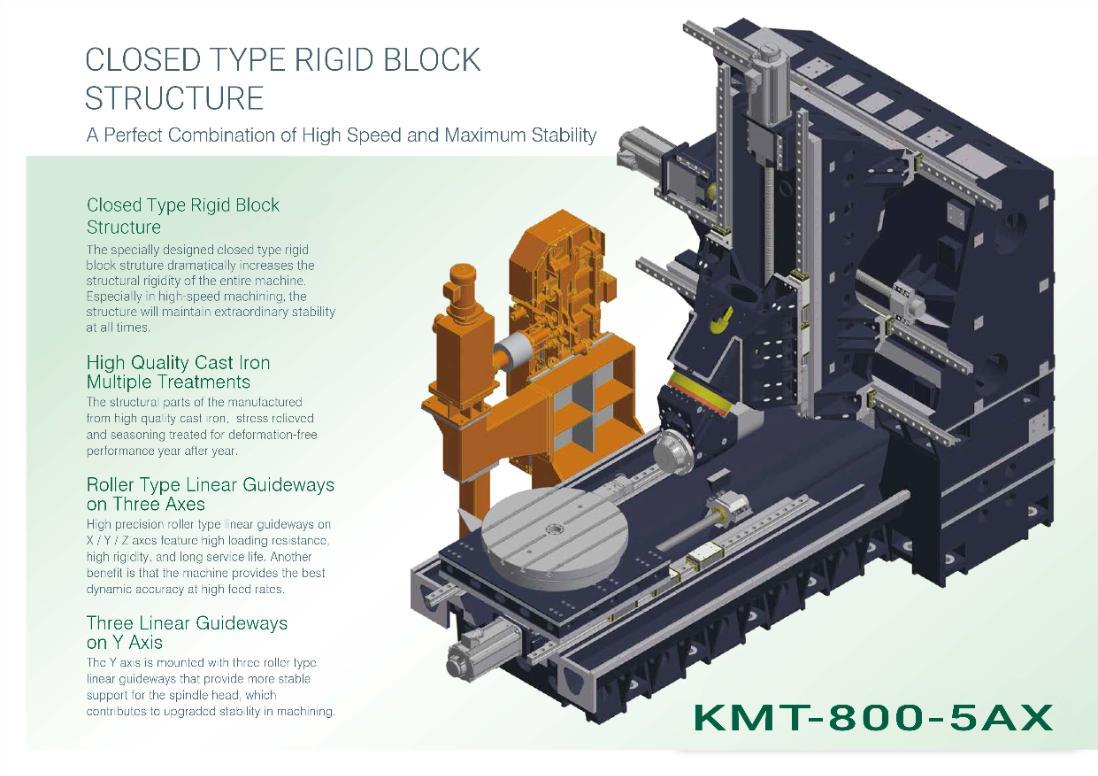

• Closed-Type Rigid Block Structure

  Optimized for 5-axis high-speed machining, delivering outstanding structural stability and vibration resistance.

• 45° Vertical/Horizontal Swiveling Head

  Supports both vertical and horizontal machining, greatly increasing application flexibility.

• True 5-Axis Simultaneous Machining

  Complex, multi-surface parts can be completed in a single setup, improving accuracy and reducing lead time.

• Integrated Milling & Turning Capability

  Vertical/horizontal milling head (A-axis) combined with a high-precision rotary table (C-axis) enables seamless mill-turn operations.

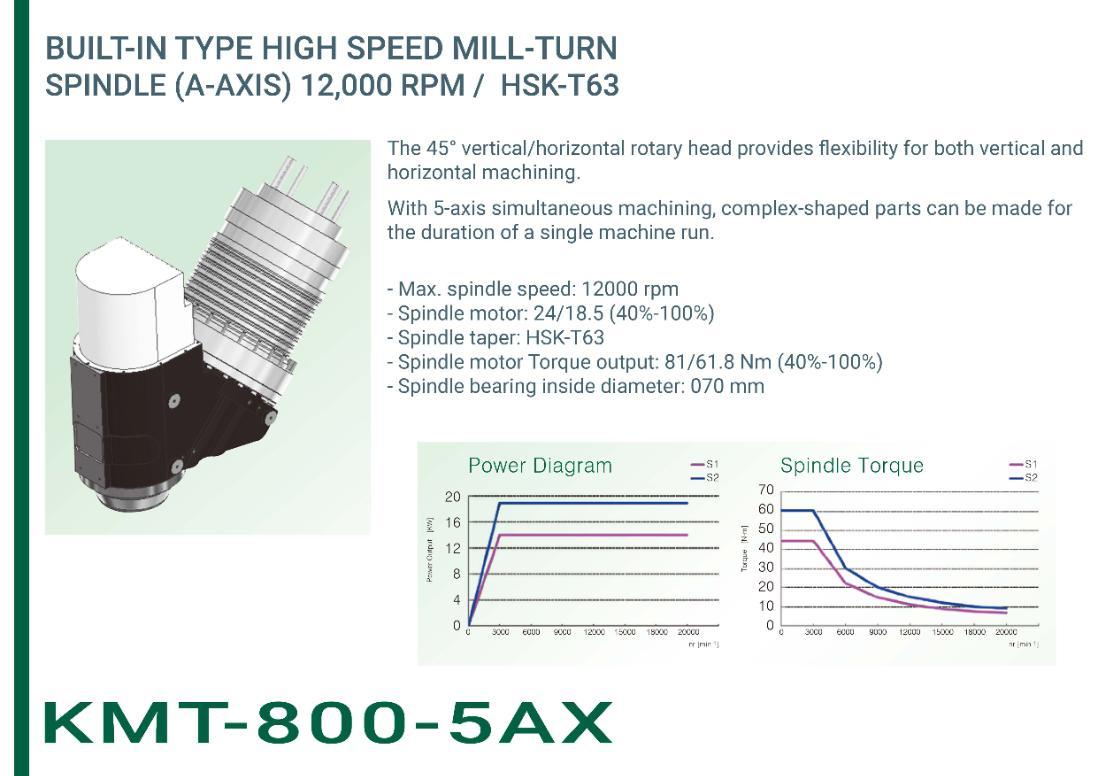

• High-Speed Built-In Spindle

  12,000 rpm HSK-T63 built-in spindle ensures high torque, excellent surface finish, and long-term reliability.

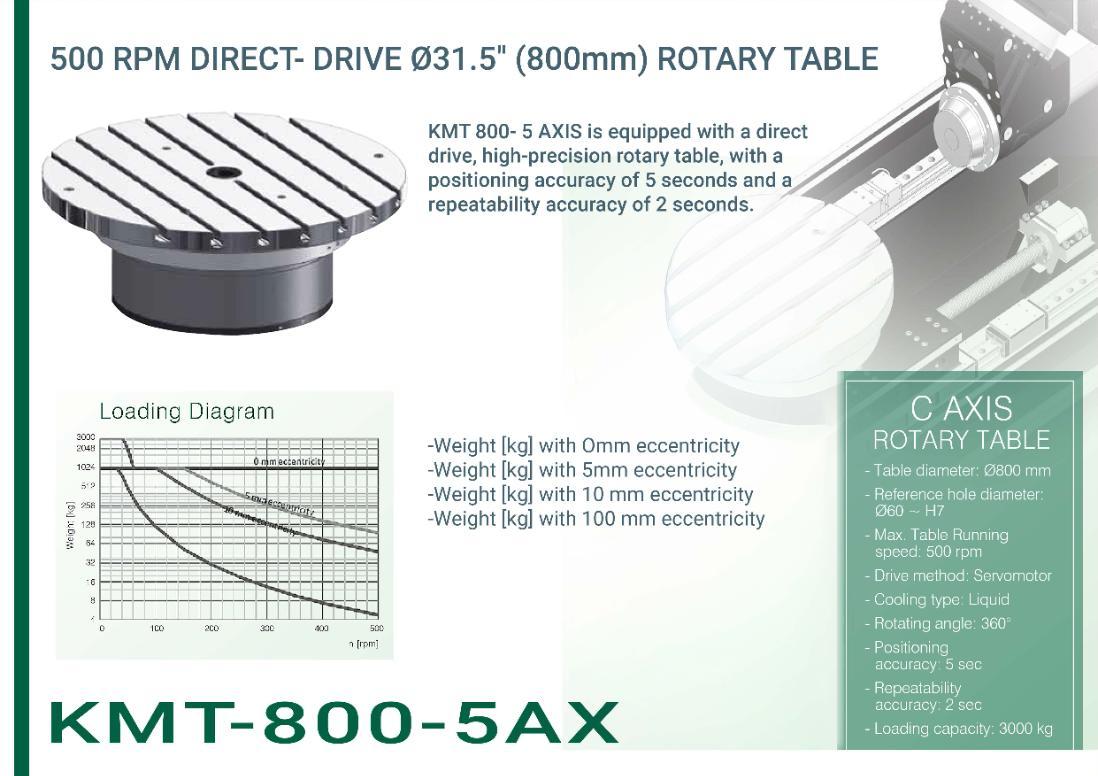

• Direct-Drive High-Precision Rotary Table

  Positioning accuracy of 5 seconds and repeatability of 2 seconds for superior rotational precision.

• Roller-Type Linear Guideways on X / Y / Z Axes

  Designed for high load capacity, rigidity, and long service life.

• Triple Linear Guideways on Y-Axis

  Enhanced support for the spindle head, delivering superior cutting stability.

• Full Closed-Loop Control

  Linear scales on X / Y / Z axes ensure high positioning accuracy and consistent machining precision.





  Standard Accessories Coolant tank Coolant gun Work lamp Toolbox Oil mist coolant device Spindle air blow function Spindle cooling splash Spindle cooling splash and air blast Coolant system Air conditioner for electrical cabinet MPG handwheel Work end indication light Fully enclosed splash guard Spindle cooling system Central control lubricator Operation manual Leveling bolts and pads Internet and RS-232C interface Spindle thermal compensation function 3-axis optical scales A/C axis optical scale Caterpillar-type chip conveyor and cart (for general chips) Screw-type chip conveyor equipped at the work table M30 auto power-off system

  Optional Accessories Oil skimmer Oil mist collector 60-tool magazine Milling and turning tool length measurement Automatic workpiece measurement device (touch probe included) Coolant-through-spindle device (70 bar) Transformer CE / TS specification
