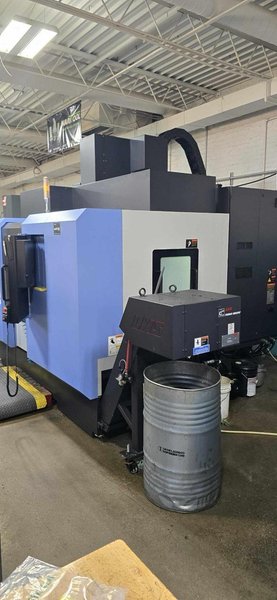

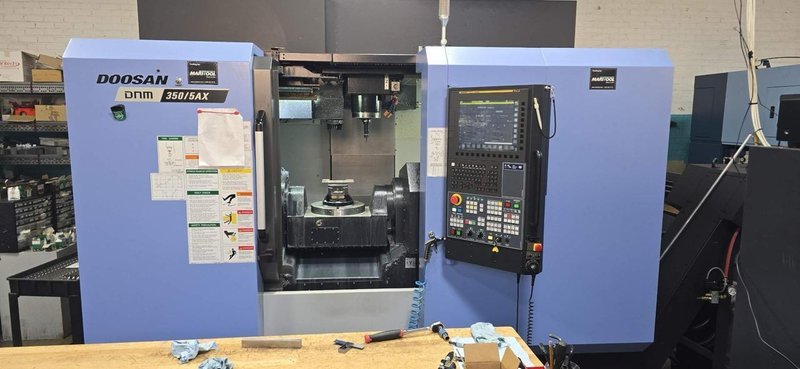

Doosan DNM350/5AX VMC, 2021 – Renishaw Probe, Chip Conveyor, TSC

X Axis Travel: 23.6″ Y Axis Travel: 25.8″ Z Axis Travel: 19.7″ Travel Distance A-axis: +30° -120° Travel Distance C-axis: 360° Rotary Table Max Load: 550 LBS Table Size: 13.8″ Spindle Speed: 12,000 RPM Spindle Taper: 40 Spindle Motor: 25 HP ATC: 60

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc I series Control 60 Station Tool Changer LNS Turbo MH250 Chip Conveyor Renishaw RMP600 Probe Renishaw Axiset Calibration Artifact 3 Color Signal Lamp 230 PSI Through Spindle Coolant Spindle Orientation Rigid Tapping Tool Load Monitor Doosan Tool Load Monitoring and Adaptive Feedrate Control Custom Macro 2MB Part Program Storage Program Loading Via USB, Ethernet, PC-MCIA Card & RS232

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
