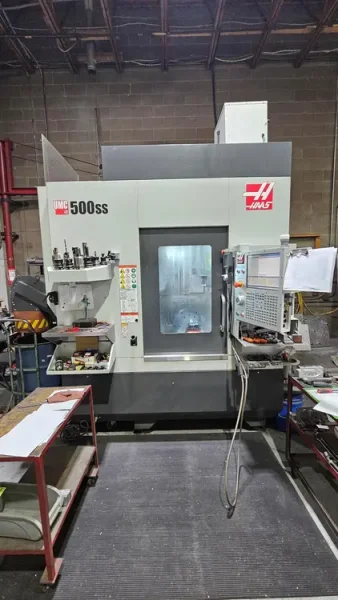

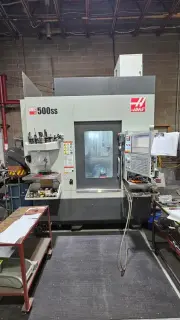

2022 Haas UMC-500 5-Axis Universal Machining Center

Haas UMC-500 5-Axis Universal Machining Center
New: 11/2021; installed 01/2022

Specifications:
Travels:
X-Axis: 24"
Y-Axis: 16"
Z-Axis: 16"
Spindle Nose-Platter: 4" - 20"
B-Axis - Tilt: 120° to 35-°
C-Axis - Rotation: 360°
Platter Diameter: 15.7"
Spindle Speed: 12,000 RPM
Spindle Taper: #40
Spindle Motor: 30 HP
Tool Changer: 50+1 Side Mount
Max Weight on Platter: 500 Lbs
Max Cutting Feedrate: 650 IPM
Rapid Feedrate: 900 IPM

Equipped With::
Haas CNC Control
12,000 30 HP Direct Drive Spindle

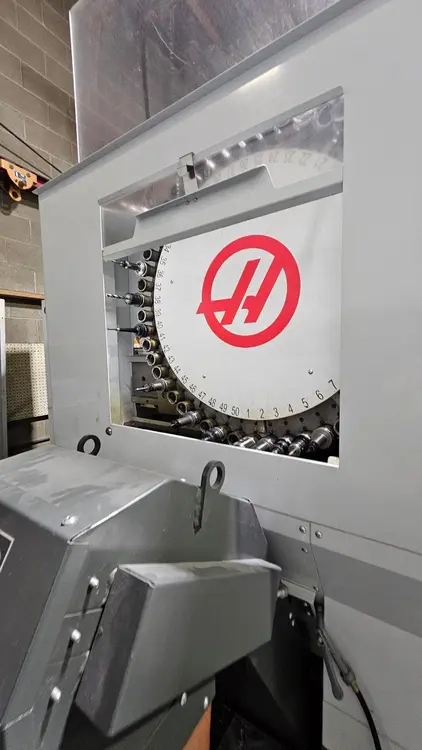

50+1 Side Mount Tool Changer
Wireless Intuitive Probe System
300 PSI Thru Spindle Coolant

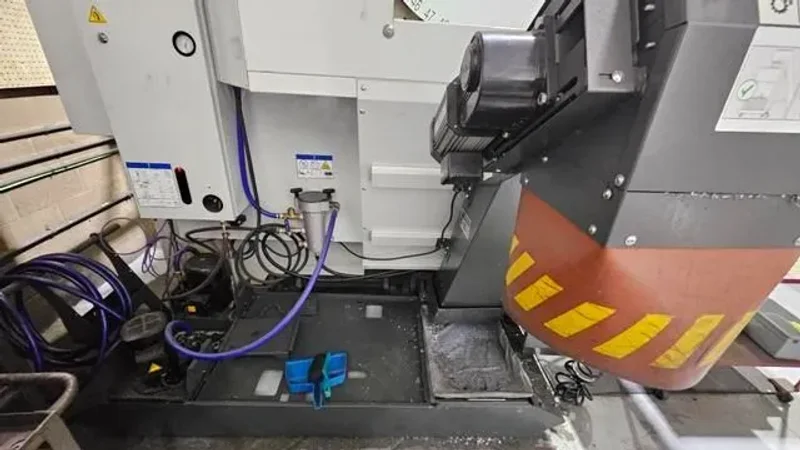

Belt-Type Chip Conveyor
Programmable Coolant Nozzle
Chip Strainer
Mist Away Mist Extractor
Part Pick Up Probe
Tool Length Measurement
55 Gallon Coolant Tank
Dynamic Work Offsets & Tool Center Point Control
Rigid Tapping
M-Code
Remote Jog Handle

Replacement Cost Over $200k
