2017 HAAS UMC-750SS | Machining Centers, Vertical, (5-Axis or More)

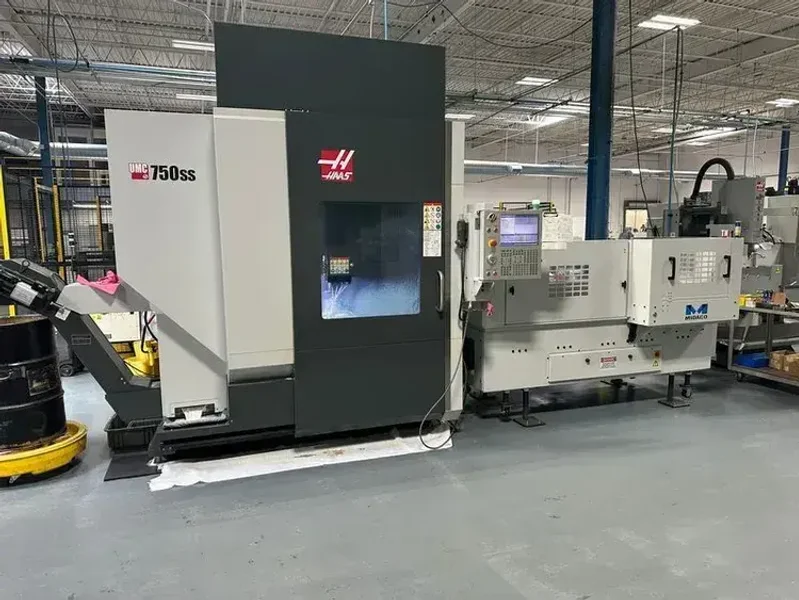

Haas UMC-750SS CNC 5-Axis Universal Machining Center

Specifications:
NUMBER OF TABLES / PALLETS 19
WEIGHT ON TABLE 200 lb
MAIN SPINDLE HORSE POWER 30 hp
SPINDLE NOSE TO TABLE 4" - 24"
MAIN SPINDLE SPEEDS 15,000 RPM
MAIN SPINDLE TAPER 40.0
X - AXIS TRAVEL 30"
Y - AXIS TRAVEL 20"
Z - AXIS TRAVEL 20"
B - AXIS TRAVEL 120 ° to 35- °
C - AXIS TRAVEL TABLE INDEXING 360 Degrees
RAPID TRAVERSE RATE - X 1,200 in/min.
RAPID TRAVERSE RATE - Y 1,200 in/min.
RAPID TRAVERSE RATE - Z 1,200 in/min.
CUTTING FEED RATE 833 in/min.
AUTOMATIC TOOL CHANGER 301
TOOL DIAMETER 2.5" / 5"
TOOL LENGTH 12"
TOOL WEIGHT 12 lb
MACHINE WEIGHT 14,250 lb
DIMENSIONS 168.0 in x 92.5 in x 110.0 in

Equipped With::

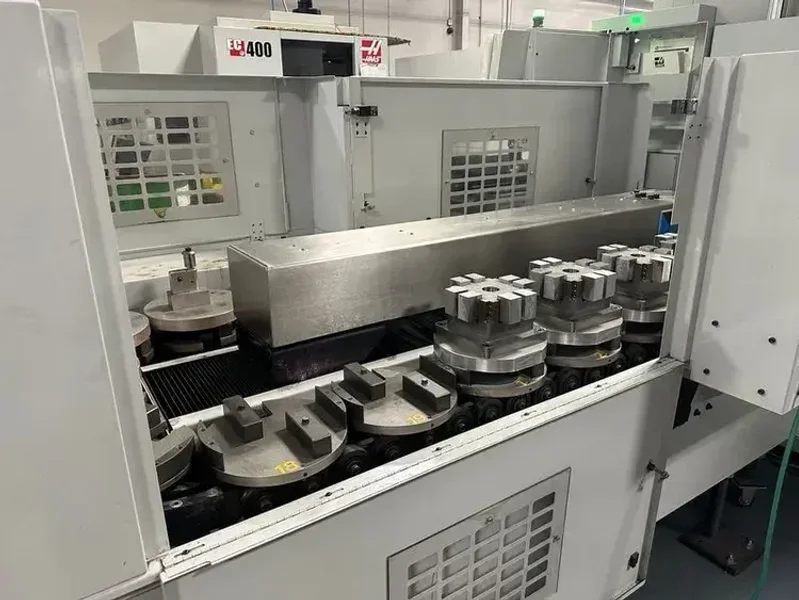

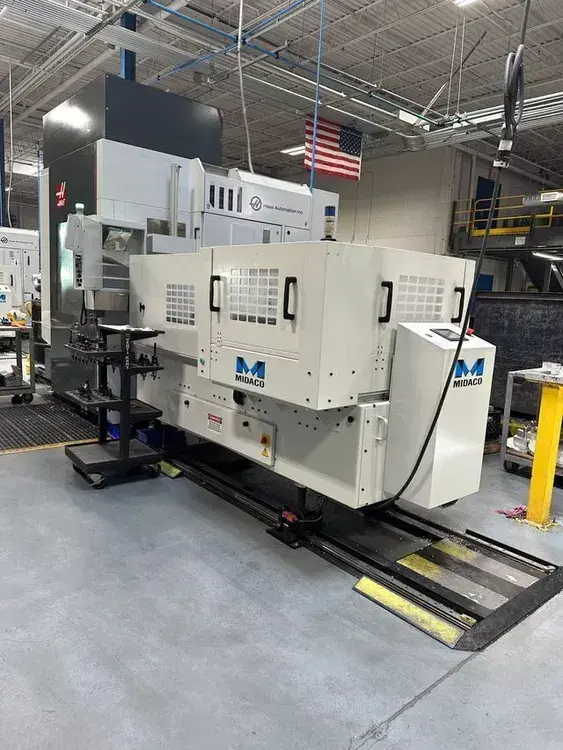

Midaco Pallet Changer
Haas CNC Control
Macros
Coordinate Rotation & Scaling
Rigid Tapping
TCPC and DWO
M19 Spindle Orient
High Speed Machining
VPS Editing
Media Display
4th, 5th Axis
1GB Memory
Compensation Tables
Through Spindle Coolant
150000 RPM Spindle
Wireless Part and Tool Probe
