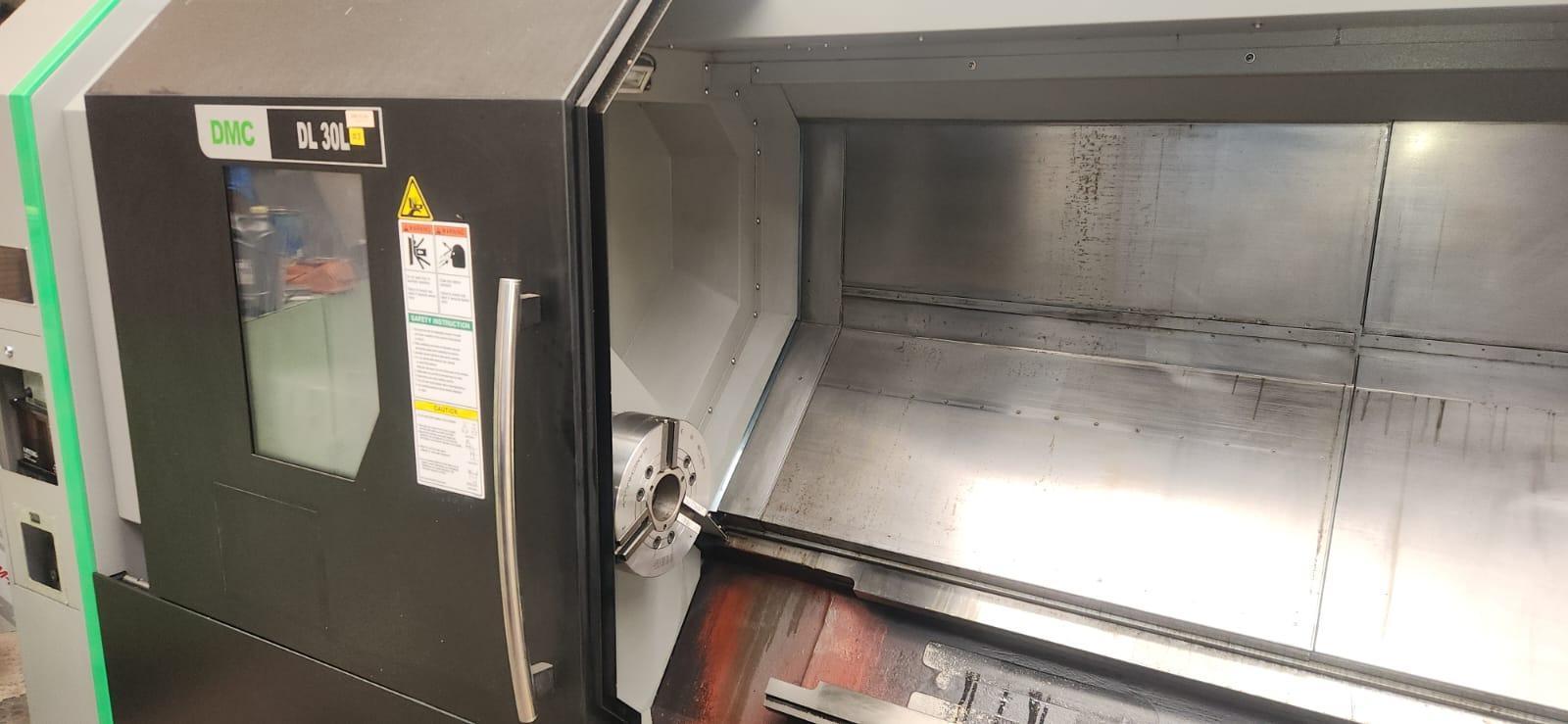

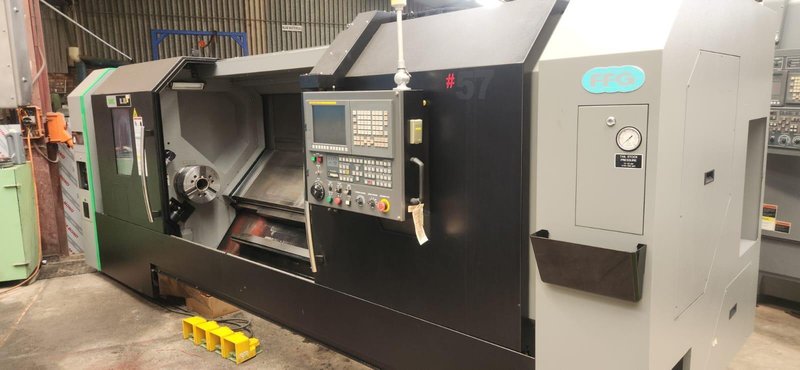

CNC Lathe Model: DMC DL30L Year 2018

Name: CNC Lathe Model: DMC DL30L Year 2018
Brand: DMC
SKU: 20002
Availability: PreOrder

Brand

DMC

Location

Gauteng, South Africa

REQUEST FINANCING

Specifications
Files & Videos

SPECIFICATIONS

*Spec*	*Inch*	*Metric*
CNC Control	yes	yes

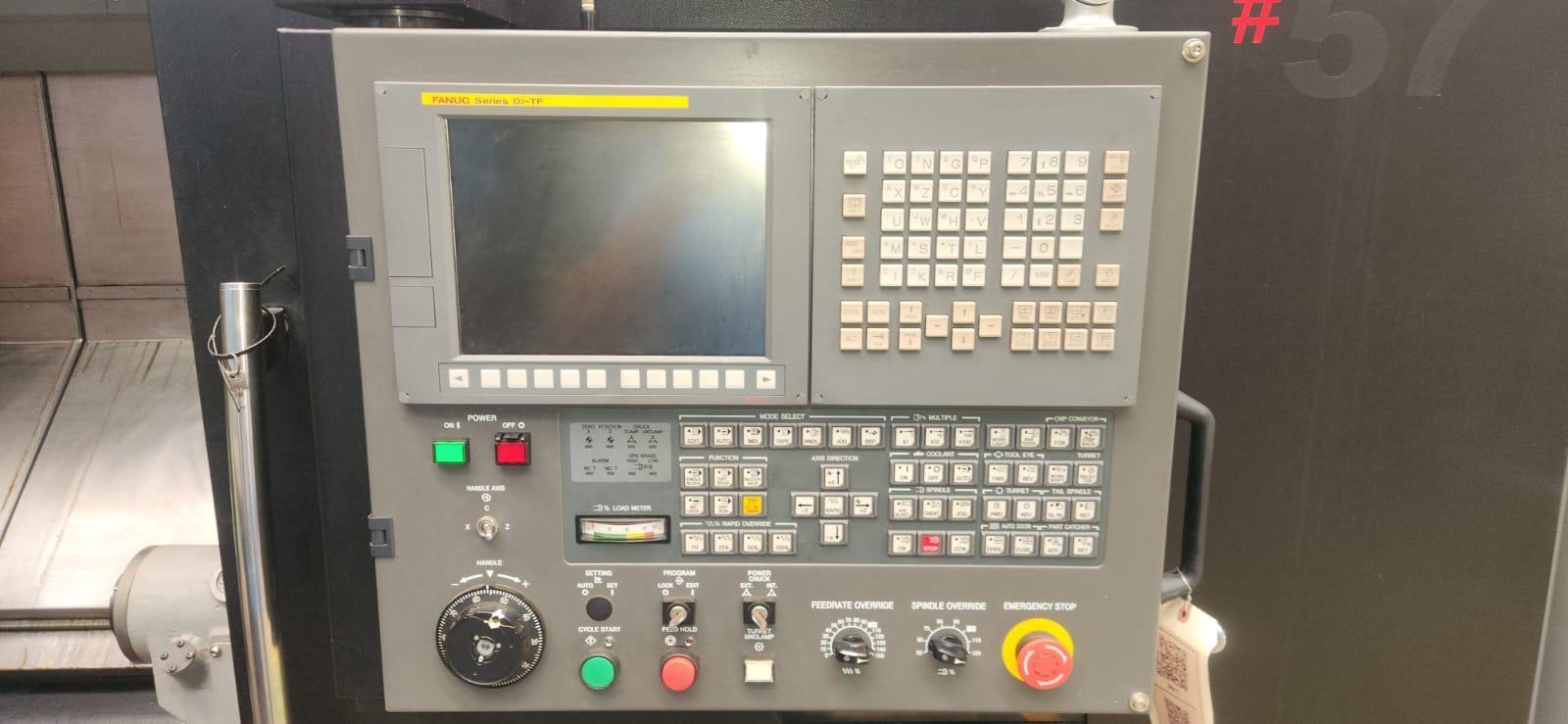

CNC Control	Fanuc 0i-TF	Fanuc 0i-TF
# Axis	2	2
Swing	24.02 in	610.11 mm
Turning Diameter	15.75 in	400.05 mm
Center Distance	83.86 in	2,130.04 mm

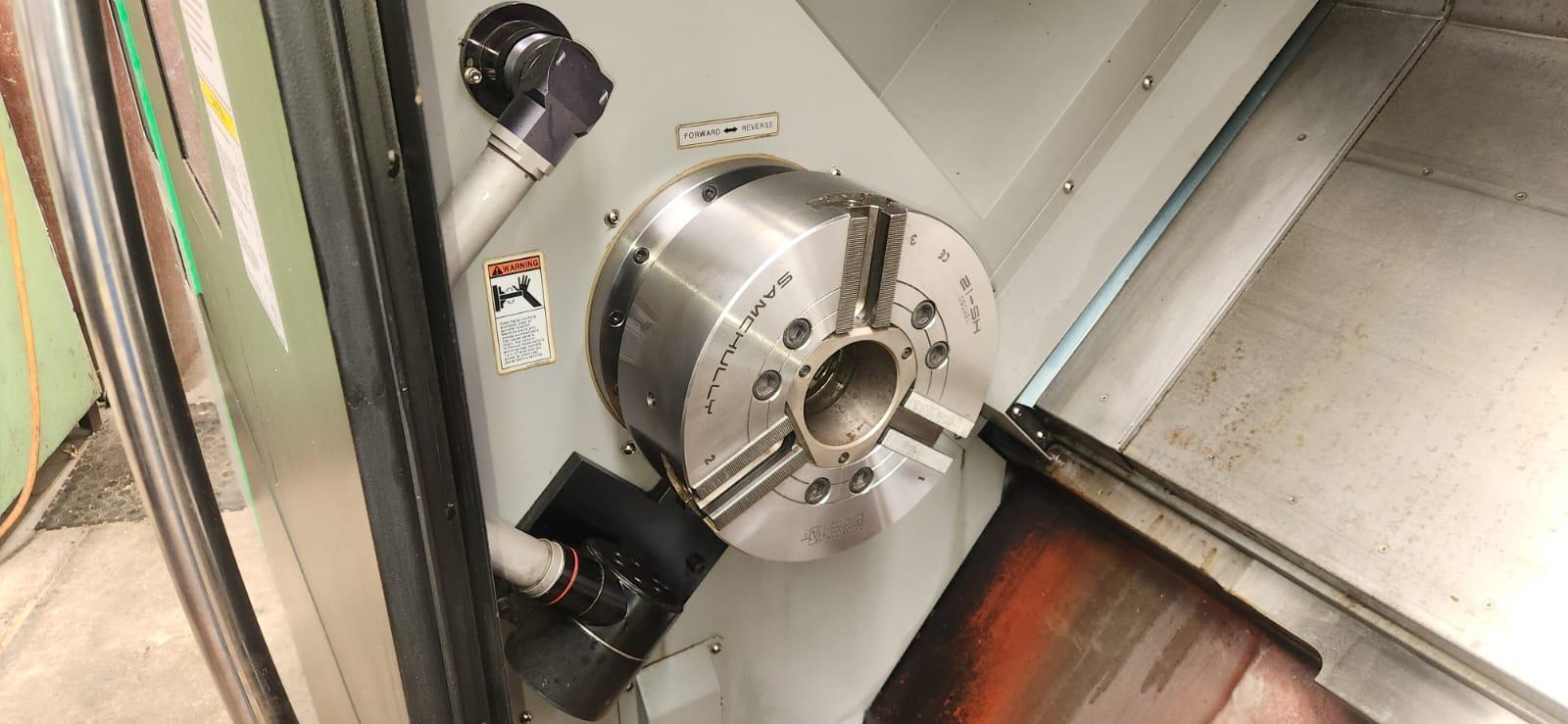

Chuck Size	12 in	304.80 mm
Bar Capacity	3.54 in	89.92 mm
X Axis Travel	9.06 in	230.12 mm
Z Axis Travel	83.86 in	2,130.04 mm
Rapid Traverse (X/Z)	787/708 ipm	787/708 ipm
Spindle Nose	A2-8	A2-8
Spindle Speed	3,000 rpm	3,000 rpm
Main Motor	25 hp	25 hp
Live Tooling	no	no
Tailstock	yes	yes
Y Axis	no	no
Sub Spindle	no	no

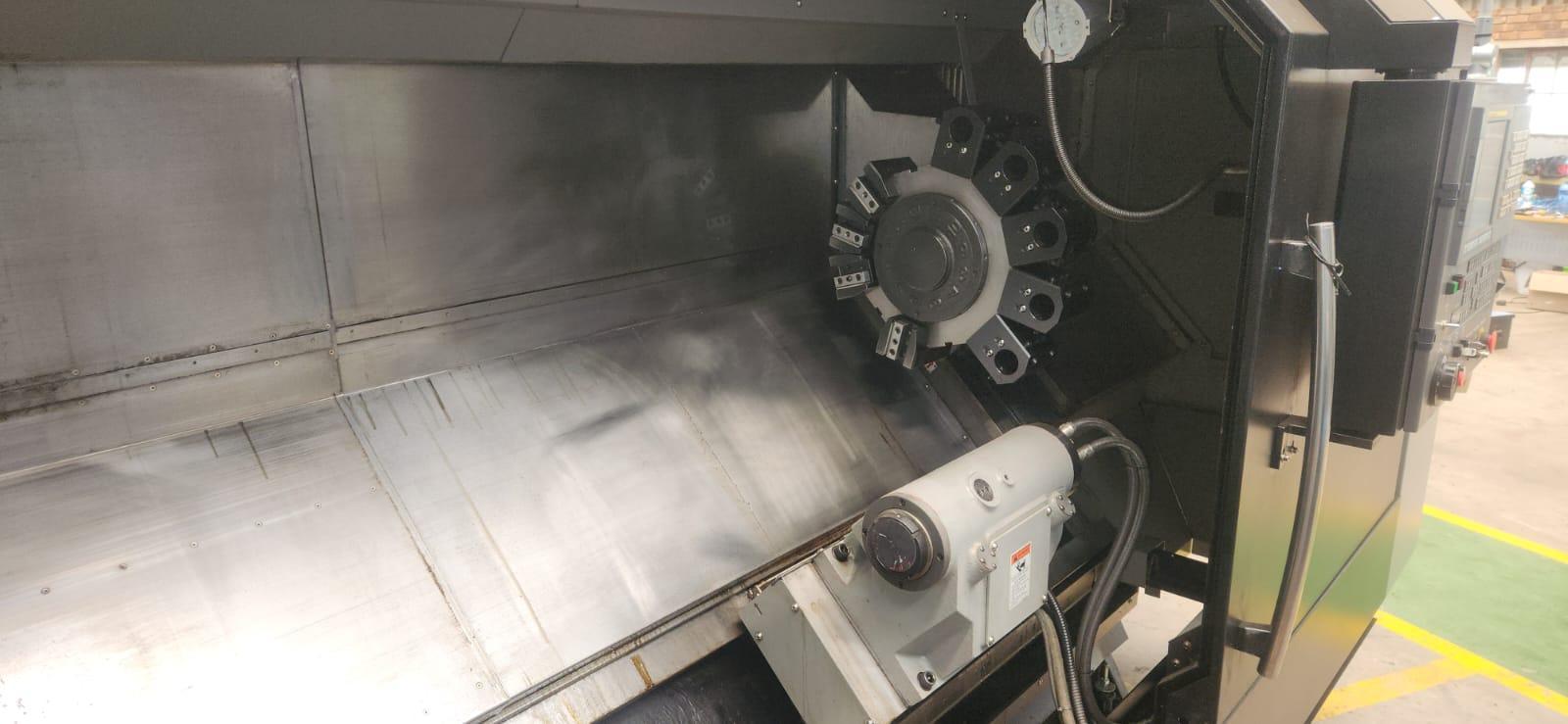

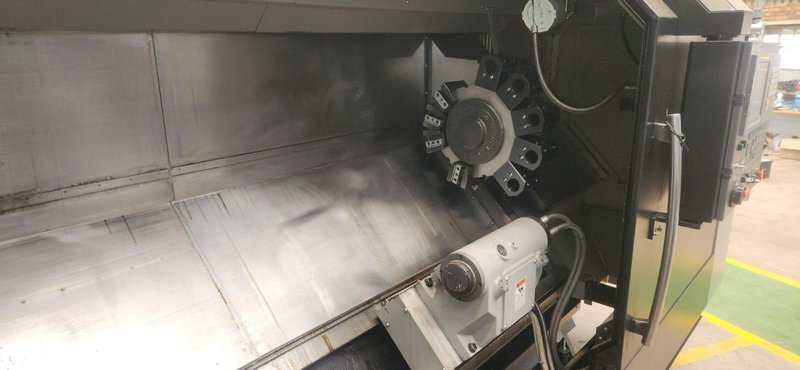

Turret Capacity	12	12
Machine Dimensions	210" (L-R) x 74" (F-B) x 86 (H)	210" (L-R) x 74" (F-B) x 86 (H)
Machine Weight	19000 lb	8,618.25 kg

No files or videos to display
