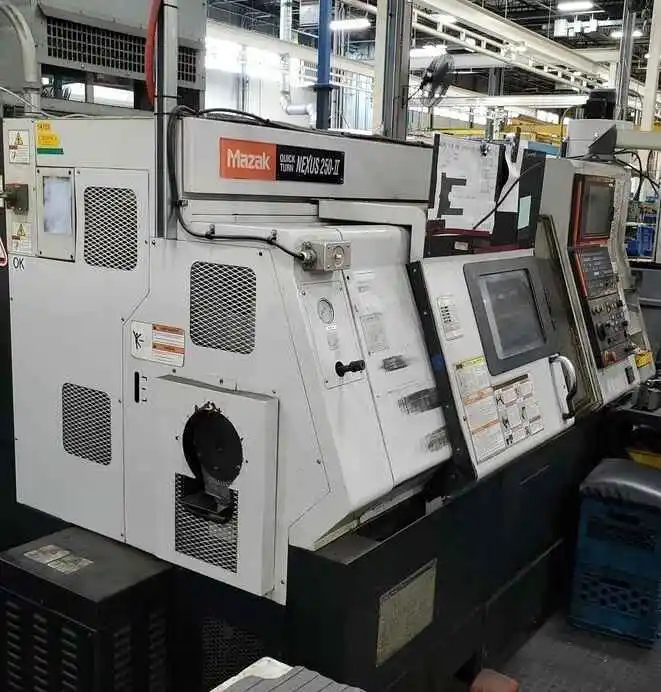

MAZAK QUICK TURN NEXUS 250-II

Max. Swing ....................... 26.57"
Max Turning Diameter ............. 18.73"
Spindle Bore/Max Bar Capacity .... 3.46" / 3.0"
Z Travel ......................... 20.25"
X Travel ......................... 7.5"
Machining Length ................. 19.85"

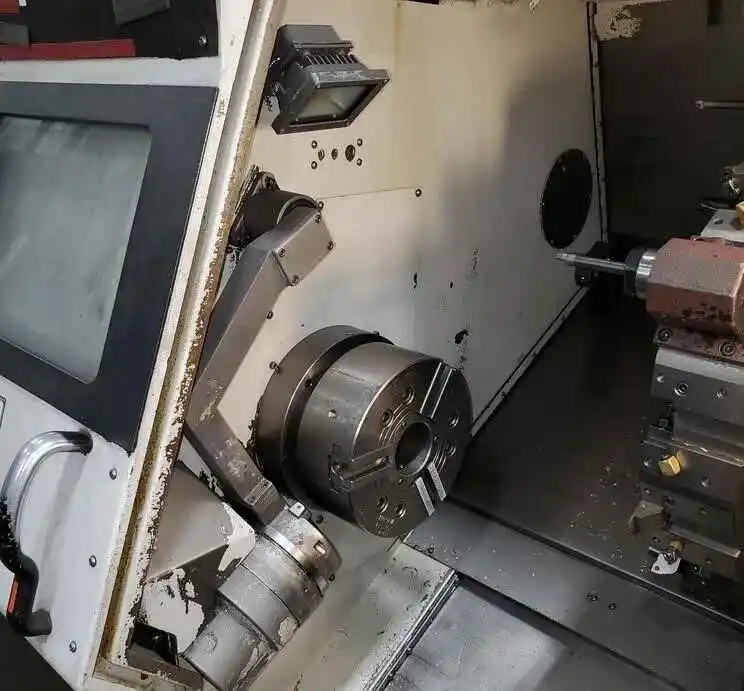

Chuck Size ....................... 10"
Chuck Type ....................... Hydraulic
Spindle Motor .................... 35 hp
Spindle Speeds (RPM) ............. 4000
Spindle Bore/Bar Capacity ........ 3.46 in
Max. Bar Capacity ................ 3.06"

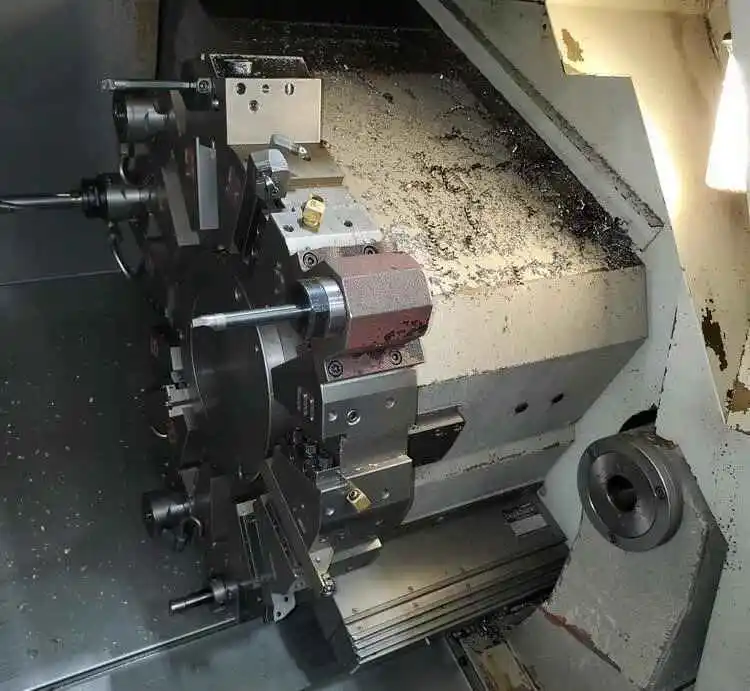

Turret Tool Positions ............ 12
Tailstock ........................ Yes
Chip Conveyor .................... Yes
Parts Catcher .................... No
Control .......................... CNC (MAZATROL MATRIX NEXUS)
Dimensions ....................... 108" x 74" x 75" (w/o Conveyor)
Weight ........................... 11,000 lbs

Equipped With::

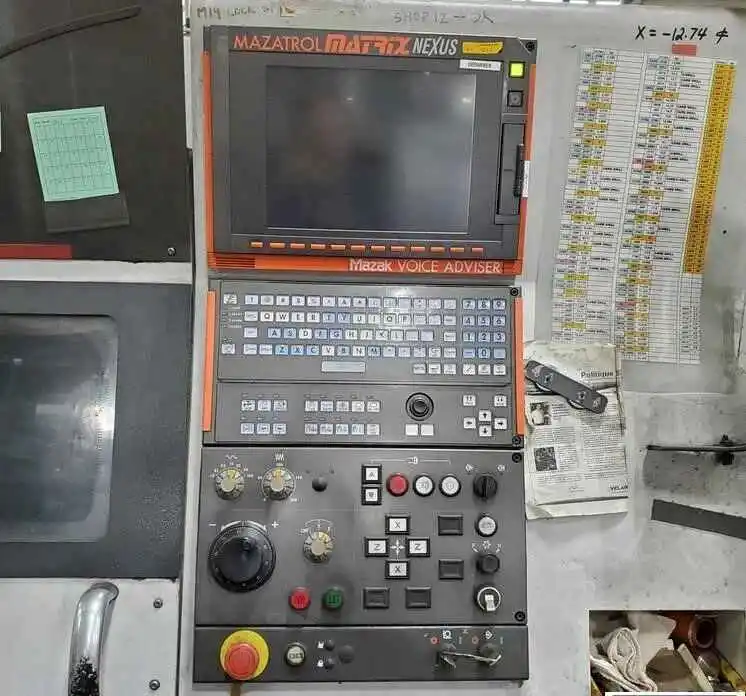

MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
EIA/ISO INPUT FUNCTION
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE MANUALS
MISC SELECTION OF TOOL HOLDERS (NOT ALL IN PHOTO AVAILABLE)

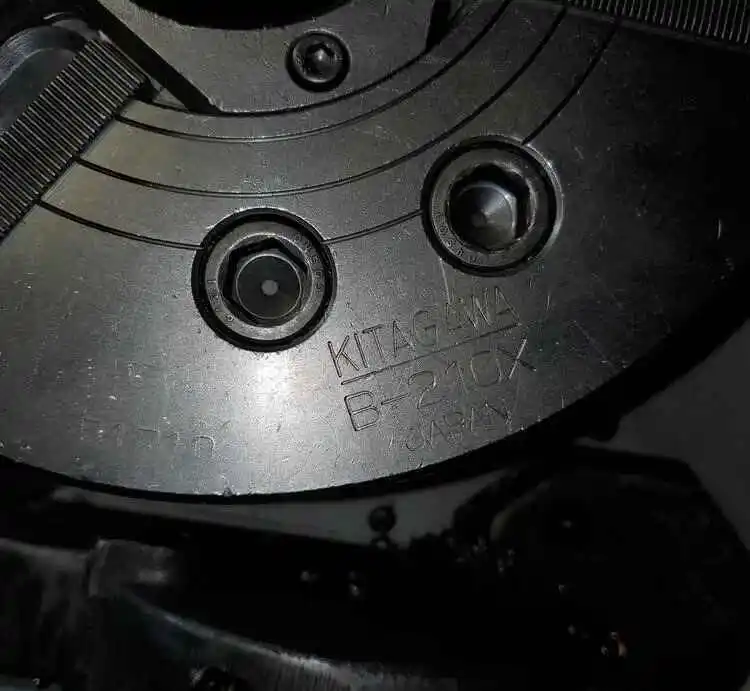

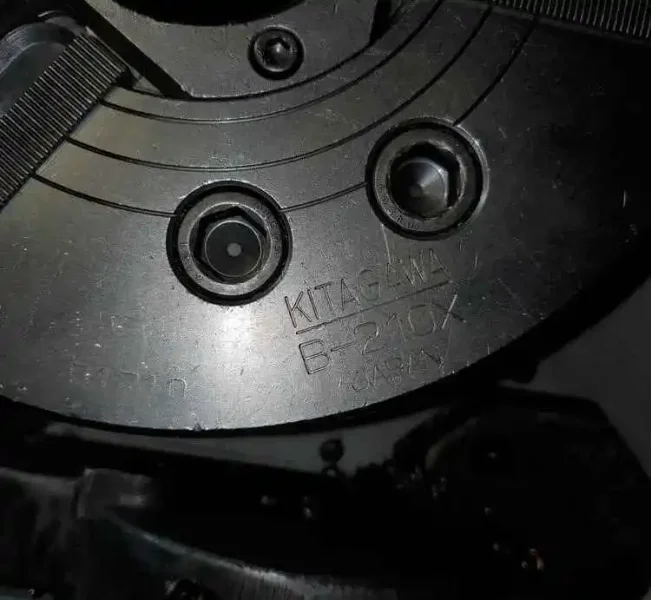

10" 3 JAW HYDRAULIC CHUCK
