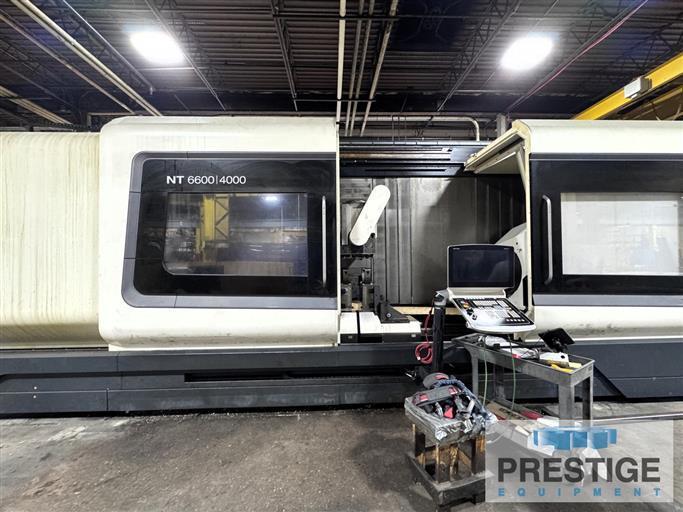

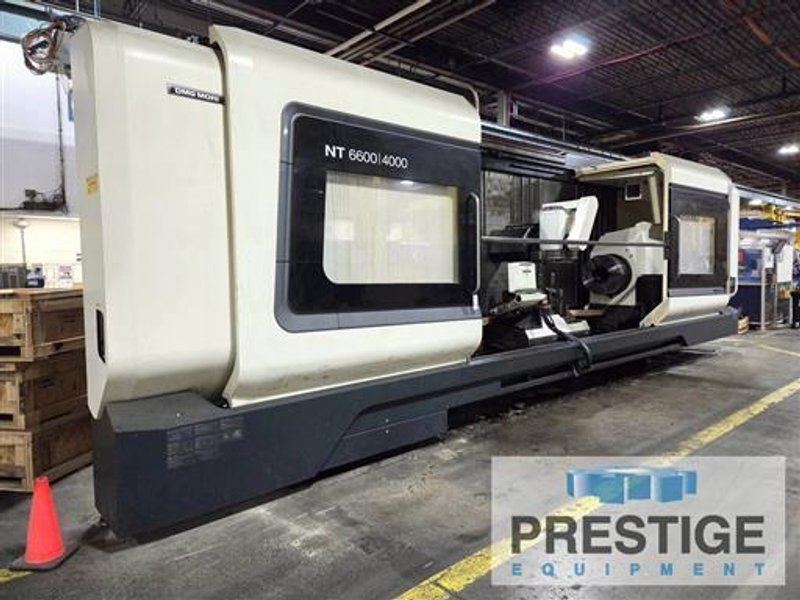

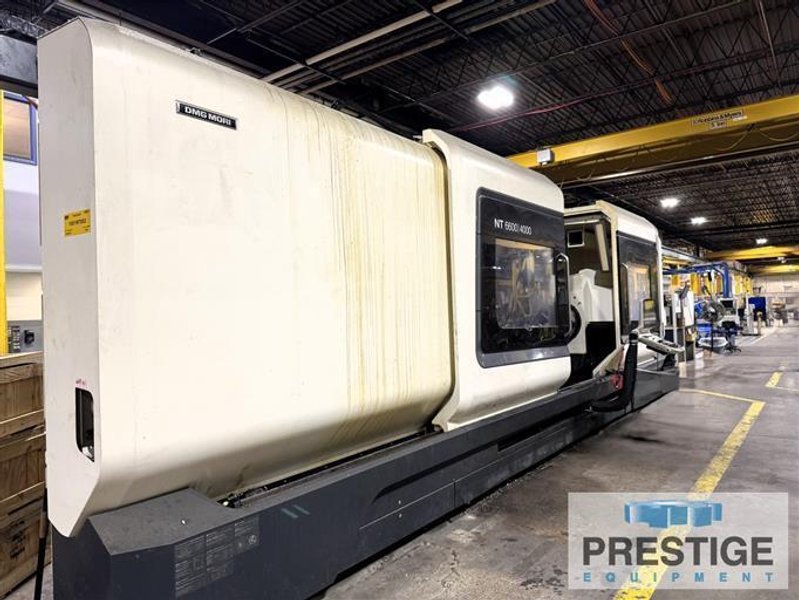

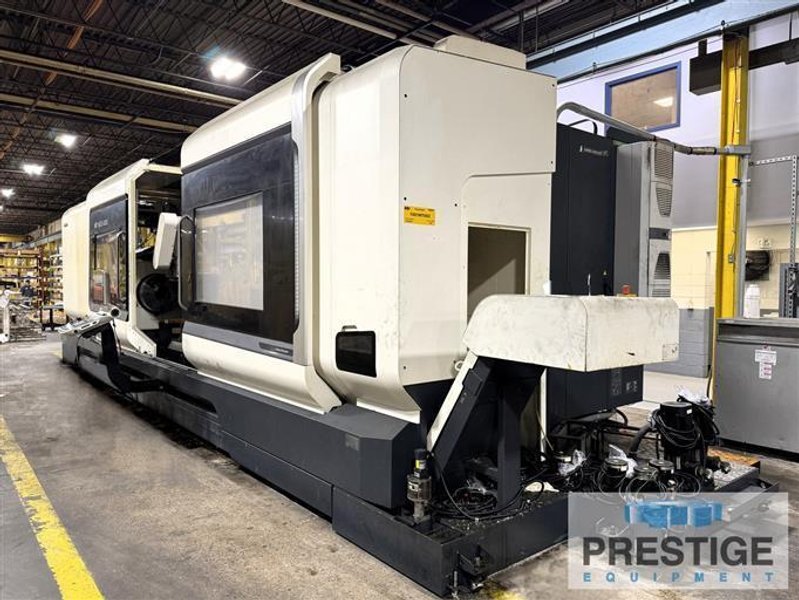

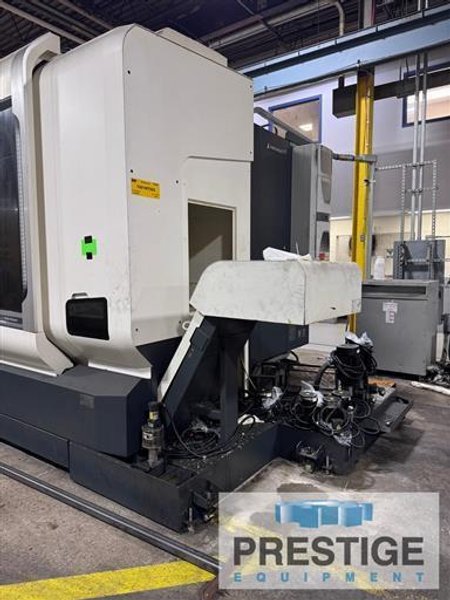

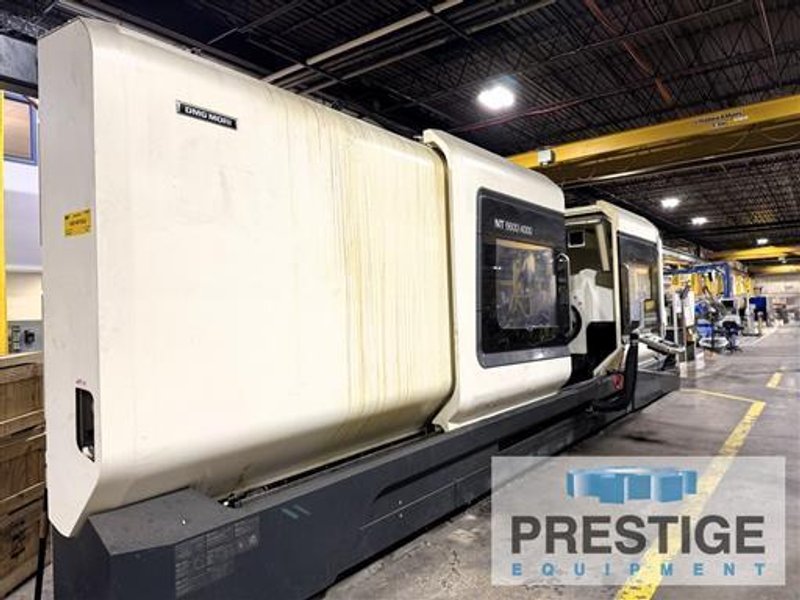

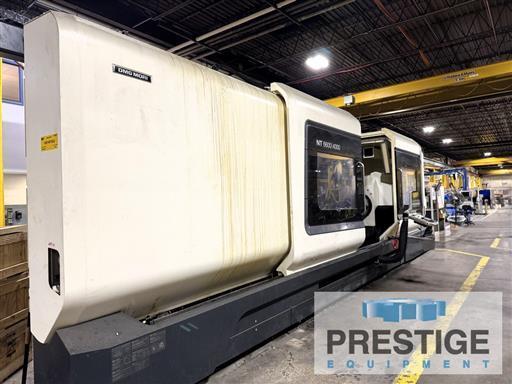

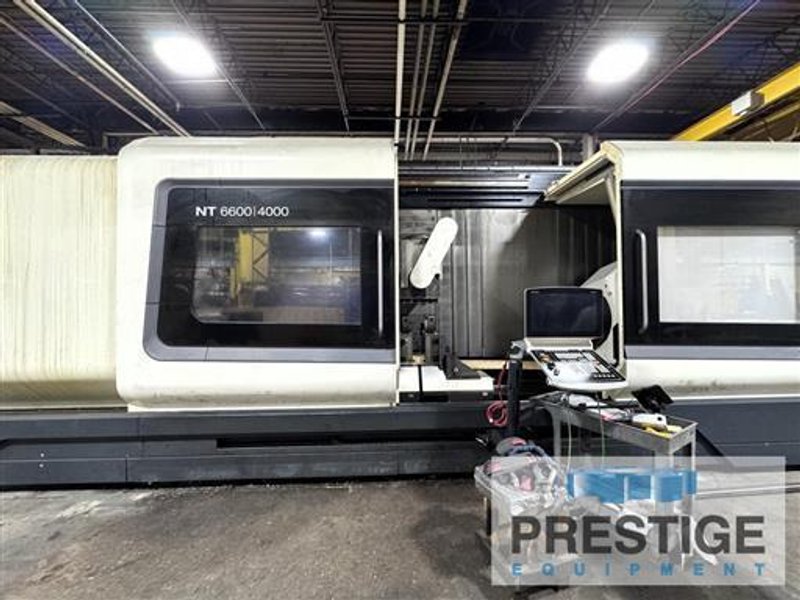

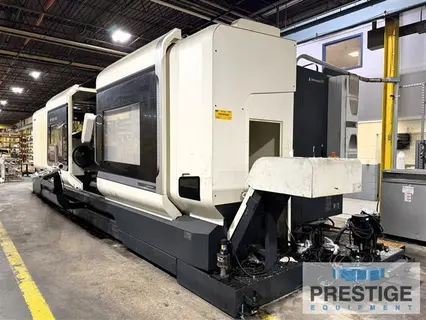

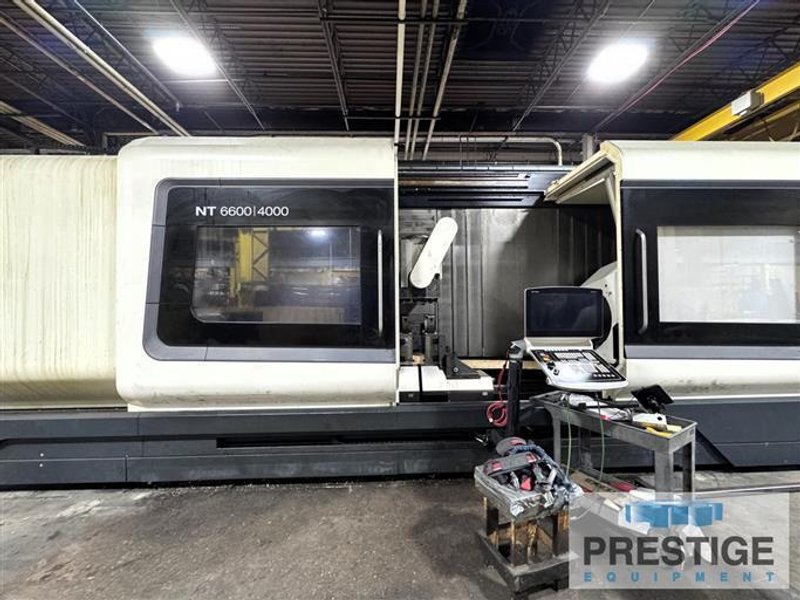

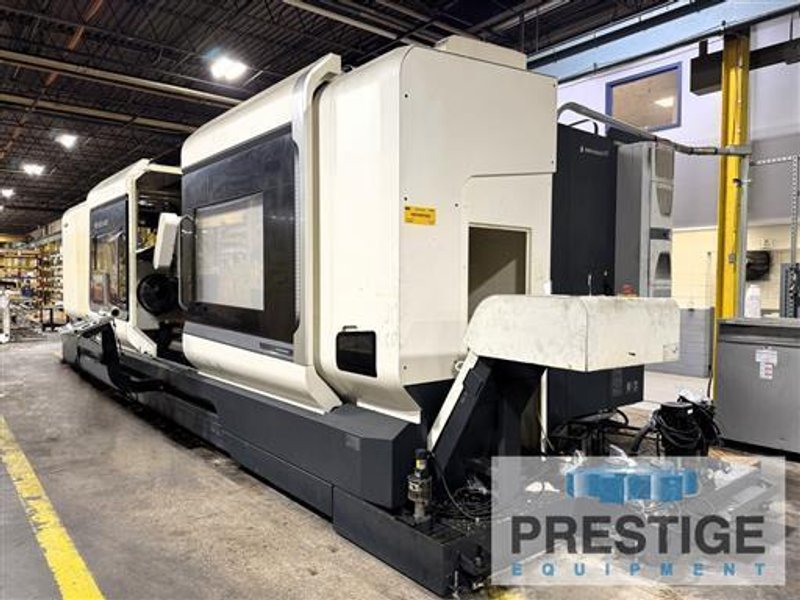

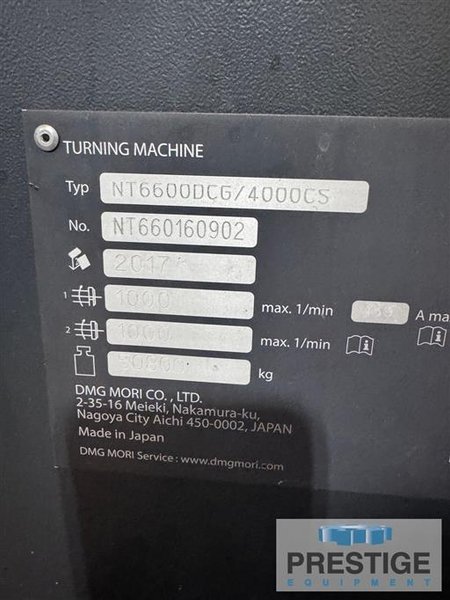

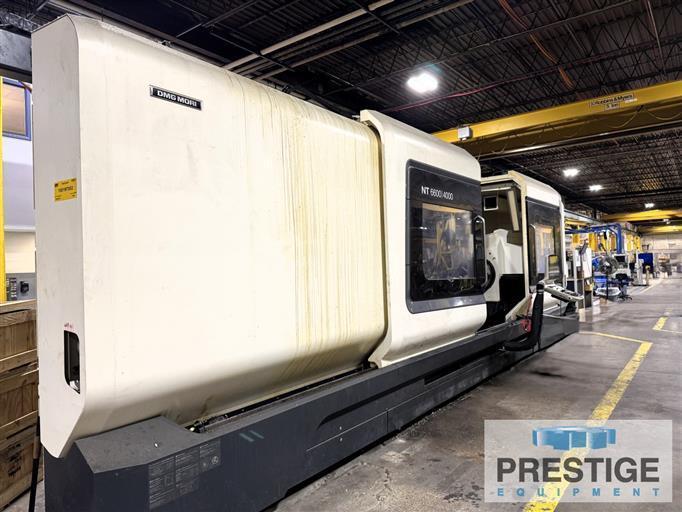

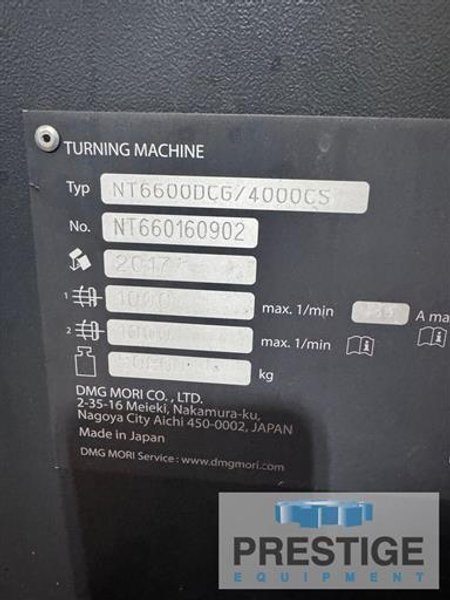

DMG Mori NT6600DCG/4000CS CNC Turning & Milling Center

CAPACITIES:
Maximum Turning Diameter 42.1"
Maximum Turning Length 160.4"
X-Axis Travel 40.9"
Y-Axis Travel 26.0"
Z-Axis Travel 163.4"
B-Axis Tool Spindle Rotation Range +/-120 Degrees
C-Axis Indexing, Spindles 1 & 2 0.001 Degree
Max. Work Weight, Chucking 15,400 Lbs
SPINDLES 1 & 2:
Chuck Size, Each Spindle 24" Kitagawa Hollow Chuck
Chuck Type, Each Spindle B24A2021A + F2511H-21A
Max. Spindle Speed, Each Spindle 1000 RPM
C-Axis Rotation, Each Spindle 0.0001 Degrees
Thru-Spindle Hole Dia., Each Spindle 10.8"

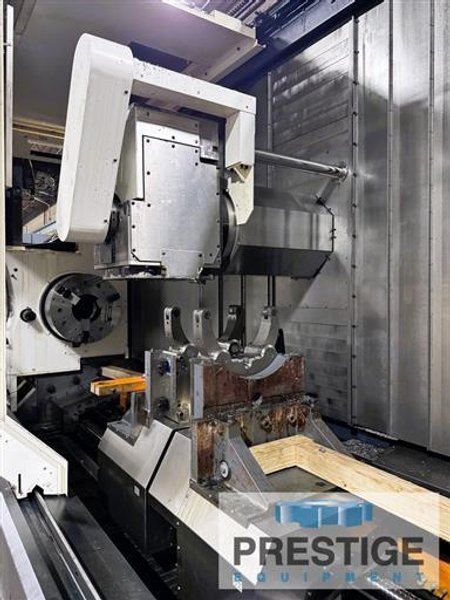

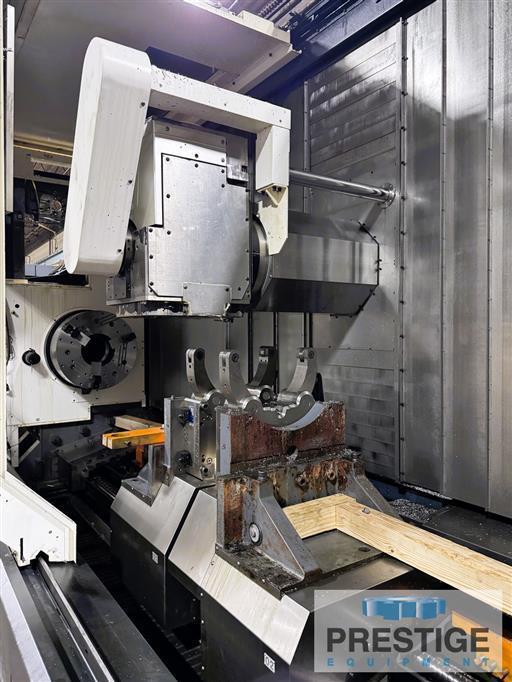

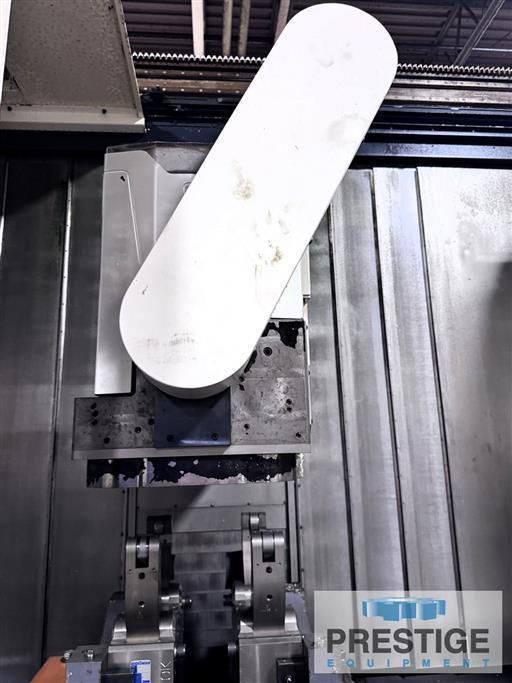

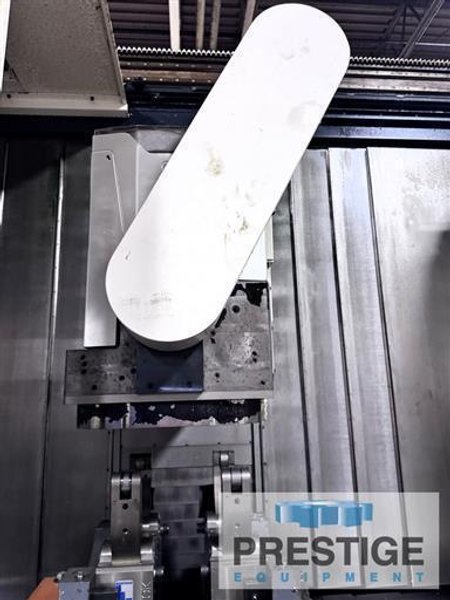

TOOL SPINDLE:
X1-Axis Travel 40.9"
Y-Axis (Long Boring Bar Specs) +/-12.9"/+12.9"/-11.0"
Z1-Axis Travel 163.3"
B-Axis Rotation Range +/-120 Degrees
Minimum Indexing Increment 0.0001 Degree
Maximum Tool Spindle Speed 8000 RPM
Ram Configuration Octagonal
Ram Diameter 17.7"
TOOL CHANGER:
Tool Storage Capacity 140 ATC
Spindle Taper CAPTO 8
LONG BORING BAR CHANGER:
Maximum Diameters Of Holders 3.14", 3.94", and 4.72"
Maximum Length of Holders 50.39"

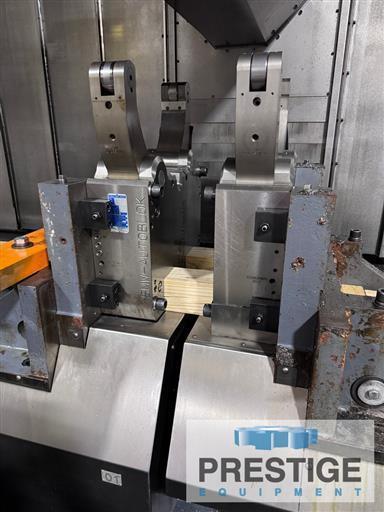

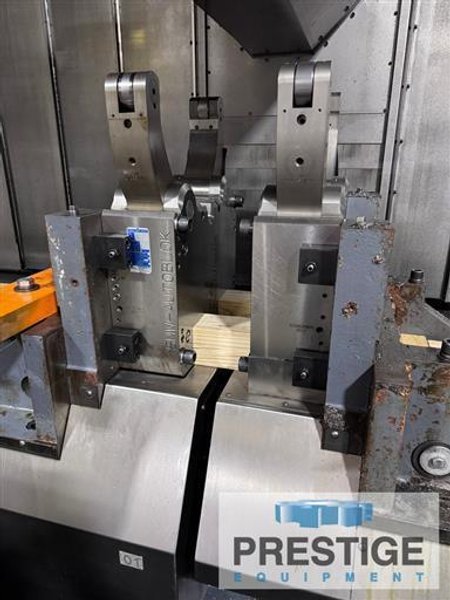

STEADY RESTS:
Number of Steady Rests 2
Steady Rest Type Programmable
XA Steady Rest Travel 118.11"
XB Steady Rest Travel 157.48"
RAPID TRAVERSE RATES:
X-Axis 131.2 FPM
Y-Axis 98.4 FPM
Z-Axis 105 FPM
CNC CONTROL:

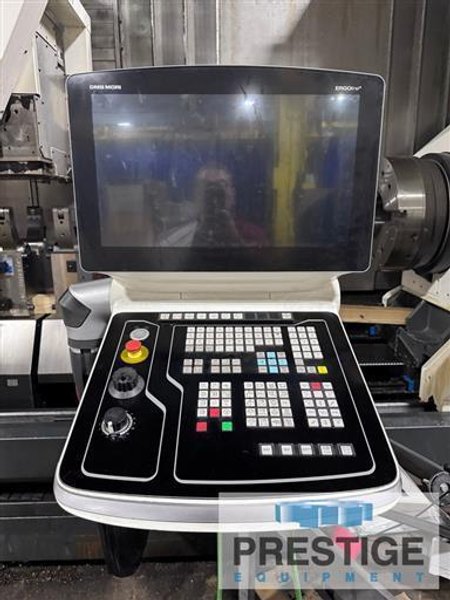

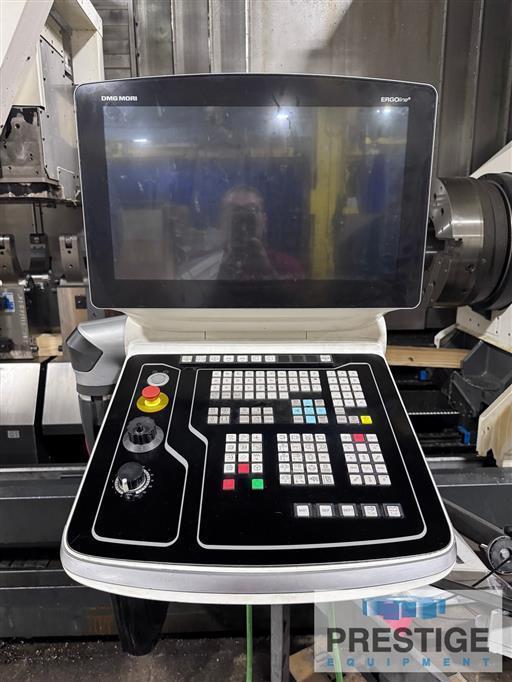

Siemens 840D CNC Control with Celos
Technology Cycle Eccentric Turning & Milling Station
Technology Cycle 5-Axis Simultaneous Machining
Technology Cycle for application an Alternating Speed
Technology Cycle Multi-Threads
Technology Cycle Easy Tool Monitor F.CNC Siemens



Equipped With:
Siemens 840D CNC Control with Celos
2-Axis Tool Spindle
140-Position Automatic Tool Changer
3-Position Automatic Long Boring Bar Changer

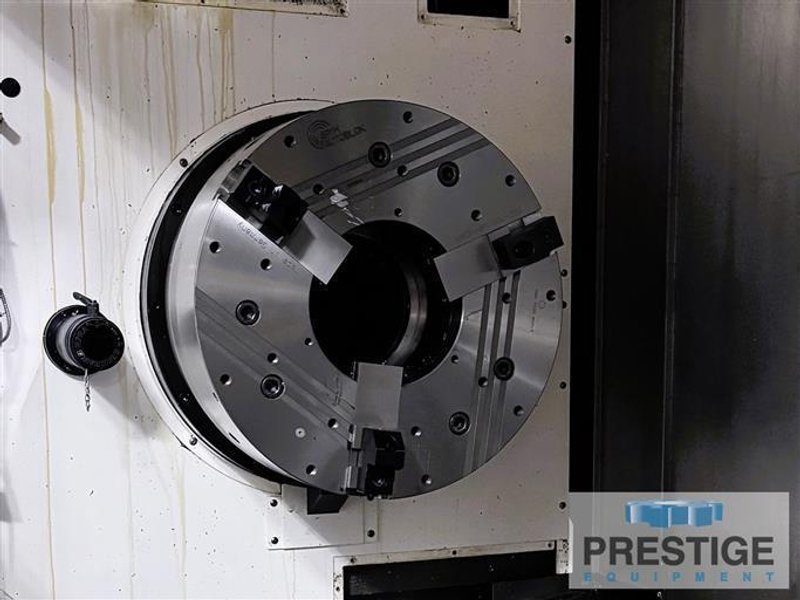

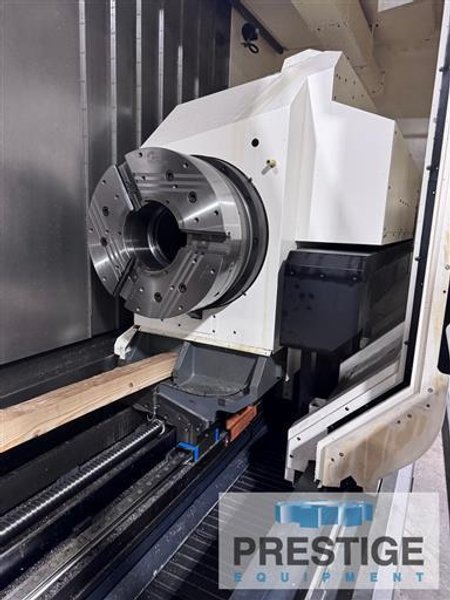

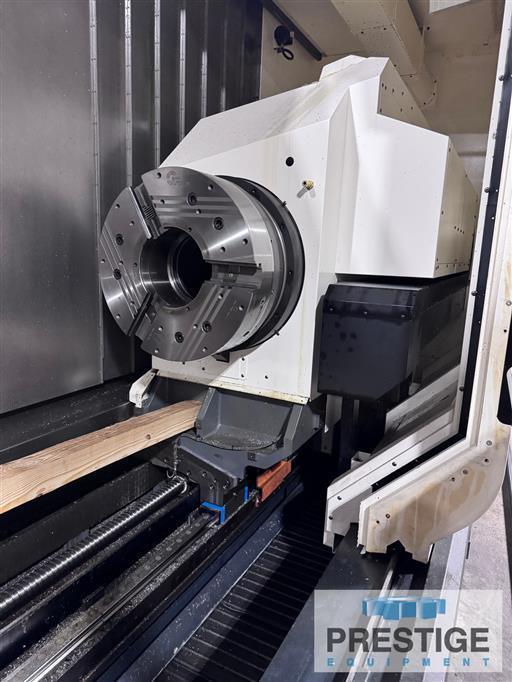

24" Kitagawa 3-Jaw Hollow Chuck On Spindles 1 & 2

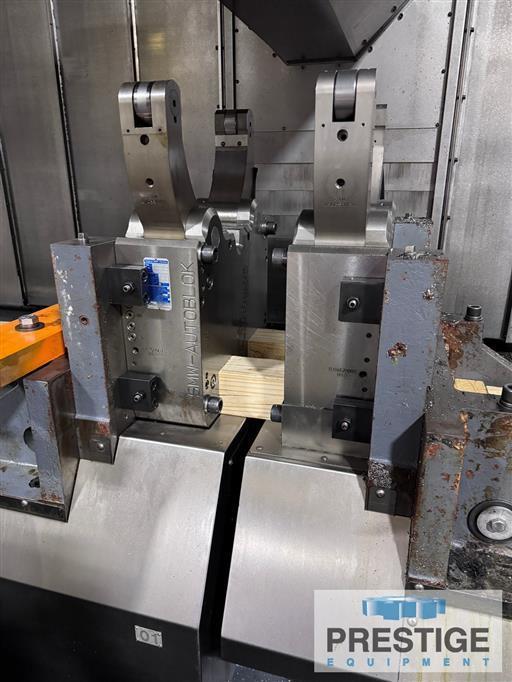

Double Programmable Hydraulic Steady Rests
Renishaw Touch Sensor

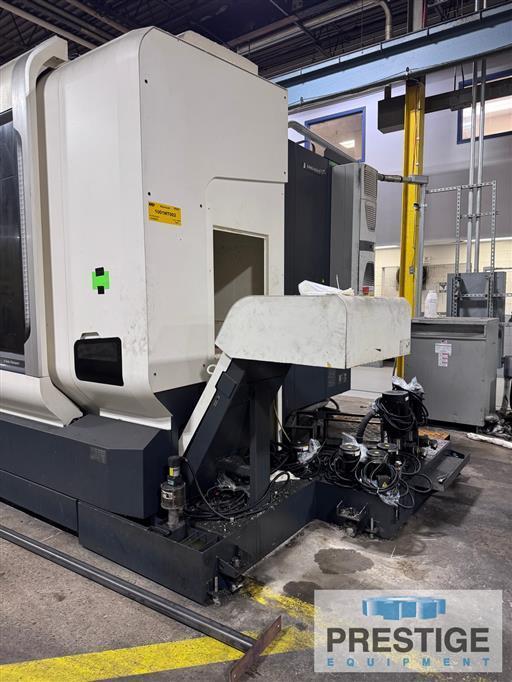

Chip Conveyor
(2) Mist Collectors
