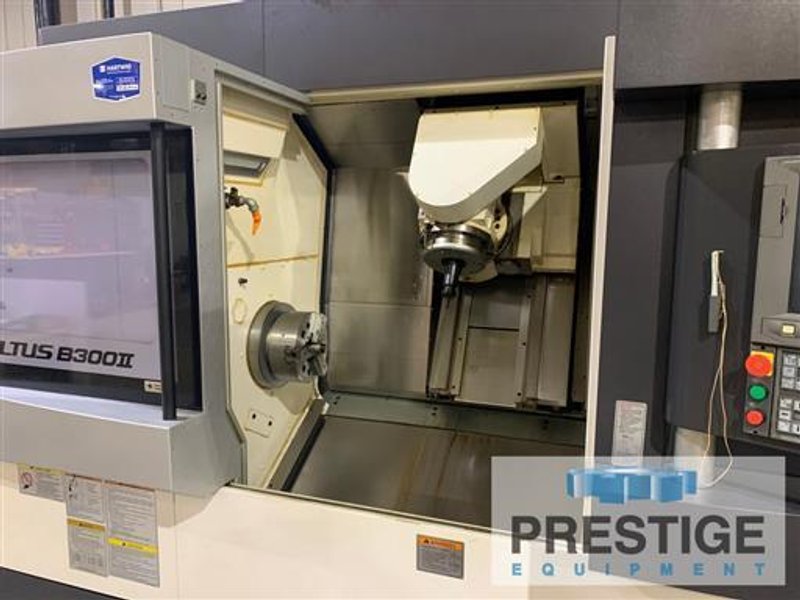

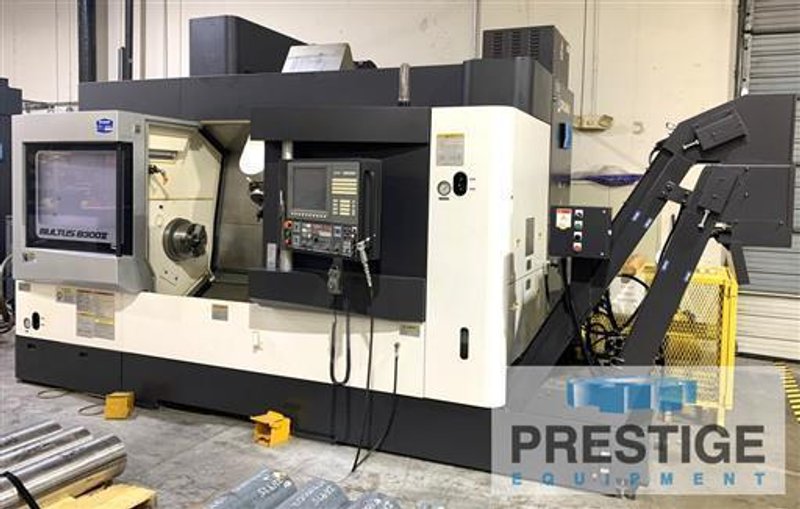

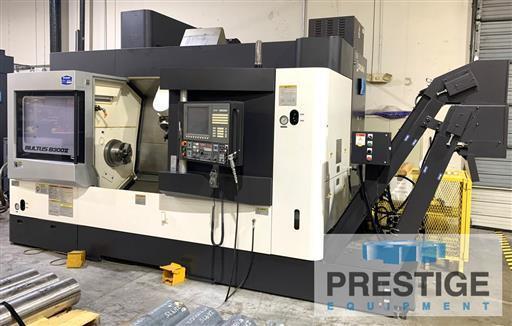

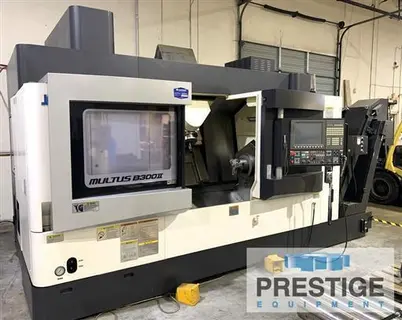

Okuma Multas B300II CNC Turning Center

SPECIFICATION:
Swing Over Bed 24.8"
Max. Turing Diameter 24.8
Distance Between Centers 35.43"
X-Axis Travel 22.83"
Z-Axis Travel 36.81"
Y-Axis Travel 6.3"
W-Axis Travel 39.37"
C-Axis Travel .001 degrees
B-Axis Travel .001 degrees
Milling Spindle Speeds 50-6,000 RPM
Milling Spindle Motor 20 HP/ 15 HP (15 KW/11 KW)
Milling Spindle Taper HSK 100
Main Spindle Speed, 2-Ranges 38-3,800 RPM
Main Spindle Motor,.................... 30 HP / 20 HP 30 HP / 20 HP
Main Spindle Indexing .001 degrees
Opposing Spindle Speed, 2-Ranges 45-5,000 RPM
Opposing Spindle Motor 20 HP / 15 HP
Opposing Spindle Indexing .001 degrees
Approximate Machine Footprint 159" x 91"
Approximate Machine Height 102"
Approximate Machine Weight 22,000 lbs



Equipped With:

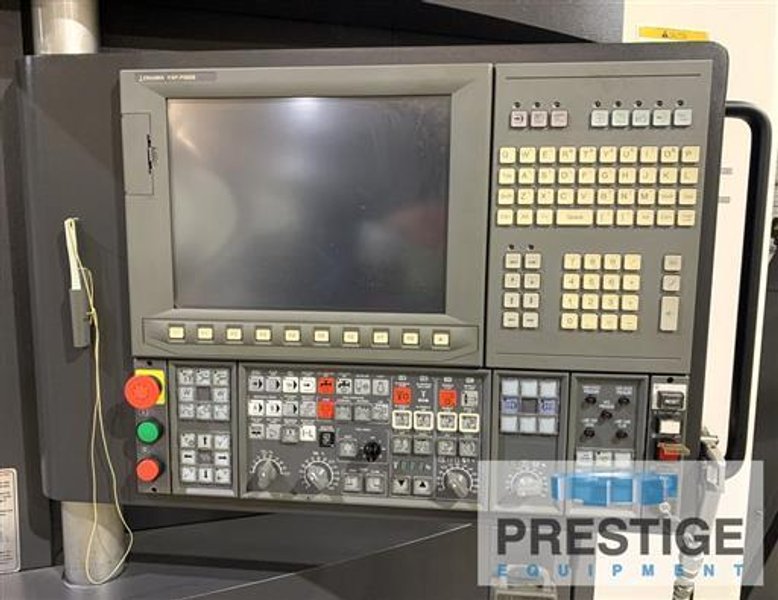

Okuma OSP-P300S CNC Control
Opposing Spindles
Milling Spindle
20-Station Tool Changer
Coolant System


NOTE: Inspect in Plant Under Power!


Hours: 102 Cutting Hours
