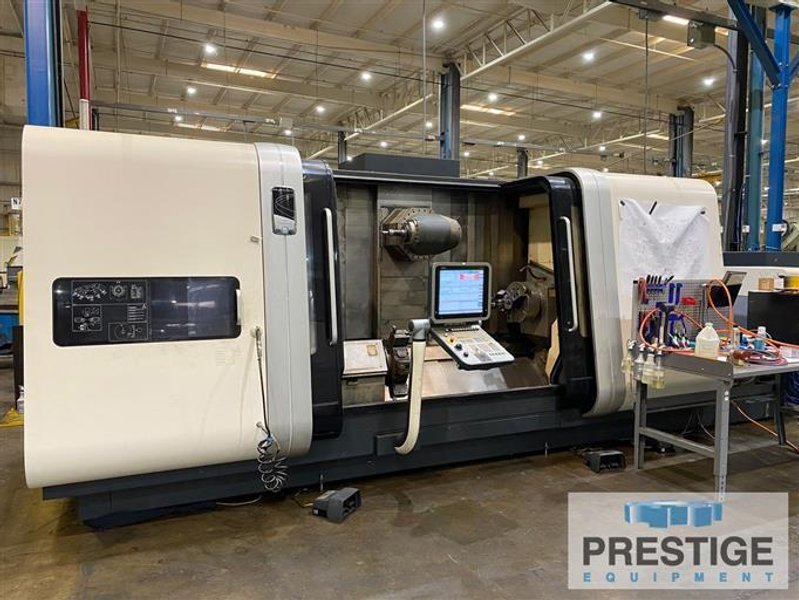

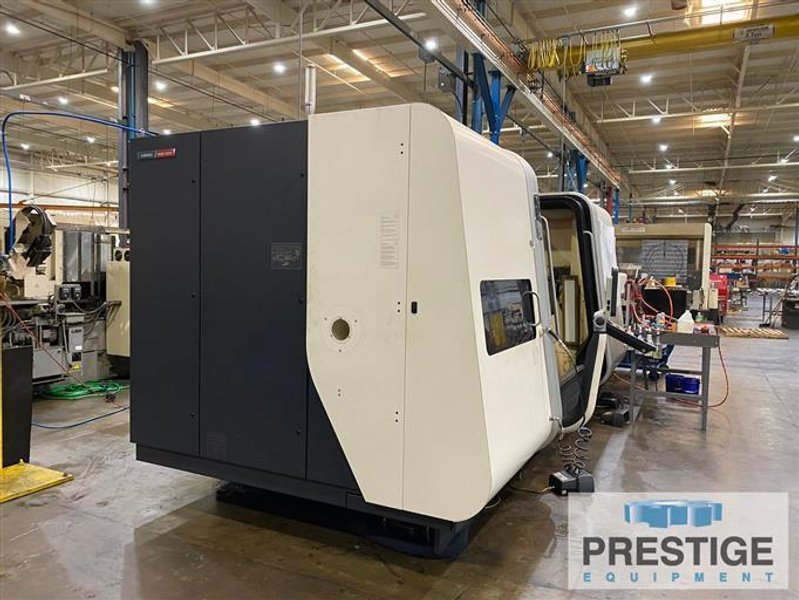

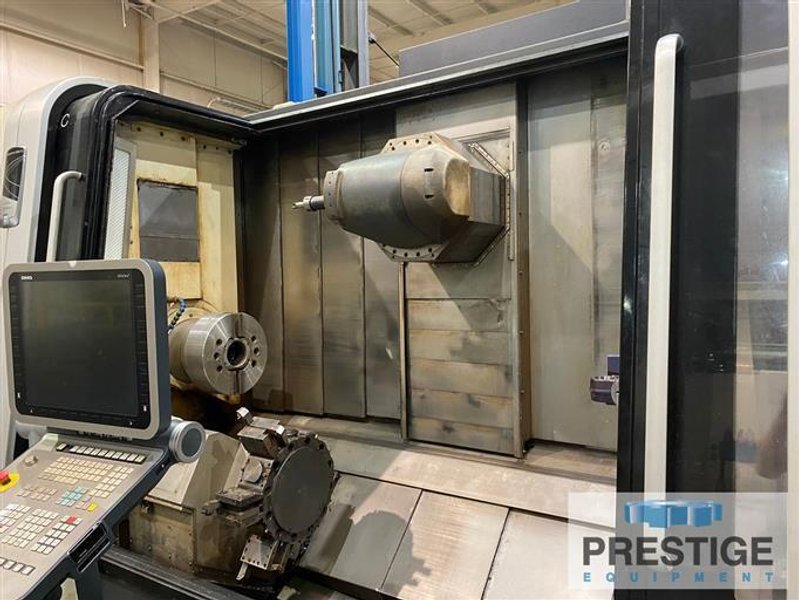

CAPACITY:
Maximum Workpiece Diameter 27.6"
Maximum Workpiece Length 78.74"
Maximum Bar Capacity 4.1"
X1 Travel 25.59"
Y1 Travel +/-7.87"
Z1 Travel 80.70"
Z2 Travel 75.19"
Z3 Travel 75.19"
B-Axis +/- 0.001 Degrees

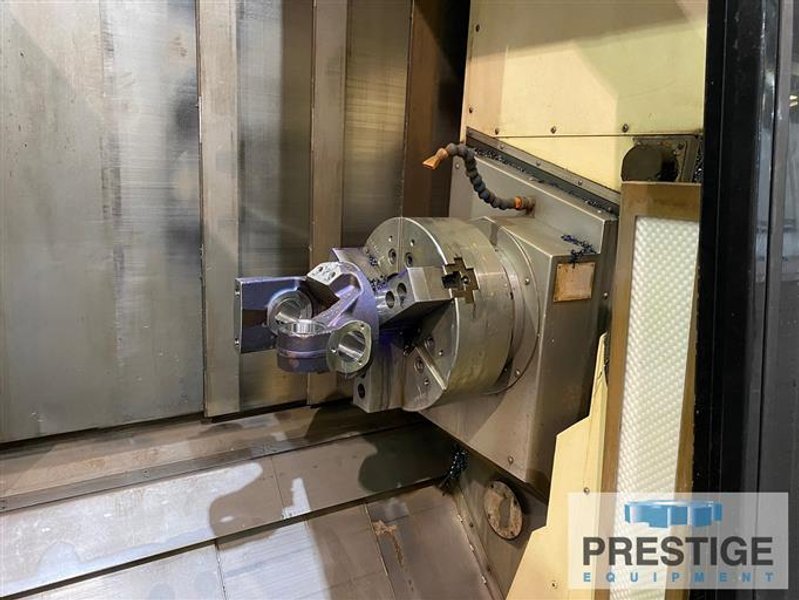

MAIN SPINDLE:
Chuck Size 20"
Maximum Speed 2,500 RPM
Motor Output (30 minute rating) 70 HP

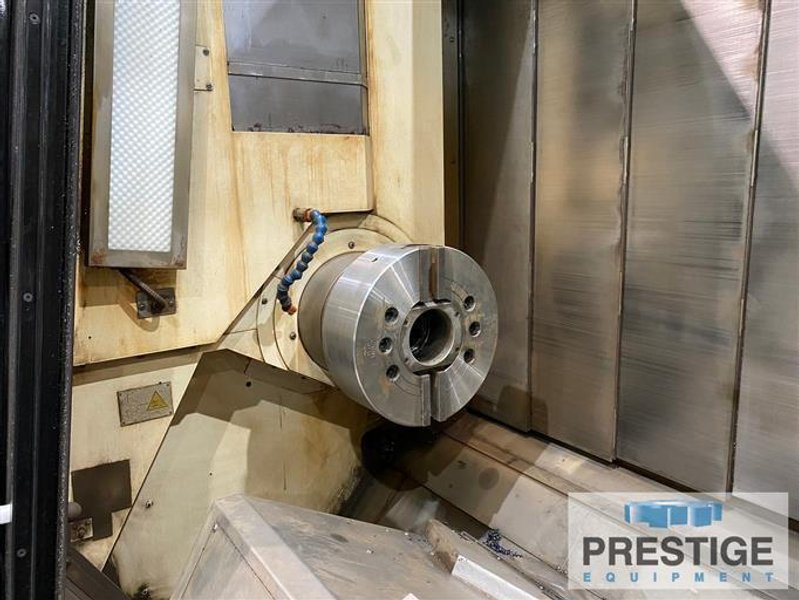

SECOND SPINDLE:
Chuck Size 13"
Maximum Speed 4,000 RPM
Motor Output (30 minute rating) 61 HP

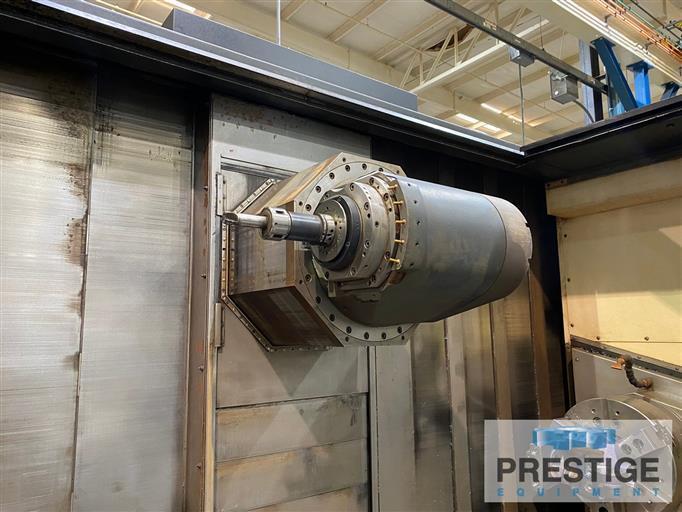

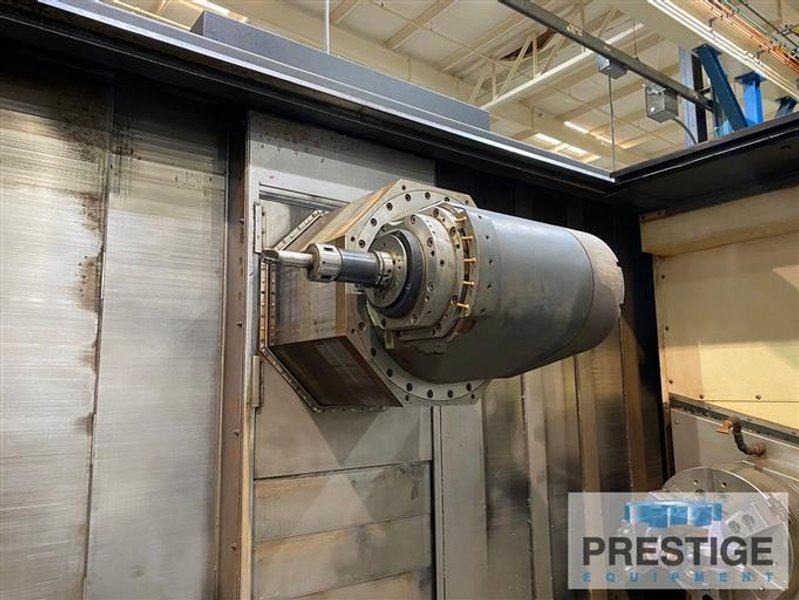

MILLING SPINDLE:

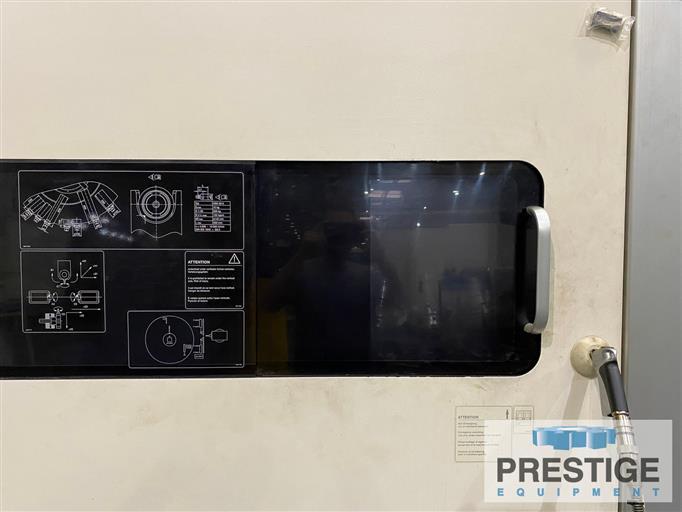

B-Axis Travel 240 Degrees
Tool Magazine 36 ATC
Tooling HSK63
Maximum Speed 8,000 RPM
Motor Output 43 HP
Approximate Dimensions 299" x 166" x 100"
Approximate Weight 52,910



Equipped With:

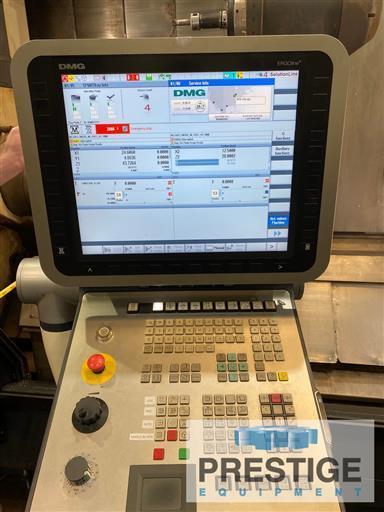

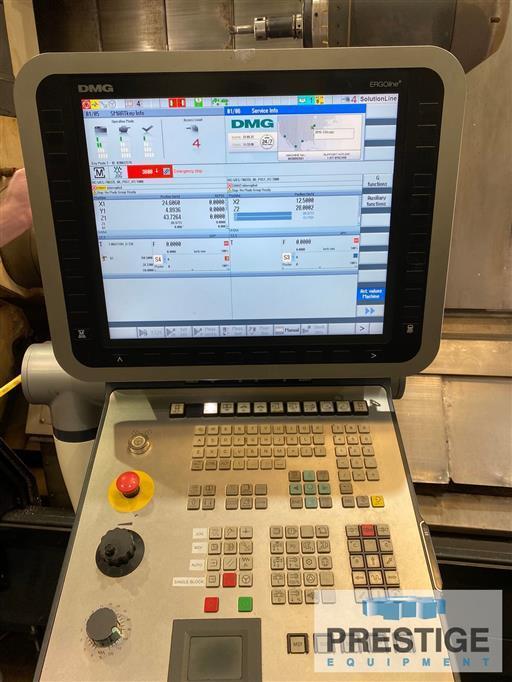

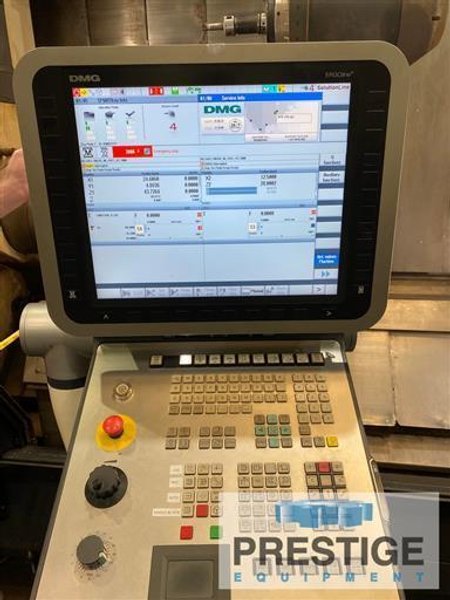

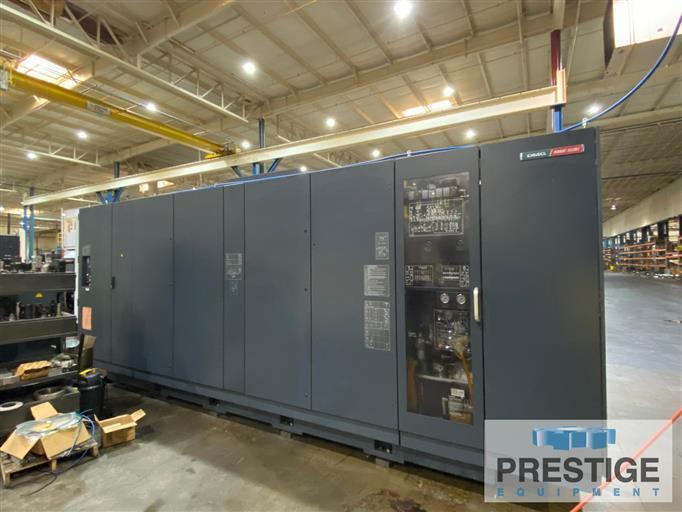

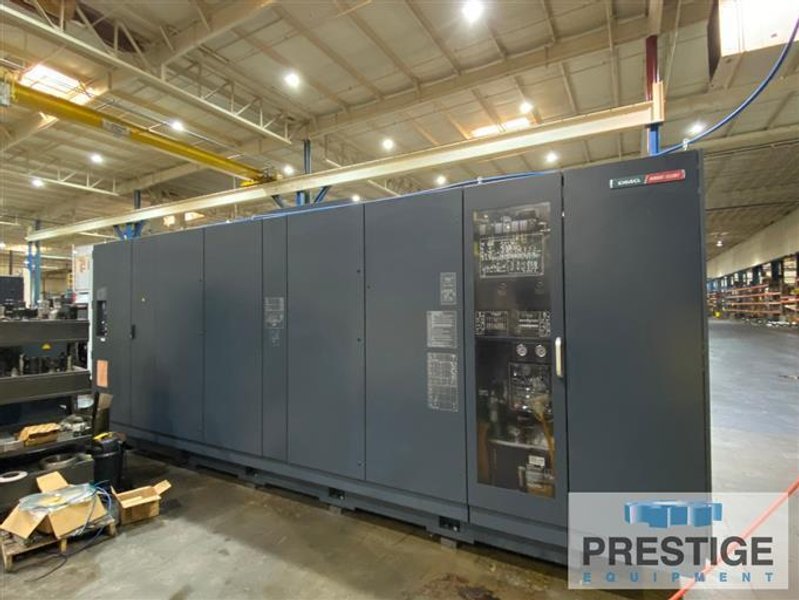

Siemens 840D CNC Control
Main & Counter Spindles
15" Chuck on Main Spindle
18" Chuck on Counter Spindle

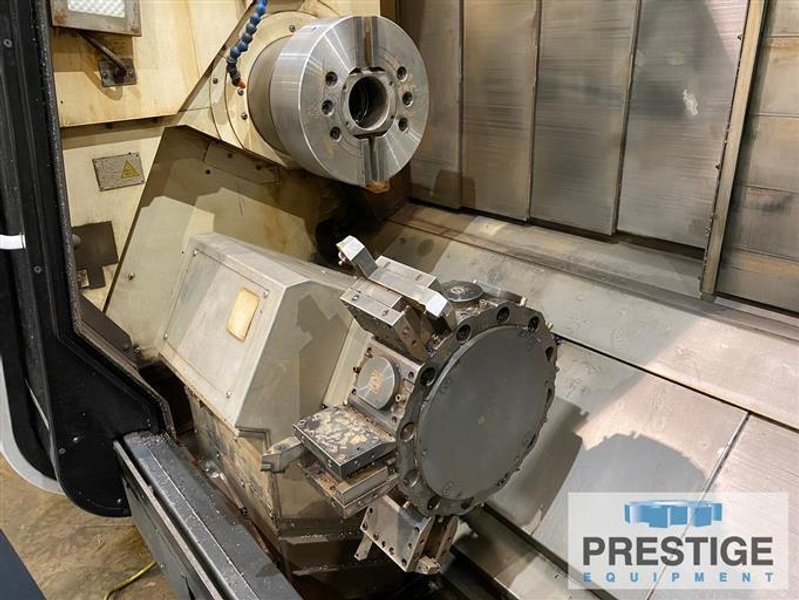

Lower Turret

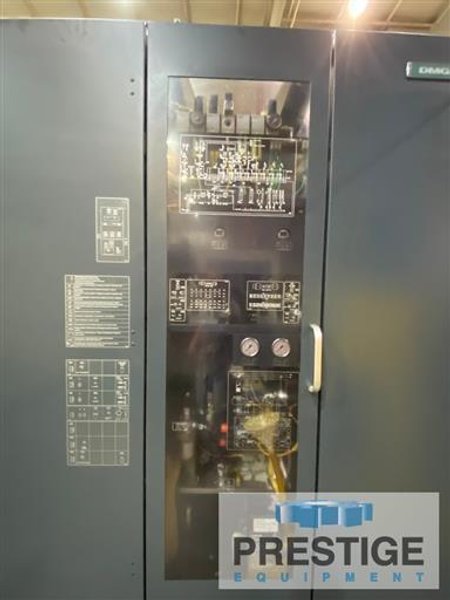

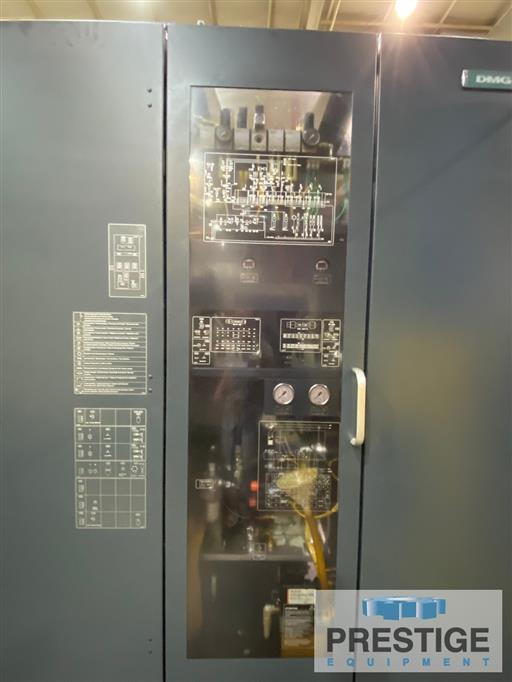

High Pressure Coolant System

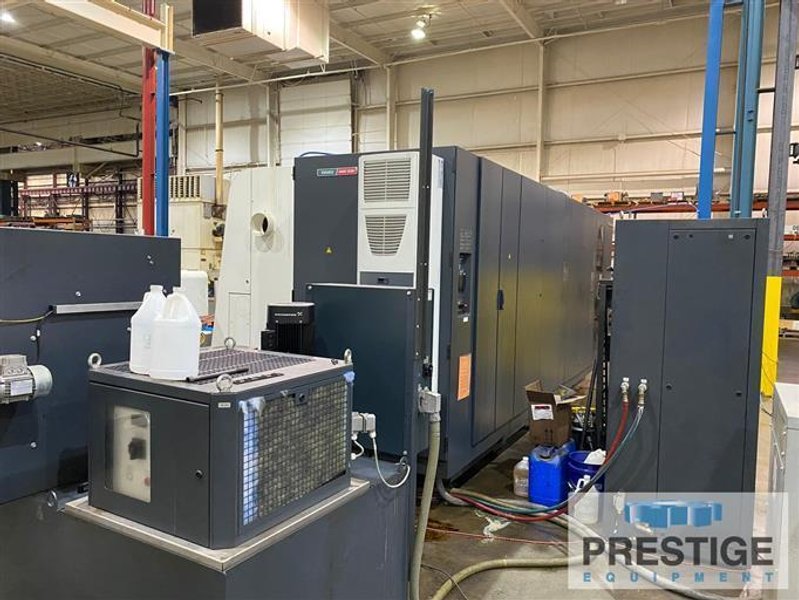

Factory Coolant Chiller
Dual CTS 300 PSI & 1000 PSI Pumps
Balanced Pressure Clamping for Main and Sub-Spindles
Flushing of Chucks, Steady Rest, Way Covers
Chiller System, Cooling of the Milling/Turning Spindle and Counter Spindles
Sub Spindle as Tailstock Option with Programmable Movement and Force
36 Station Automatic Tool Changer
Automatic Cabin Doors

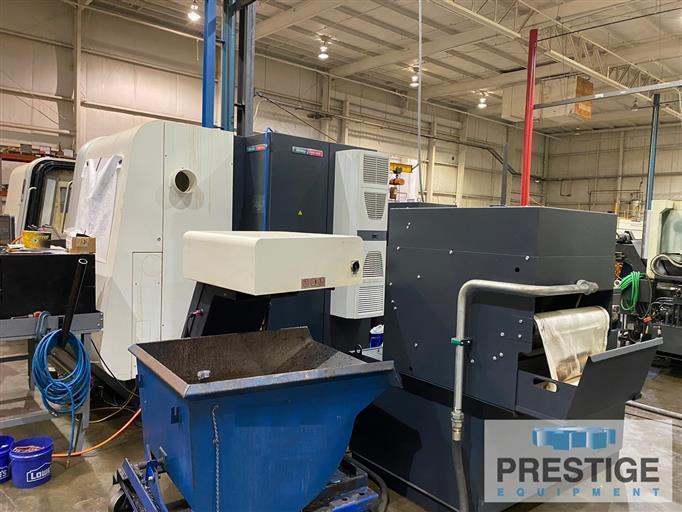

Chip Conveyor
Tooling


NOTE: Machine in Plant Under Power. Was used for 5-Axis Machining of Prototype Parts
