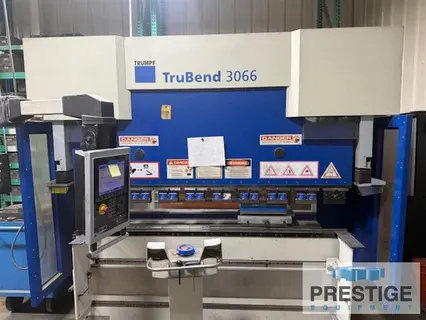

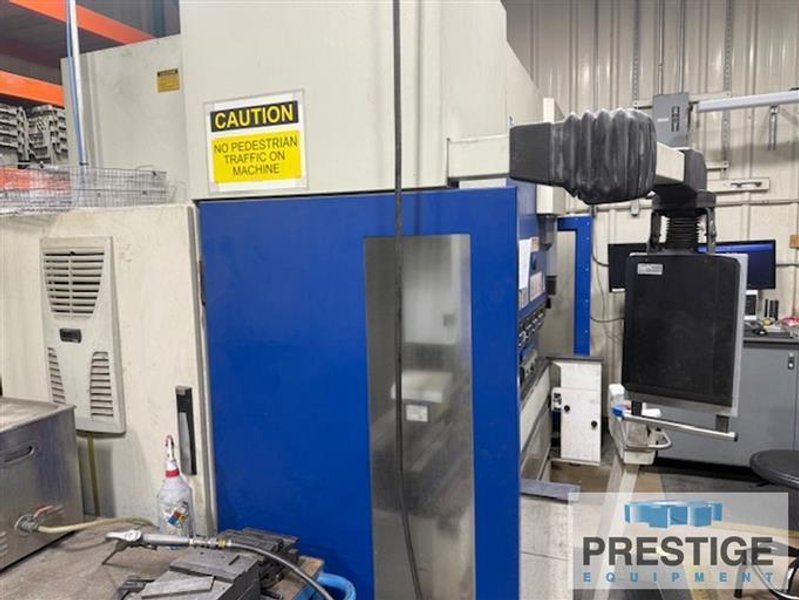

Trumpf 66 TON TruBend 3066 Press Brake

Brand
TRUMPF
Category
Automation, Motors & Drives
Type
Hydraulic & Pneumatic Brakes
Model
TruBend 3066
Stock #
44605
Year
2008
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
Tonnage Capacity 73 Tons
Maximum Bending Length 82"
Distance Between Housings 69"
Stroke Length 7.87"
Open Height 14"
Closed Height 5.9"
Rapids, Y-Axis 200MM / Sec
Feeds, Y-Axis 15MM /sec
Throat Depth 16.5"
Press Speed (Rapid Advance) 472 IPM
Press Speed (Bending) 35 IPM
Press Speed (Return) 472 IPM
Main Motor 10 HP
Approximate Weight 12,500 lbs.
Approximate Floor Space 102" X 69"
Approximate Height 92"



Equipped With:

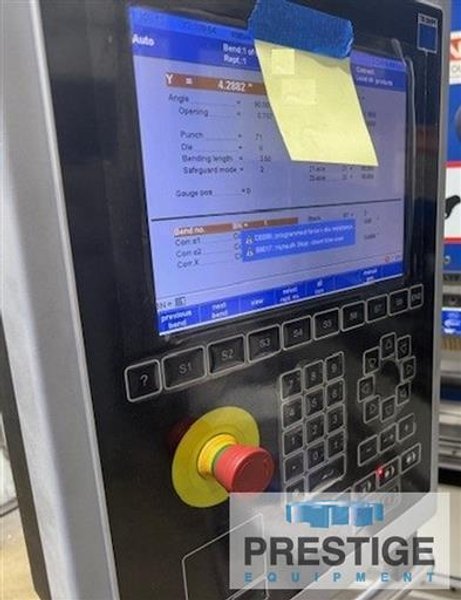

Delem Type T3000VA-2 Control
TRUMPF CNC MULTI-AXIS BACK GAUGE
PALM BUTTONS MOUNTED ON PEDISTAL STATION
FOOT PEDAL
