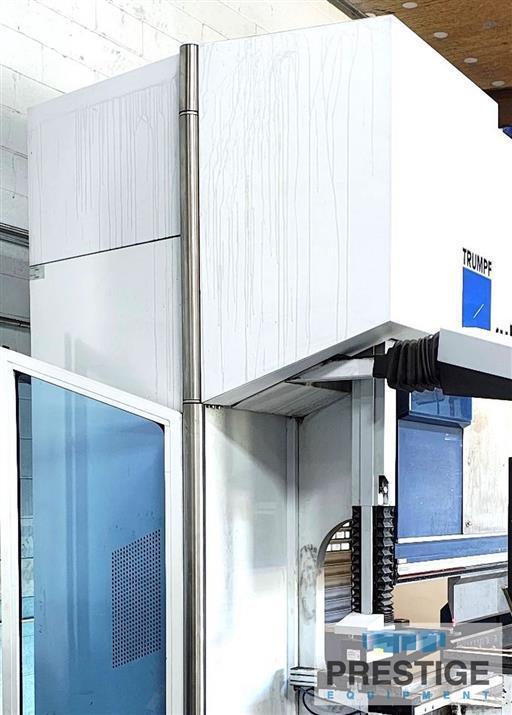

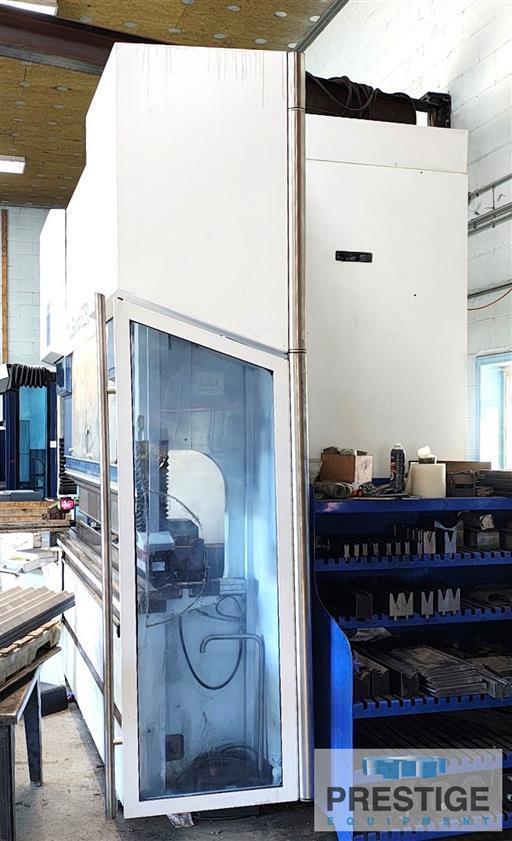

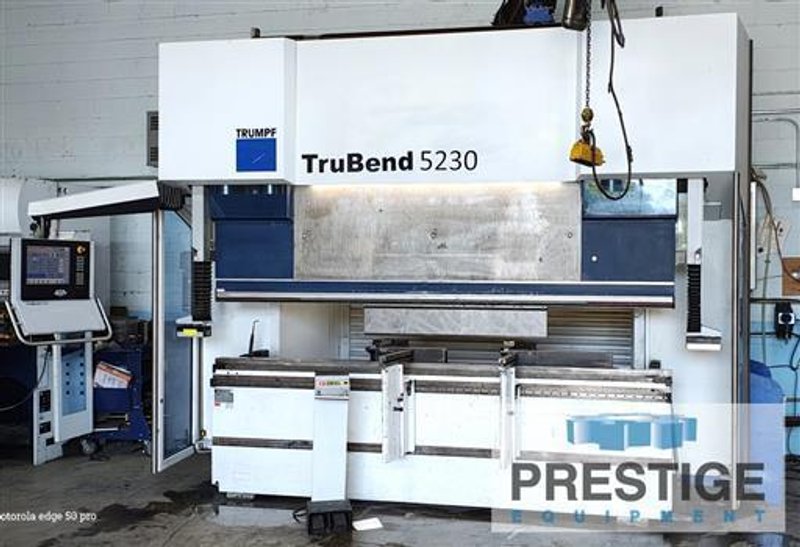

Trumpf TruBend 5230 253 Ton x 10' CNC Hydraulic Press Brake

Brand
TRUMPF
Category
Automation, Motors & Drives
Type
Hydraulic & Pneumatic Brakes
Model
TruBend 5230
Stock #
43708
Year
2014
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
Tonnage Capacity 253 Tons
Maximum Bending Length 127.16"
Distance Between Housings 105.90"
Stroke 17.52"
Throat Depth 16.55"
Y-Axis Speed, Rapid Down 8.66” IPS
Y-Axis Speed, Press 0.0039" IPS
Y-Axis Speed, Rapid Up 8.66" IPS
Approximate Machine Weight 36,000 Lbs



Equipped With:

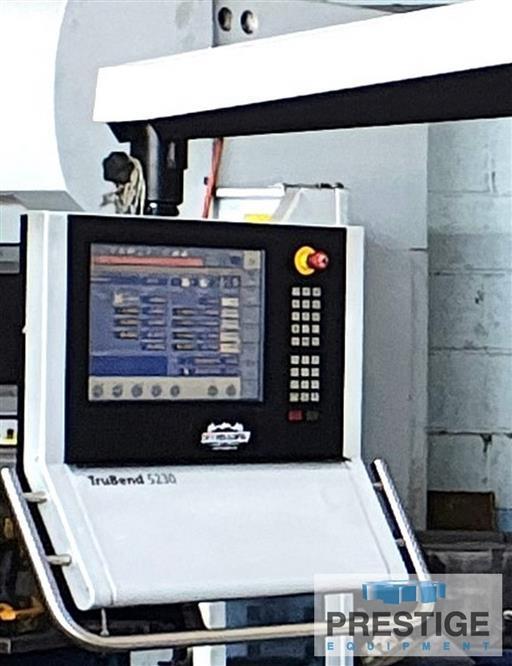

Trumpf 6000 Multi Axis CNC Control
(6) Axis CNC Back Gauge X1, X2, R1, R2, Z1, Z2
CNC Programmable Crowning

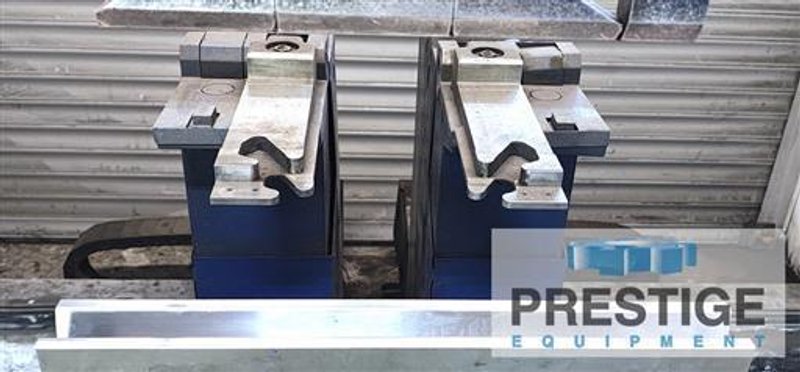

Upper & Lower Hydraulic Clamping
Electric Foot Controls
Pedestal Palm Button Controls
Laser Light Guards
Rear Safety Enclosure


NOTE: Inspect In Plant Under Power
