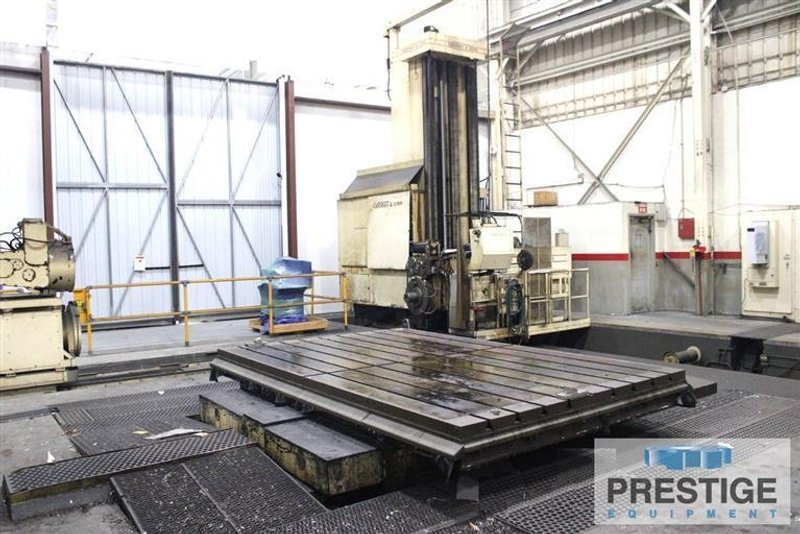

Giddings & Lewis H70-FX 7" CNC Floor Type Horizontal Boring Mill

SPECIFICATIONS:
Spindle Diameter 7"
Spindle Taper #50 ANSI B5.50
Automatic Tool Changer 60 Station
Vertical Headstock Travel, Y-Axis 144"
Column Travel, X-Axis 336"
Spindle Travel, Z-Axis 60"
Spindle Speeds, Variable 12-1800 RPM
Spindle Motor 75 HP
Machine Electrics 460/3/60

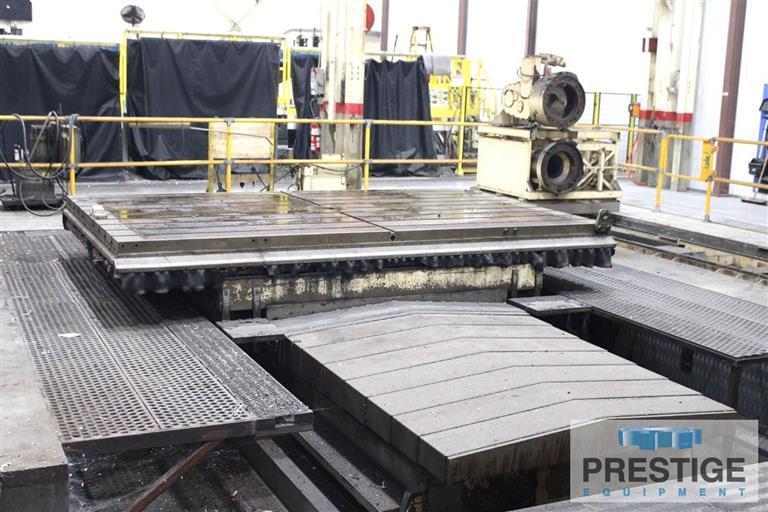

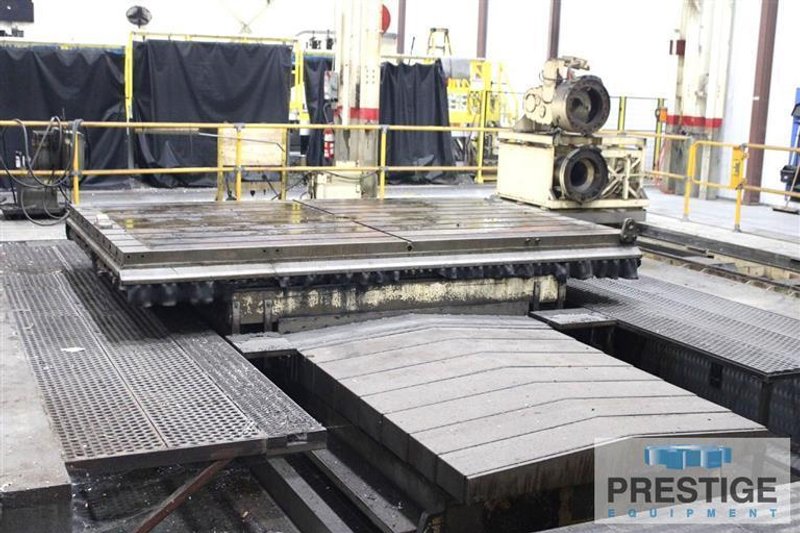

GIDDINGS & LEWIS B-AXIS ROTARY TABLE:
Table Size 98" x 157"
Table Infeed on Auxiliary Slide 83"
Table Weight Capacity 88,000 lbs
Table B-Axis Rotation, Power Milling .001 degrees
Rotary Table Positioning 360,000
Shot Pin Locations (4) 90 degrees

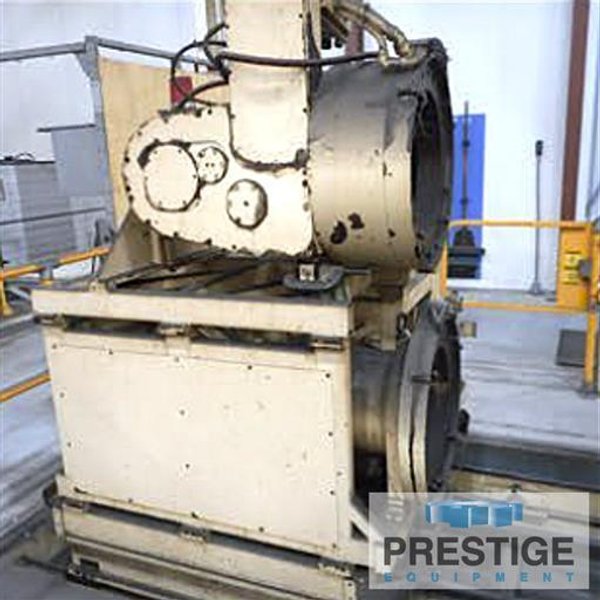

CNC 2-AXIS MILLING ATTACHMENT:
A-Axis Tilt Spindle +/- 120 Degrees
C-Axis Rotation +/- 180 Degrees
Spindle Speeds, Max 1800 RPM
Horse Power Rating of Gearing 30 HP
Sliding Attachment Storage Rack For A-Axis



Equipped With:

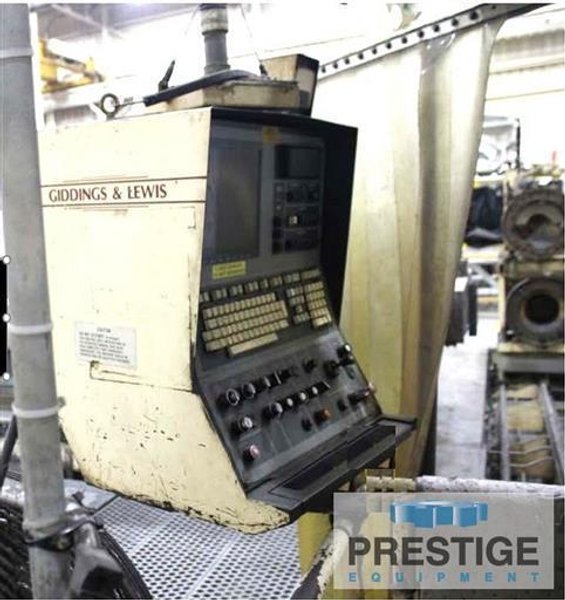

Giddings & Lewis 8000M CNC Control
60-Station Automatic Tool Changer
2-Axis CNC Milling Attachment
Model A Angular Milling Attachment w/42" Reach
98" x 157" B-Axis Rotary table
In-feeding Auxiliary Slide
High Pressure Thru-Spindle Coolant (60 PSI)
External Flood Coolant
Replaceable Hardened Column Ways
Roll-Up Way Covers for X-Axis Ways
Ballscrews on Y & Z Axis
Double Anti-Backlash Rack And Pinion On X Axis
3-Way Column with Hardened Replaceable Ways
Full Length Chip Conveyor
460V, 3-Phase, 60 Cycle


NOTE: Inspect in Plant Under Power
