SPECIFICATIONS:

Spindle Diameter 6"
Spindle Taper No.50 ANSI
X-Axis Column Travel 432"
Y-Axis Vertical Head Travel 79"/84"
Z-Axis Spindle Travel 36"
W-Axis Column Infeed 30"
Spindle Drive Motor 50 HP
Spindle Speed Range, Inf.Variable 12-2500 RPM
Feeds 0.1 to 100 IPM
Rapid Traverse, X-Axis 300 IPM
Rapid Traverse, Y-Axis 500 IPM
Feed Rates, X, Y & Z Axes 200 IPM
Electrics 480V 3Ph 60 Cycle

Equipped With:

Giddings & Lewis 8000M-B CNC Control
Right Angle Head
Independent AC Electric Servo Feed Drives
Infinitely Variable Spindle Speeds

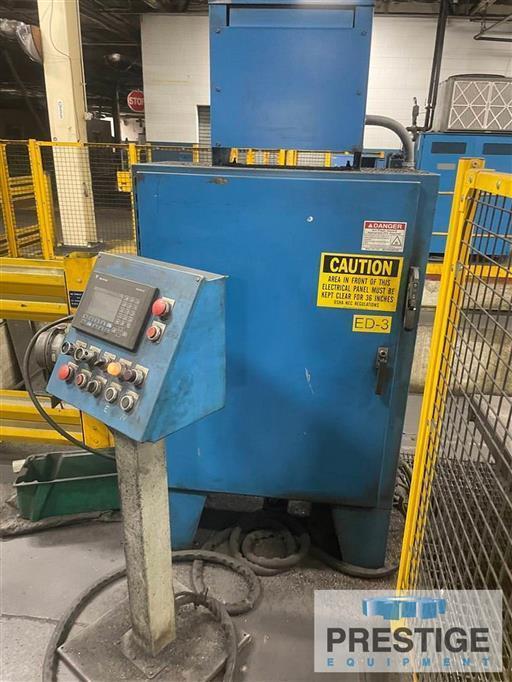

Lubricool Chiller Unit for Headstock Lube Oil
Adjustable Pendant Mounted CRT
Sissor Lift Platform
Thru-Spindle and Flood Coolant
Spindle Growth Compensation
Power Draw Bar, Collet Type

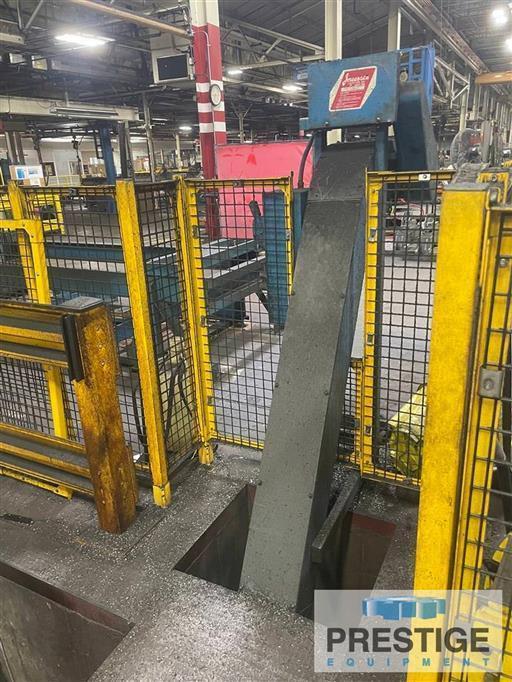

Chip Conveyor and Elevator
Hardened Ways
Chip Conveyor

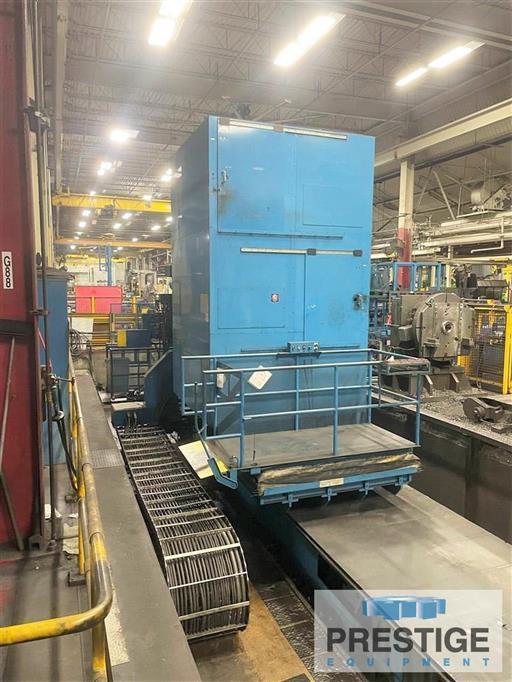

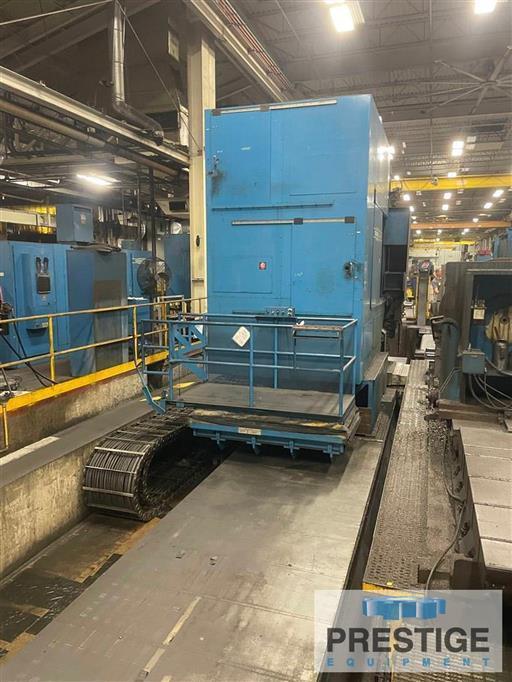

Operators Platform
Heavy Duty Meehanite Casting Construction
Non-Metallic Way Liners
Double Motor Pinion Drive on X-Axis Rack

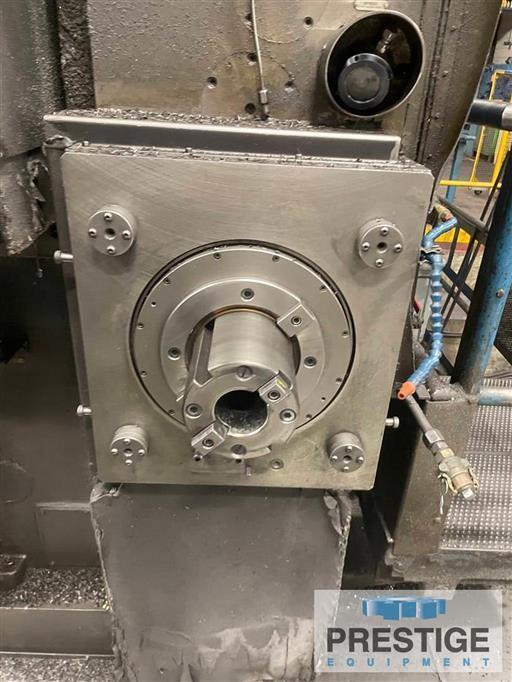

Software for CH-8 Giddings & Lewis CNC Facing Head
Automatic Lubrication of All Machine Ways
40 HP Spindle Drive Motor

Note:


Complete Documentation Available
80-Station ATC Available
