CAPACITY:

Spindle Diameter 6"
Spindle Taper No.50 ANSI
X-Axis Column Travel 408"
Y-Axis Vertical Head Travel 91"
Z-Axis Spindle Travel 48"
Spindle Drive Motor 50 HP
Spindle Speed Range, Inf.Variable 12-2500 RPM
Traverse Rate, X-Axis 400 IPM
Traverse Rate, Y-Axis 450 IPM
Feed Rates, X, Y & Z Axes 150 IPM
Electrics 480V 3Ph 60 Cycle

Equipped With:

Giddings & Lewis 8000M-B CNC Control
80 Tool Automatic Tool Changer
Independent AC Electric Servo Feed Drives
Infinitely Variable Spindle Speeds
Lubricool Chiller Unit for Headstock Lube Oil
Adjustable Pendant Mounted CRT
Thru-Spindle and Flood Coolant
Power Draw Bar, Collet Type
Chip Conveyor and Elevator
Operators Platform
Heavy Duty Meehanite Casting Construction
Non-Metallic Way Liners
Double Motor Pinion Drive on X-Axis Rack
Software for CH-8 Giddings & Lewis CNC Facing Head
Automatic Lubrication of All Machine Ways
50 HP Spindle Drive Motor


Notes:

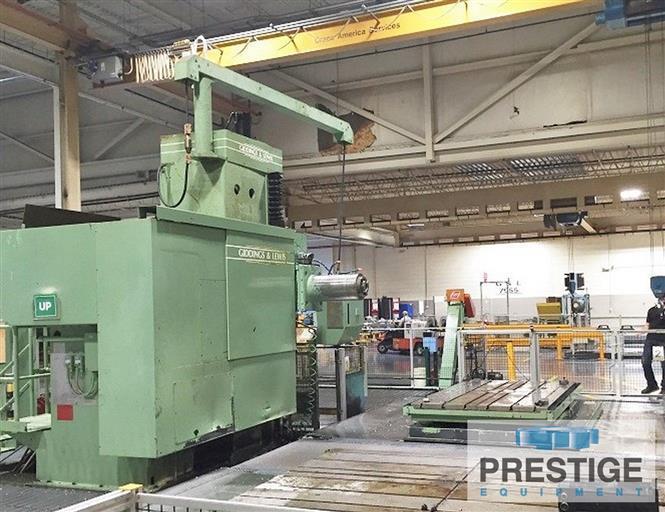

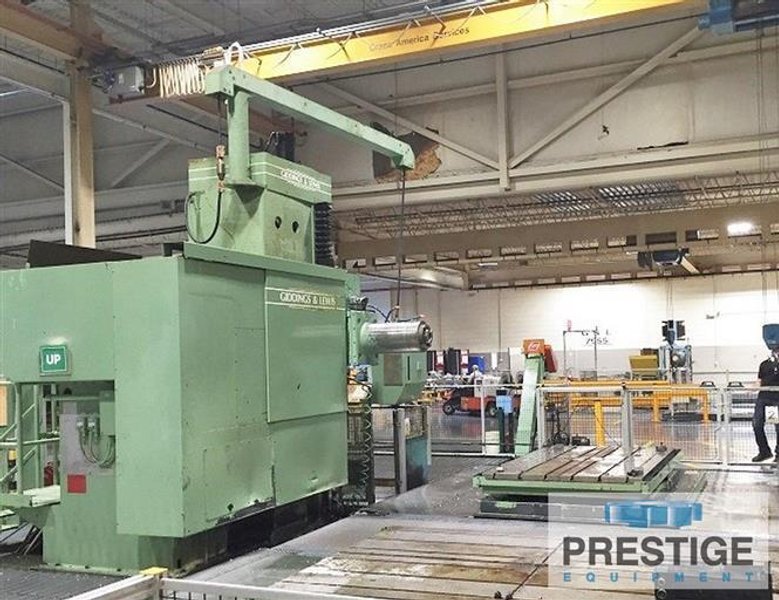

Complete Documentation Available. Rotary Tables in Photos Are Not Available
