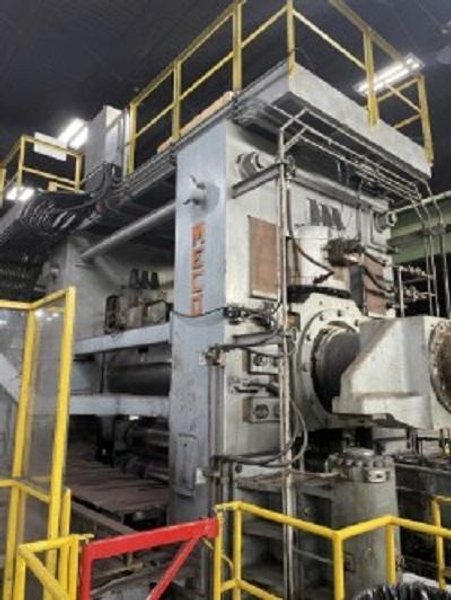

96" x .500" x 90,000# (2489mm x 12.7mm x 45 TON) MECO/BRADBURY TEMPER MILL CUT-TO-LENGTH LINE
Brand
Category
Type
Model
Not specified
Stock #
117132
Year
Not specified
Condition
Used
Location
Not specified
|
MANUFACTURER - MECO, BRADBURY, BUTECH, STRILICH
STATUS - INSTALLED & OPERATING
YEAR - 1998 (WITH UPGRADES)
LINE DIRECTION - LEFT to RIGHT
MATERIALS - HOT ROLLED STEEL (PICKLED or BLACK)
THICKNESS - 12.7 mm (.500") MAX., 1.7 mm (.065") MIN.
COIL WIDTH - 2489 mm (98") MAX., 1219 mm (48") MIN.
COIL WEIGHT - 40823 kg (90,000#) MAX.
COIL OUTSIDE DIAMETER - 2134 mm (84") MAX., 1219 mm (48") MIN.
COIL INSIDE DIAMETER - 711 mm (28") to 813 mm (32")
CUT SHEET LENGTH - 18288 mm (720") MAX., 1219 mm (48") MIN.
MAX. BUNDLE HEIGHT - 610 mm (24")
MAX. BUNDLE WEIGHT - 36287 kg (80,000#) PER 6096 mm (240") CONVEYOR SECTION
LINE SPEED - 76 MPM (250 FPM) MAX. BELOW 6.35 mm (.250") THICK and 46 MPM (150
FPM) MAX. ABOVE 6.35 mm (.250") THICK
LINE COMPONENTS:
ENTRY COIL STORAGE SADDLES w/ SPACE FOR SEVEN (7) MAXIMUM WIDTH COILS
ENTRY COIL WEIGH STATION
FLOOR LEVEL COIL LOADING CAR #1 (PERPENDICULAR TRAVEL TO UNLOAD SADDLES)
FLOOR LEVEL COIL LOADING CAR #2 (PARALLEL TRAVEL TO LOAD UNCOILER)
DUAL EXPANDING MANDREL UNCOILER
(1) 55.9 Kw (75 HP) DRIVE ON EACH MANDREL
PIVITING HOLD DOWN ROLL
TWO (2) DRIVEN ROLLS AND HEAVY DUTY ANVIL TO ASSIST BACK BENDING WITH THE
PEELER
PIVOTING AND TELESCOPING PEELER BLADE w/ REPLACEABLE TIP
FIVE (5) ROLL ENTRY PINCH ROLL AND FLATTENER ASSEMBLY
(1 )55.93 Kw (75 HP) DRIVE
ENTRY CROP SHEAR AND SCRAP DISPOSAL SYSTEM
TEMPER MILL THREADING TABLE
MECO FOUR (4) HIGH NON-REVERSING TEMPER MILL
(2) 482.6 mm (19") DIAMETER WORK ROLLS
(2) 1117.6 mm (44") DIAMETER BACKUP ROLLS
(2) 372.85 Kw (500 HP) DRIVES
STRIP ACCUMULATION TABLE w/ ENTRY DEFLECTOR ROLLS, ELEVATING HUMP ROLL & EXIT
DEFLECTOR ROLLS
PLATE TYPE STRIP CENTERING GUIDES
LEVELER ENTRY PINCH ROLL ASSEMBLY
(1) 36.78 Kw (50 HP) DRIVE
BRADBURY HEAVY GAUGE ELEVEN (11) ROLL FOUR (4) HIGH HYDRAULIC LEVELER
(11 )171.5 mm (6.75") DIAMETER WORK ROLLS
(7) ADJUSTABLE BACKUP FLIGHTS
(1) 447.42 Kw (600 HP) DRIVE
STRIP INSPECTION TABLE
BRADBURY LIGHT GAUGE ELEVEN (11) ROLL FOUR (4) HIGH HYDRAULIC LEVELER
(11) 88.9 mm (3.50") DIAMETER WORK ROLLS
(9) ADJUSTABLE BACKUP FLIGHTS
298 Kw (400 HP) DRIVE
(CURRENTLY NOT IN OPERATION)
INKJET STRIP MARKING SYSTEM
MATTHEWS STENCILER SYSTEM (MPERIA V-SERIES VIAJET DOD MARKING SYSTEM)
PLATE TYPE STRIP CENTERING GUIDES
SHEAR ENTRY PINCH ROLL ASSEMBLY
(1) 11 Kw (15 HP) DRIVE
BUTECH SINGLE RAKE OSCILLATING SHEAR w/ QUICK CHANGE KNIFE ASSEMBLY
(1) 221 Kw (300 HP) OSCILLATING DRIVE & (1) 110 Kw (150 HP) RAM DRIVE
CUT SHEET TRANSFER CONVEYOR w/ NON-MARKING BELTS AND PIVOTING REJECT STATION
STACKER DECELERATION ROLLS
STRILICH SHEET STACKER
THREE (3) 6.1 METER (20 FOOT) ZONES
ADJUSTABLE END STOP
PIVOTING SUPPORT ARMS
POWERED SQUARING GUIDES
60' END DISCHARGE STACKER RUNOUT CONVEYORS w/ DRIVEN ROLLERS
60' NINETY (90) DEGREE ROTATING CONVEYOR w/ DRIVEN ROLLERS
60' OFFLINE STORAGE CONVEYOR #1 w/ DRIVEN ROLLERS
60' OFFLINE STORAGE CONVEYOR #2 w/ DRIVEN ROLLERS
60' OFFLINE STORAGE CONVEYOR
OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
|
