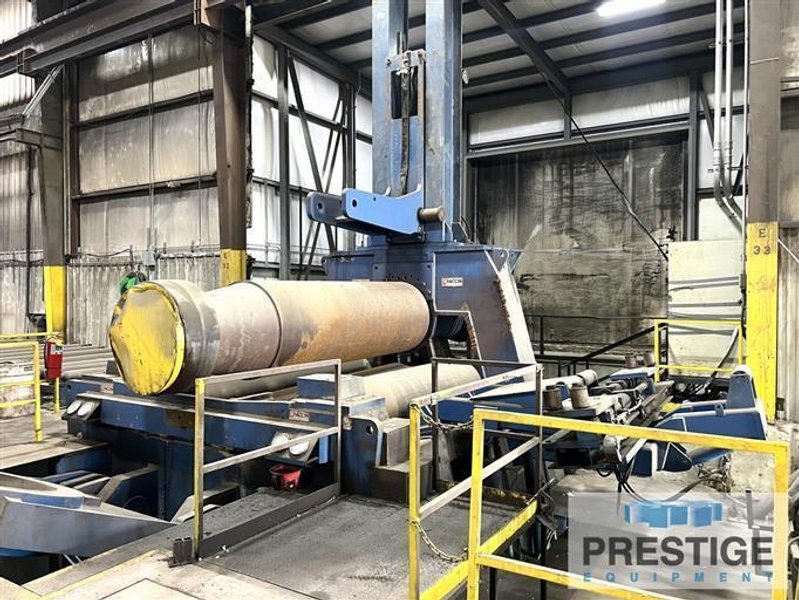

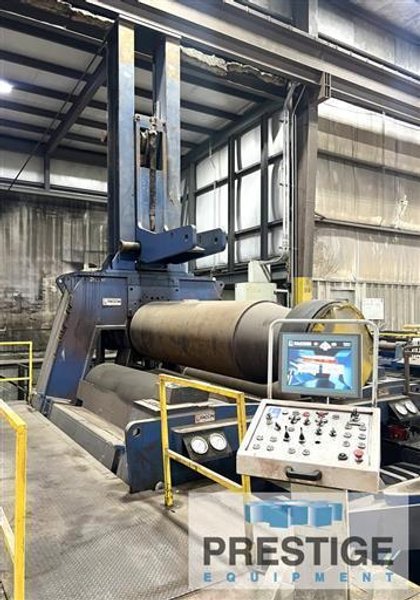

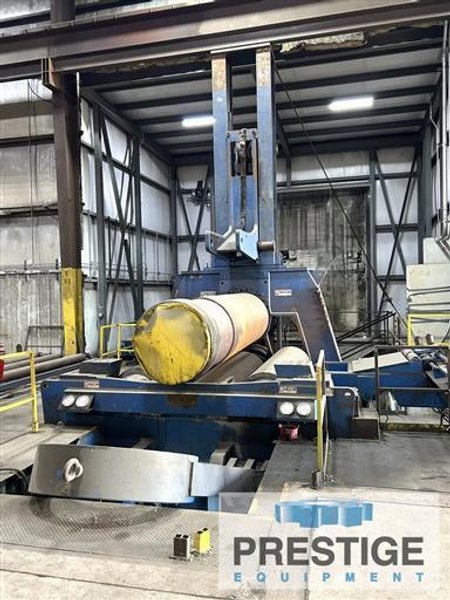

Faccin 4 HELS-31105 4-Roll 6.29" x 10' CNC Plate Bending Roll

SPECIFICATION:
Max. Plate Length 120"
Number Of Rolls 4
Top Roll Diameter 41.33"
Lower Roll Diameter 37.40"
Side Rolls Diameter 30.70"
CAPACITY:FULL LENGTH @ 260 N/mm2, 206" ID:
Max. Bending Thickness 6.29"
Max. Prebend Thickness 5.51"
FULL LENGTH @ 260 N/mm2, 53" ID:
Max. Bending Thickness 5.51"
Max. Prebend Thickness 5.11"
FULL LENGTH @ 360 N/mm2, 206" ID:
Max. Bending Thickness 5.43"
Max. Prebend Thickness 4.72"
FULL LENGTH @ 360 N/mm2, 53" ID:
Max. Bending Thickness 4.72"
Max. Prebend Thickness 4.40"
HALF LENGTH @ 360 N/mm2, 206" ID:
Max. Bending Thickness 7.87"
Max. Prebend Thickness 6.88"



Equipped With:
Faccin PGS-Classic NC Control
4-Rolls Design
Electronic Roll Balancing
Electronic Conical Bending from Mobile Console
Interchangeable 30.79" Top Roll
Hydraulic Drop End
Overhead Plate Support
Side Support
Feed Table
